4MP 8MP Dual Light Panoramic Camera POE Built in Mic Speaker Human Detect Color Night Vision Surveillance Hikvision Compatible

Hikvision Compatible 4MP 8MP Panoramic Colorvu IP Camera Built in Mic Speaker Human Detection CCTV Surveillance Network Cameras

>APP：VIDEOLINK（IOS,Android）, support download by QR code（If the camera needs to be added to the NVR, use the NVR APP management）

>Search Tool：SADP /AjDevTools（modify the default ip address and password）

>Retset Tool：Videolink/ Internet Explorer

>Default IP：192.168.1.110

>Username：admin

>Password：123456

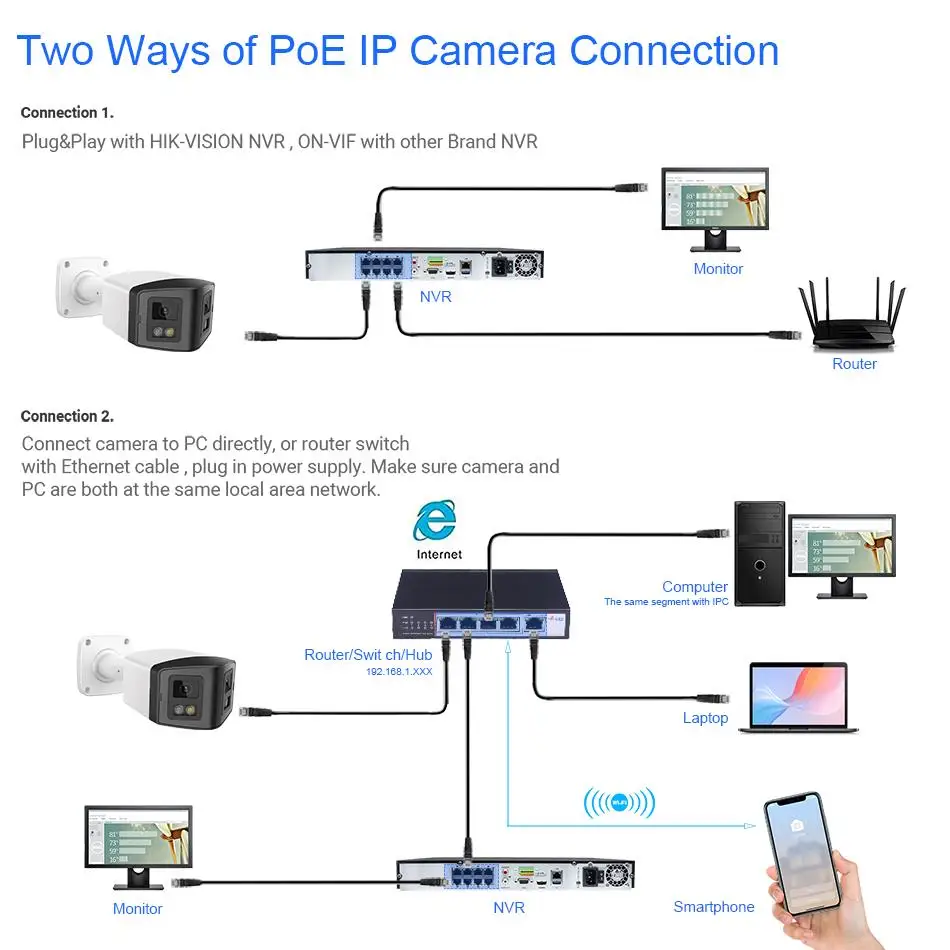

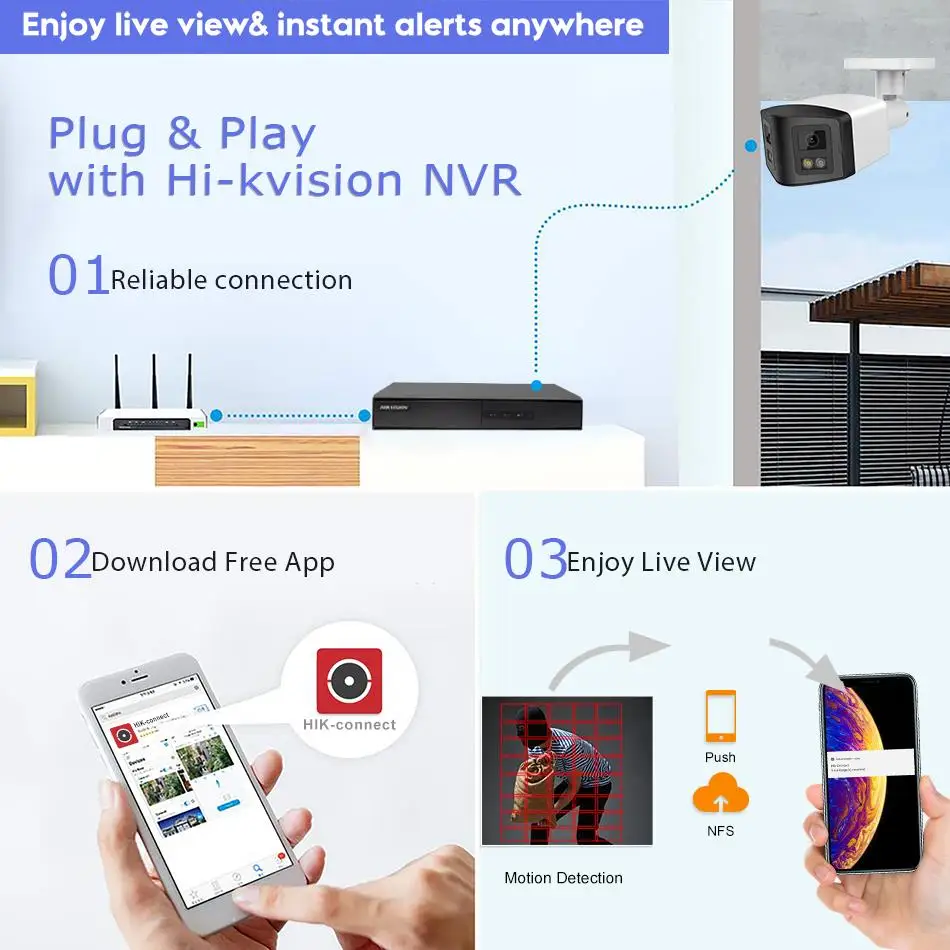

>>>Notice  ： This camera isNOT HIKVISION ORIGINAL, is HikvisionCompatible, itcan plug & play with Hikvision NVR, support most of the other brands NVR that support On-Vif protocol，and the camera can be worked with most of security monitor software, likeBlue Iris, iSpy, VLC, and so on

4/8MP Dual illumination Panoramic Network Camera

>High quality imaging with 4/8 MP resolution

>4MP (3840*1080 170°&40°)；8MP(4096*1944 160°&70°)

>One image that presents all the scenes covered by the camera

>24/7 colorful imaging

>Efficient H.265+ compression technology

>Clear imaging against strong back light due to 120 dB WDR technology

>Motion Detection

>Smart Dual Light, with 3 light mode

>Water and dust resistant

1.Camera

Image Sensor : 4MP:1/2.9" GC2063 CMOS; 8MP:1/2.7" GC5623  CMOS

Min. Illumination : Color: 0.05lux @(F1.6), 0 lux with IR light

Shutter Speed  : 1/10 s to 1/10,000 s

Slow Shutter : Yes

Day & Night : IR CUT Filter

Digital Noise Reduction : 3D DNR 2D DNR

WDR : 120dB

Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

2.Lens

Focal Length : Fixed focal lens,dual lens, 4MP(4mm*2),8MP(2.8mm*2)

Aperture : F1.6

Focus : Fixed

Focus Length & FOV : 4MP(horizontal FOV: 170°, vertical FOV: 40°); 8MP(horizontal FOV: 160°, vertical FOV: 70°)

Lens Mount : M12

3.Illuminator :

White Light & IR Range : Up to 30 m

Smart Supplement Light : Yes

4.Compression Standard :

Main stream: H.265+/H.265/H.264

Video Compression : Sub-stream: H.265+/H.265/H.264

H.264 Type : High Profile/Main Profile/Base Profile

H.265 Type : High Profile/Main Profile/Base Profile

H.265+ : High Profile/Main Profile/Base Profile

5.Smart Feature-set :

Smart Event : 4MP(Human detection),Vehice detection; 8MP(Human detection,Vehice detection)

Basic Event : Motion detection

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email

Linkage Method : Trigger notification: HTTP, Email

6.Image :

Max. Resolution : 4MP(3840 × 1080); 8MP(4096 × 1944)

Main Stream : 4MP(3840 × 1080 20fps); 8MP(4096 × 1944 20fps)

Sub-Stream : 4MP(1280 x 360 20fps); 8MP(20 fps 1280 x 360 ；20 fps 768 x 360)

Image Enhancement : WDR/HDR/3D DNR/2D DNR/HLC/BLC

Image Setting : Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser

SVC : H.264 and H.265 encoding support

Day/Night Switch : Day/Night/Auto/Schedule

7.Network

Network Storage : Support local storage and NAS (NFS, SMB/CIFS)

Protocols : HTTP, RTSP, DHCP, FTP, NTP,ONVIF,P2P,SMTP,RTMP

Client : AJ_Client,AVideolink,LMS

8.Interface :

Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port

Built-in Microphone : Yes

Built-in Speaker : Power: 3W.MAX. Sound pressure lever:10cm: 100dB.

Reset Key : Yes

On-Board Storage : Built-in memory card slot, support microSD card,up to 512GB

9.General

Operating Conditions : -30 °C to +85 °C, humidity 95% or less (non-condensing)

Web Client Language : 14 languages: English,Russian,German,Italian,Turkish, Korean,Japanese,Traditional Chinese,Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi

Power Consumption and Current : DC 12V, 1 A, max. 10 W Φ 5.5X2.1 mm coaxial plug power

PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5W

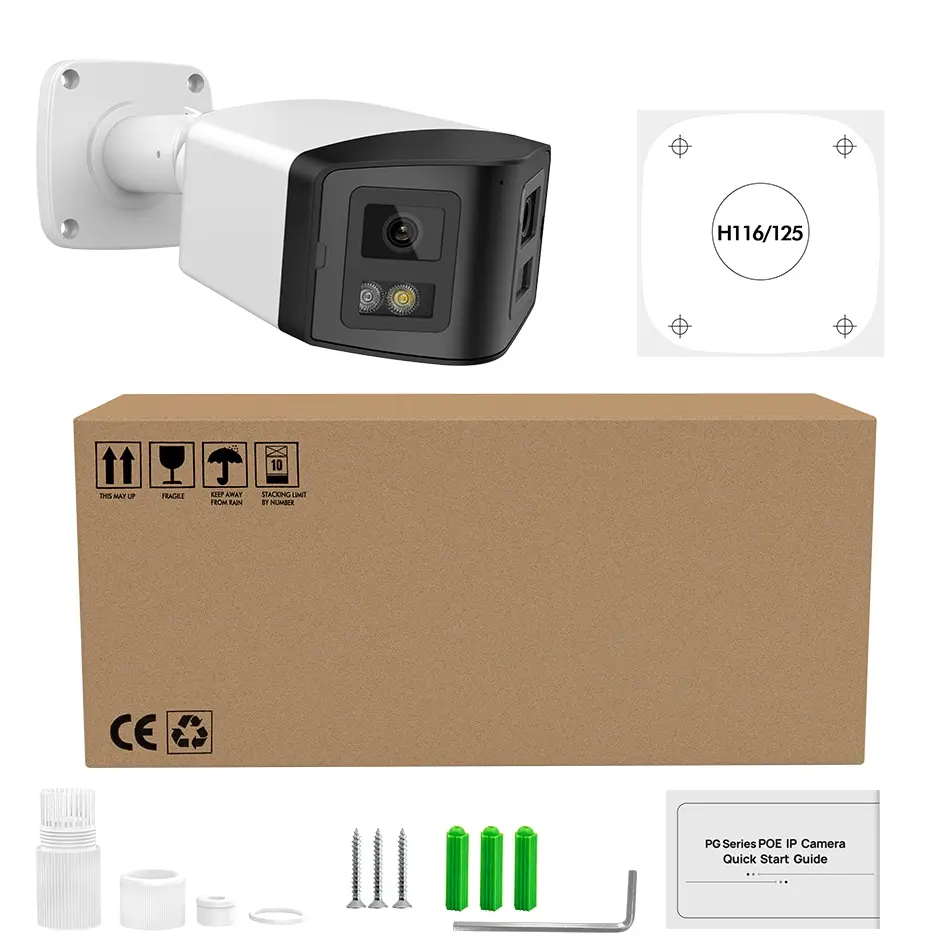

*Bullet :

Protection Level : IP67-Each Camera has been tested waterproof

Material : Front cover:metal,body:metal,bracket:metal

Camera: 236.1 × 110 x 74mm (9.29" × 4.33 x 2.91")

Dimensions : Package: 325 × 125 × 120 mm (12.8" × 4.92" × 4.7" )

Weight : Apporx.650g(1.43 lb)

With Package Weight : Apporx.800g(1.76 lb)

*Turret :

Protection Level : IP66-Each Camera has been tested waterproof

Material : Front cover:metal,body:plastic,bracket:plastic

Dimensions : Camera:  137.5 × 100mm   (5.41" × 3.94")

Package: 173 × 173 × 120 mm (6.81" × 6.81" × 4.7" )

Weight : Apporx.460g(1.01 lb)

With Package Weight : Apporx.600g(1.32 lb)

SMART H.264/H.265
