120W 240W 360W 480W Tempered Glass Solar Panel Rigid Painel 12V 1-4pcs Windproof Anti-snow Anti-hail PV Panels Solar System

120W 240W 360W 480W Tempered Glass Solar Panel Rigid Painel 120V 1-4pcs Windproof Anti-snow Anti-hail PV Panels Solar System

Features:

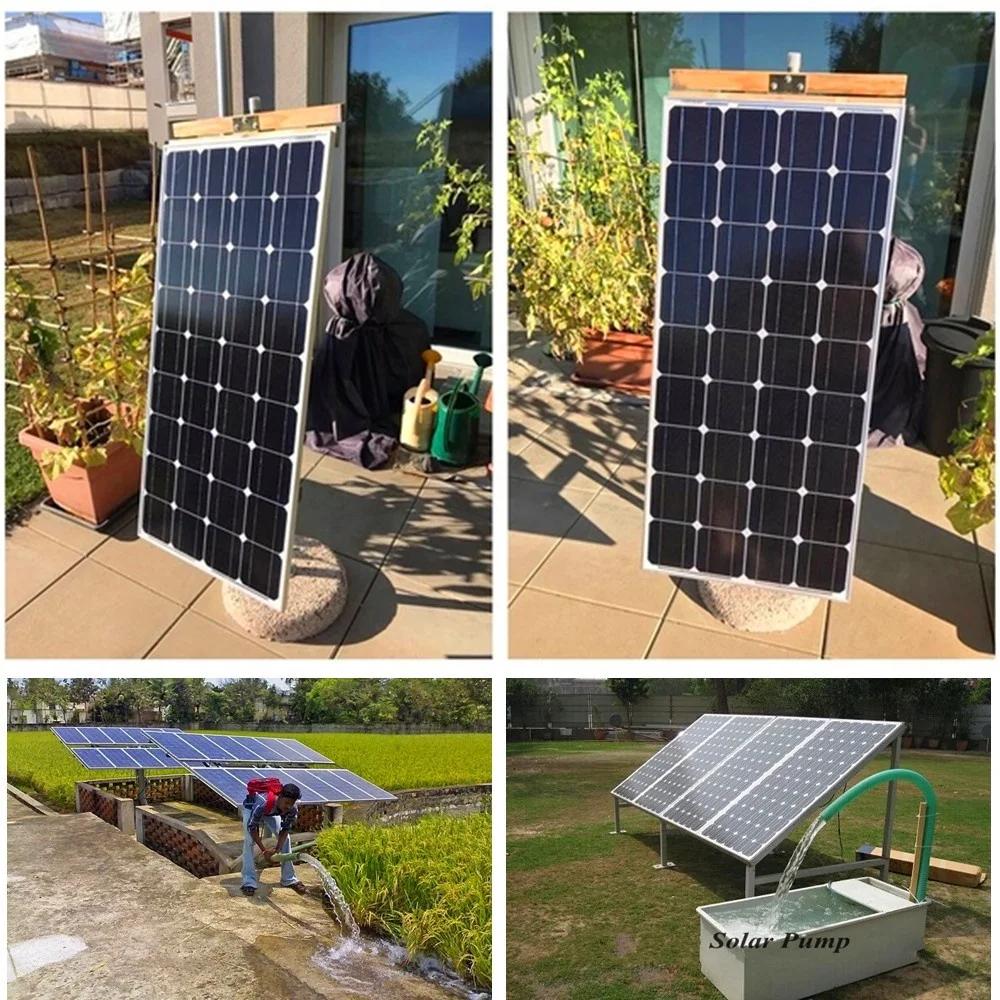

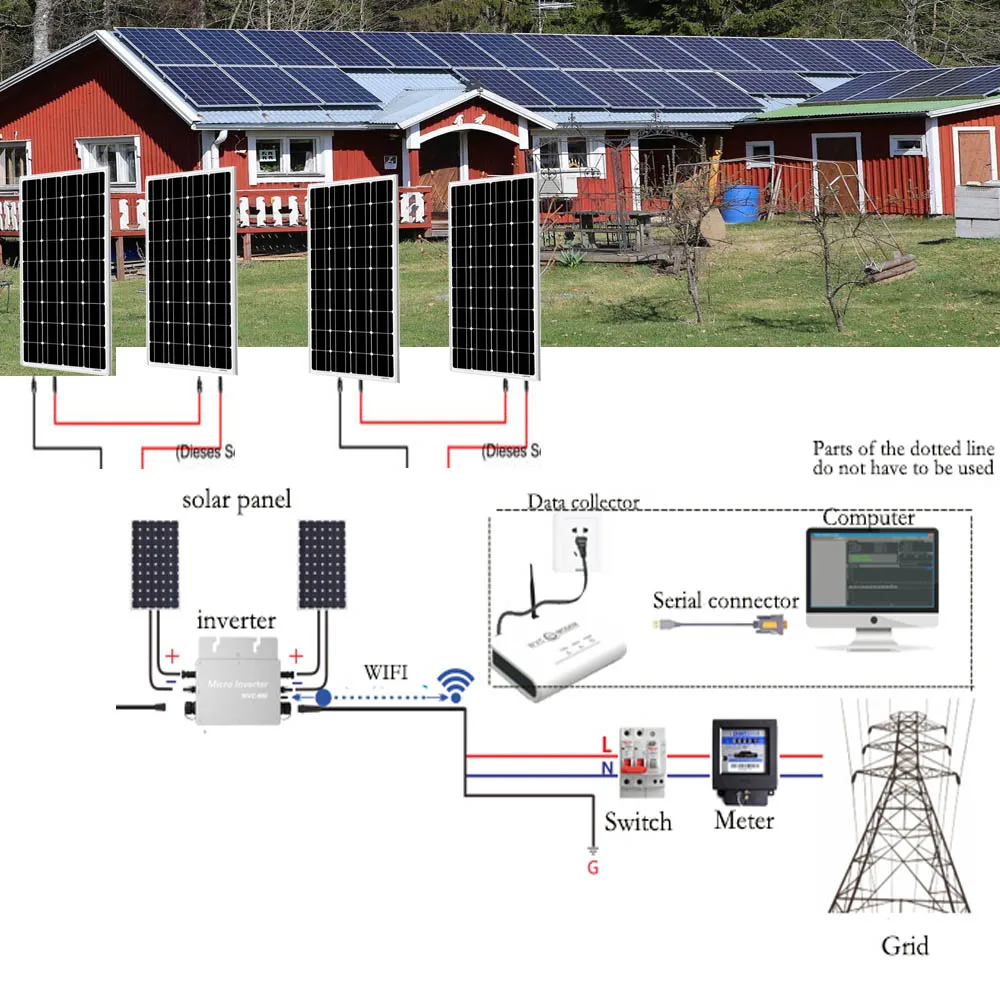

1. Basic component for on-grid, off-grid solar panel system, caravan, RV, boat, Green house solar panel system

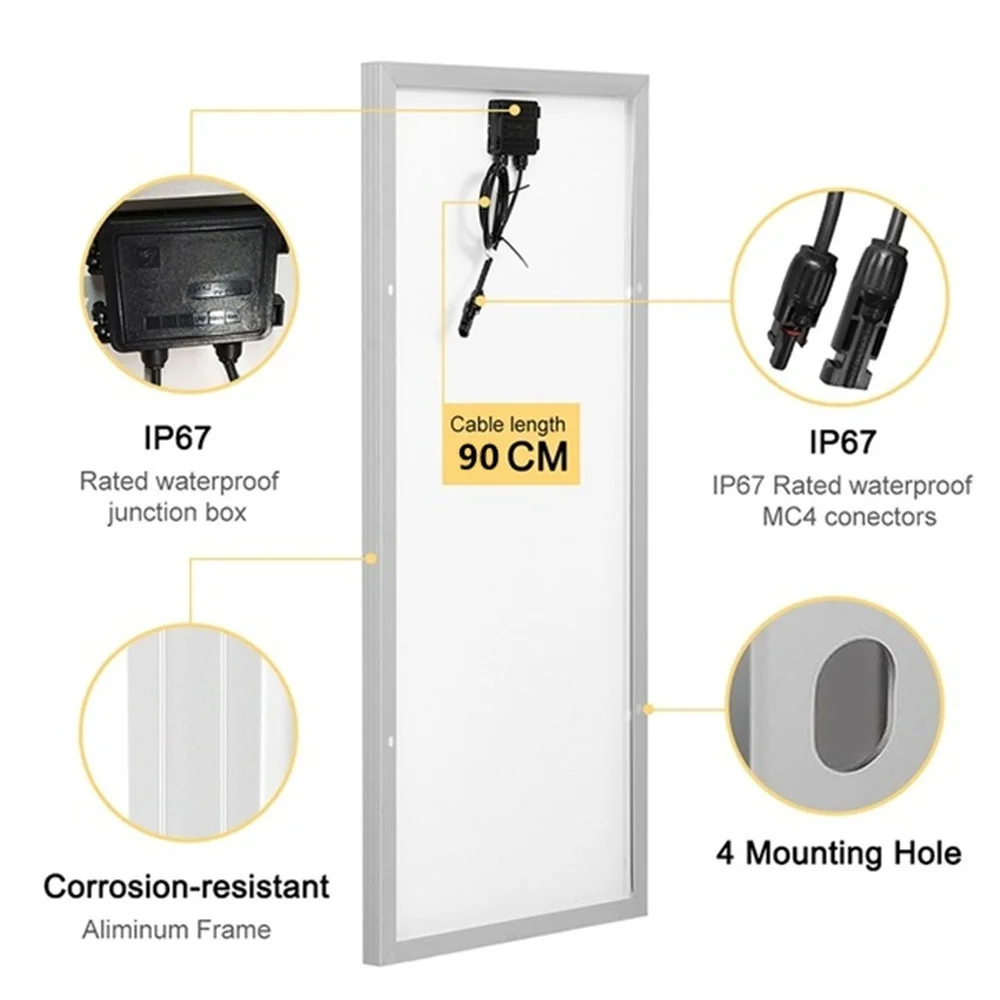

2. Easy Installation with pre-drilled hole. each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connector.
3. By-Pass Diode minimized the impact of shade.

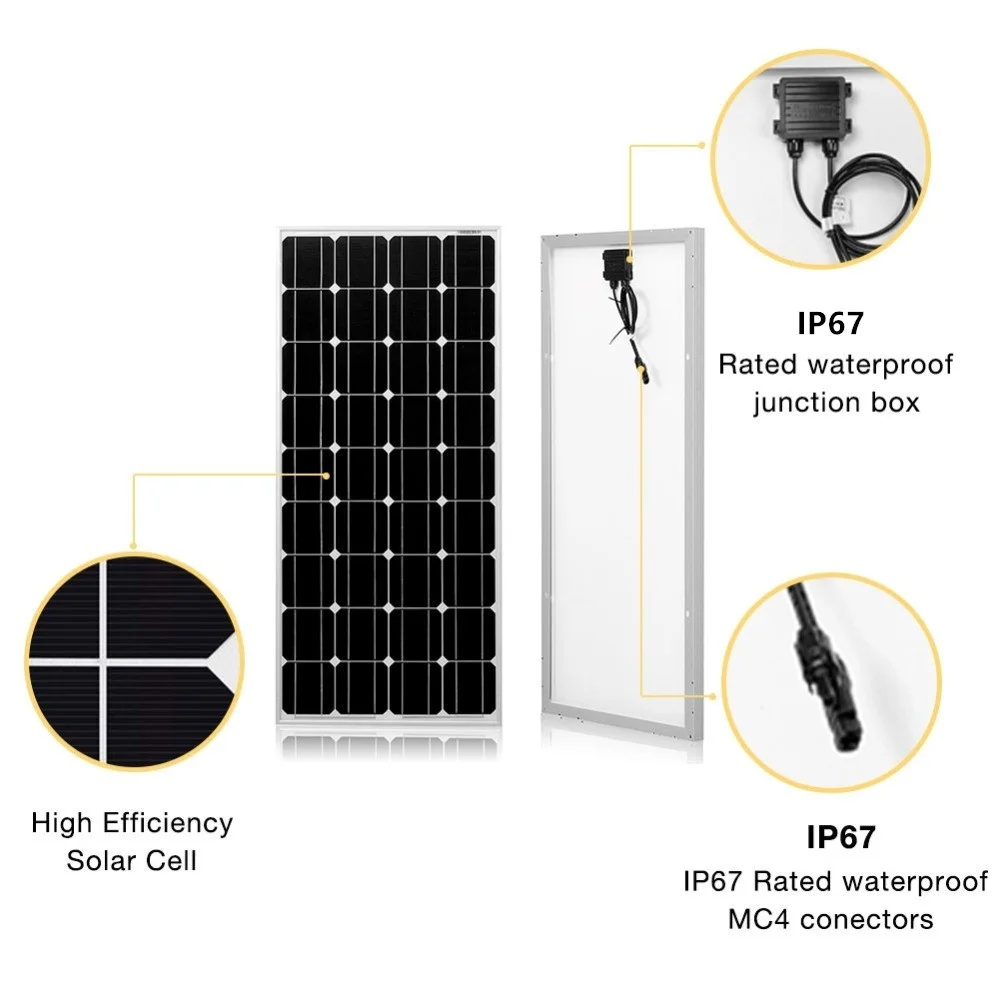

4. Waterproof IP-65 Rated Junction Box : Advanced water and dustproof level (complete protection against environmental particles and low pressure water jets).
5. Resistance to Salt Corrosion and Humidity
6. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades，25 years of service life as well as withstand high winds (2400Pa) and snow loads (5400Pa),Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)

Solar Panel Specification:

Rated Power 120 Watt

Operating Voltage(Vmp) 18Voltage

Open circuit voltage（Voc） 21.6 Voltage

Short circuit current (Isc) 6.93 A

Working current (Imp) 6.66A

Output Tolerance ±5%

Max System Voltage 1000V DC(IEC)/600V DC (UL)

Diode 2 By Pass

Junction Box IP 65 Rated

Temperature range -40 Degree to 80 Degree

Frame Heavy And Solid Aluminum Alloy

Kind of Glass 3.2 MM Tempered glass
Output Cable 2.5MM 90MM(0.09*3.54Inches)

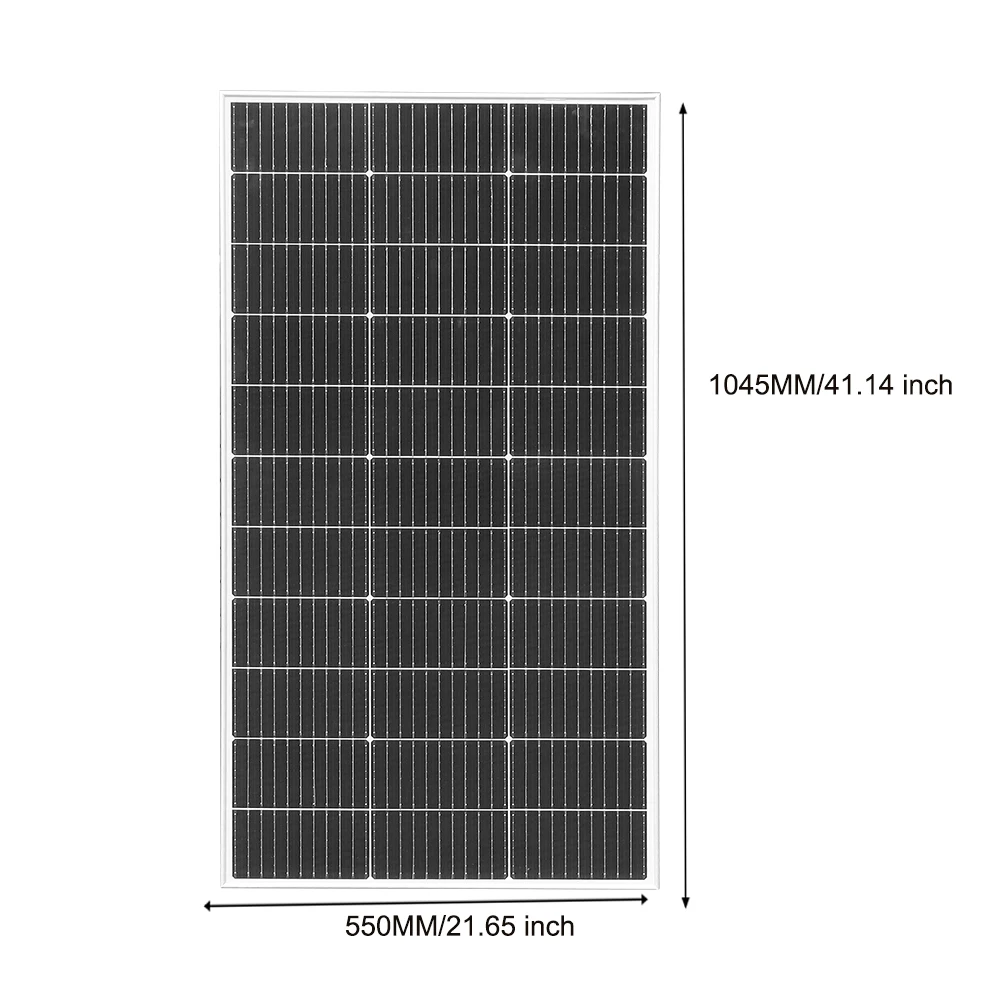

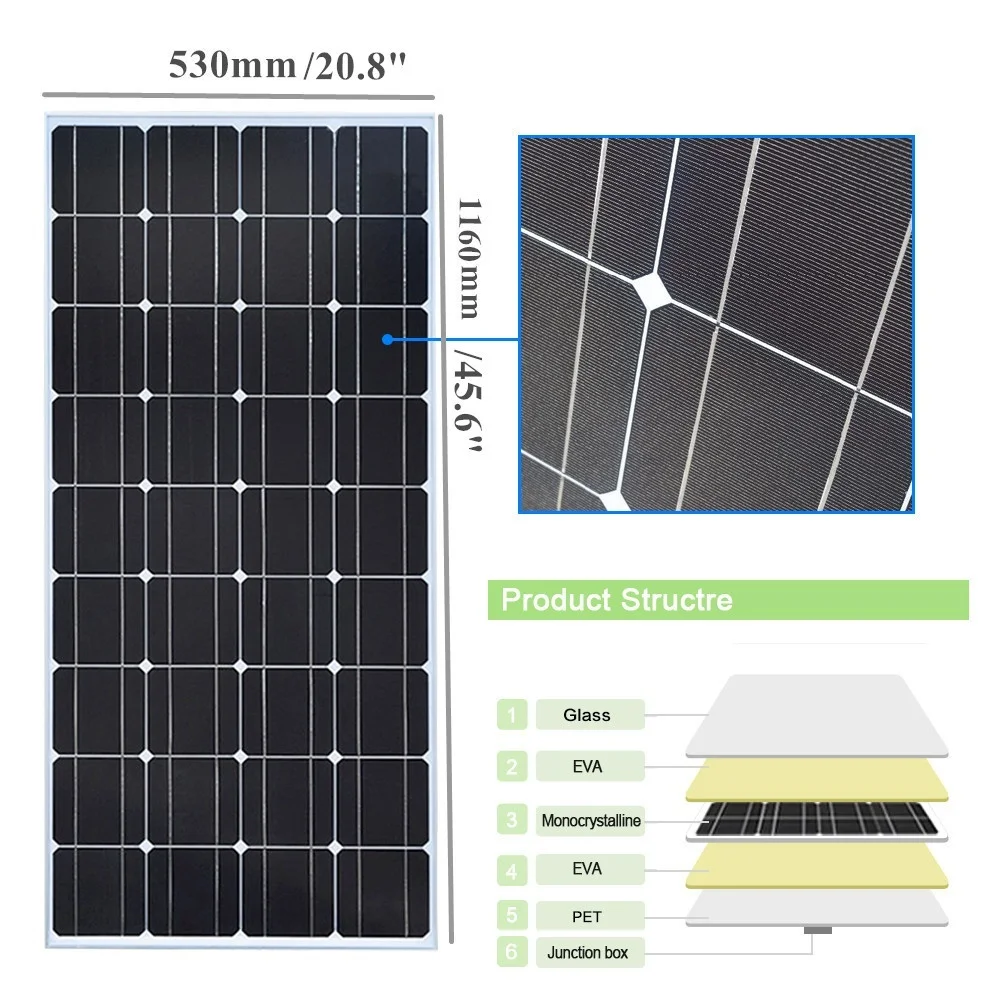

Dimensions 1160*530*25MM/1045*550*25mm

Weight 6.5Kg

Compact and Reliable - The 120W 18V Monocrystalline solar panel delivers a stable output of an average 600Wh of electricity per day (depending on sun availability). With its compact solar cell arrangement.

OR

【Durable Solar Panel】XINPUGUANG 18 Volt 120 watt solar panels feature corrosion-resistant aluminum frame. It can also withstand strong winds of 2400Pa and Snowload of 5400Pa. Both the IP65 junction box and IP67 has an excellent waterproof function. Allows you to use it outdoors with confidence.
☀【Installation Friendly】Each 18V solar panel has specially designed pre-drilled holes for easy installation. It can fully meet the installation needs of various applications.
☀【Long Warranty】As a professional solar system manufacturer, We promise an extra-long transferable power output warranty of 25 years. Whenever you encounter any problems, BOGUANG Solar Panels Service will actively provide you with professional off grid system solutions.

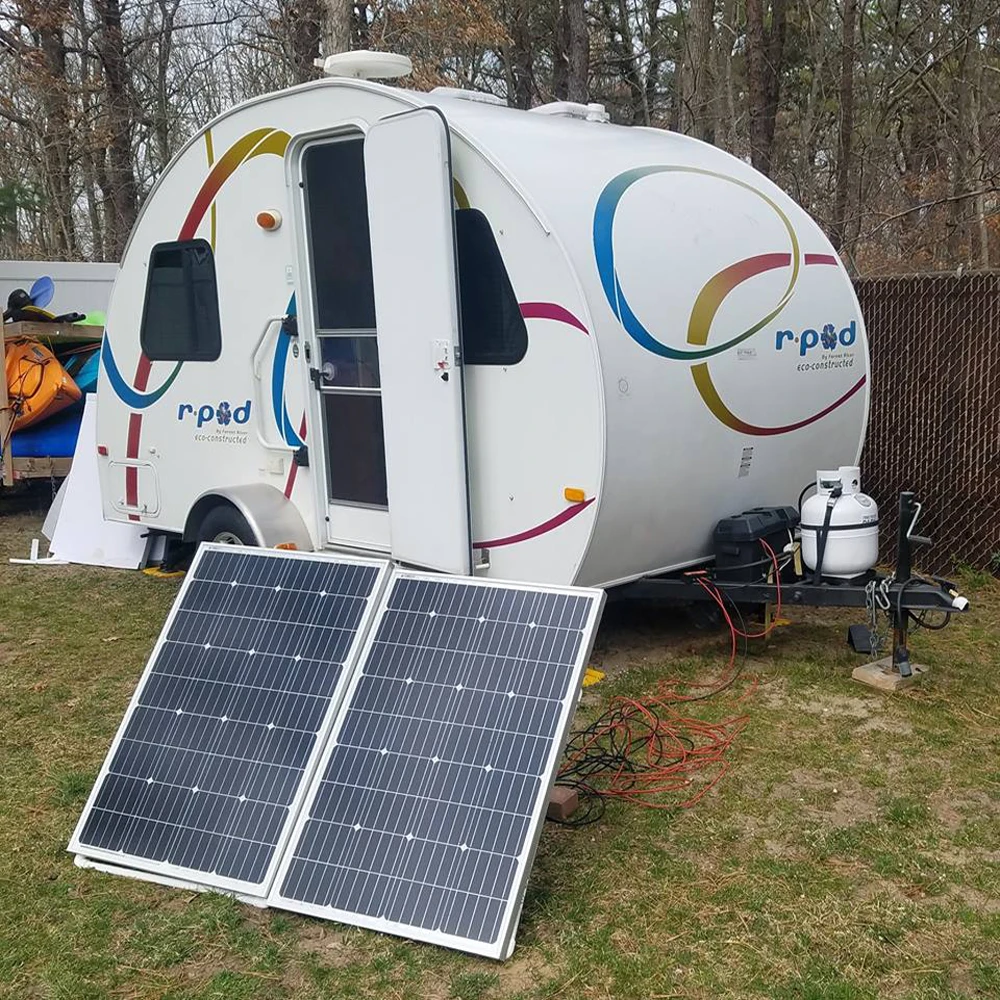

☀【Versatile】Use it for your RV when camping, or during beach trips with the family, either way this monocrystalline panel provides you with the most efficiency per space.Maximum Series Fuse Rating: 15A

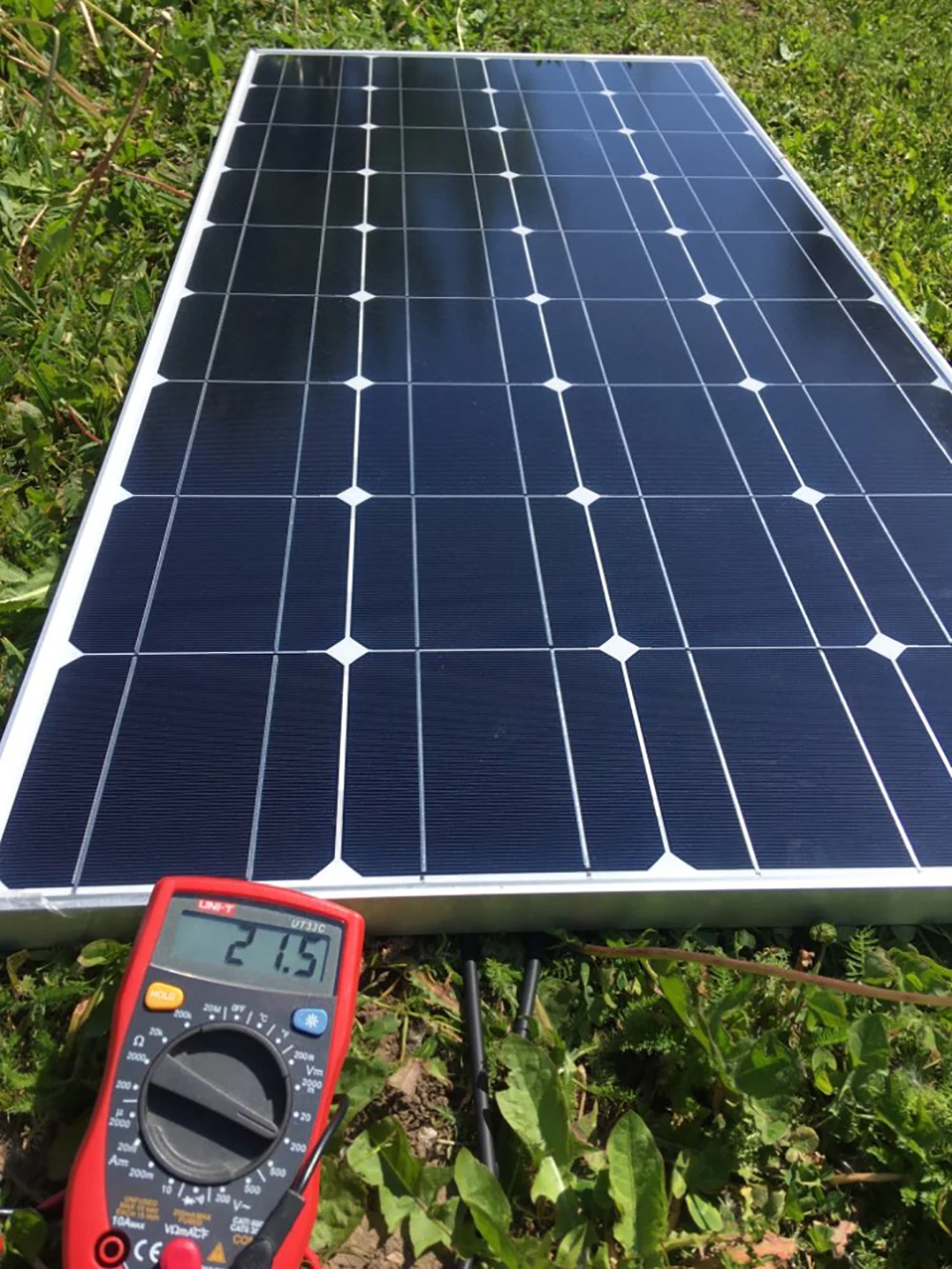

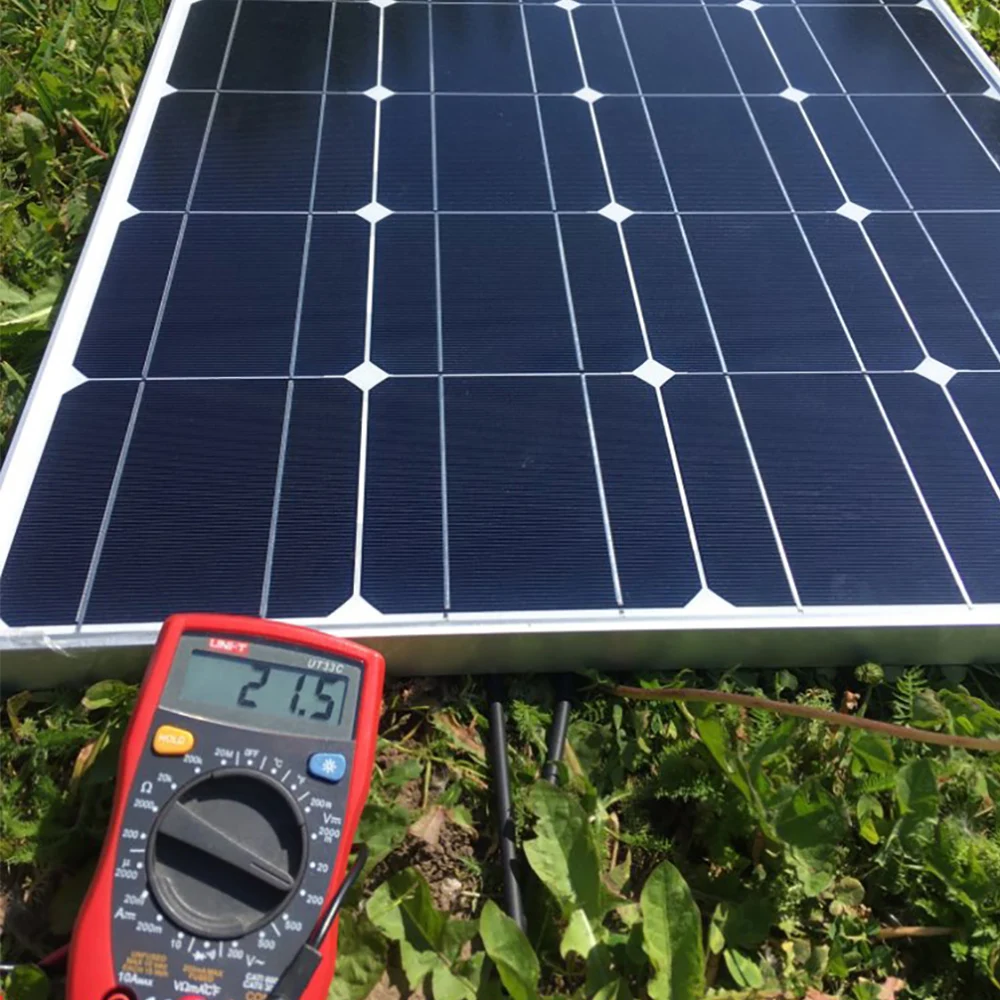

Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.

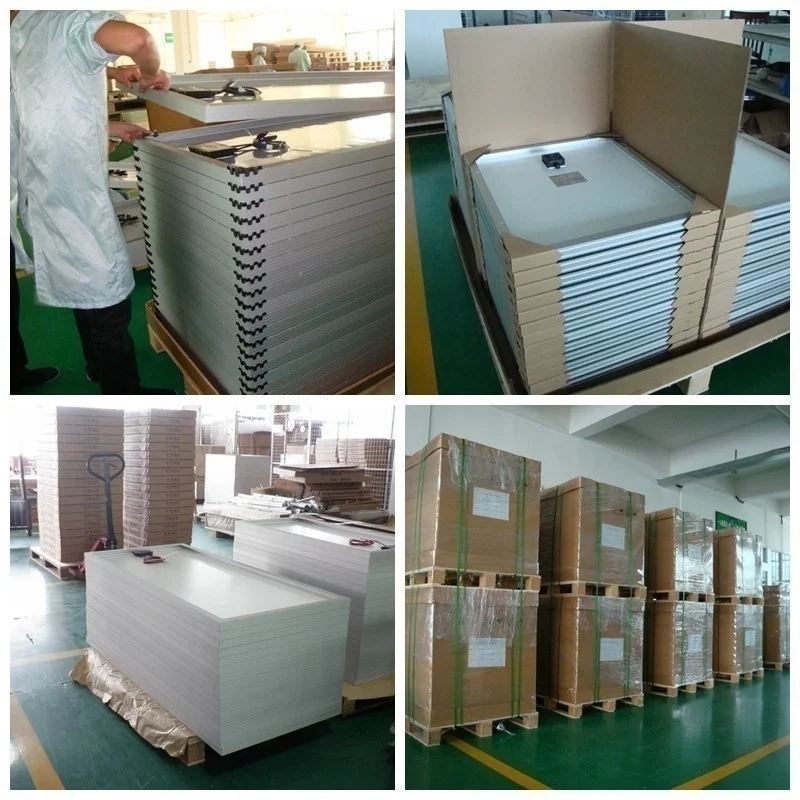

Product Packing:

120W Packing Listing: 1 * 120w solar panel

OR

Product Packing:

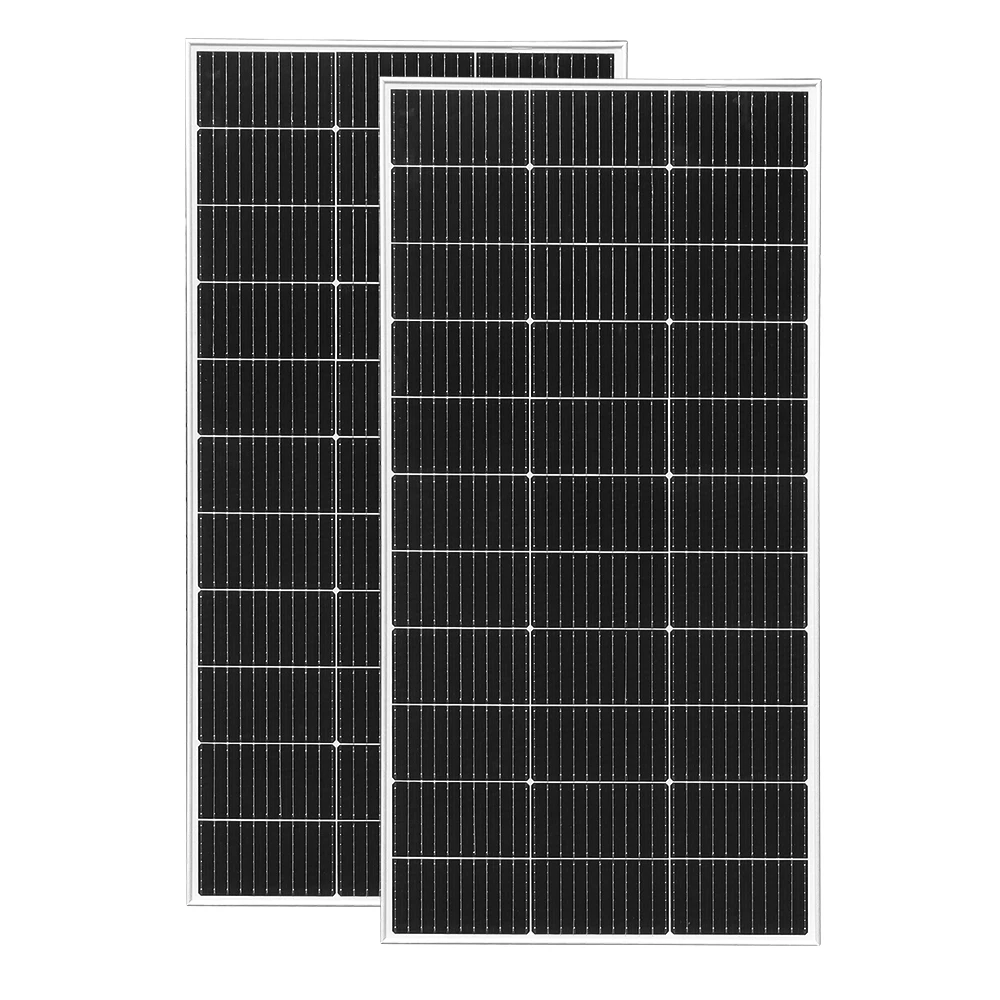

240w Packing Listing: 2 * 120w solar panel

Product Packing:

360w Packing Listing:3 * 120w solar panel

Product Packing:

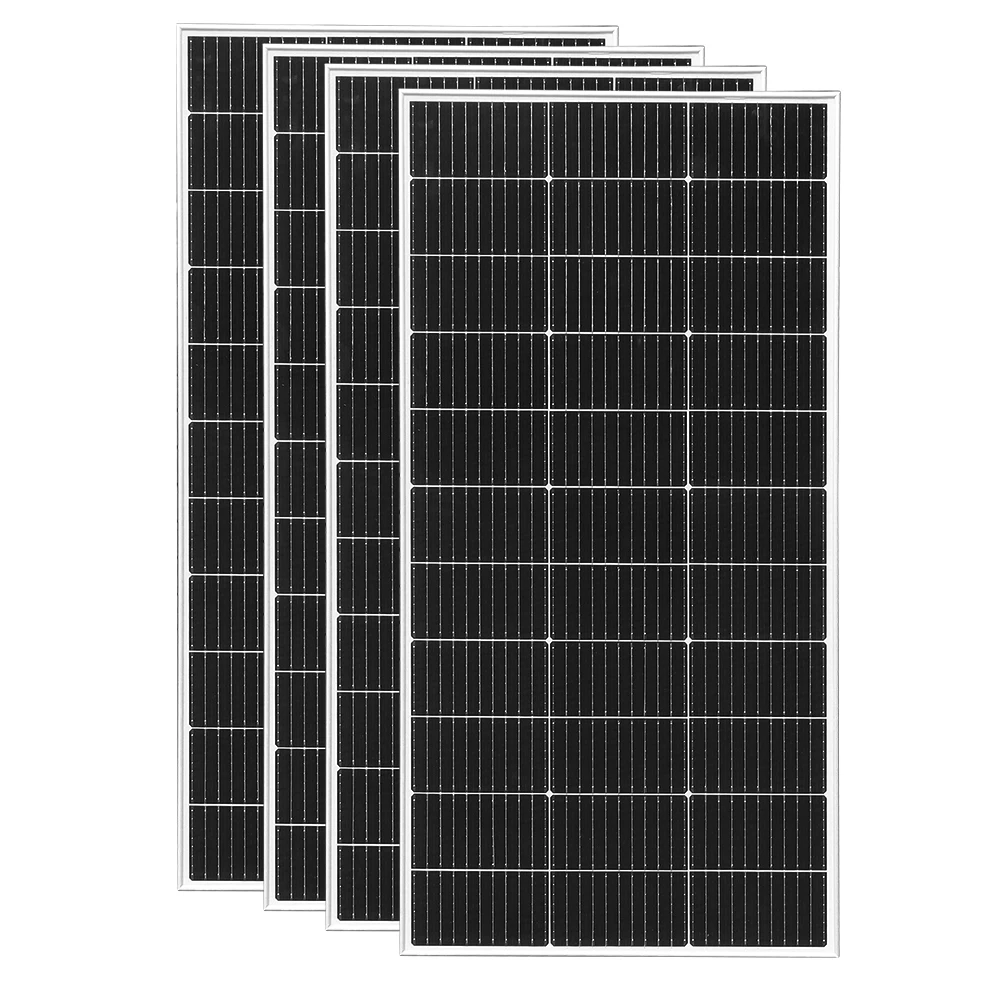

480w Packing Listing:4 * 120w solar panel

Product Packing:

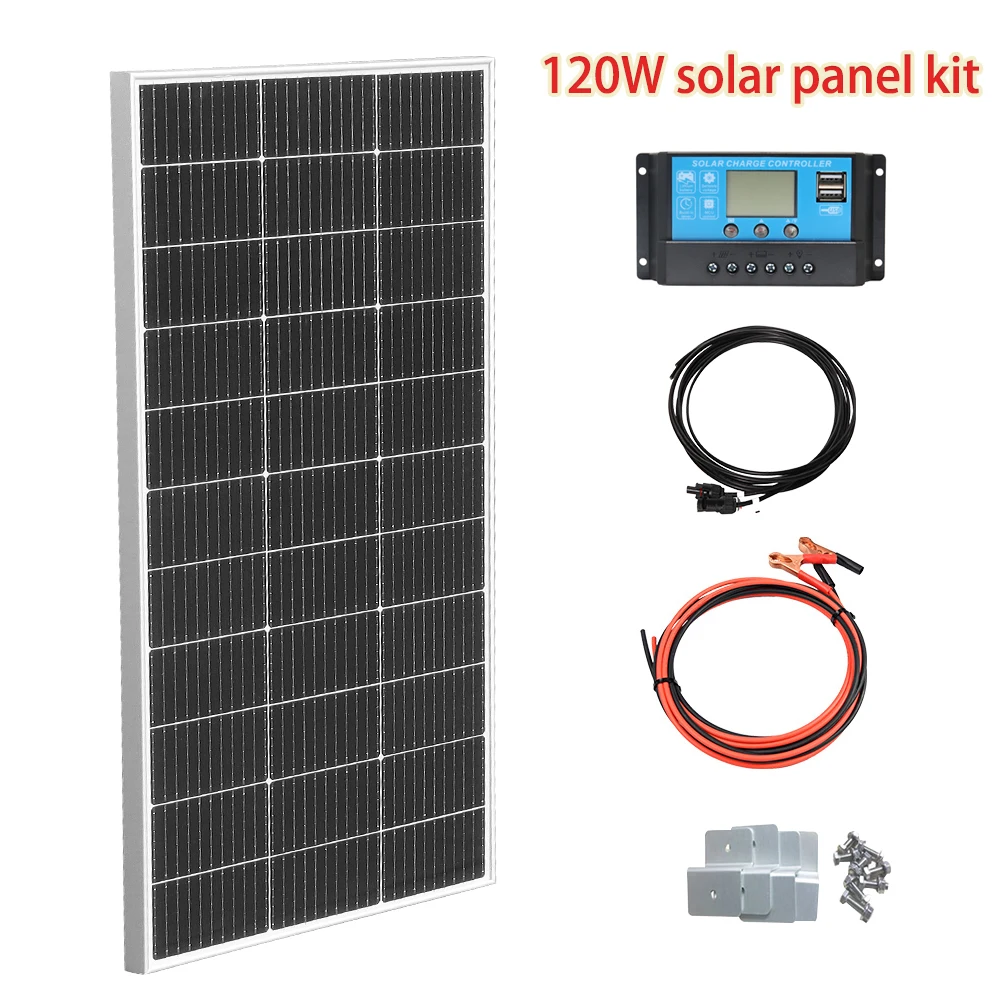

120W Kit Packing Listing:

1 * 120w solar panel

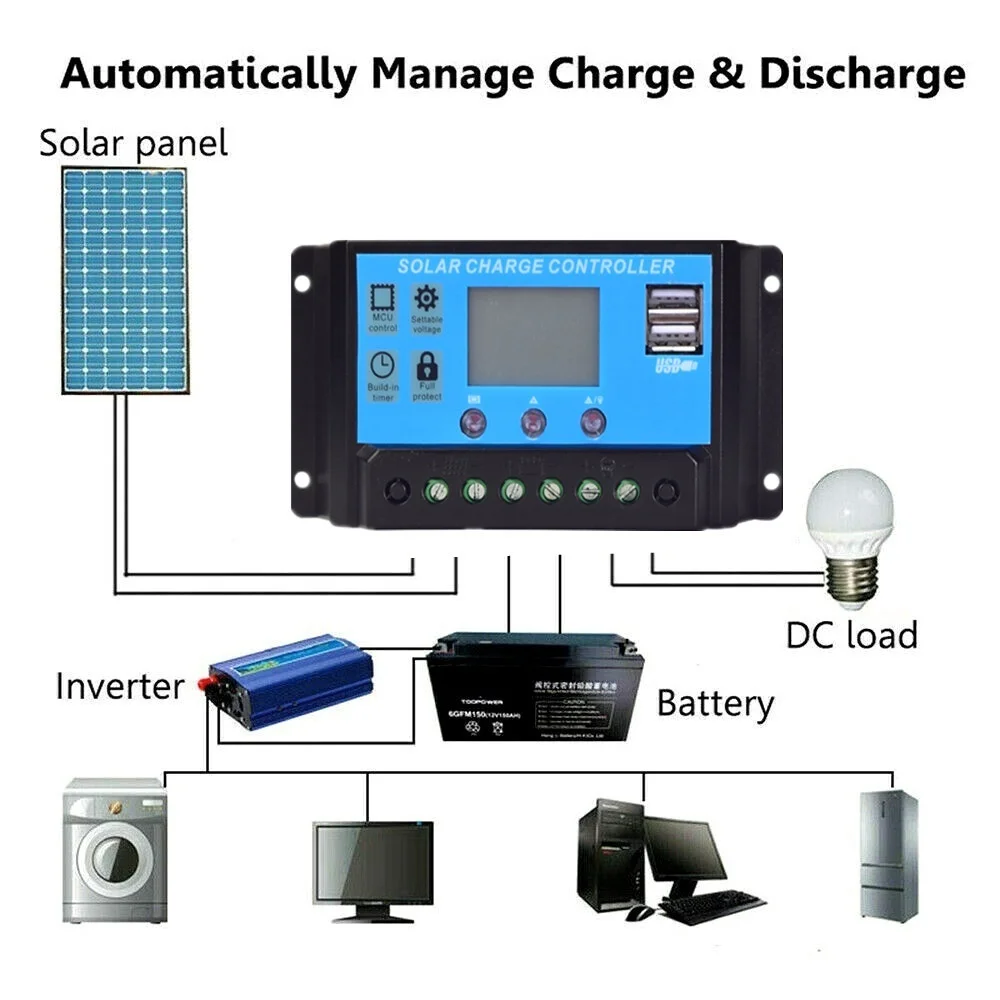

1* 10A PWM 12/24V controller

1* 3m/2.5mm2 PV connector cable

1* 3m/2.5mm2 Alligator cable

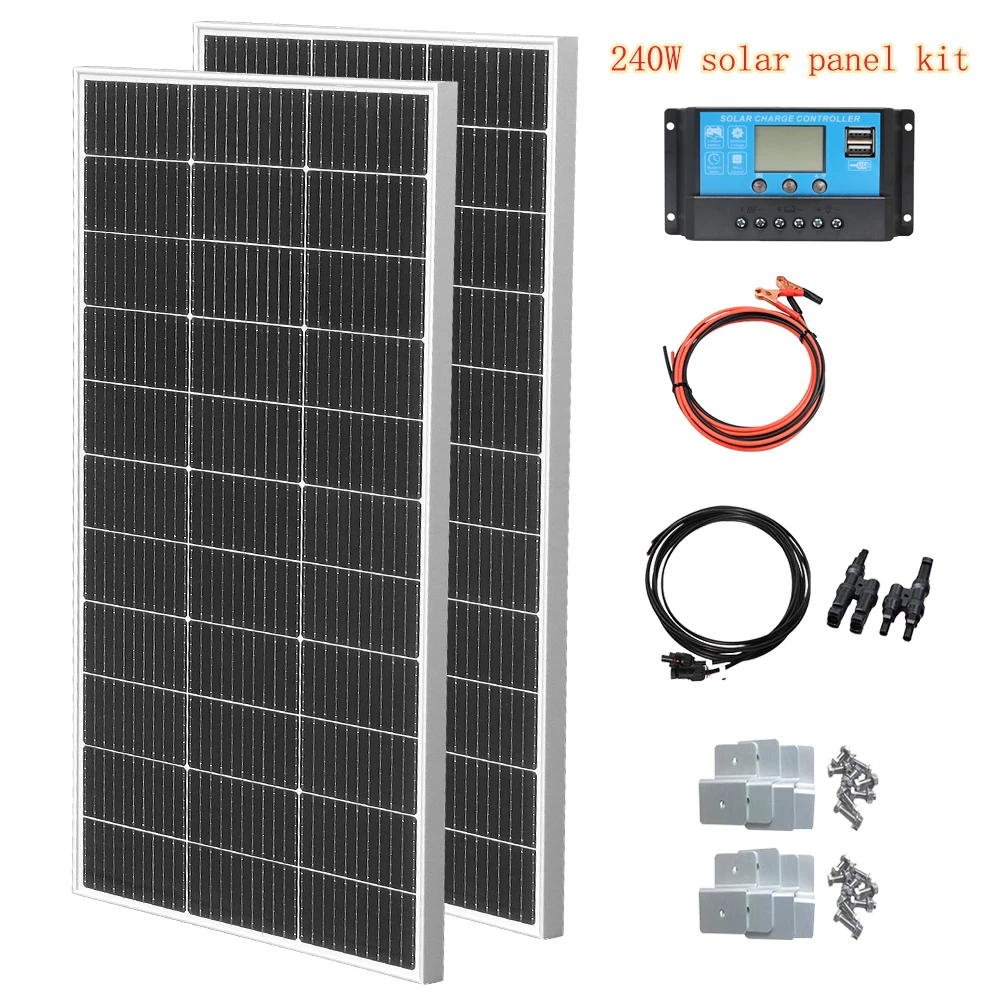

240W Kit Packing Listing:

2 * 120w solar panel

1* 20A PWM 12/24V controller

1* 3m/2.5mm2 PV connector cable

1* 3m/2.5mm2 Alligator cable

1 * 2 in 1 adapter
