AC/DC TIG Welder 200A Pulse AIT200P AIXZ 5 in 1 HF TIG ARC Stick Spot Welder Aluminum IGBT Inverter Welding Machine EU Plug

AIXZ AC/DC Aluminium Tig Welding Machine AIT200P AC/DC HF TIG Spot TIG MMA ARC Stick Welder with Pulse Argon Welding IGBT Inverter 2T/4T

Specifications:

Brand name: AIXZ

Model: AIT200P ACDC

Rated Input Voltage(V) :AC220V:10%,50/60Hz

Rated Input Power(KVA): 5.8

Rated Input Current(A):26.3

TIG Rated Output Current & Voltage:200/18V

MMA/ARC Rated Output Current & Voltage:180A/27.2V

TIG Output Current(A):10A-200A

Rated Duty Cycle(%):60

Efficiency(%):85

Protection Class:IP21S

Insulation Class:F

Packing dimension: 480mm*270mm*365mm

Base material: carbon stainless, low-alloy steel,titanium,stainless steel ,aluminum

Welding process :AC DC TIG/ARC

Features:

1.Most advanced inverter technology.

2.Power source offer stronger, more concentrated and more stable arc.

3.When stick and work piece get short, its response will be quicker. It means that it is easier to design welding machine with different dynamic characteristics, and it can even be adjusted specially to make arc softer and also harder.

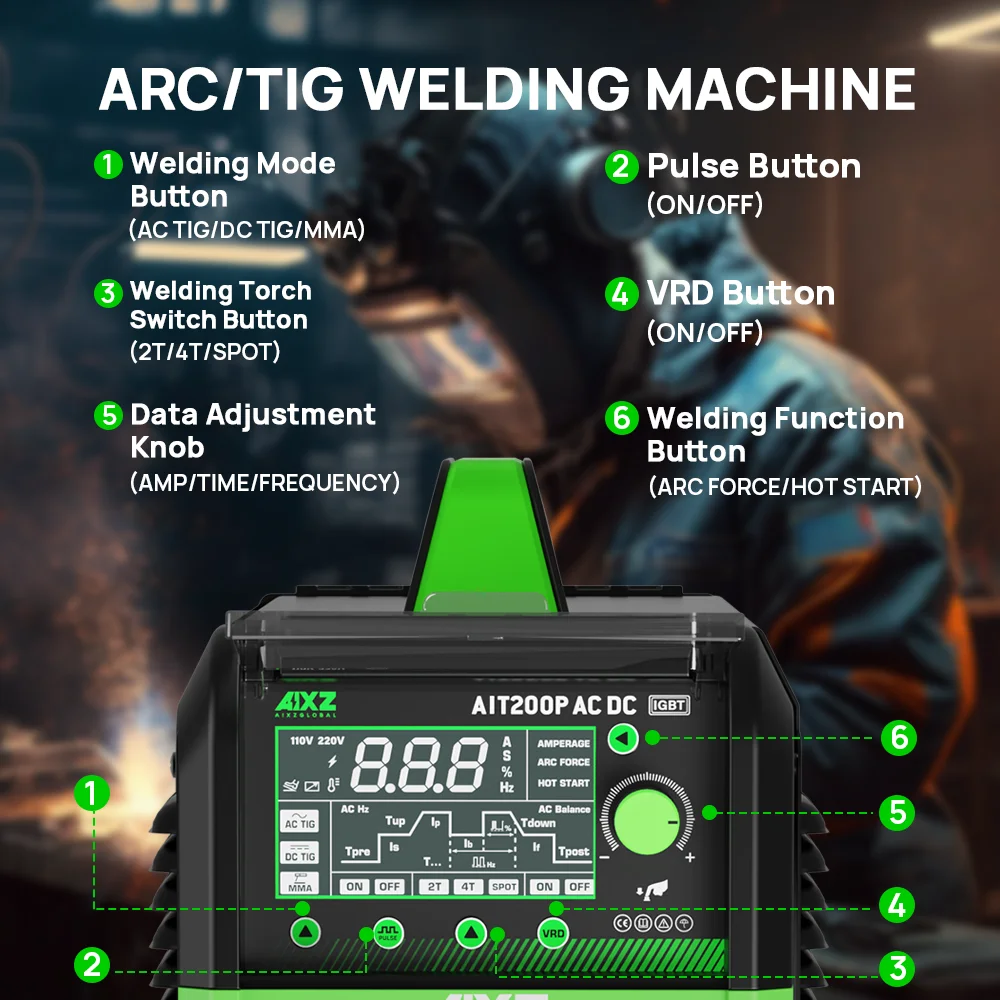

4.TIG welding machine is easy for arc initiation and has the functions of arc initiation current, arc stop current, welding current, basic value current, current ascending time, current descending time, gas delay time, continuous adjustment

What's more, pulse frequency and pulse duty can also be adjusted independently. It has the characteristics of automatic control of arc initiation, arc stop and stable arc, which make the best result for shape and inner quality of the welding surface.

5. Multi-use---weld stainless steel, carbon steel, copper and other color metal,

and also can use for traditional electric welding.
