Billet Turbo Turbocharger Turbine A/R .83 A/R .75 for 2.0L–5.5L engine V-band

Specification

Horsepower:700-1050HP

Displacement:2.0L-5.5L

Exhaust Inlet Flange: V-band(OD:79.3mm)

Exhaust Outlet Flange: V-band(OD:92.7mm)

Compressor

Compressor Inducer:68mm

Compressor Exducer:84.4mm

Compressor Trim:65

Compressor A/R:0.75

Compressor Air Inlet :69mm

Compressor Air Outlet:65.2mm

Turbine

Turbine Inducer:68mm

Turbine Exducer:62.5mm

Turbine Trim:84

Turbine A/R:0.83

Turbine Inlet :76.2mm

Turbine Outlet:90mm

Cooling Type: Water+Oil Cooling

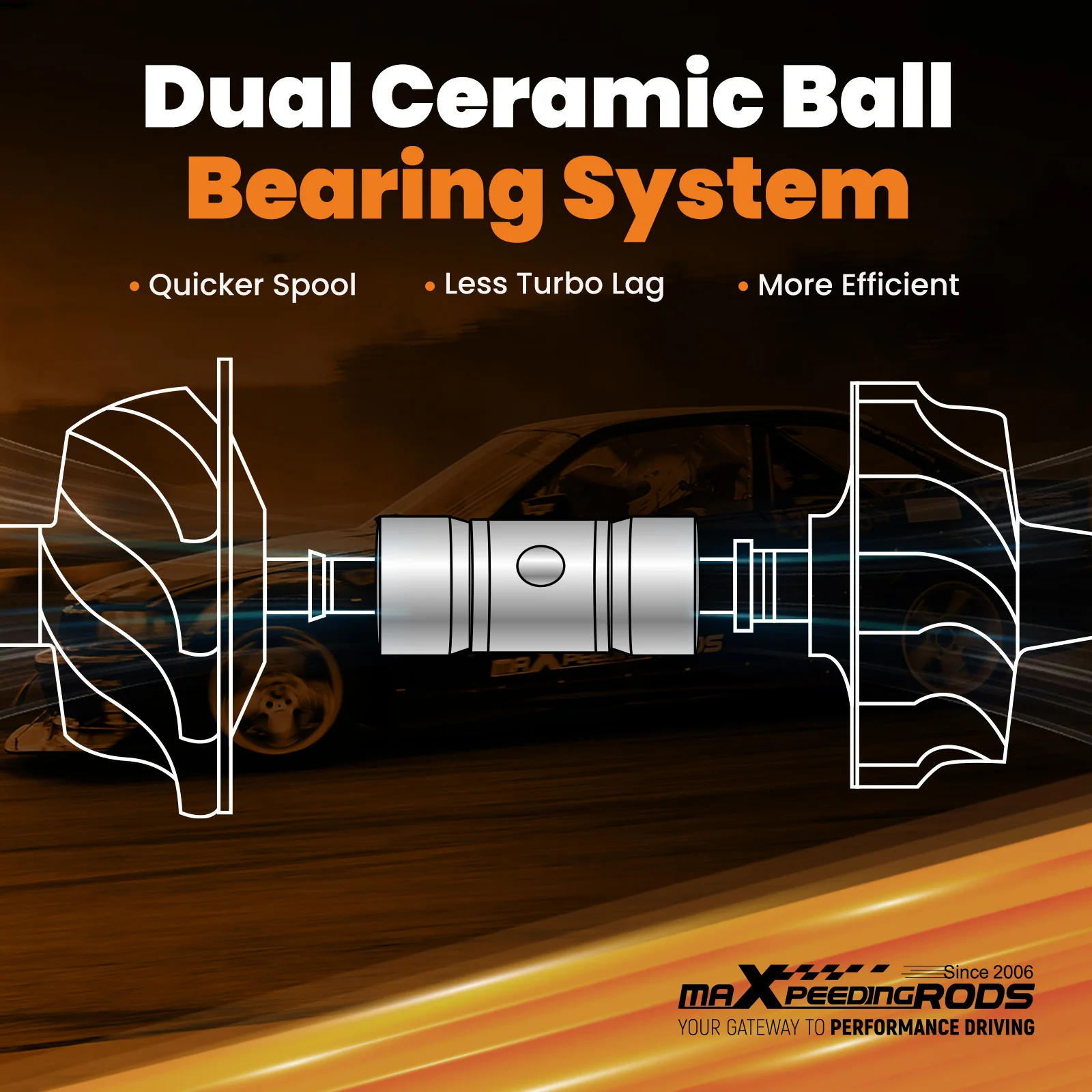

Bearing Type: Dual Ceramic Ball Bearing

Oil Restrictor Size:1mm

Oil Inlet Size:7/16-24

Oil Outlet Size:2*M8*1.25

Water Thread Size: M14*1.5

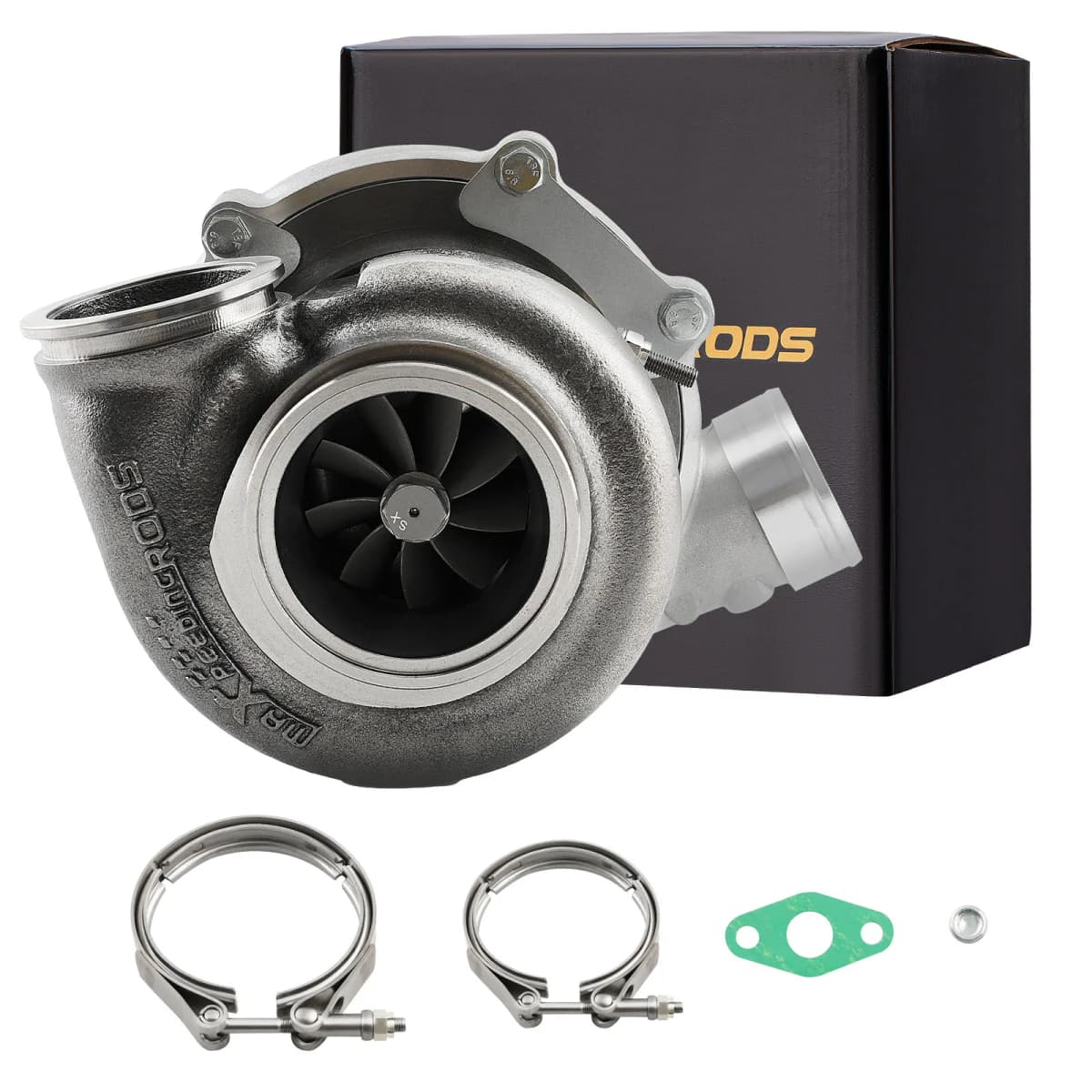

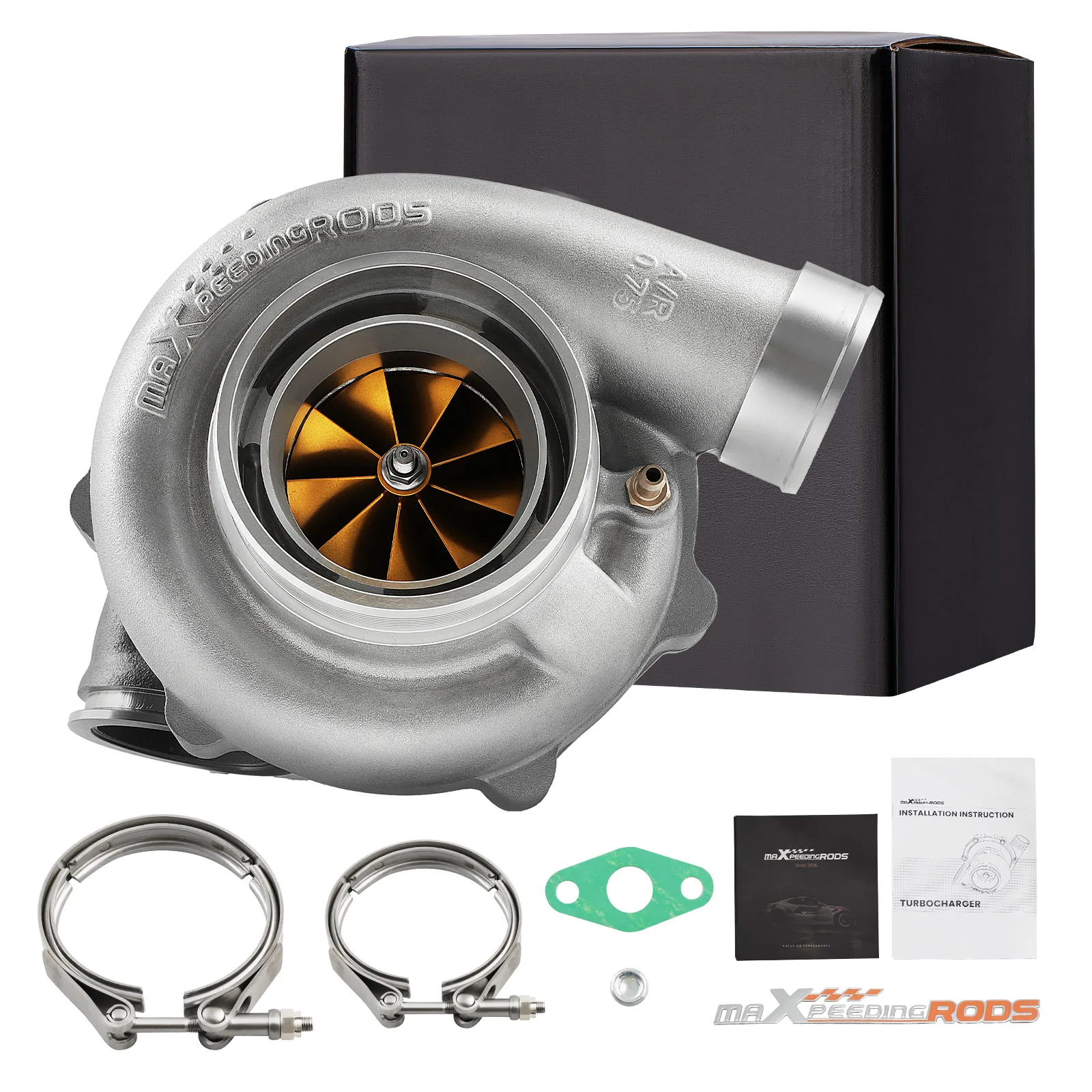

Package included

1x Turbocharger

1x Oil Gasket

1x Oil Feed Fitting

2x Water Port Fitting
2x V-BANDS
1x Manual
1x Brochure
1x Sticker

Feature
*Product Material

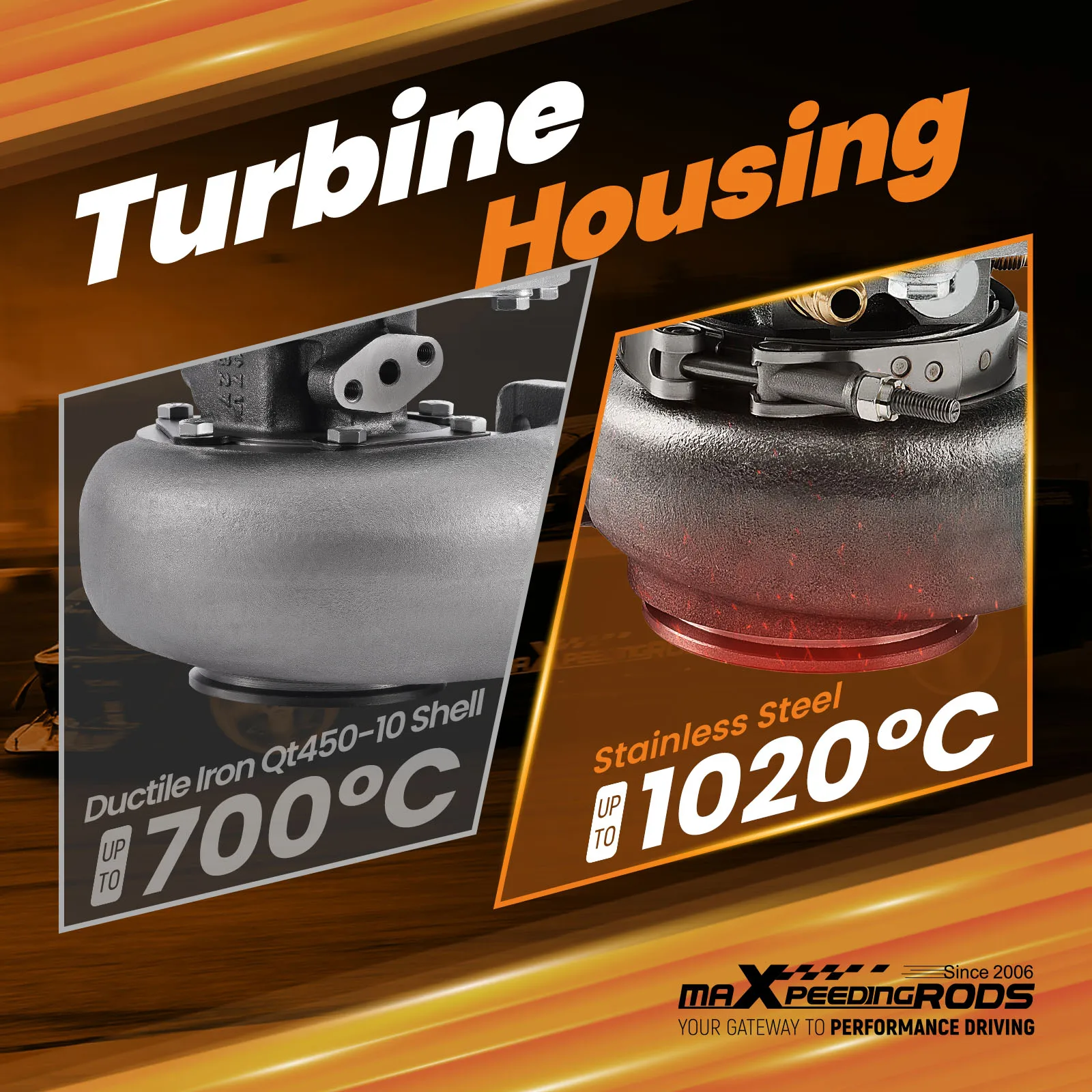

1. Turbine housing ：Stainless steel turbine housing - temperature resistant up to 1020℃

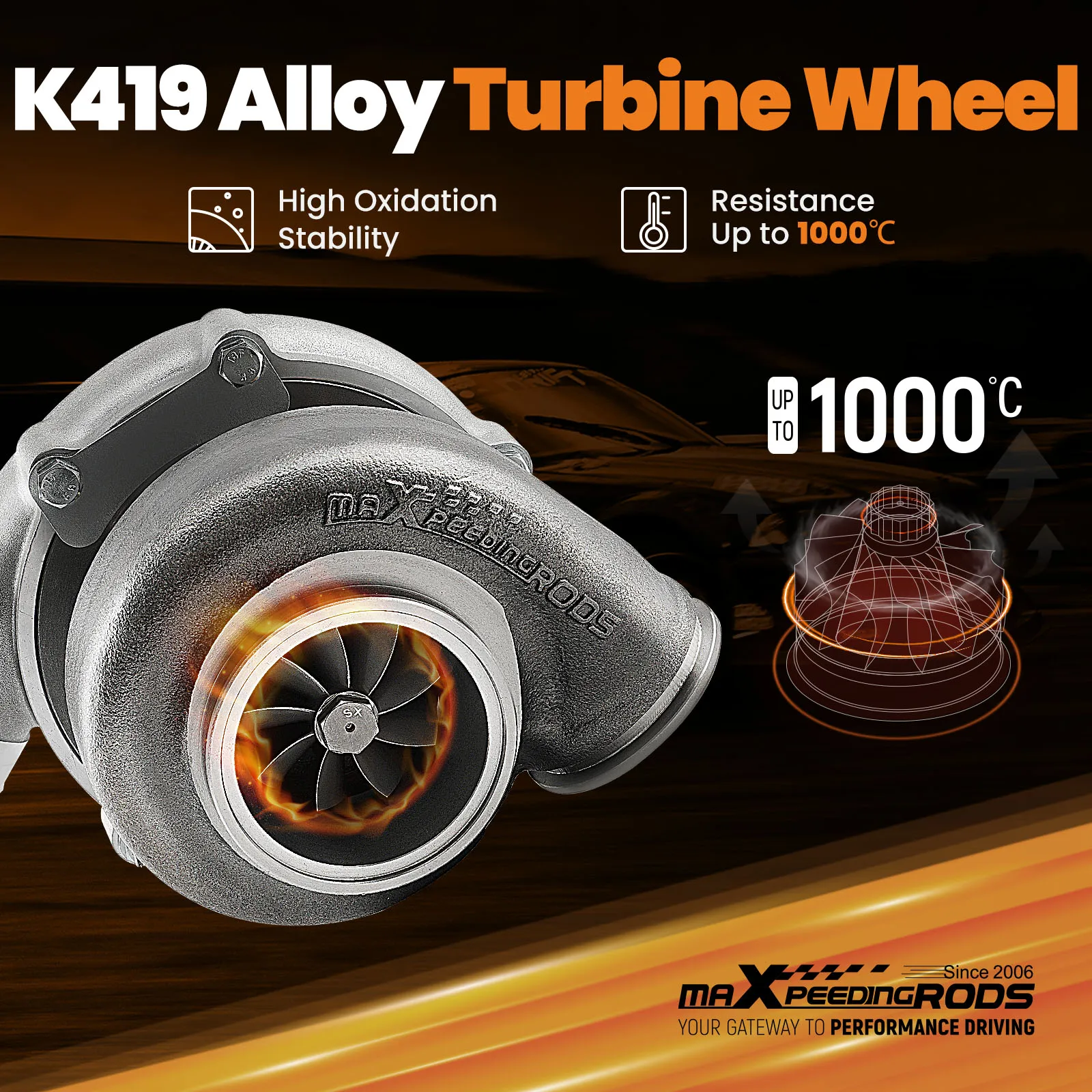

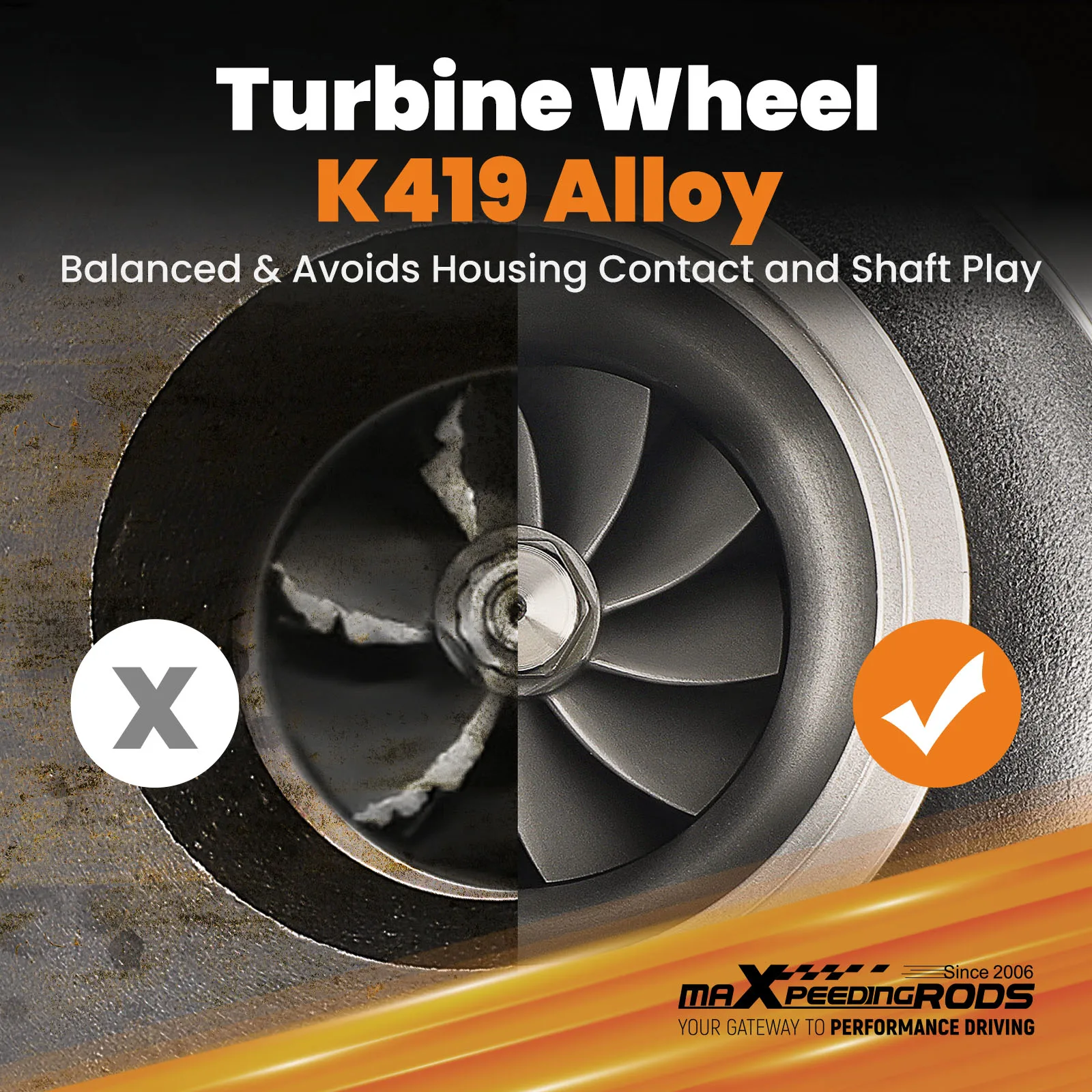

2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight

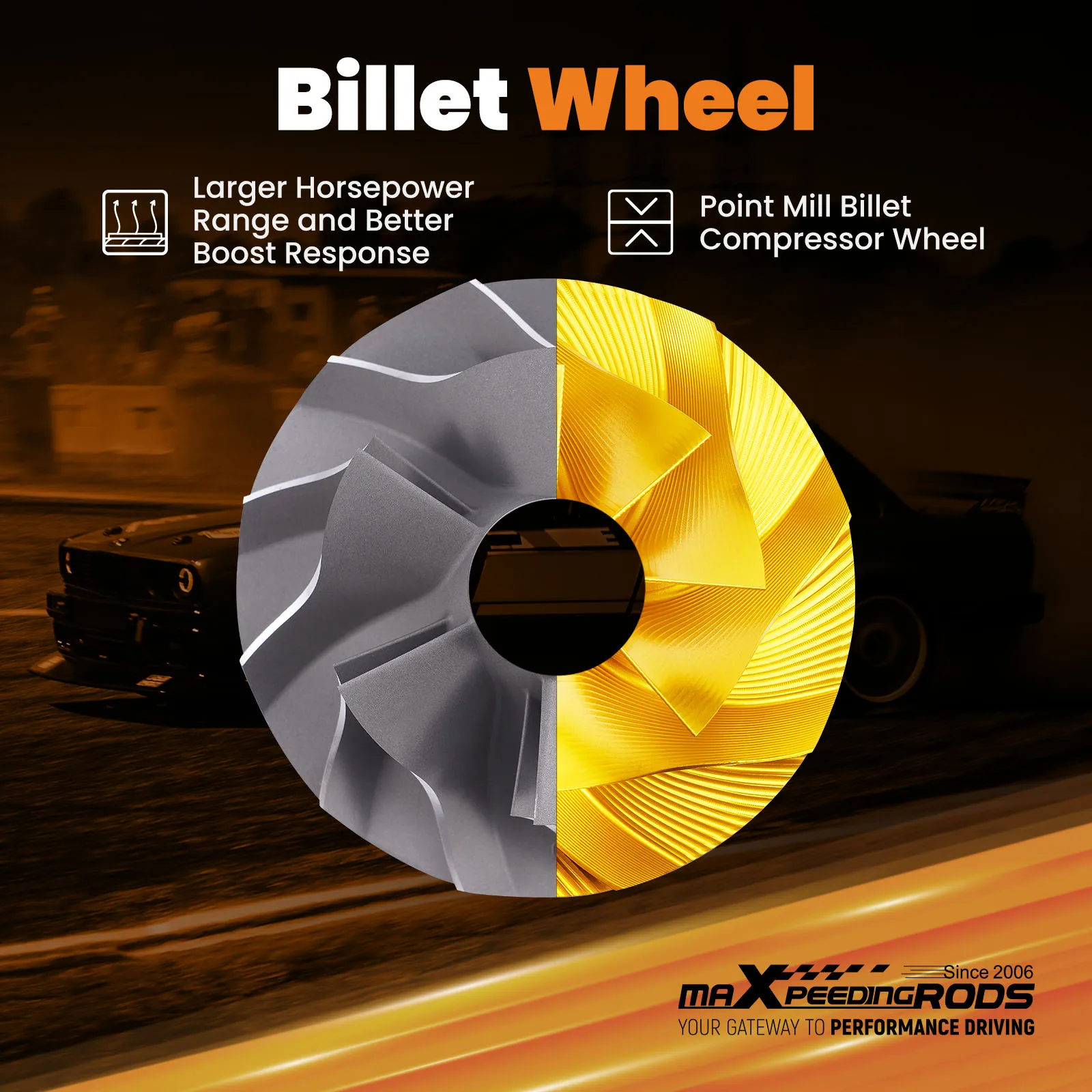

4. Billet Compressor Wheel: Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response

1. Excellent high temperature resistance，high efficiency and durability
2. Rich experience in turbo production and own factory

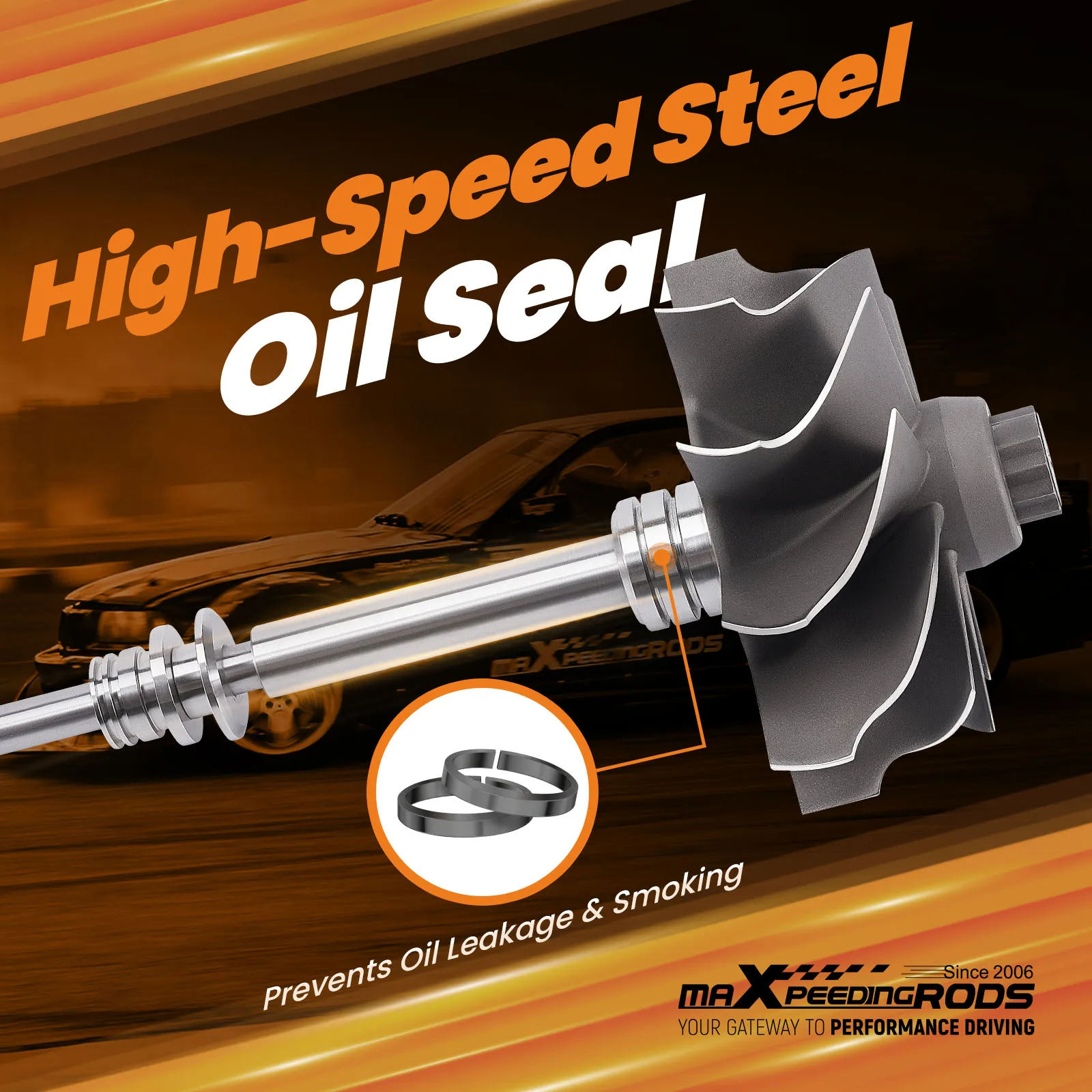

3. High-Speed oil seal ring and Precision clearance

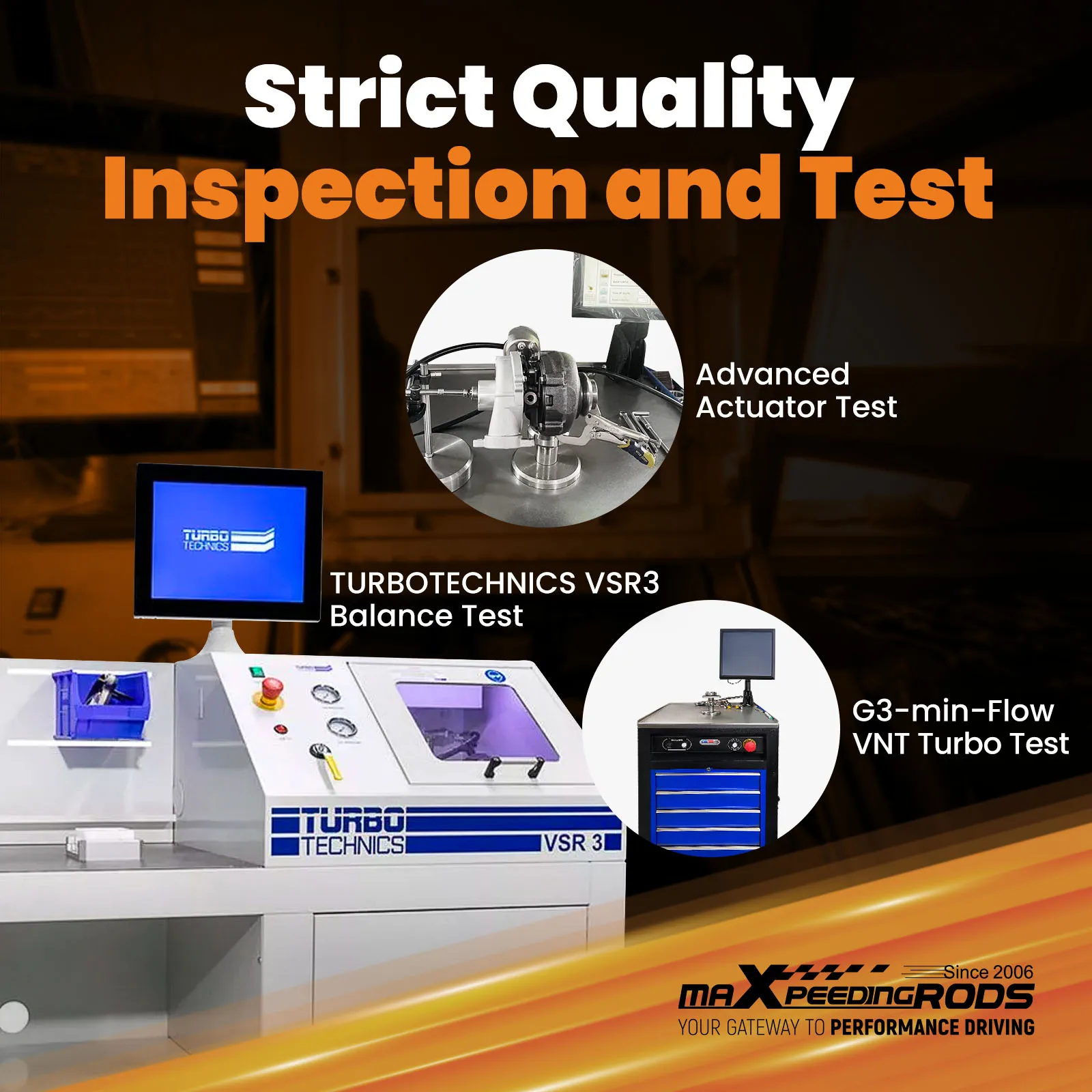

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
