LASER TREE Laser Module 4W 5W 10W Optical Power with Air Assist Laser Head 450nm TTL Blue Light Engraver Cutting Wood DIY Tools

Recommend :  LT-K1-MINI-10W (10W Laser Engraving Machine)

LT-K30(30W+ Laser Module)

LT-K40(40W+ Laser Module)

10W Laser Module: LT-80W-AA-PRO

Product Features

1. High Power Laser Module--- 2-Beam compression technology, 10W optical power laser module
2. Powerful Cutting Ability
Cut 8mm bass plywood: 120mm/min, 100% power, by one pass
Cut 5mm black acrylic: 50mm/min, 100% power, by one pass
Cut 5mm MDF: 150mm/min, 100% power, by 2 passes
3. Professional Air Assist--- Blowing through the air nozzle to get clean-cut edges, improve cutting performance
4. Super Fast Engraving Speed--- ultra-fast engravingon stainless steel-30mm/s
5. Widely Compatibility--- Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

Specification:

Material: aluminum alloy
Effect output power: 80W
Optical Power：10W (±1W)
Wavelength: 450nm (±10nm)
Light color: blue
Focus Length: 45mm
Spot form: Punctiform, fixed focus
Electric power: 12V 3.2A(3A-3.5A); 24V 1.7A(1.5A-2A)

Professional Air Assist

With Air Assist VS No Air Assist：
Blowing through the air nozzle to get clean-cut edges, improve cutting performance
without Air Nozzle: Scorched Edges
with Air Nozzle: Clean-Cut Edges

Dual-LDs with Beam Compressed Technology

One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

Powerful Cutting Ability

Cut 8mm bass plywood: 120mm/min,100% power,by one pass
Cut 5mm black acrylic: 50mm/min,100% power,by one pass
Cut 5mm MDF: 150mm/min,100% power,by 2 passes

Minimum 0.08mm Ultra-thin Beam

Ultra-fast engraving on stainless steel-30mm/s

Widely Compatible Design

Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines

Reference settings for cutting

For example, if you want to cut 8mmplywood, the focus fixing plateshould be 4mm.

Reference settings for engraving

For example, if you want to engrave,the focus fixing plate should be 7mm.

5W Laser Module: LT-40W-AA

Specification:
Output optical power: 5W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 1.8A(1.5A-2A)
Interface: XH2.54-3PIN socket
Modulation: 0/3-12V 0-5kHz TTL/PWM (0V off, 3-12V on)
Item size: 40*40*141.4mm
Product weight: 255g

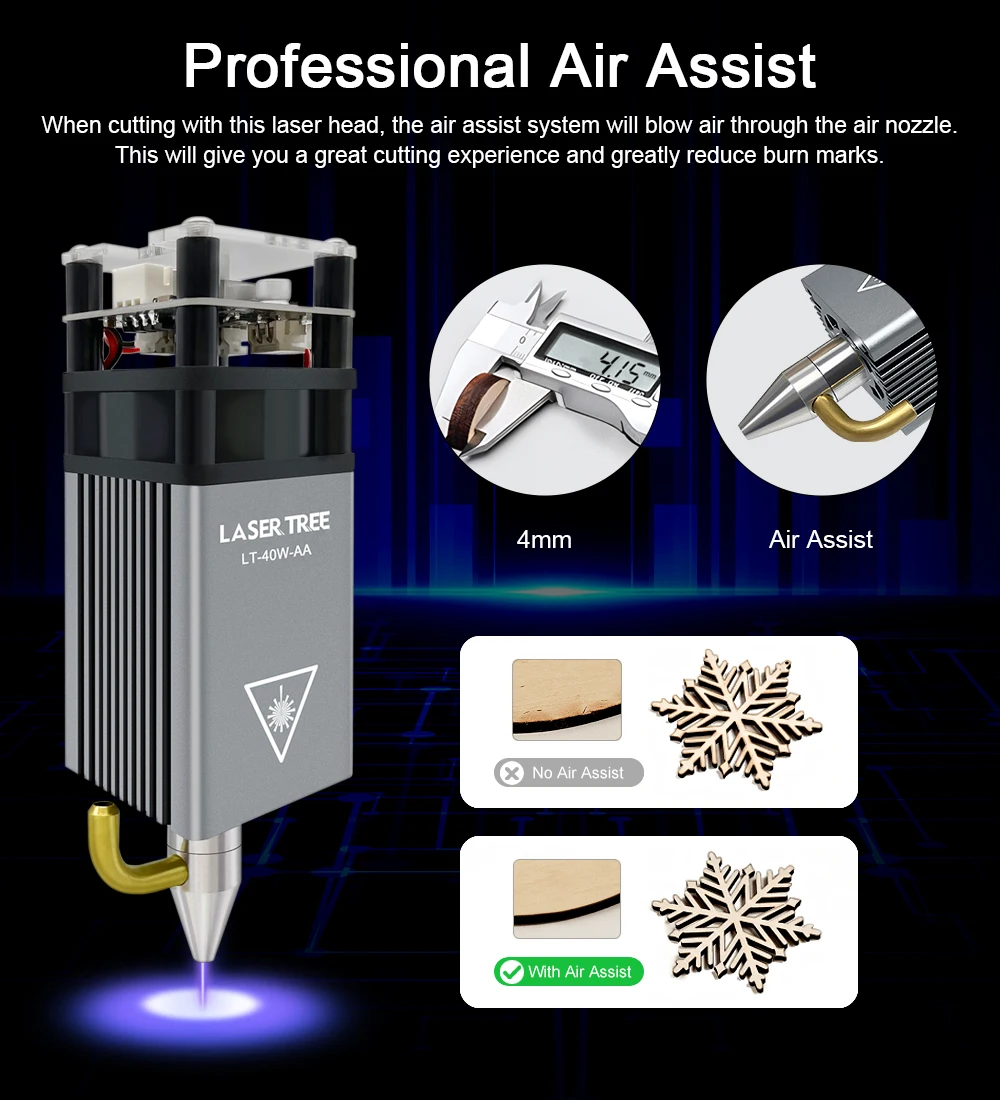

Professional Air Assist

When cutting with this laser head, the air assist system will blow air through the air nozzle.
This will give you a great cutting experience and greatly reduce burn marks

Beam Compressed Spot

More Precise with 5v Compressed Spot

Good for Cutting and Engraving

Cutting through 4mm bass plywod by one pass.
Ultra-fast engraving onstainless steel-800mm/min.

Magnetic Eye Protection Cover

Easy to remove and install

Widely Compatible Design

( ATO**TACK, OR*UR, Laser engravingmachine, or other DlY type machines)

5W Laser Module: LT-40W-A-GOLD

Specifications:
Effect Laser Power: 40W
Optical Output Power: 5W
Material: Aluminum Alloy+Plastic
Light Color: Blue
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus
Input Voltage: 12V 1.5-2A
Modulation: 0/5-12V TTL/PWM
Item Size: 40x40x120mm
Item Weight: 225g

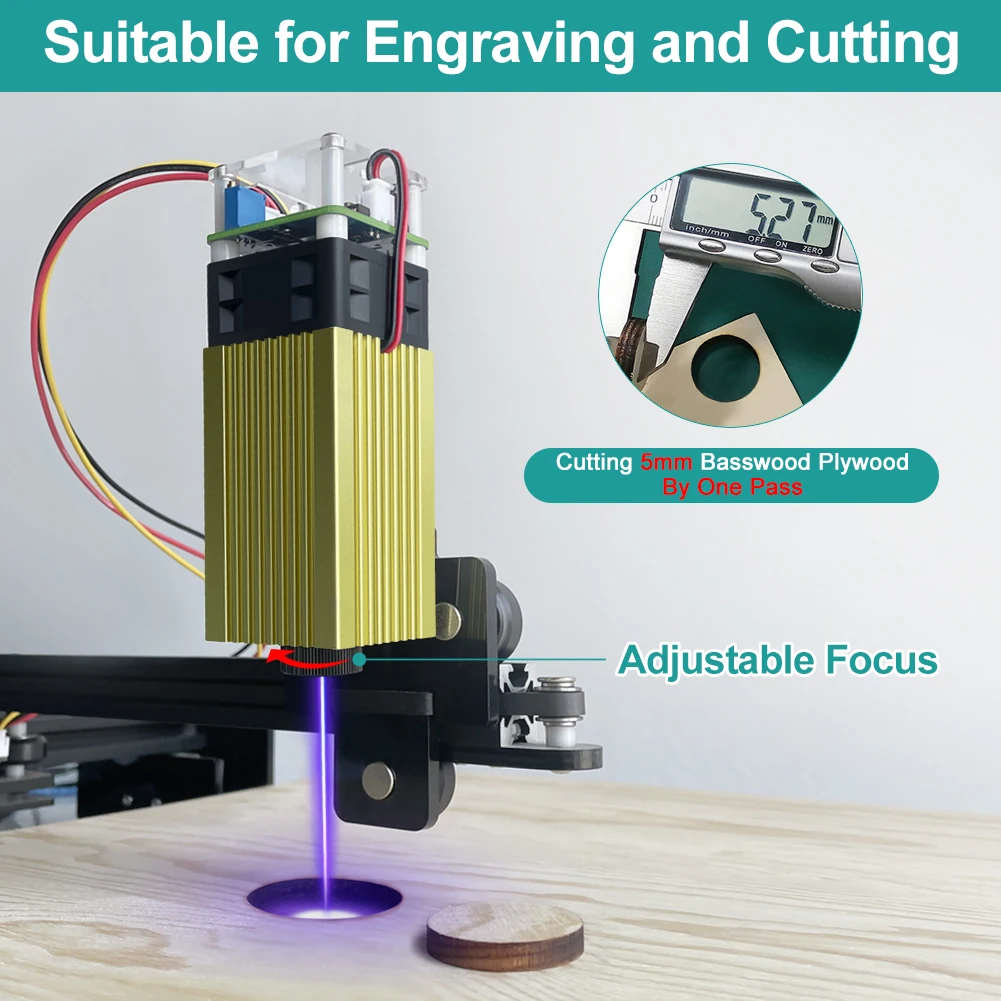

Suitable for Engraving and Cutting

Cutting 5mm Basswood Plywood By One Pass

The Best Focus Length For Cutting/Engraving

Cutting Focus Length:35mm
Engraving Focus Length: 20mm

5W Laser Module: LT-40W-F23

Specification:
Material: Aluminum alloy
Effect Output Power: 40W
Output Optical Power: 5W
Electric Power: 12V 1.8A(1.5A-2A)
Focus Length: 23mm
Interface: XH2.54-3P socket
Power Adjustable: Support 5V PWM modulation
Function: Engraving/Cutting
Module Size: 40*40*121mm
Module Weight: 240g

Upgraded 40W Laser Module

Optical power: 5W
Engraving Speed up to 800mm/min

Cutting Through 4mm Bass Plywood By One Pass

Metal Wind Gathering Hood Design

Prevent Flames from Burning

Cutting / Engraving:

1:For example, if you want to cut 4mm plywood, the focus fixing plate should choose 3mm.
2:For example, if you want to engrave, the focus fixing plate should choose 5mm.
