Air Suspension Kit Air Suspension Spring + Compressor Kit for Mercedes-Benz Sprinter 2006-2022 5000LB 4 Ton

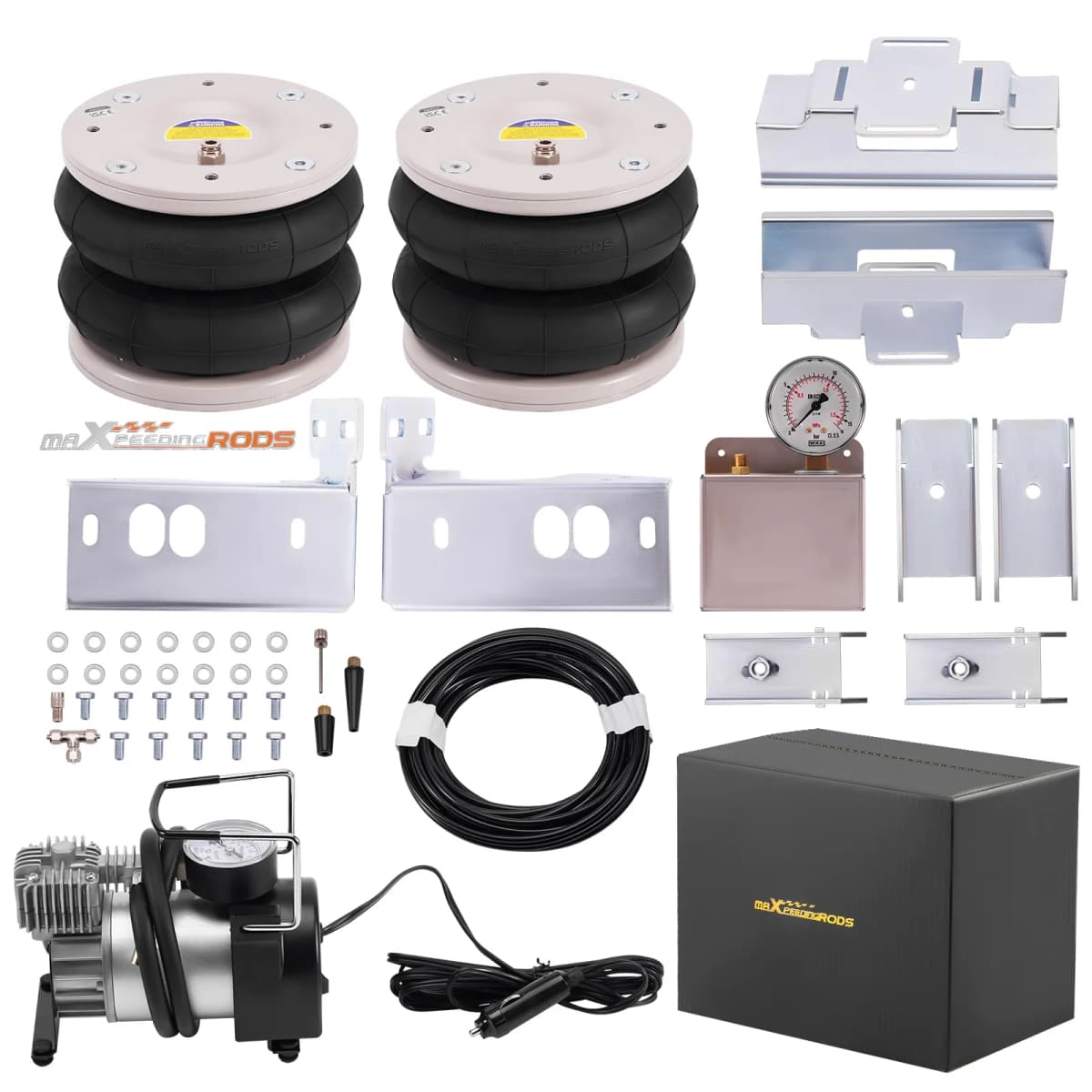

Air Suspension Spring Bag + 12V Compressor Kit for Mercedes-Benz Sprinter 2006-2022 Application for Mercedes-Benz Sprinter 2006-2022 Single rear wheel RWD and FWD Round axle Body type: Panel van, Tipper, Motorhome, Camper, Box van, Minibus, Luton, Crew van, Recovery, Horsebox, Dropside. Notice : for Single rear wheel RWD and FWD Round axle Chassis type: All standard type of chassis except Alco type Torsion Bars chassis. Specification Condition: Brand New Placement on Vehicle: Rear left and right Charge: 5000 LB / 2268 KG Package Length, width and height: 74*28*22 cm Package Wight: 15.1 KG Air spring： Stroke: 140mm Max. Extended: 230mm Min. Compressed: 90mm Operating Pressure : ≤2.0Mpa Temperature range：≤+70° , ≥-40° Min 10 PSI (unloaded) and 75 PSI ( loaded) Air pump： Power: 120W Output Voltage: 12V Maximum current: 10A Maximum Working Voltage: 10bar（1MPa ） Package includes（as the picture shows）: 2x Natural Rubber & Hi-tensile steel Air spring bag 2x Galvanised Heavy duty Top mounting bracket 2x Galvanised Heavy duty Top fixed slider 2x Galvanised Heavy duty Top fixed slider bracket 2x Galvanised Heavy duty Bottom mounting bracket 1x 12V Air suspension compressor 1x Installation box & Barometer Air nozzle 4x Air fiting 1x Air line 12m Mounting bolts and gaskets Feature 1. No-drill systems. 2. Easy installation that typically takes 1 to 2 hours. 3. Can be installed on most light commercial vehicles, motorhomes and vans. 4. The air suspension kit comes with portable air compressor. 5. Use high-quality steel with high load-bearing capacity and long life. 6. Excellent and practical bolt-on installation. 7. Improves stability and reduces roll and improve handling. 8. Assists with towing. 9. High quality heavy duty rubber, using Natural Rubber and Hi-tensile steel. Notice - These air suspension kit are aftermarket ones. They will replace the original one. - Professional installation is recommended. - Contact us please for whatever we can help.
