4K Digital Microscope 48MP Microscope For Electronics USB-C Industrial Cameras HDMI 1-150X Zoom C-Mount Lens Phone Pcb Soldering

🔥You might have missed great deals buying via this link.

For buyers from Brazil, the EU, and the US: Sometimes your interface may show that the package is shipped from China, which results in higher prices and requires you to handle customs clearance yourself.
However, if you follow the instructions in the image below, click on the shipping method option, you can choose delivery from our local overseas warehouse. This will give you much lower prices and no need to deal with customs clearance at all!
If you find this helpful, feel free to share it with your friends!

🔥The XHU4006-150X-imx415 model has won great affection from our buyers.

🔥4K UHD 1/2.8in Sony imx415 Sensor Microscope Camera Usage Effect Reference

After assembling the microscope, the first step is to prioritize using the one-click exposure function. Then, place a piece of white paper horizontally directly below the lens and perform a one-click white balance. In most cases, this will achieve the most suitable results for your working environment.(Don't forget to turn on the LED light)

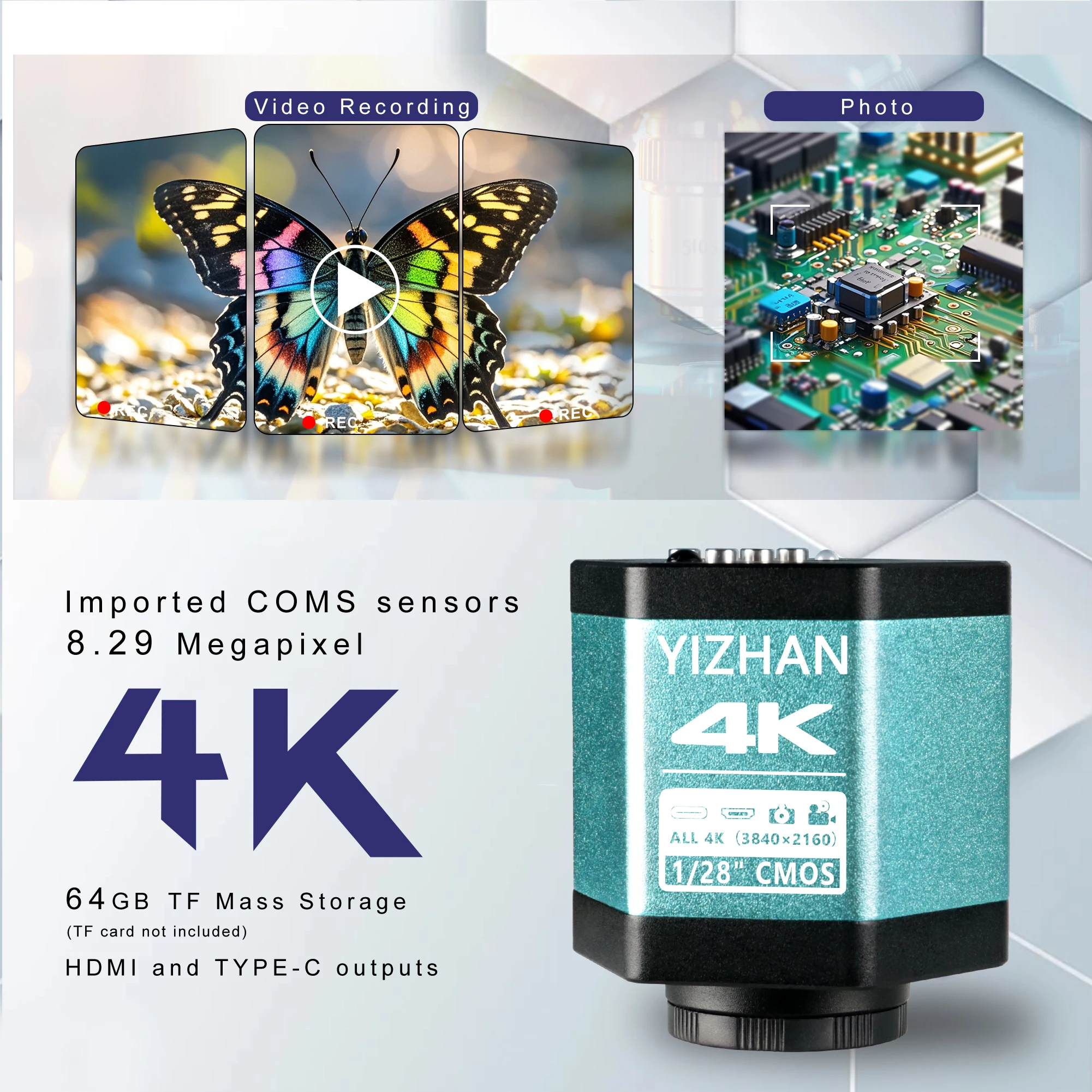

🔥4K UHD 1/2.8in Sony imx415 Senor Camera Parameter(Type-C HDMI)

◆Using Sony sensor;
◆Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;
◆HDMI 1080P 60 frames image output;
◆TYPE-C driver-free output 1080P 30 frames image output;
◆4K video recording;
◆48 million photos, JPG format;
◆One-click freeze/thaw function;
◆1080P video recording;
◆Electronic zoom function;
◆Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;
◆Supports manual/automatic white balance/one-click white balance, red, green and blue are adjustable;
◆Provides 16 line functions, with adjustable line color, thickness and position;
◆Provide center crosshair display/off;
◆Support TF card storage, up to 64GB;
◆Support remote control operation, take pictures without shaking and the image will be clearer;
◆Support Chinese, Traditional Chinese, and English menu languages;
◆Supports saving shutdown setting parameters;
◆Aluminum alloy shell processed by CNC precision milling technology;

🔥Connect to PC via USB for operation.

You can first switch the language to your preferred one in the PC software. It allows you to take photos, record videos and adjust the video image more conveniently. There is also an additional measurement function, which will be of great help to your work.

🔥Effect of Exposure Adjustment on the Image

Whether you connect the device to a monitor or TV via HDMI, or connect it to a computer via USB, exposure is a key parameter. Properly setting the optimal value will help you obtain the best image quality.
How to adjust:
Under unchanged lighting conditions, turn on Auto Exposure and increase the gain value when ambient light is insufficient. When ambient light is too strong and causes overexposure, turn on Auto Exposure and lower the gain value.

🔥Function of White Balance

Correct light color cast and restore the true original color of objects.
1, Different light sources (indoor yellow lights, fluorescent lamps, natural overcast light and ambient lights) all have inherent color cast. White balance can correct yellowish, bluish and reddish tones in the image.
2, Under any ambient light environment, it ensures white paper, white housings and white electronic components are captured without yellow or cold tint. It calibrates the overall image color with white as the reference standard.
3, When shooting circuit boards, metal accessories and product appearances, the presented colors are exactly the same as what the naked eye sees, without color distortion or color cast. It is perfectly suitable for taking photos and recording videos for product display.

🔥List of packing：

1 * Microscope camera
1 * Microscope lens
1 * LED light
1 * Folding bracket
1 * Remote control
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Software (not included in the package, please contact customer service for assistance)

🔥4K UHD 1/2.7in GC8613 Senor Camera Parameter(Type-C HDMI) Photo：Max 60MP(10368x5888)

Sony Chip: GC8613
Video Interface：HDMI USB-PC TF Card
Record：4K/1080p
Photo：Max 60MP(10368x5888)/4K
HDMI:4K/1080p
USB:4K/2K/1080p
Lens:CS
working voltage:12V
working current:190mA
optical format:1/2.7"
pixel size:1.5um*1.5um
scanning mode:progressive
shutter mode:electronic shutter"
dynamic range:69dB
S/N radio:40dB
OSD language:11 languages: Chinese/English/Traditional Chinese/Japanese/French/Spanish/German/Italian/Portuguese/Russian/Arabic
AWB mode:One-shot white balance/manual/auto
Cross:Support 4 groups: 32 horizontal and vertical lines
line:Color/line width adjustable"
B/W:√
negative:√
mirror flip:√
Freeze:√

🔥13MP 60FPS 1/3in GC2083 Senor Camera Parameter(VGA HDMI)

Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

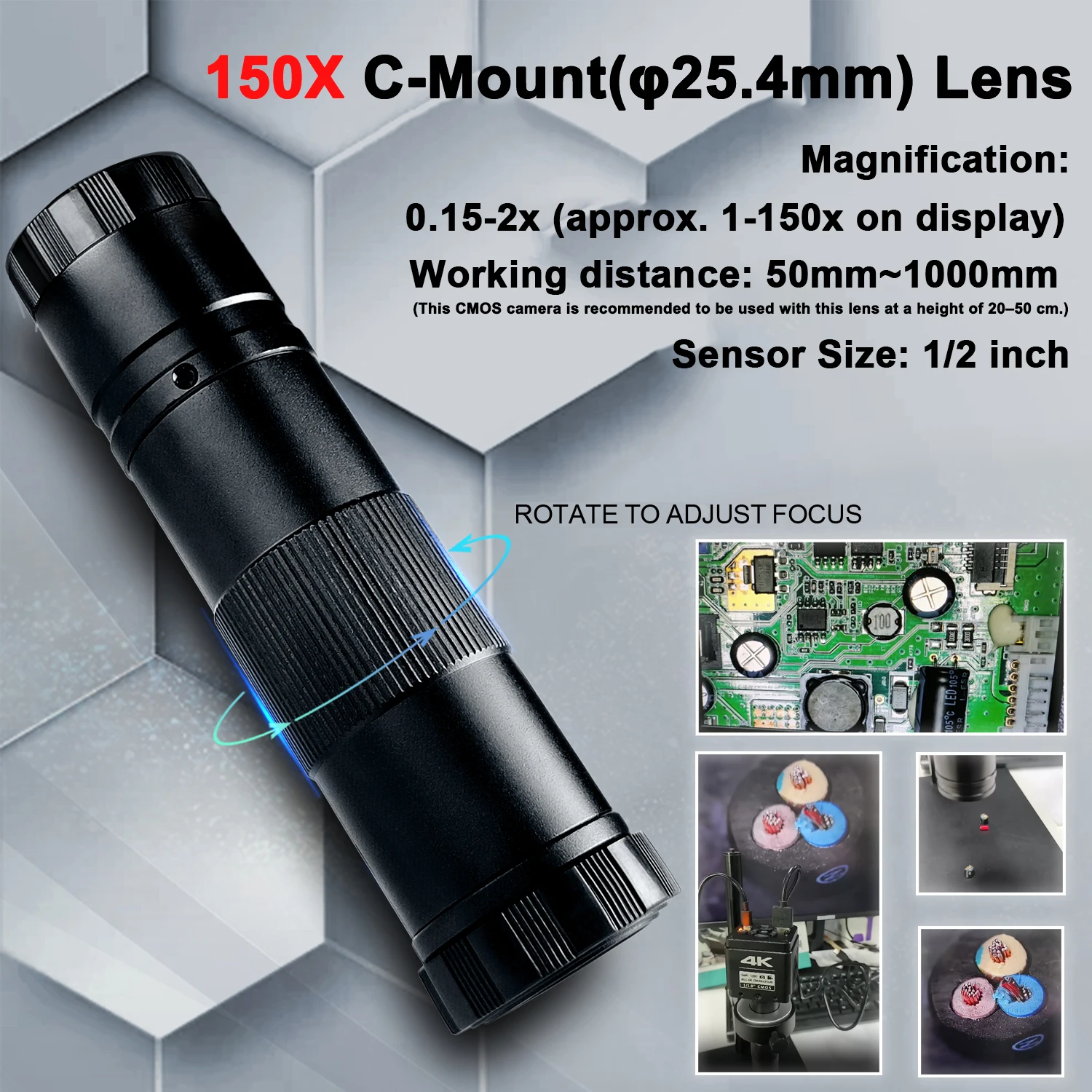

🔥1X-150X Zoom C-mount Lens:

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

🔥Standard Bracket

Size：34*32cm
1. Aluminum alloy material ,material has been enhanced.
2. The use of integrated design,good design is durable.
3. Sizes have been widened.
4. The maximum working distance is 70cm.
5. Can be used for microscope stand, microphone live stand, mobile phone stand.
