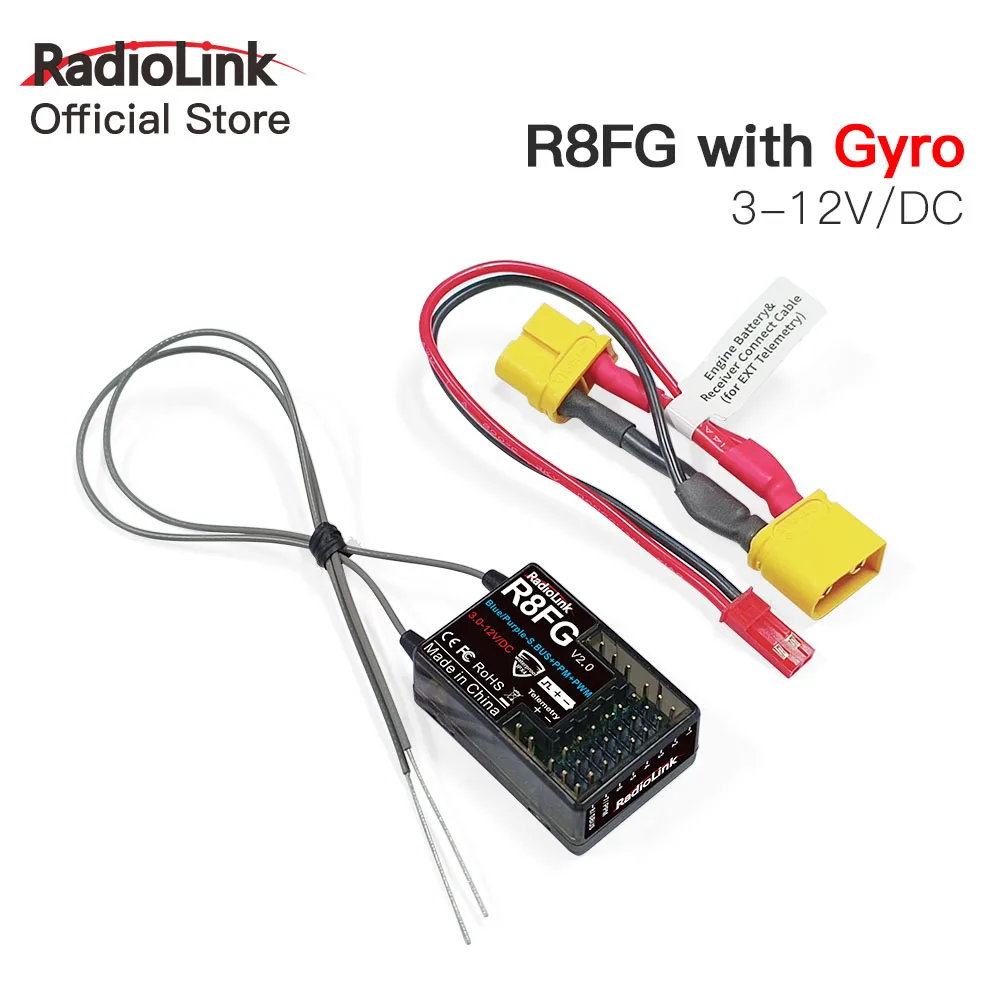

Radiolink R8FG 8 Channle 2.4G Gyro RC Receiver Voltage Return 600 Meters Long Range RX for Car Boat RC8X RC6GS RC4GS T8S T8FB

R8FG 8 Channels Receiver Features:

Excellent Anti-interference: With pseudo random FHSS algorithm, which makes R8FG with excellent anti-interference ability, control distance up to 1900 feet (600 meters).

Real-time Telemetry: telemetry feature can provide real-time vital information like vehicle's battery voltage, RSSI signal and more, avoiding the battery over-discharge and damage.

Integrated Gyro: built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by transmitter, which fits for drifting and on-road cars.

S​upport Digital Servo: R8FG with a factory date of 2023/4/26 and later support digital servo, the servo speed of 4ms or 3ms can be selected on Radiolink RC8X V1.1.5.

Waterproof: IPX4 can be protect receiver from water splash. Also with anti-polarity protection, not damage the receiver even you insert wrong polarity. 3-12v DC support high voltage servo.

Easy to Bind: No need bind plug and any setting, only press bind button for 1 second after power up controller and receiver. High resolution ratio of 4096, stable signal and fast response.

Anti-polarity Protection: With reverse polarity protection, not damage the receiver even you insert wrong polarity. 3-12v DC support high voltage servo.

Small Size with Compact Case: Only 35*24*13.5mm small size and 7g lightweight.

R8FG Specifications:

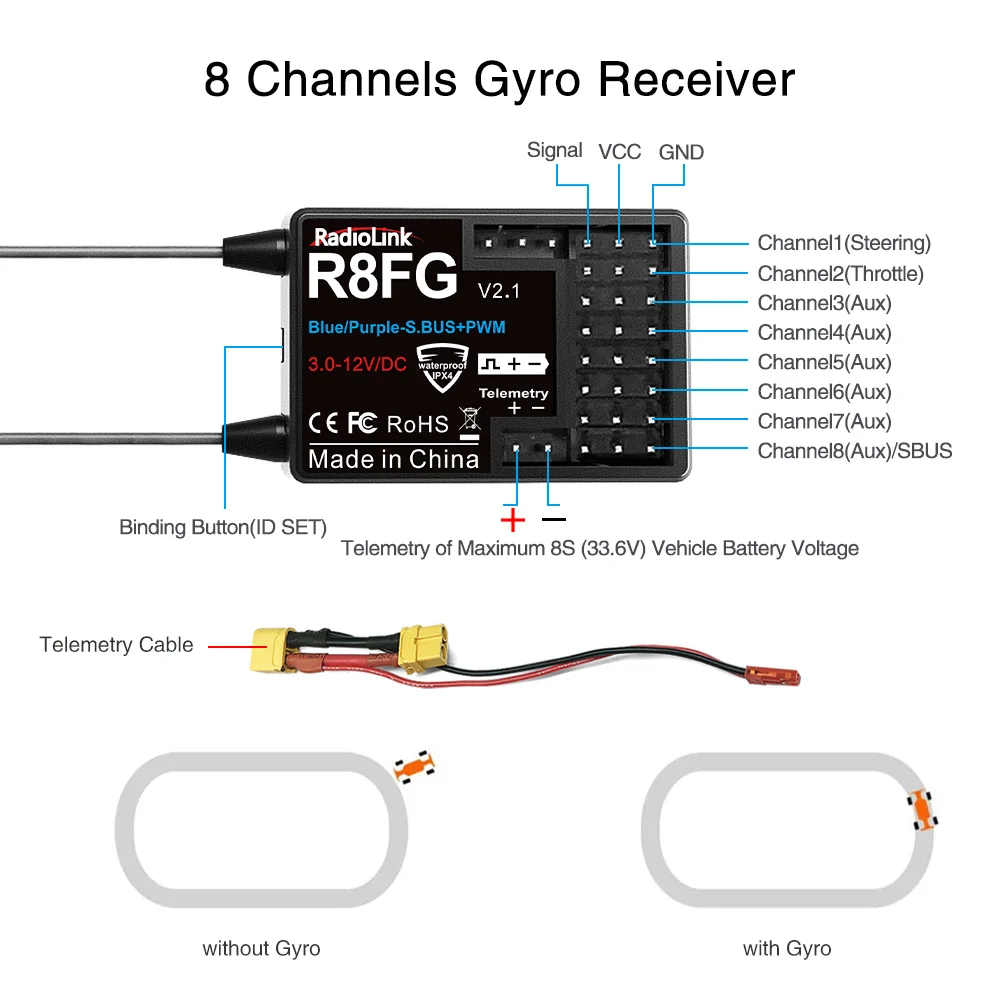

Channel: 8 channels

Version: V2.0. (R8FG_V2.0 support both FHSS V1 protocol and FHSS V2 protocol, R8FG_V1.0 does not support FHSS V2 protocol. FHSS V2 can achieve a more precise operation.)

Operating Voltage:3-12V

Operating Current: 30mA

Control Distance: 600 meters

Signals: PWM/ SBUS&PWM/ PPM&PWM

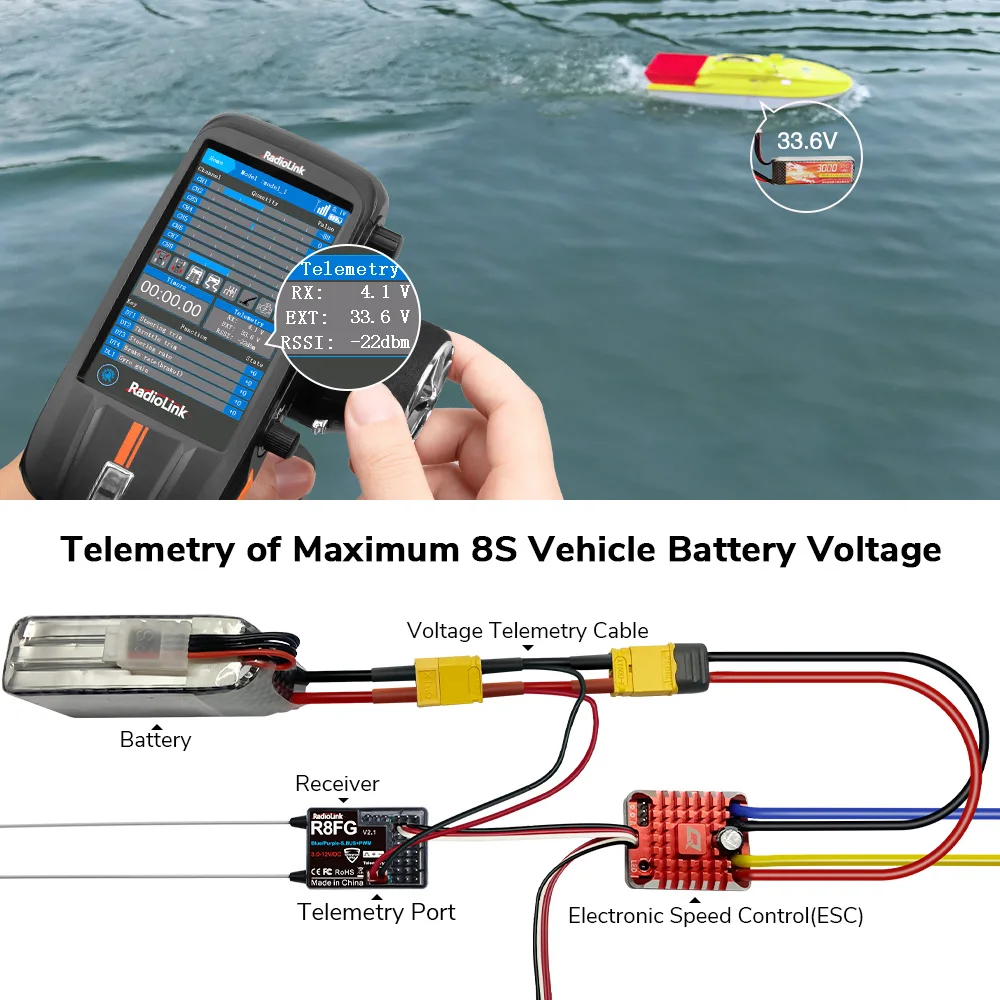

Telemetry: Real-time built-in telemetry of model battery voltage(up 33.6V, 8S Lipo), RSSI, and receiver voltage

Gyro: Receiver with gyro integrated, customizable gyro sensitivity

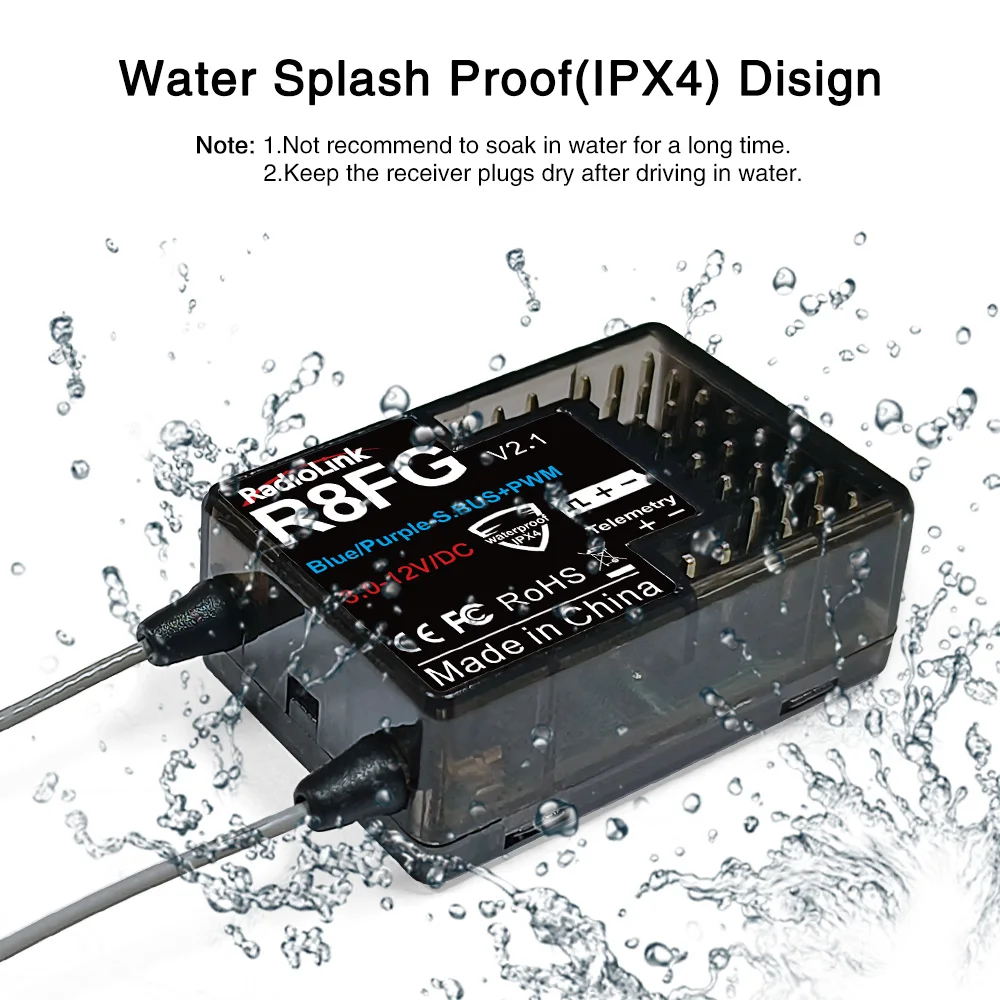

Water Splash Proof: Yes, the waterproof grade is IPX4

Weight: 6g(0.21oz)

Size: 35*24*13.5mm

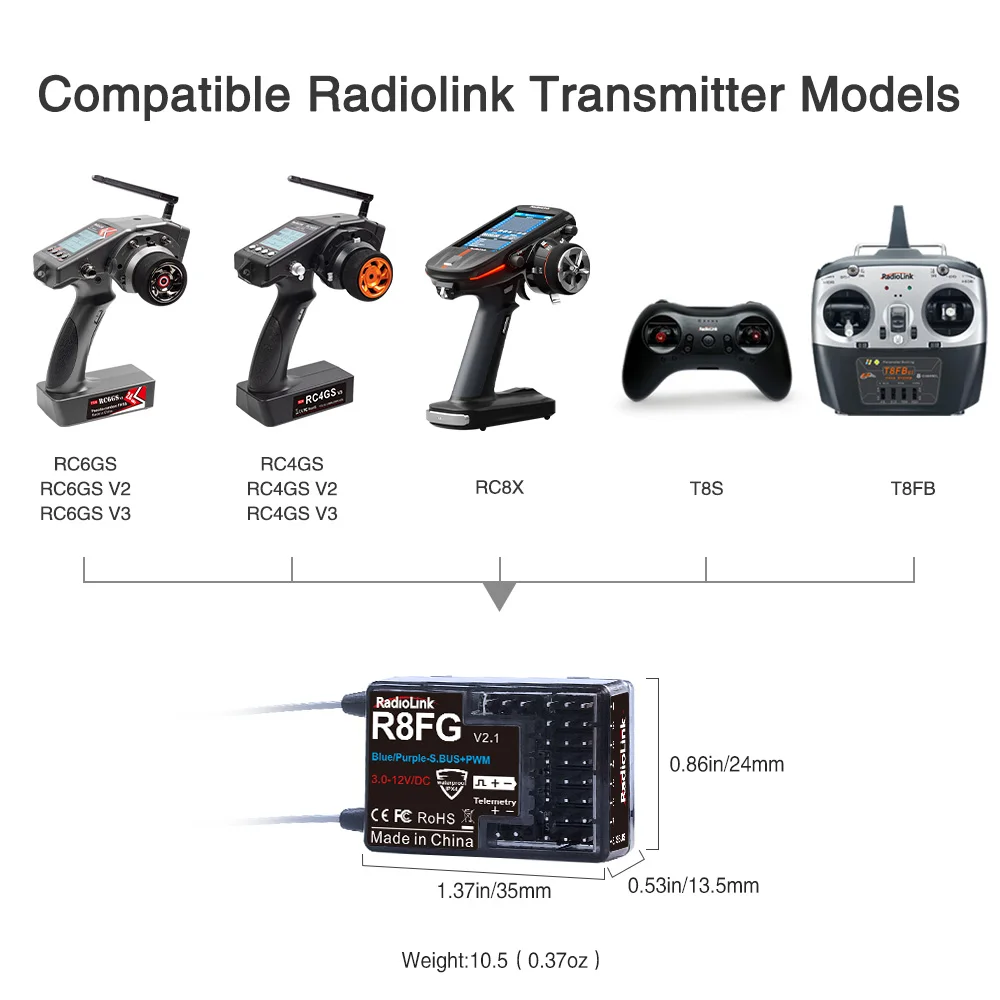

Compatible Transmitters: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/T8FB/T8S

Applicable Model Types: Car (Including Crawlers/Tanks/Caterpillars, etc)/Boat/Robot

R8FG Receiver V2.1 Upgrade Instructions:

R8FG V2.1 and R8FG receiver with a factory date of 2023/4/26 and later support digital servo, the servo speed of 4ms or 3ms can be selected on RC8X.

Receiver status indication:

When switching the servo speed, the green LED light of the receiver will flash twice, which means the operation is successful.
If the green LED does not flash when switching the servo speed, it means the operation is unsuccessful or the current receiver does not support digital servos.
