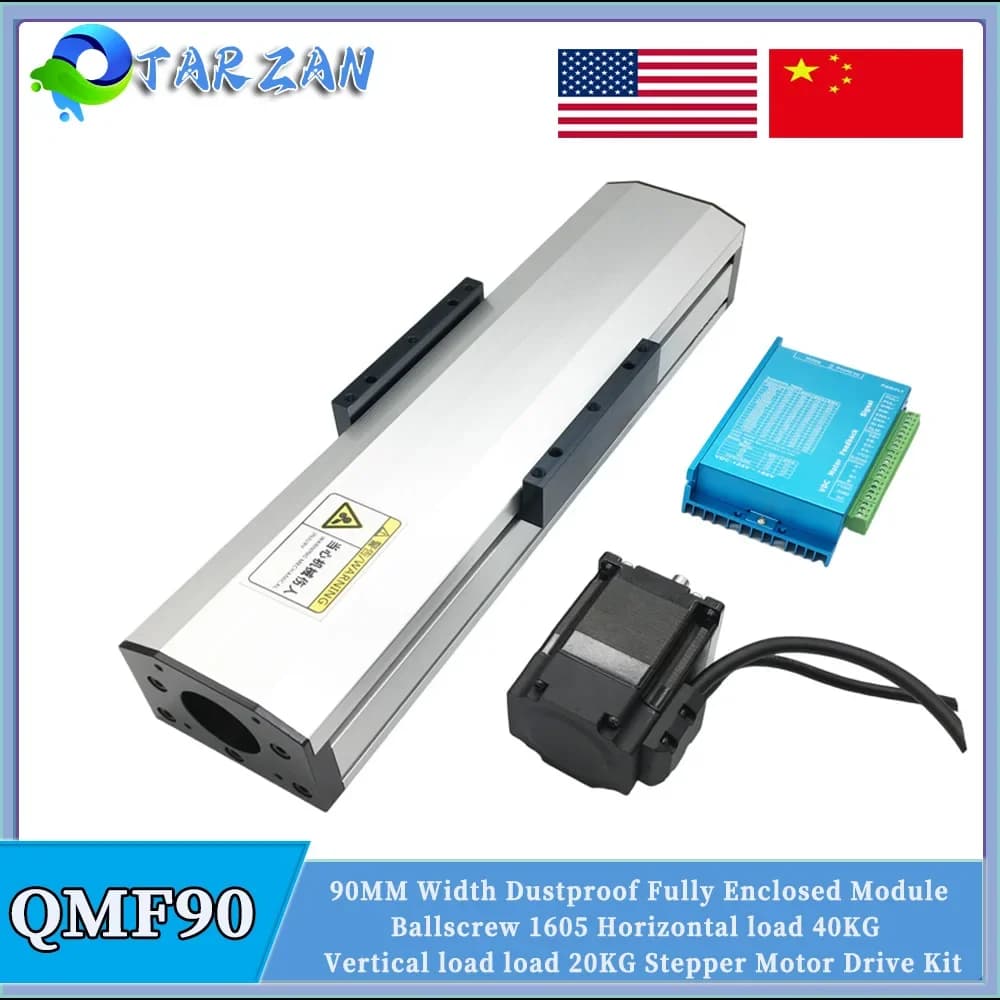

90mm Wide Fully Enclosed Linear Rail Guide Stage Dustproof Linear Actuator SFU1605 Ballscrew Slide Table CNC Nema23 57 Motor Kit

● Only Slide Table:
1* Fully Enclosed Linear Slide Table
1* 8mm to 8mm Coupling for Nema 23 Motor

● 1.2/2/3Nm Motor kit:
1* Fully Enclosed Linear Slide Table
1* Nema 23 57mm Open-loop Stepper Motor
1* TB6600 Drive
1* 8mm to 8mm Coupling

● 1.5/2.2/3Nm Encoder motor:
1*Fully Enclosed Linear Slide Table
1*Nema 23 57mm Closed Loop Stepper Motor
1*HB808C Drive
1* 8mm to 8mm Coupling
●1.5/2/3.2Nm All in one kit:
1* Fully Enclosed Linear Slide Table
1* Nema 23 57mm Closed Loop Stepper Motor Drive All-in-one
1* 8mm to 8mm coupling

Motor Parameter:

Sliding Table Technical Parameter:

●Model:QMF90
●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)
●Ballscrew accuracy: C7 level
●Effective stroke: 100mm-300mm Optional
●Total length: Effective stroke+170mm
●Module width: 90mm
●Guide diameter: 12mm
●Guide Type: 2*MGN12R
●Slider Type: 2*MGN12H
●Horizontal load:Max 70KG
●Vertical load:Max 35KG
●Maximum speed: 250mm/s
●Ballscrew Repeat positioning accuracy: 0.03-0.05mm
● Supported motor bracket (support customization):Nema 23 stepper motor;
●Base plate material: Aluminium alloy

Drive Parameter:

●Model: HB808C
●Type: DSP Closed loop stepper drive
●Maximum peak current: 13A
●Impulse response frequency: 200KHz
●Micro-stepping driver: 200~25600ppr
●Input Voltage: 24-80VDC
●Protective function: Over voltage, over current, tracking error, over proof
●Signal input: Support PUL/DIR and CW/CCW modes (difference)
●Compatible: 4.5~28V signal (Don't need a resistor)
●Drive Technical Parameter:
●Model: TB6600
●Input voltage: DC 9-42V
●Input/ Output current: 0.5-3.5A
●Maximum power: 150W
●Subdivision: 1,2,4,8,16,32
●Operating environment temperature: -10～45℃
●Storage temperature: -40℃～70℃

Drive Technical Parameter:

●Model: TB6600
●Input voltage: DC 9-42V
●Input/ Output current: 0.5-3.5A
●Maximum power: 150W
●Subdivision: 1,2,4,8,16,32
●Operating environment temperature: -10～45℃
●Storage temperature: -40℃～70℃
