TwoTrees TTS-10 Pro Laser Engraver Stainless Steel Engraving Machine DIY Woodwork Cutting Machine 445±5nm Blue Light Cnc Machine

TwoTrees TTS-10 Pro Laser Engraver Stainless Steel Engraving Machine DIY Woodwork Cutting Machine 445±5nm Blue Light Cnc Machine

To customers (especially high tariff countries such as Chile/Mexico/Canada/Spain/Brazil):

Please note that the price of our products (ships from China) not include customs clearance duties. If your package is inspected by customs, you need to clear customs and pay customs duties yourself.（For example, if a user in Brazil chooses to ship from a Brazilian warehouse, the price includes tax and there are no additional taxes.）

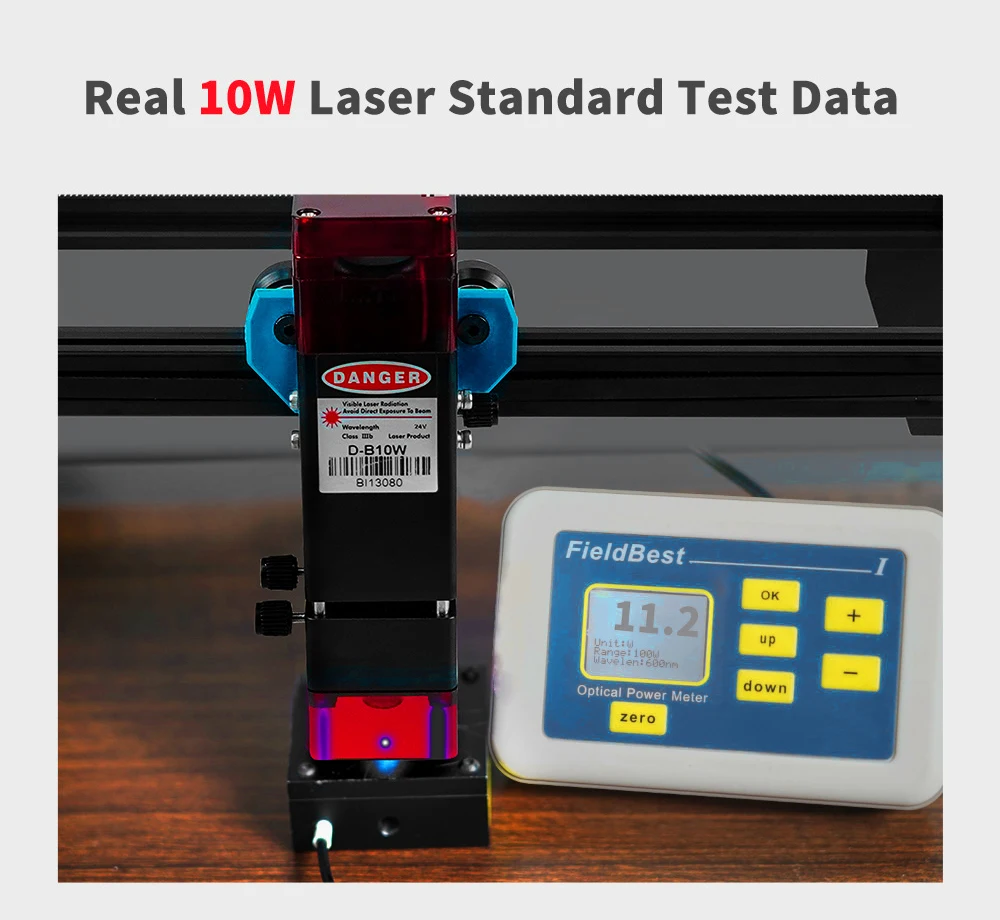

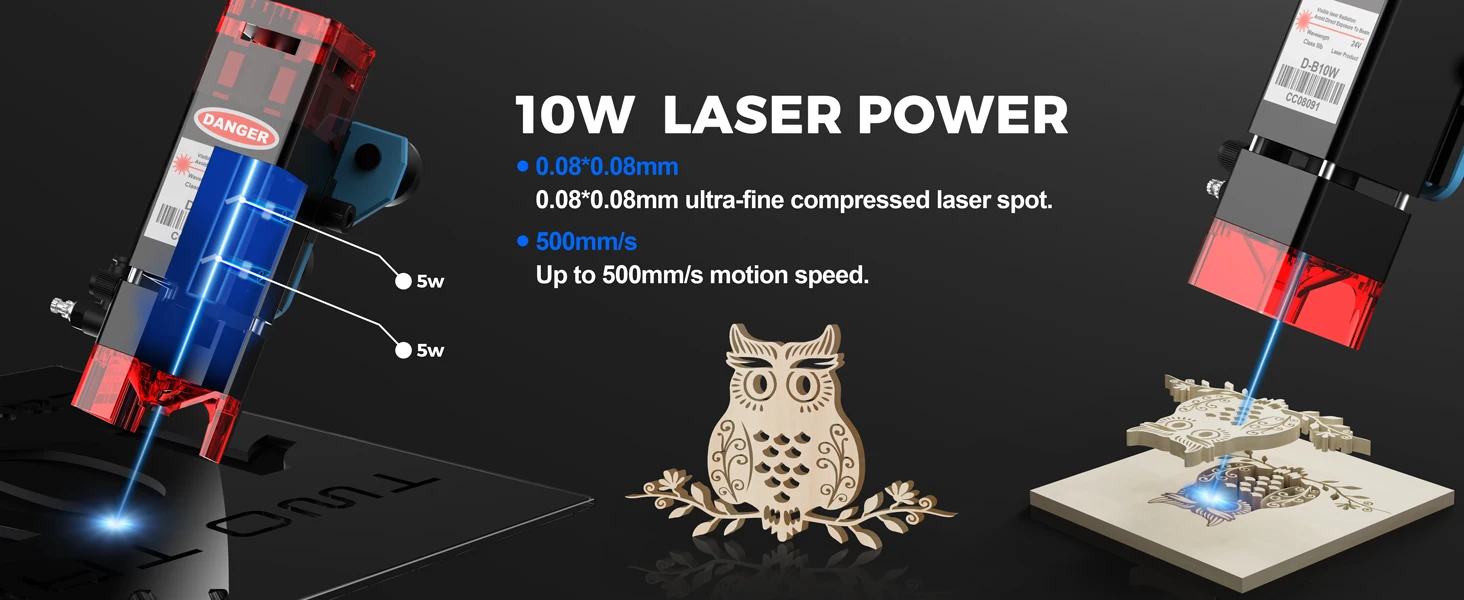

Latest Laser Beam Shaping Technology: TTS-10 Pro uses the latest 10W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.

Fast focus design: Combines a fixed focus lens and a knob to adjust the height. You just need to turn the knob to focus. Equipped with a fixed focus column, which makes it very easy to use.

Easy assembly structure: aluminum profile structure design, double Y-axis motors make the machine work more stably and improve the engraving accuracy. 60% pre-assembled, assembly can be completed in 30 minutes.

Square measuring ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.

Wide Compatibility:Support mobile APP control, wifi connection, USB connection, offline USE，The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.

Safe Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. The motherboard has a separate control switch.

Machine parameters:

Model: TTS-10 Pro

Machine Weight: 3kg

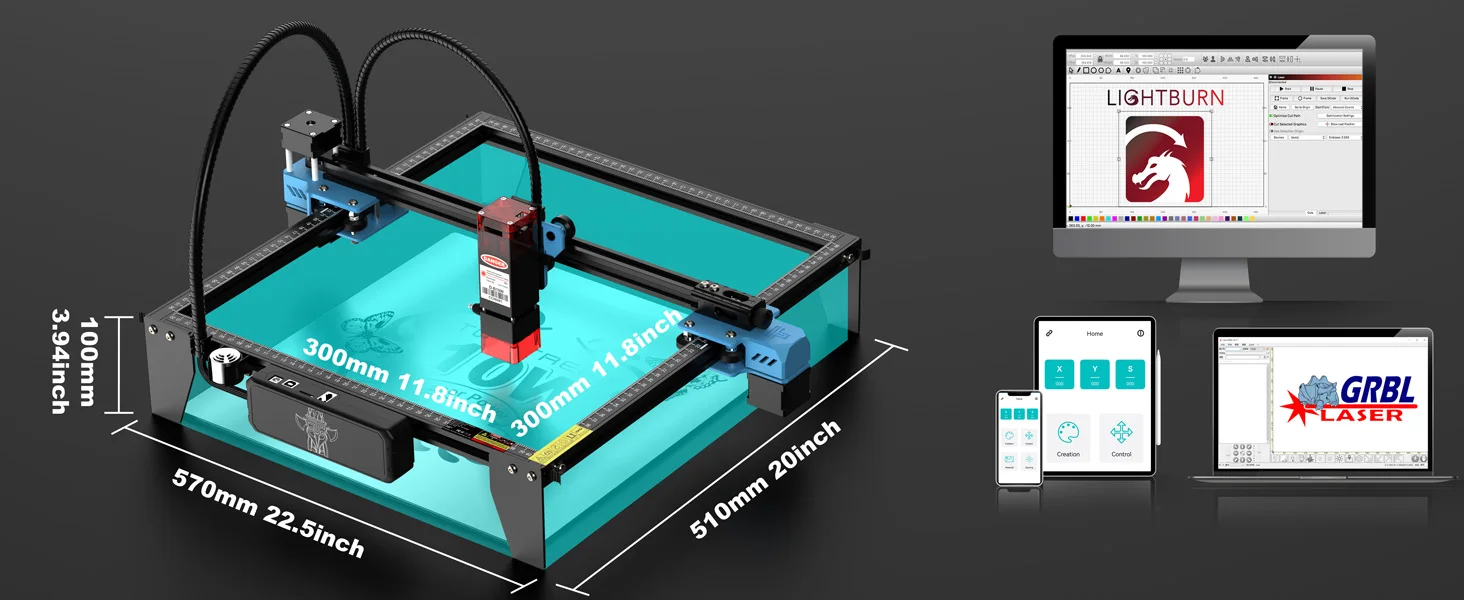

Engraving Range: 300 * 300mm

Laser Wavelength: 445 ± 5nm

Engraving Accuracy: 0.1mm

Engraving Speed: 30000mm / min

Software Support System: MAC, Windows

Machine Material: Aluminum Profile + Plastic Parts

Power Supply: 24V 4A DC

Control Board: LTS esp32 Motherboard (32bit)

Laser Power: 10w

Input Power: 80w

Software Identification File Format: NC, BMP, JPG, PNG, Gcode, Etc

Supporting software: Lasergrbl (Windows system), Lightburn (General)

Power type: European standard / American Standard (Optional)

Languages Supported By The Software: Chinese, English, Italian, French and German

Working Environment: Temperature 5-40 ℃, Humidity 20-60%

Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)

Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc

Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving

Note: Transparent materials cannot be cut or engraved directly, and the surface needs to be covered.

Note:

- Please read the Users Manual before use.

- Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!

- Do not engrave the mirror objects or metals with strong mirror reflectivity, which may cause injury to the operator or burn the laser.
