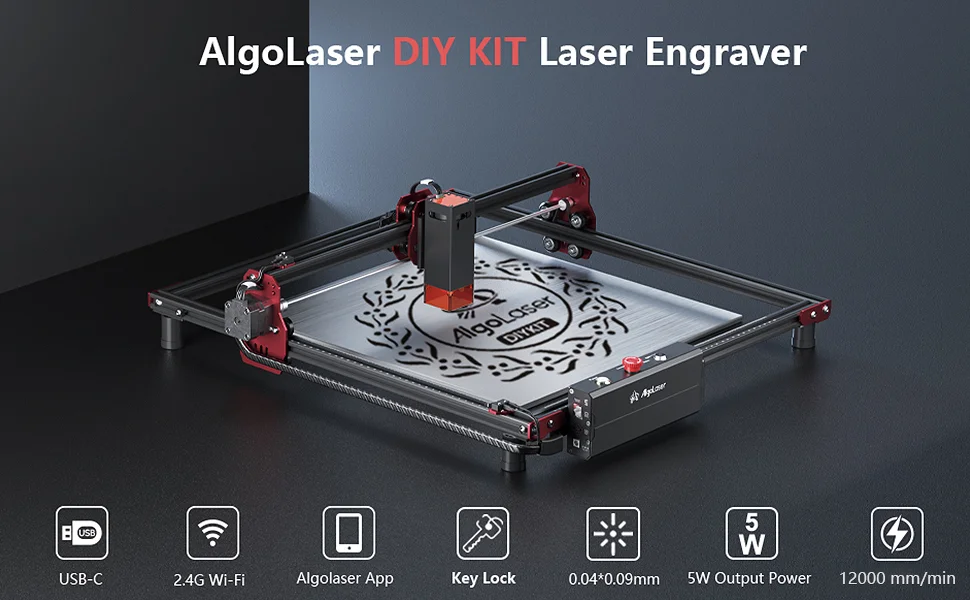

ALGO Laser Engraver DIY KIT OPTIONAL Laser Rotary Roller Desktop Engraving Cutting Cutter Machine Metal Woodworking 400x400mm

ORTUR Laser Engraver DIY KIT Y-axis Laser Rotary Roller Desktop Engraving Cutting Cutter Machine Metal Woodworking 400x400mm

Features:

Motherboard:ALGOLASER_DIY_KIT_V1.2

Engraving area: 400*400mm

With Expand kits Engraving area :400*800mm(need to order separately)

Control Software:LaserGRBL (free), LightBurn (Paid Software), Wifi APP

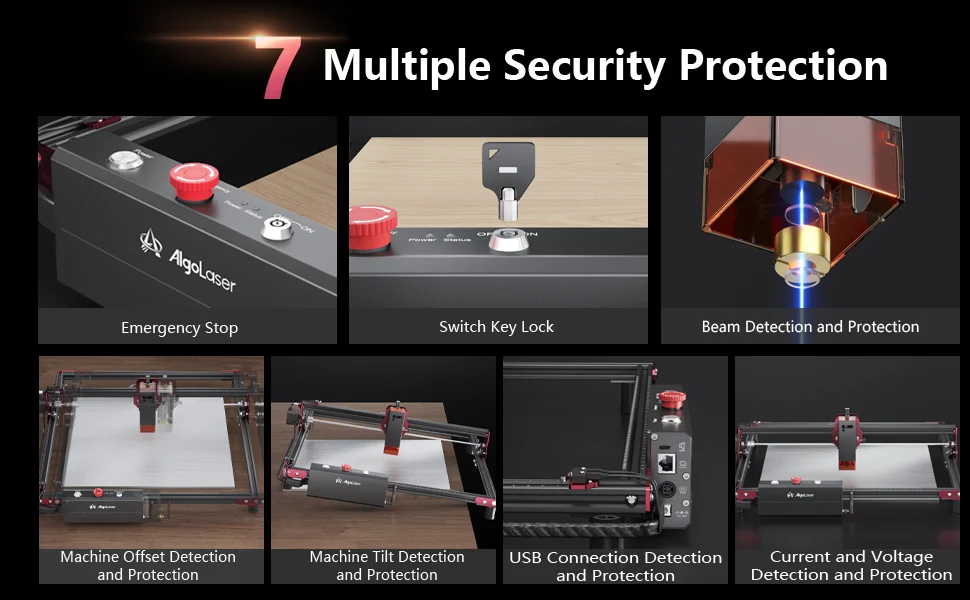

Safety Precautions:

Machine Offset Detection and Protection

Machine Tilt Detection and Protection

USB Connection Detection and Protection

Beam detection and protection

Current and Voltage Detection and Protection

Emergency Stop Switch

Key Lock

Frame Materials:Aluminum Profile

Motors:NEMA 42 Stepper Motors

Mechanical Precision:Y:12.5um，X:12.5um

Pixel Accuracy:Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy)

Engraving Area:X400mm*Y400mm

Electric Power:72W

Luminous Power:5W/10W

Wave Length:445±5nm

Control Mode:PWM

Power Rate:S0-S1,000

Engraving Speed:0-12,000MM/Min

Baud Rate:115200 - 921600 (Default: 115200)

Computer OS:Win XP, Win 7, Win 8, Win 10 (LaserGRBL)Mac and Linux (LightBurn)

Control Softwares:LaserGRBL (free), LightBurn (not free), Wifi App

Input Format:BMP, JPG, PNG, NC, DXF, SVG, etc.

Available Materials of Engraving:Wood, Paperboard, Black Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc.

Available Materials of Cutting:Paper Board, KT Board, Felt Cloth, Leather, Thin Plywood, Thin Black Acrylic, etc.

Input Voltage:110V-240V (Compatible)

Power Adapter Output:24V / 3A

Operating Temp.:-20℃-50℃

How to Select from DIY KIT 2W, 5W, 10W ,20W Laser modules?

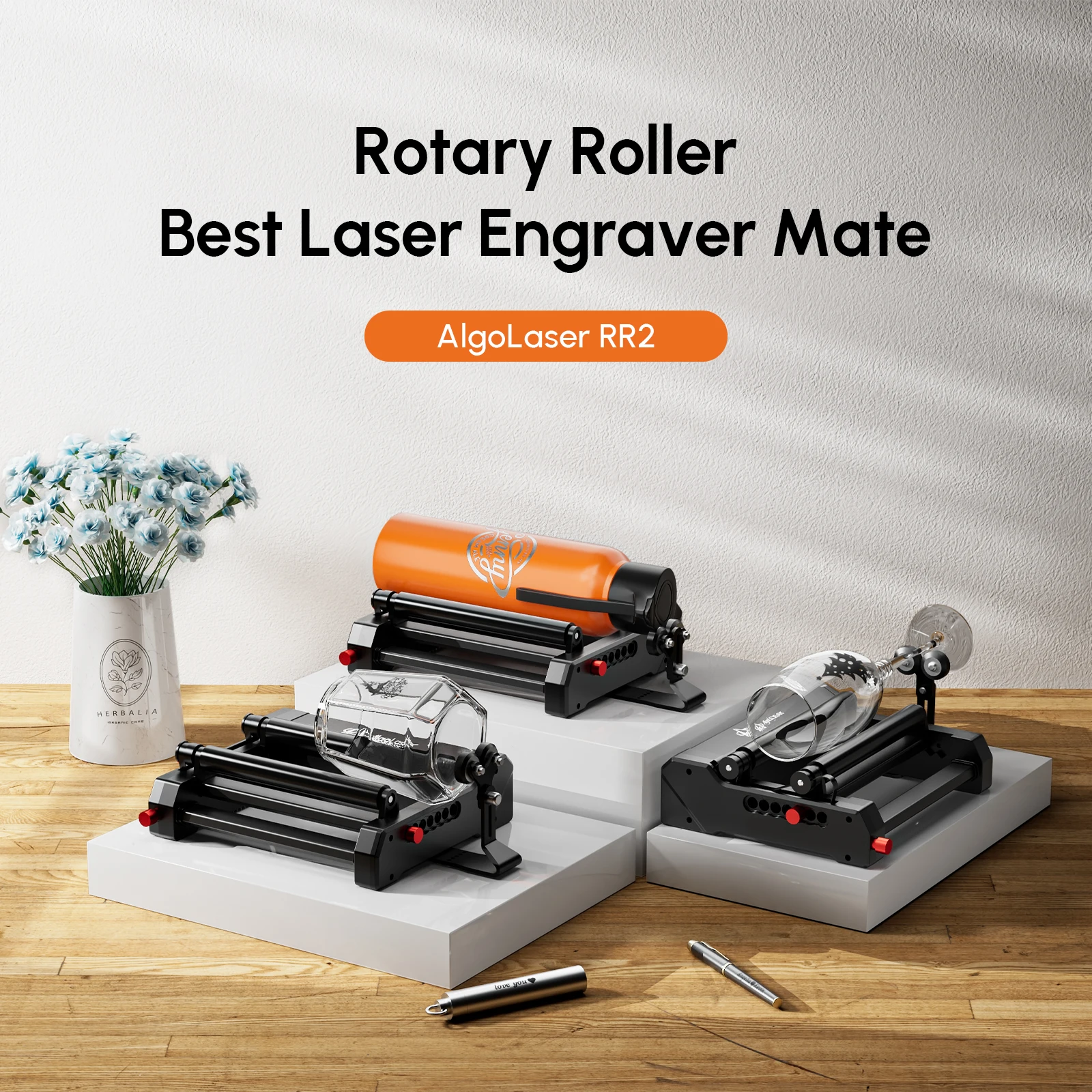

1.The Y rotary is used for laser engraving cylindrical objects of varying diameters.

2. AlgoLaser laser rotary roller is compatible with different models of engraving machines.

3. This product is an accessory part of the AlgoLaser

range of laser engraving machines and not a standalone device. To maintain maximum efficiency, it needs to work in conjunction with an

AlgoLaser laser engraving machine.

UPGRADE 1.8 FIRMWARE:

AlgoLaser Series Firmware has been optimized for faster speed engraving. Taking advantage of the faster ESP32 McU.

1. The main frequency is as high as 240MHZ.

2. The working efficiency is high, and the machine moves fast.

3. With current and voltage detection functions, better protection of the machine.

4. Active power-off function, which can actively disconnect the power supply in the case of abnormal power supply.

5. Support AlgoLaser series digital Laser module, it could adjust the laser heat dissipation time after the engraving is completed according to the use of the digital laser module.

6. The use of efficient real-time operating system Freertos system is more stable and more efficient.

ALGOLASER ADVANTAGES:

1. AlgoLaser upgraded firmware, smarter, faster, higher precision and easier to use, support both computer and Cellphones to use.

2. It could pre-process 32 instructions, support baud rate as high as 921600, max. 12000mm/min.

3. Allows you to enjoy more intelligent and safer laser engraving machine engraving with emergency stop buttons and safety lock functions.

SAFETY PROTECTIONS PROVIDES YOU WITH A SAFE ENGRAVING ENVIRONMENT.

Ultra-Fine Compression: AlgoLaser Laser Engraver has 32-bit professional motherboard, which is smarter, faster, more accurate and easier to use. Engraving area is 400*400mm. Ultra-fine laser focal area is reduced to 0.17*0.25mm, The engraving machine speed can be as high as 5000 mm/min. The laser cutter can cleanly cut 6mm pine board in one pass. The laser cutter comes with an air assist nozzle, use with our air pump could support a higher speed and cut better.

Safety protection: Laser Engraver newly upgraded Safety protection. 1. There is a G-sensor on the motherboard, When the engraving machine is displaced or tilted, it will automatically stop the laser; 2. If your computer system halted or USB cable disconnected, led to that the laser engraver stops moving, the laser beam will stop, to prevent fire. 3. The engraving machine is turned on, but there is no movement for a long time, the laser will be turned off automatically.

New eye protection design: The laser engraving machine with newest panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light to perfectly protect your eyes to reduce the cost of your goggles and the inconvenience of wearing goggles.

Extensive Compatibility & Uses: AlgoLaser laser engraver and cutter can engraving cylinders by add to rotaty rollers. Unleash your creativity on over one hundred materials including paper, bamboo, wood, leather PCB board, aluminum oxide, metal, glass, etc.compatible with various mature engraving software, such as LaserGRBL(Free), LightBurn(Paid). The ORTUR laser cutter supports Win 7 / Win 8 / XP / Win 10 / Win 11, and also support MacOS and Linux system.

Quality and Assurance: The entire engraving machine adopts a modular design, which is convenient for users to assemble, repair, and replace and update machine parts. We are the manufacturer of AlgoLaser. We only provide Amazon customers with the best quality and comprehensive pre-sales and after-sales services. The engraving machine enjoys a one-year warranty. If the engraving machine fails during the warranty period, please contact us.

Super easy to Connect: The DIY KIT laser engraver supports 2.4G WiFi and USB-C connections. For beginners, LightBurn, and LaserGRBL software provide easy access to offline control and engraving. Use the smartphone app (AlgoLaser) for effortless creativity without a computer.
