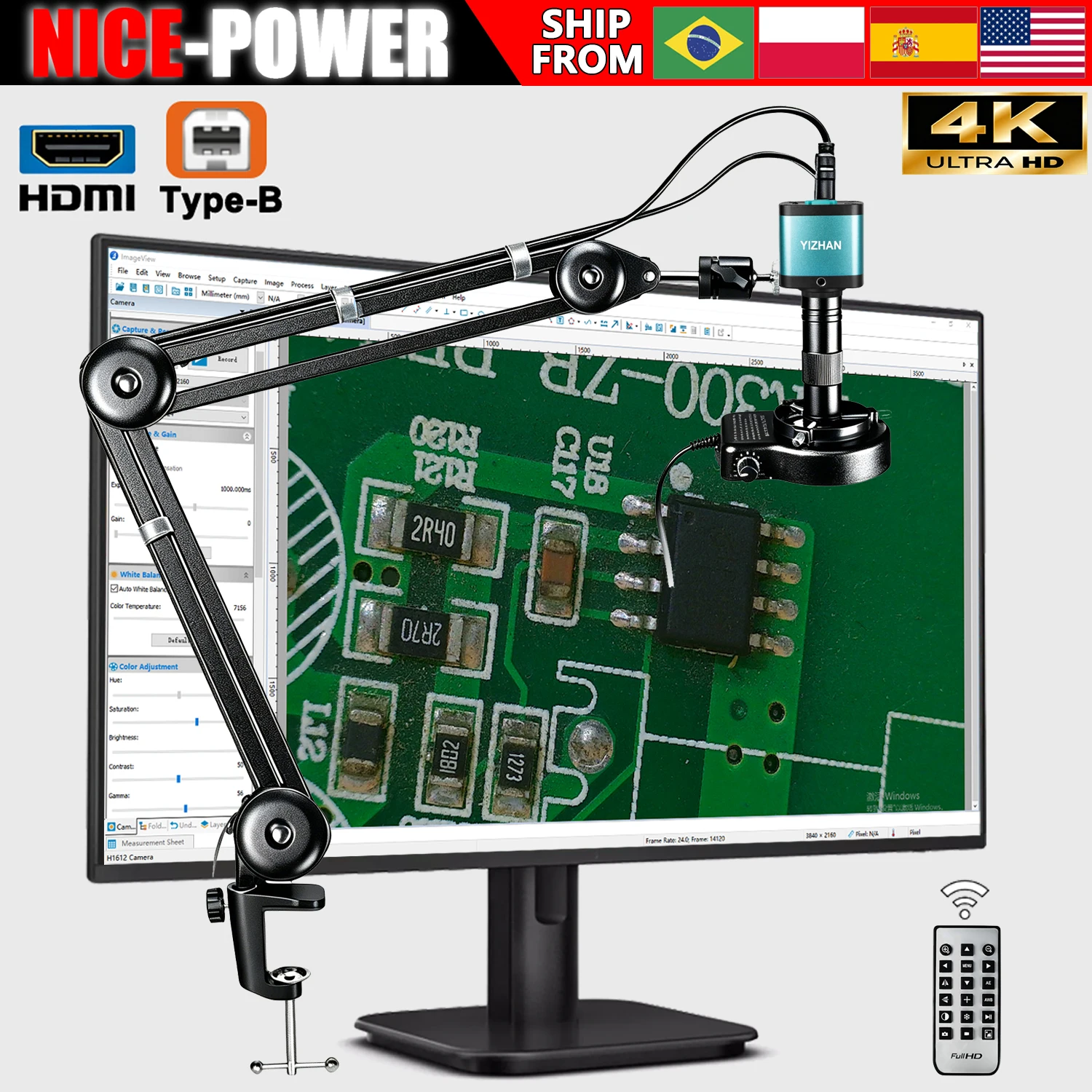

NICE-Power 48MP 4K Digital Microscope,Ultra High Resolution HDMI USB Microscope Camera 150X Lens for Industrial QC PCB Soldering

🔥The first step to operate after installing the microscope

After assembling the microscope, the first step is to prioritize using the one-click exposure function. Then, place a piece of white paper horizontally directly below the lens and perform a one-click white balance. In most cases, this will achieve the most suitable results for your working environment.(Don't forget to turn on the LED light)

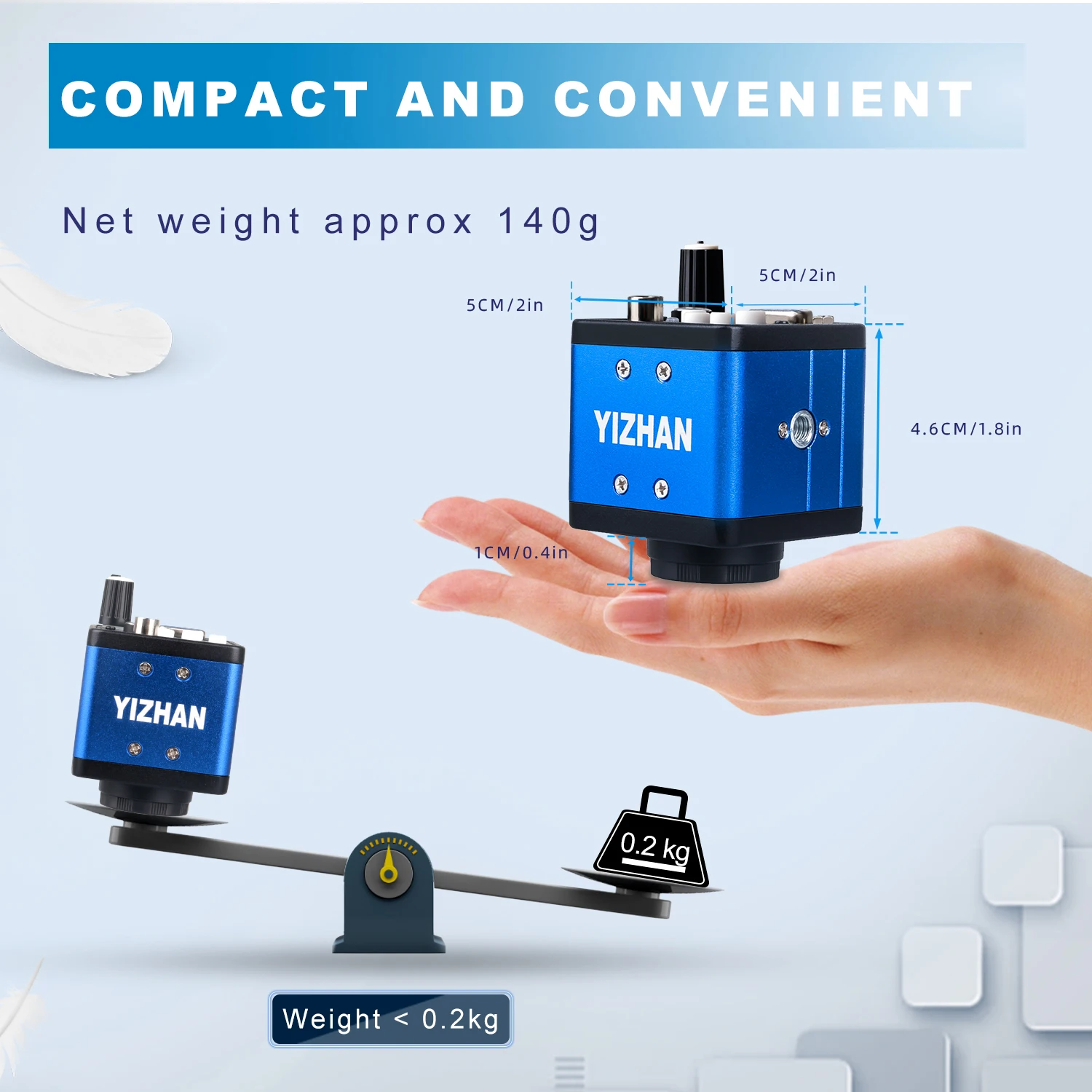

🔥YIZHAN XHU4002 4K 48MP Microscope Camera (HDMI USB)

Model: Camera with HDMI USB2.0 two output
Image sensor: Sony IMX327 sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

🔥Connect to PC via USB for operation.

You can first switch the language to your preferred one in the PC software. It allows you to take photos, record videos and adjust the video image more conveniently. There is also an additional measurement function, which will be of great help to your work.

🔥Effect of Exposure Adjustment on the Image

Whether you connect the device to a monitor or TV via HDMI, or connect it to a computer via USB, exposure is a key parameter. Properly setting the optimal value will help you obtain the best image quality.
How to adjust:
Under unchanged lighting conditions, turn on Auto Exposure and increase the gain value when ambient light is insufficient. When ambient light is too strong and causes overexposure, turn on Auto Exposure and lower the gain value.

🔥Function of White Balance

Correct light color cast and restore the true original color of objects.
1, Different light sources (indoor yellow lights, fluorescent lamps, natural overcast light and ambient lights) all have inherent color cast. White balance can correct yellowish, bluish and reddish tones in the image.
2, Under any ambient light environment, it ensures white paper, white housings and white electronic components are captured without yellow or cold tint. It calibrates the overall image color with white as the reference standard.
3, When shooting circuit boards, metal accessories and product appearances, the presented colors are exactly the same as what the naked eye sees, without color distortion or color cast. It is perfectly suitable for taking photos and recording videos for product display.

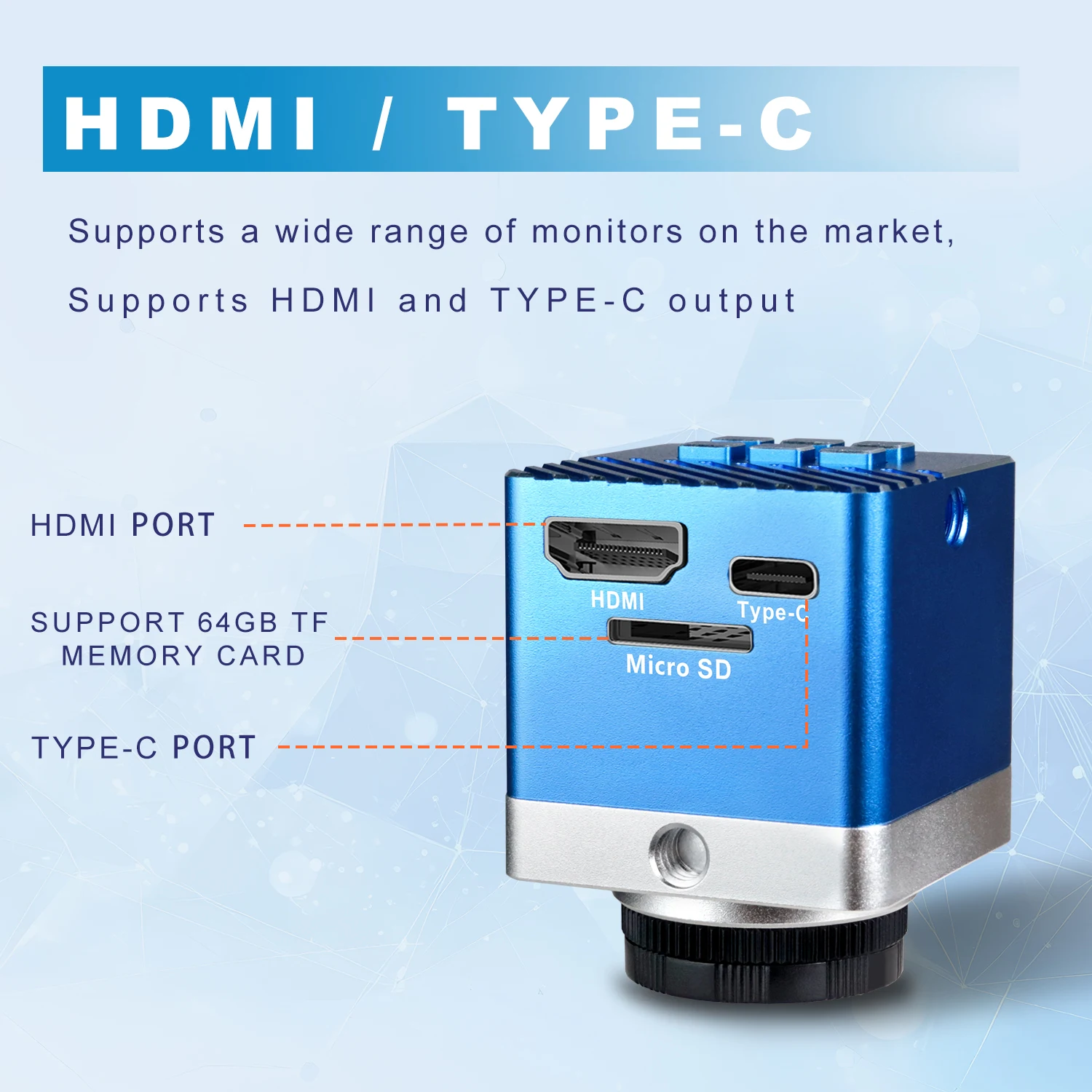

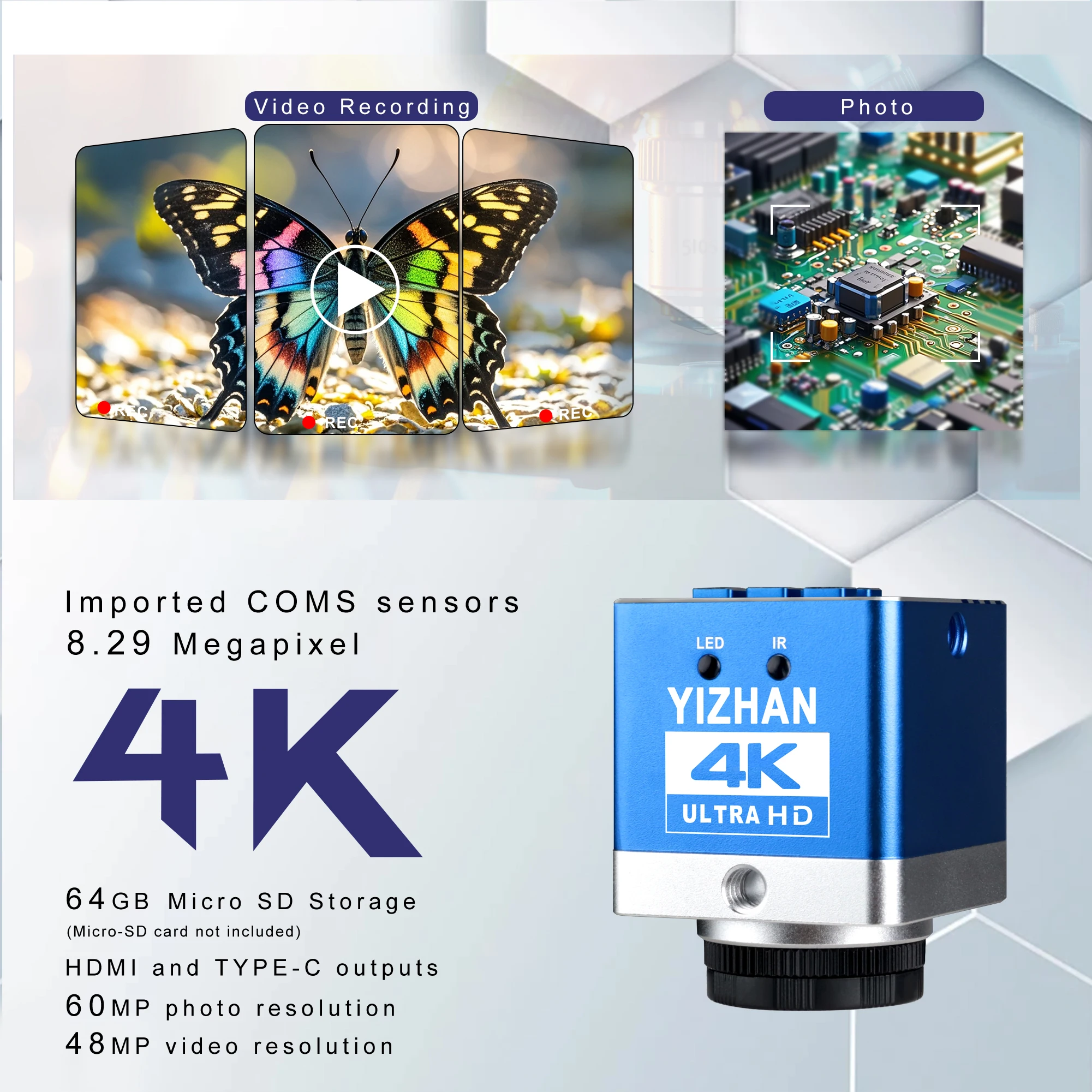

🔥60MP GC8613 Sensor Camera Sets

◆ Chip: GC8613
◆ Using 8.29 million pixel CMOS image sensor;
◆ Using 1/2.7 inch image sensors;
◆ HDMI 3840 * 2160 30 frames/1080P 60 frames image output;
◆ Type-C driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography
◆ 60 million photos, JPG format;
◆ One click freezing/unfreezing function;
◆ 48 million pixel photography and 4K video recording;
◆ Electronic zoom function;
◆ Support manual/automatic exposure/one key exposure and exposure compensation value adjustment;
◆ Support manual/automatic white balance/one button white balance, red, green and blue can be adjusted;
◆ Provide 16 lines with adjustable color, thickness and position;
◆ Provide central crosshair display/closing;
◆ Support TF card storage, with a maximum of 64GB;

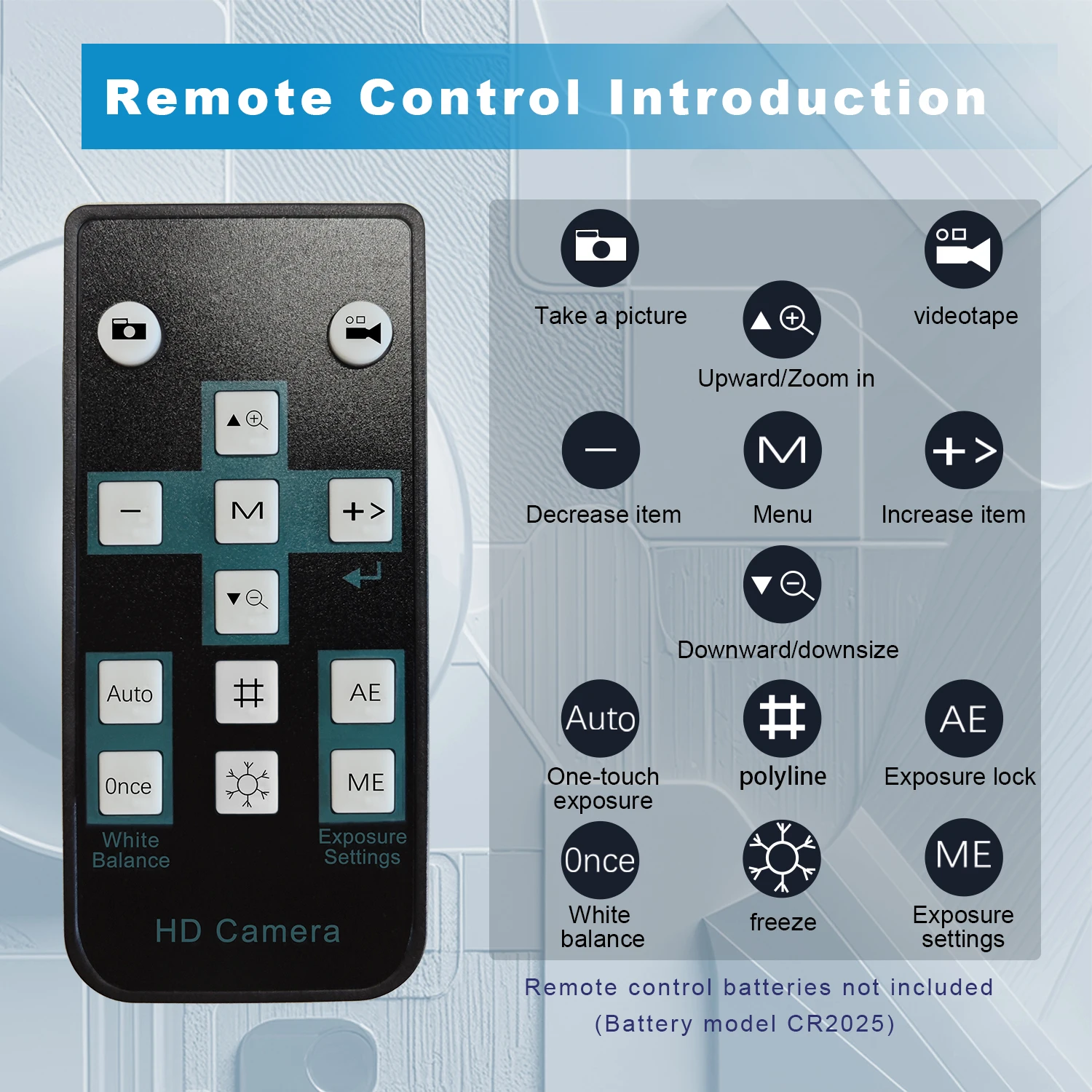

◆ Support remote control operation, and take pictures without shaking images more clearly;
◆ Support English Arabic, Russian, Japanese, Portuguese, Italian, Spanish, German, French menu languages;
◆ Support the saving of shutdown setting parameters;
◆ Aluminum alloy shell processed by CNC precision milling technology;

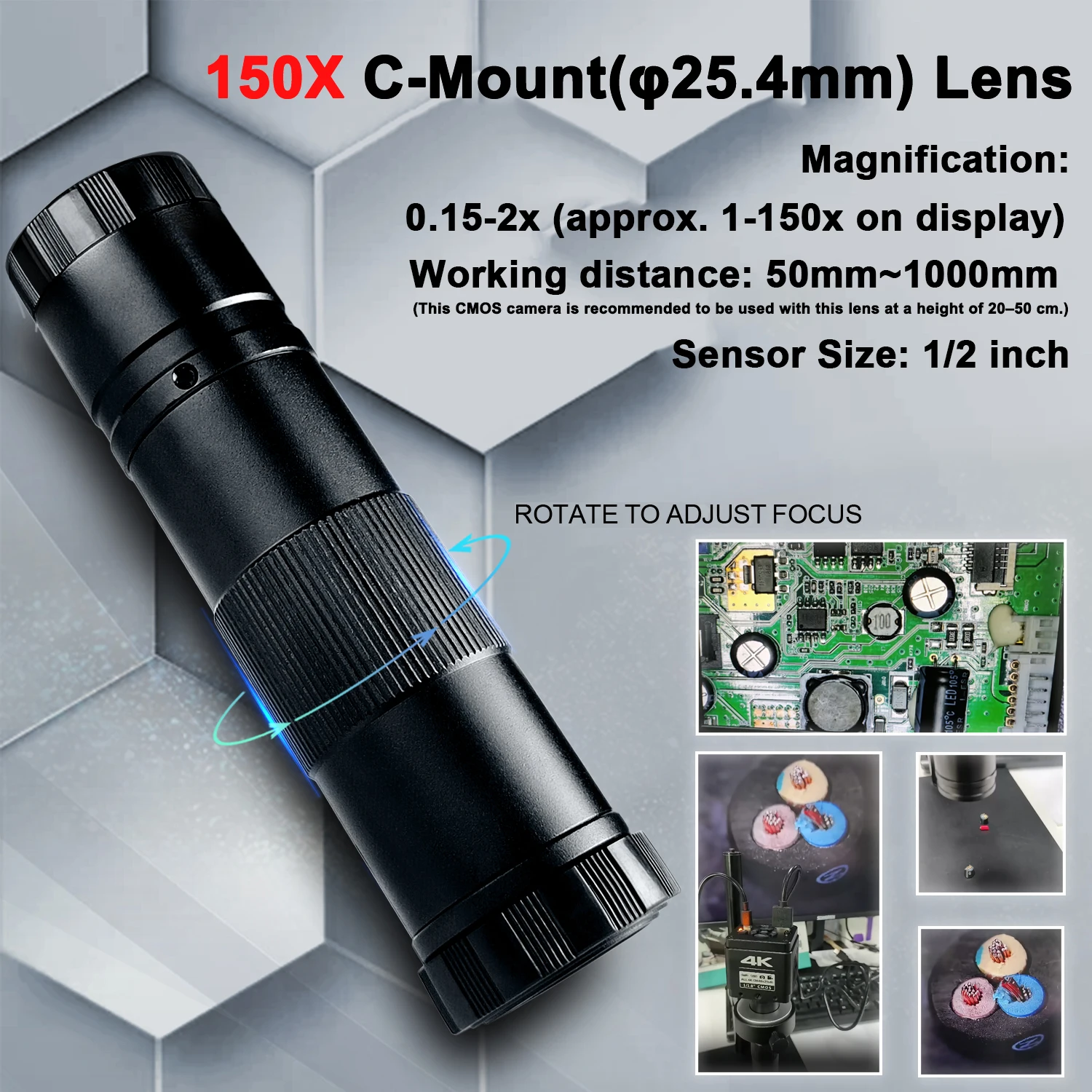

🔥150X lens specifications:

Installation diameter: 28mm
Working distance:50mm-1000mm
Zoom ratio:1:15
Magnification 0.15-2X (approximately 1-150X on the display)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Size: 99mm (length)

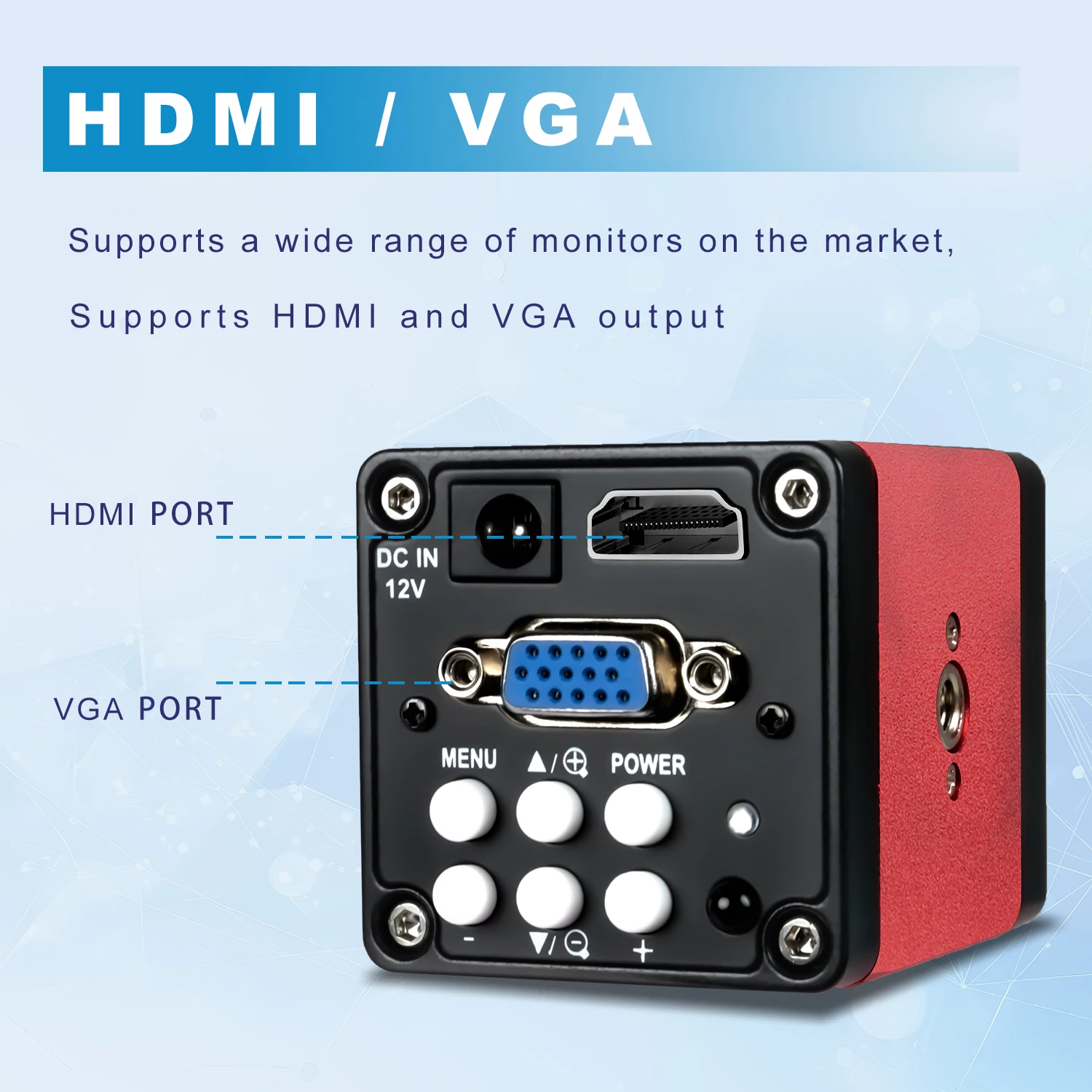

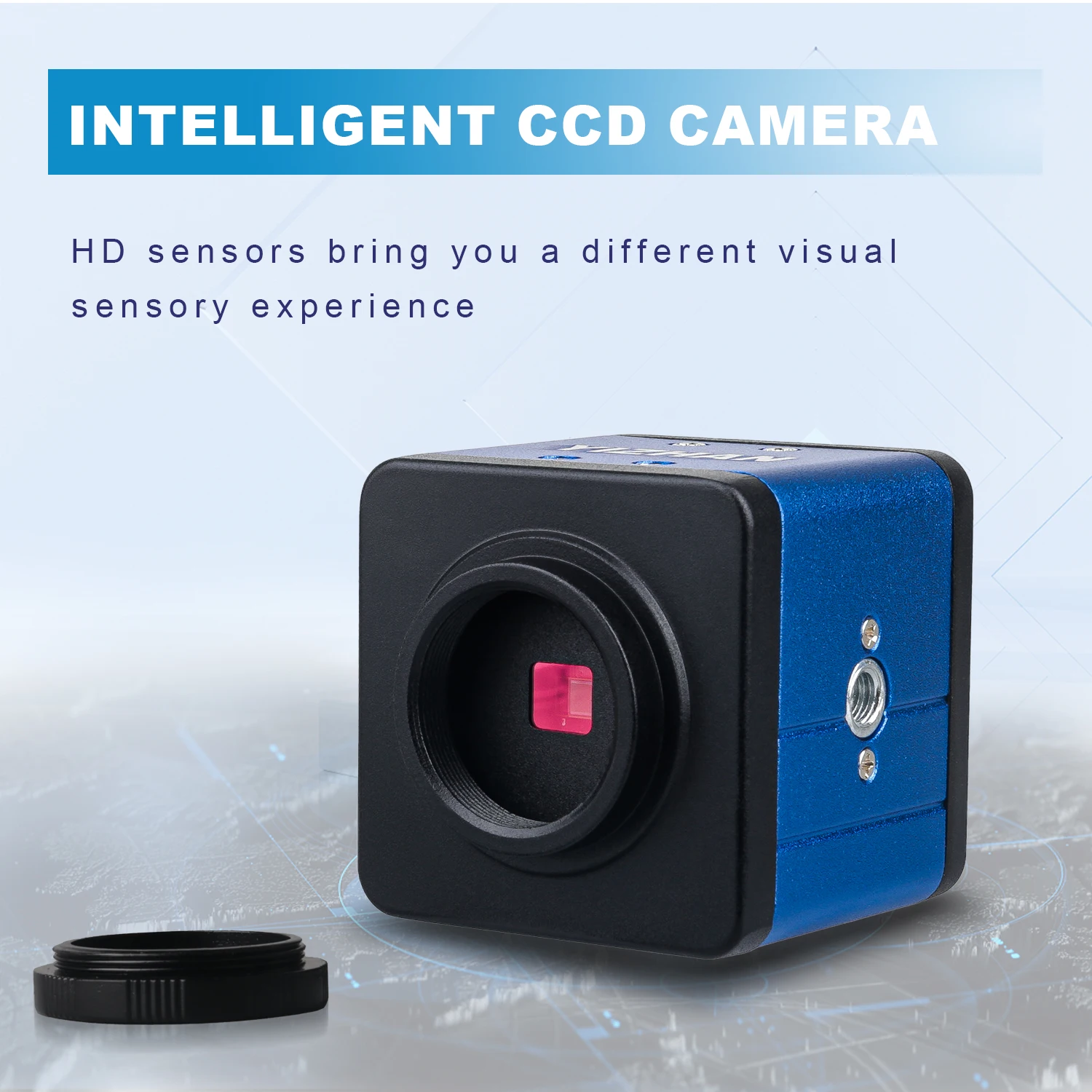

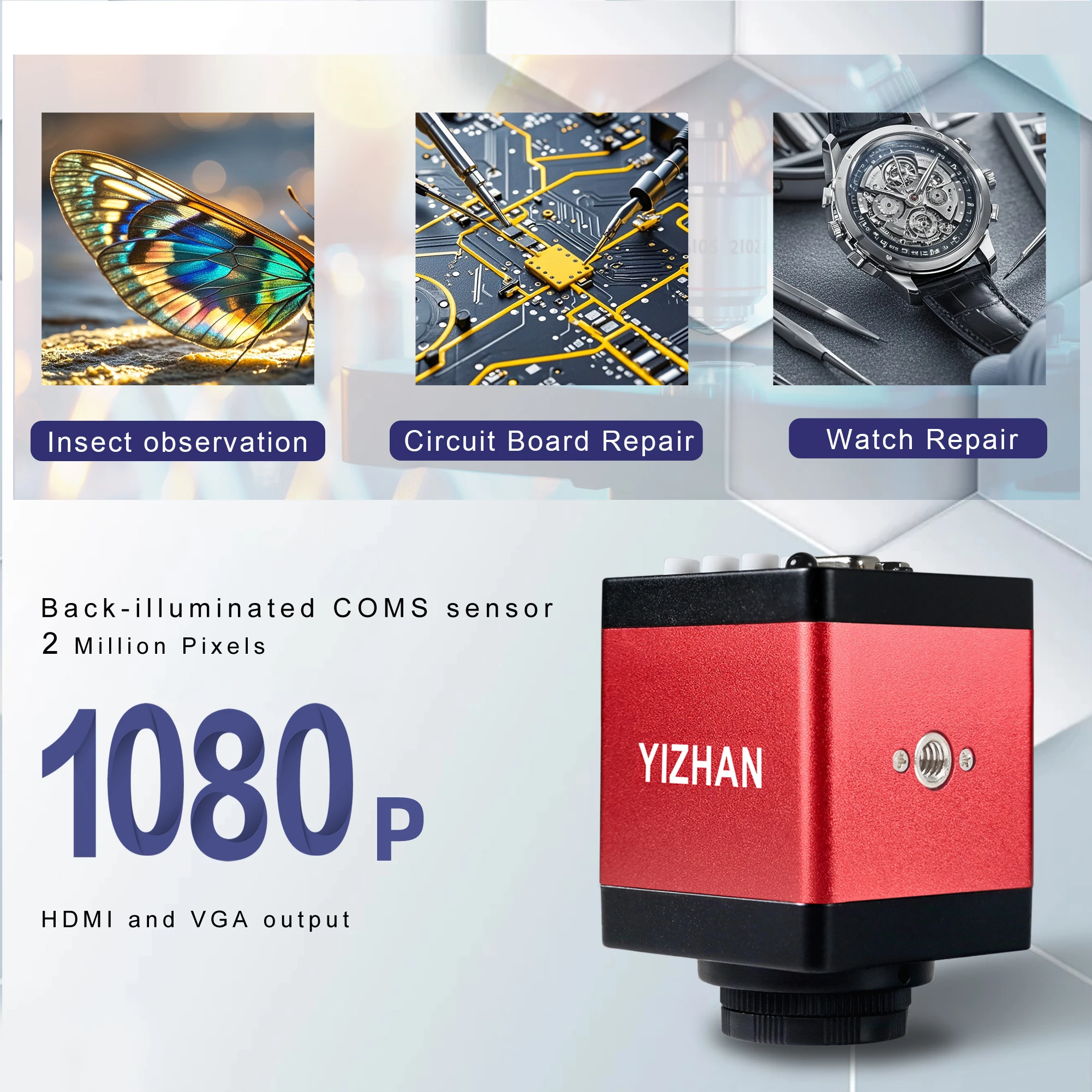

🔥13MP 1/3in GC2083 Sensor Camera Sets

Camera parameters
Video Interface: HDMI VGA
Sensor: gc2083
Overall dimensions: 75*50*50mm
Lens: CS
Working voltage: 12V
Working current: 150mA
Optical format: 1/3"
Pixel size: 2.8 Um * 2.8 um
Pixel array: 13MP
TV channels: 1200 TV channels
Maximum image FPS: 60FPS
Scan mode: Progressive
Shutter mode: electronic shutter
Dynamic range: 65dB
Radio S/N: 45dB
OSD language: English/Chinese
AWB mode: one-time/manual/auto white balance
HDR: customizable
Cross lines: supports 8 colors/adjustable line width
B/W: Allow
Negative: Allow
Flip mirror: supports left/right/up/down
Freeze: Leave it alone
Compare: Allow
Manual setting of brightness, contrast, sharpness, saturation: possible
Display resolution output: HDMI:16:9, 4:3
VGA:1920*1080 (supports various displays on the market)

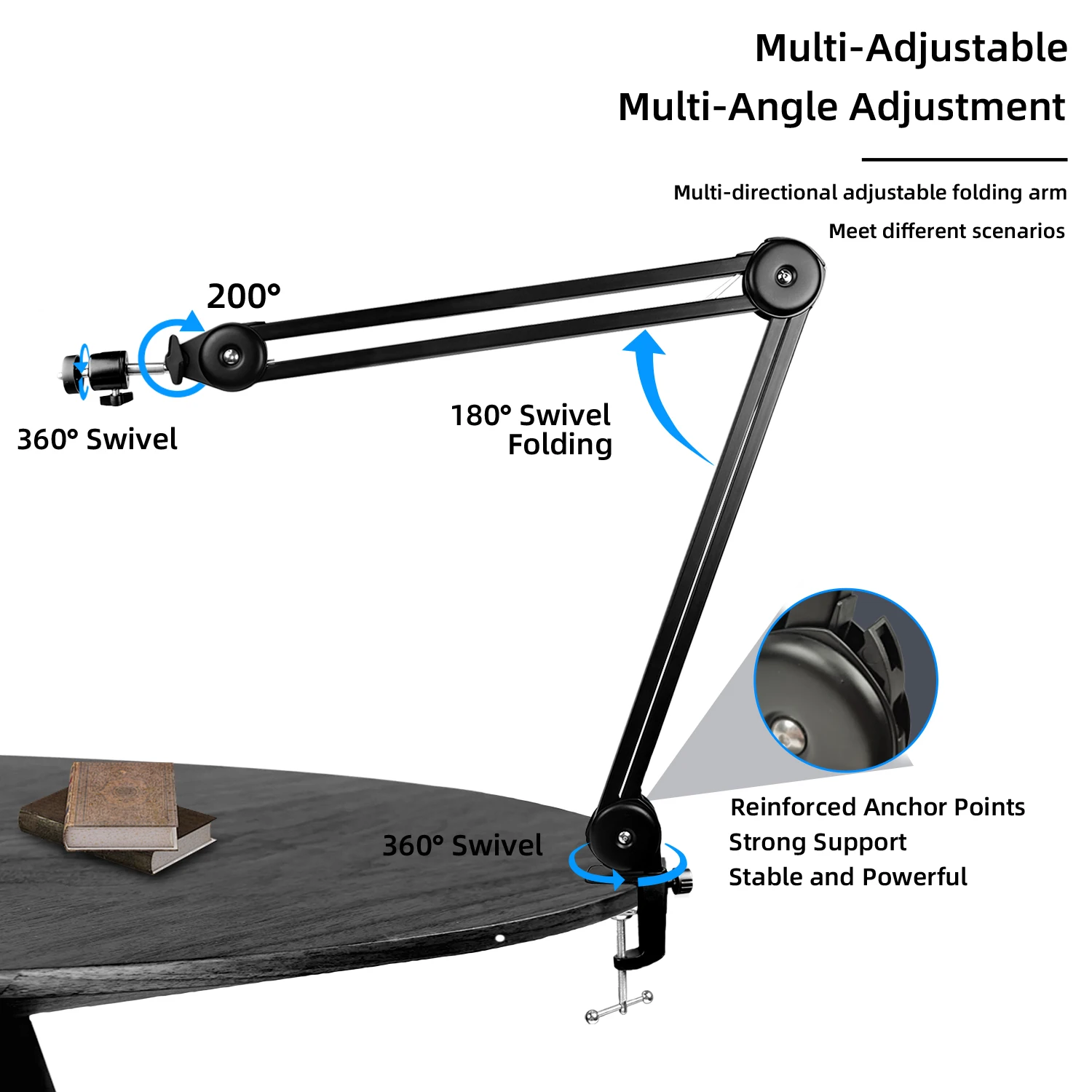

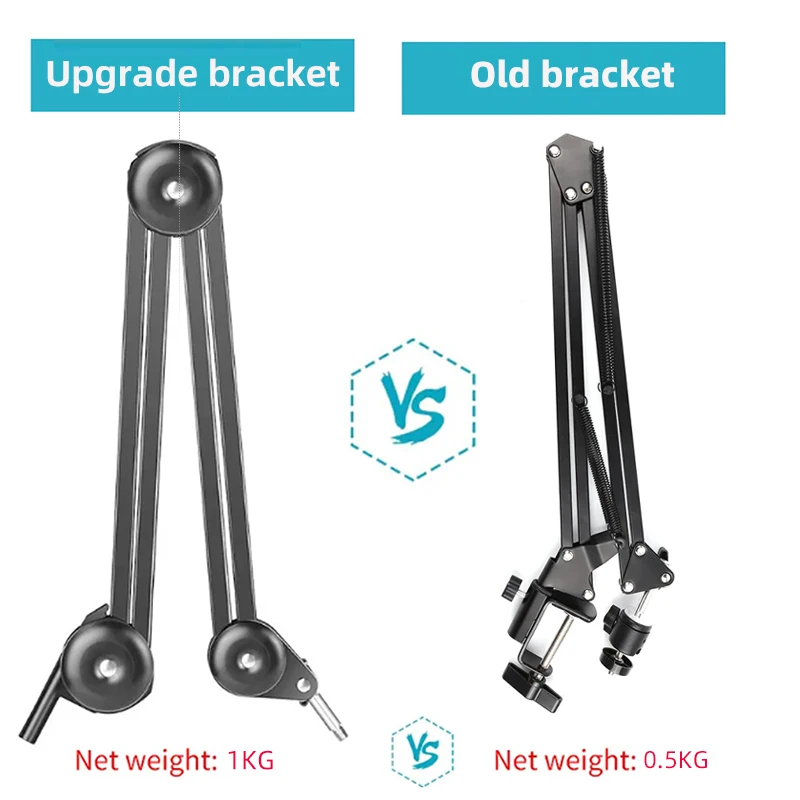

🔥Upgraded folding bracket

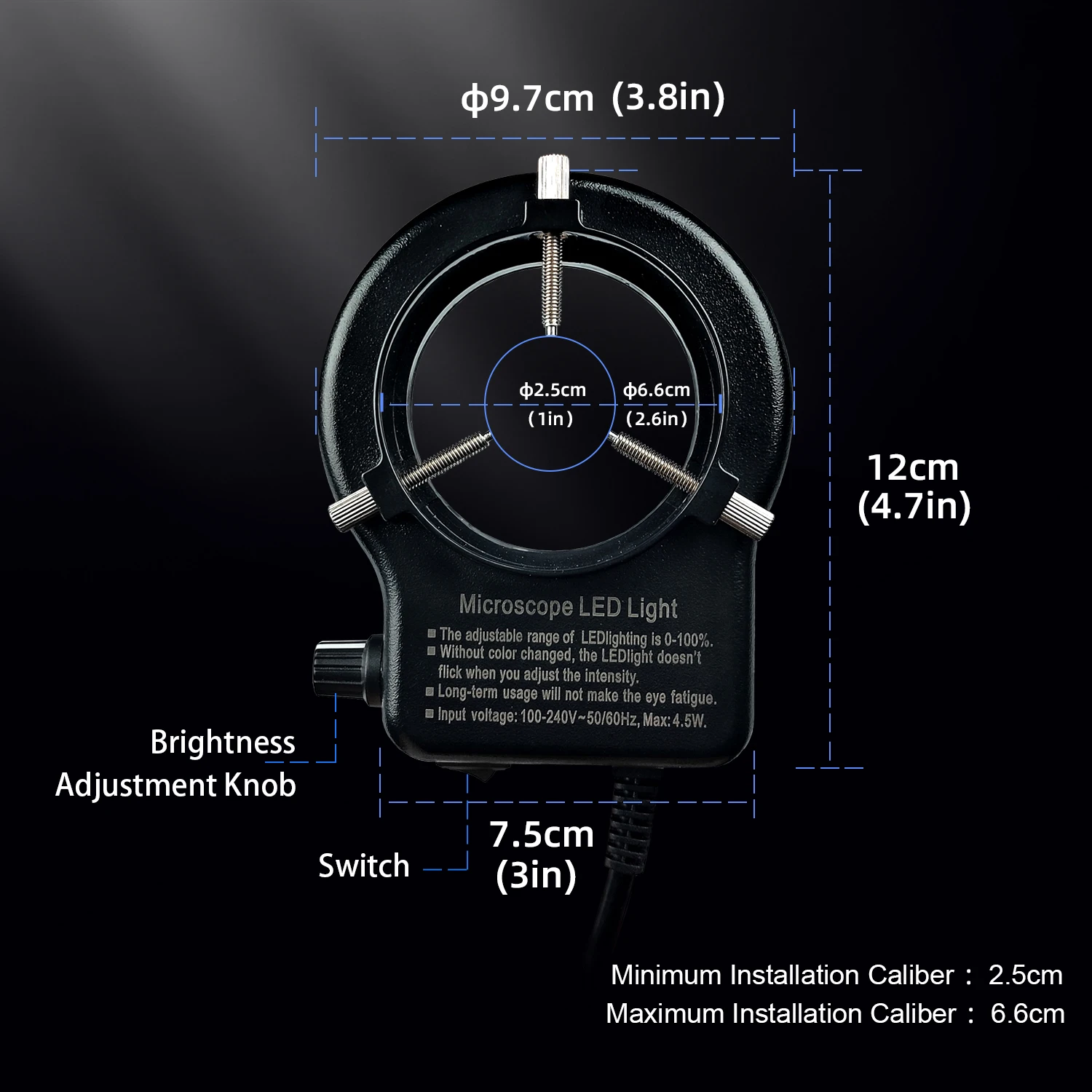

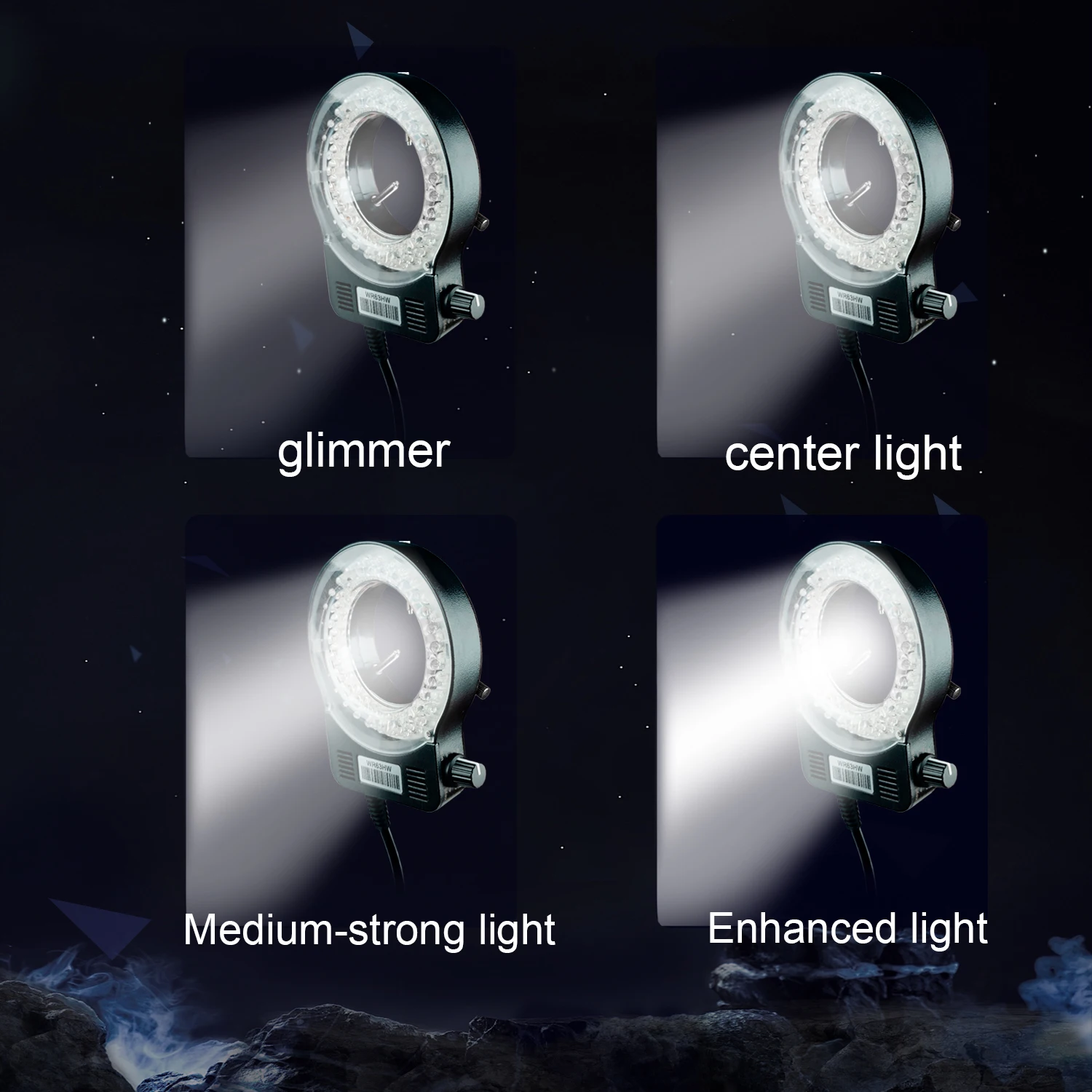

🔥56 bright white LED lights:

100,000 hours of life
Intense and focused shadow-free lighting
Brightness 0-100% adjustable, high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suitable for lens diameter: 30mm-63mm
Working distance: 400mm

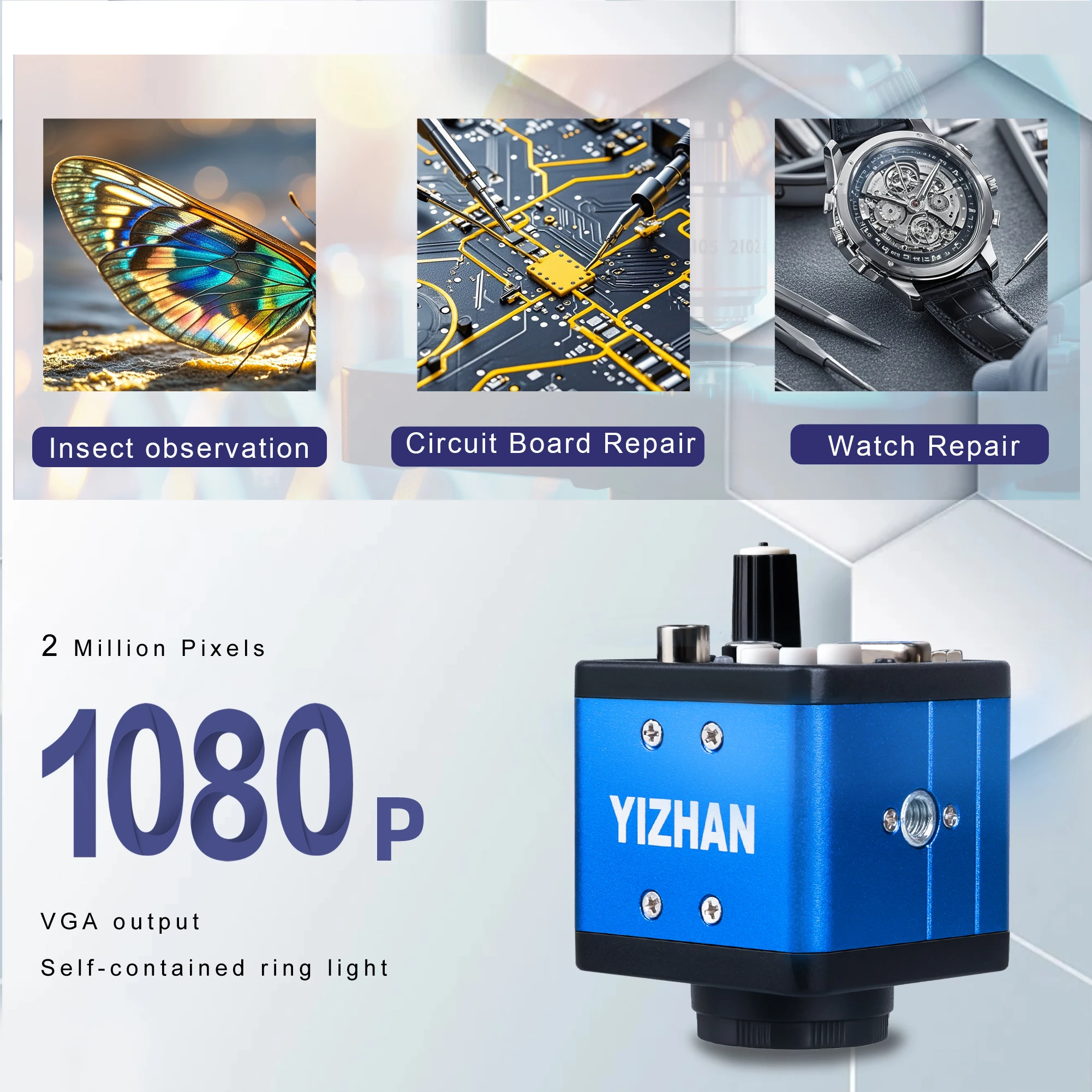

🔥13MP Sony imx323 Sets ,Interface:VGA output, NO software , can not connect PC

Feature:
Overall dimension: 70*50*50mm
Video Interface:VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/2.7"
Pixel size:3.0um*3.0um
Pixel array: 1920*1080
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:60dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution:1920*1080/1600*1200/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)
