13MP HDMI USB 60FPS Monocular Video Microscope Sets HDMI VGA Digital Camera 130X/150X/215X C mount Lens For Repair Phone Solder

Your Packing List Include:

1* 13mp HDMI VGA Camera
1* LED ring light
1* C mount lens(215X/150X/130X)
1* Microscope bracket
1* Box

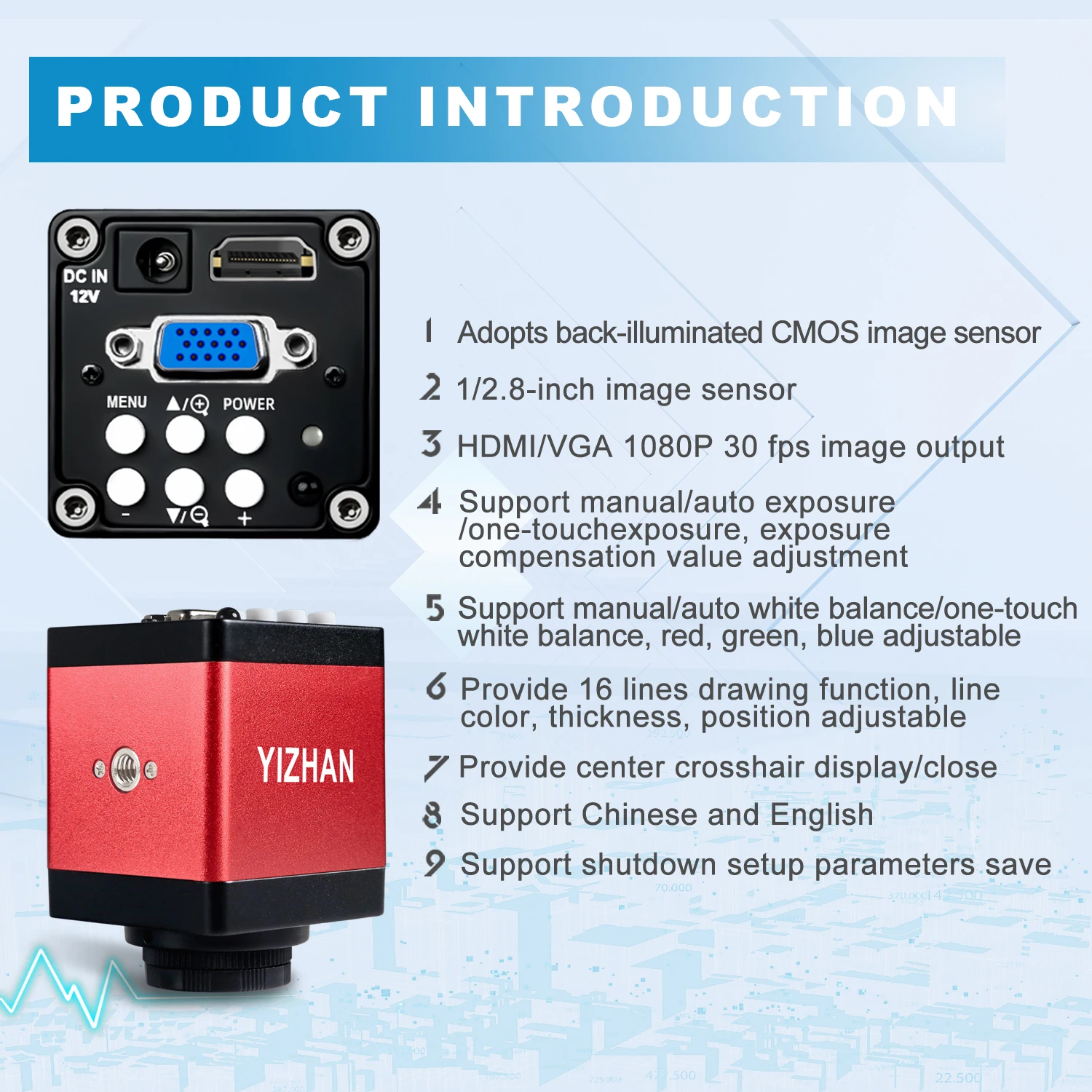

The camera Feature:

High Quality, High Resolution, Clear Images
1/3” CMOS
1920×1080@60F/S Video Camera
Photo Model / Video Model
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
It build in digital crosshairs and color control, add line in the pictures, Mirror, Rotate, Compare function，Use remote control, easy to operate
Supply VGA,HDMI HD Video,Two output ports Meanwhile output
Specification:
Model: Camera with HDMI VGA two output
Sensor: 1/3 inch 14MP
Image resolution: 1920×1080 (for HDMI), 1920×1080 (for VGA)
Video resolution: 1920×1080@ 60F/S

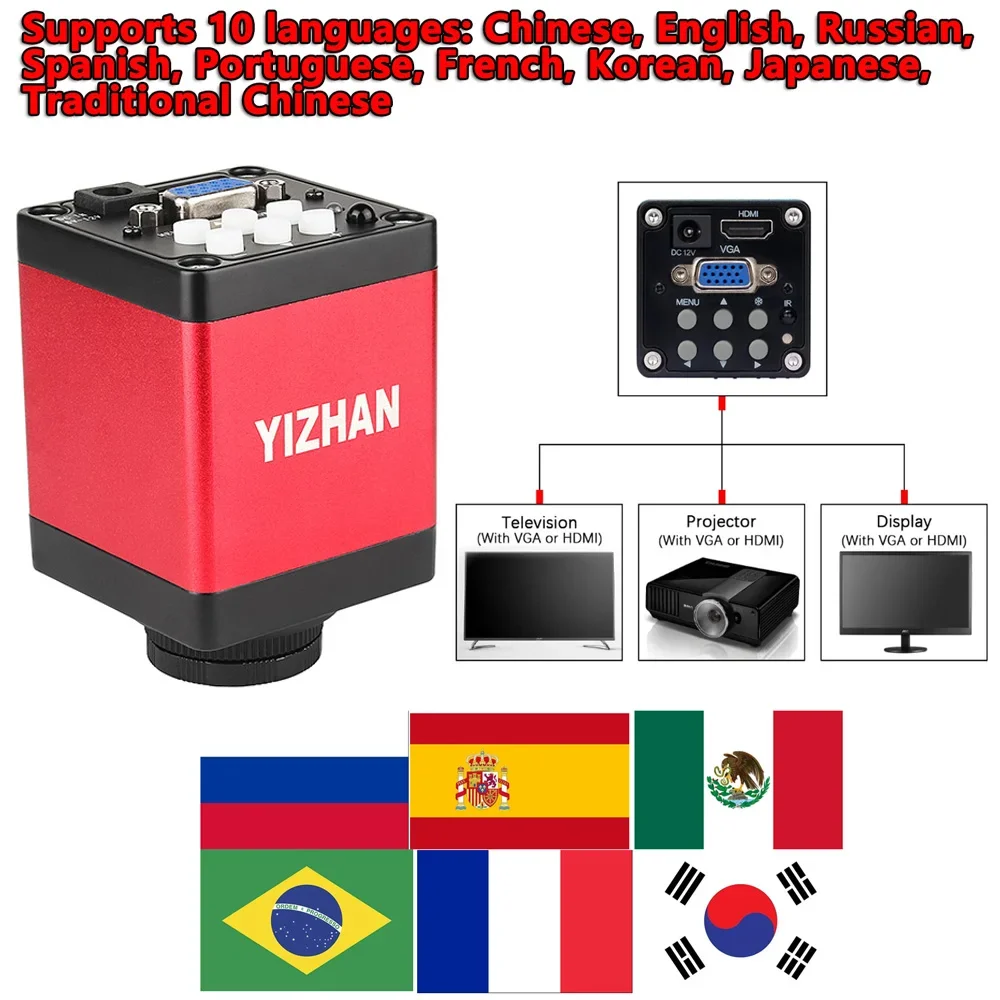

Language: Supports ten languages: Russian, English, Chinese, Spanish, Portuguese, Korean, Japanese,

German, Italian, Traditional Chinese
Crosshair:Can adjust color, line size, hide or display,16 horizontal line , 16 vertical line,any positions
Exposure: automatic exposure
Eliminate reflections: Support
White Balance:one-key white balance, support R/G/B adjustable
Mirroring: Support
Electron zoom:Support 1-4x
Light freqency:50Hz/60Hz
Color:Color/ black and white switching
Monitor:16:9/4:3/16:10
Brightness: 0-100 Adjustable
Contrast: 0-100 Adjustable
Saturation:0-100 Adjustable
Definition: Adjustable
Lens interface: C mount

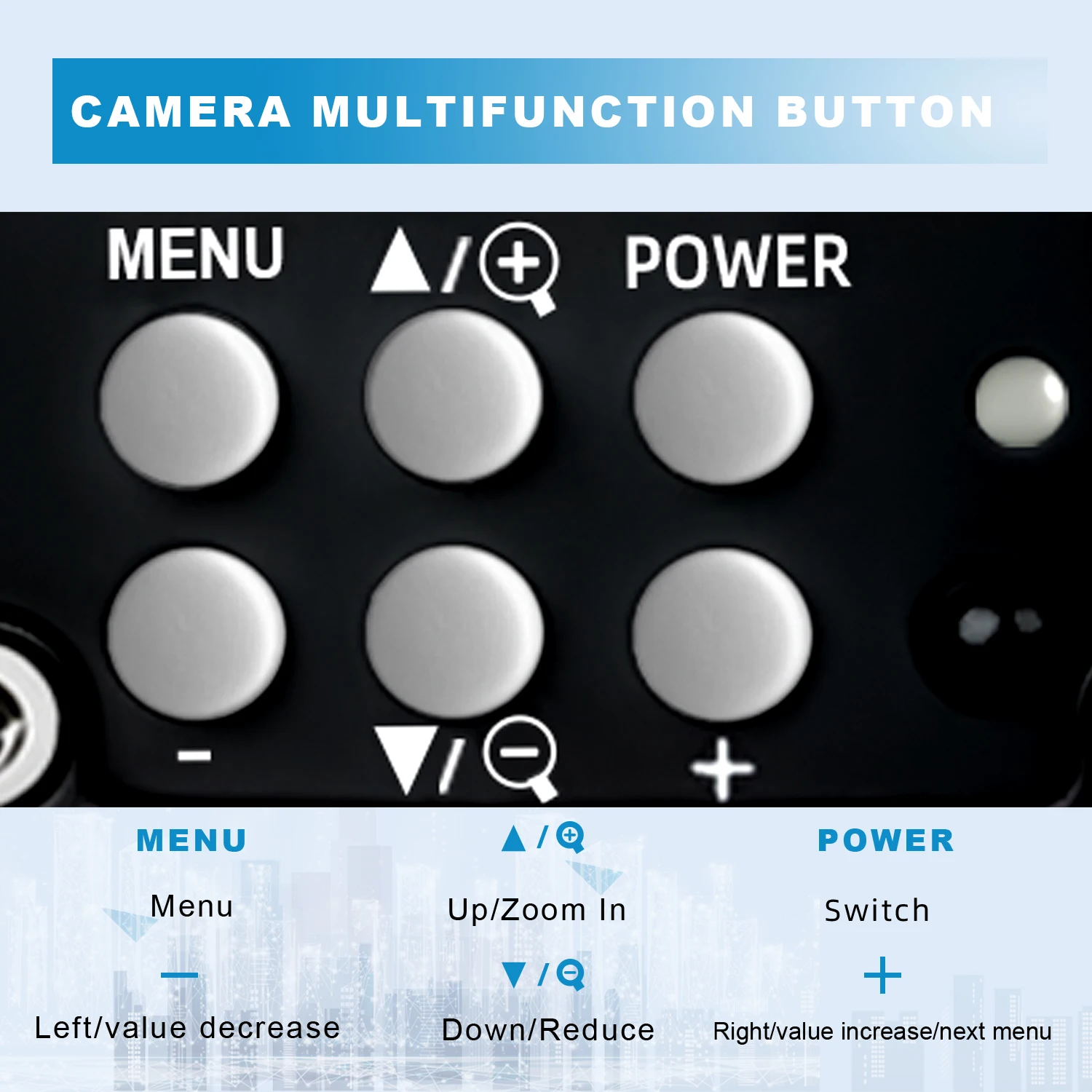

Remote:infrared remote control
Power:DC 12V/1A

Packing including:

1 x Digital Camera
1 x HDMI Cable
1 x Power Adapter
1 x Remote Control

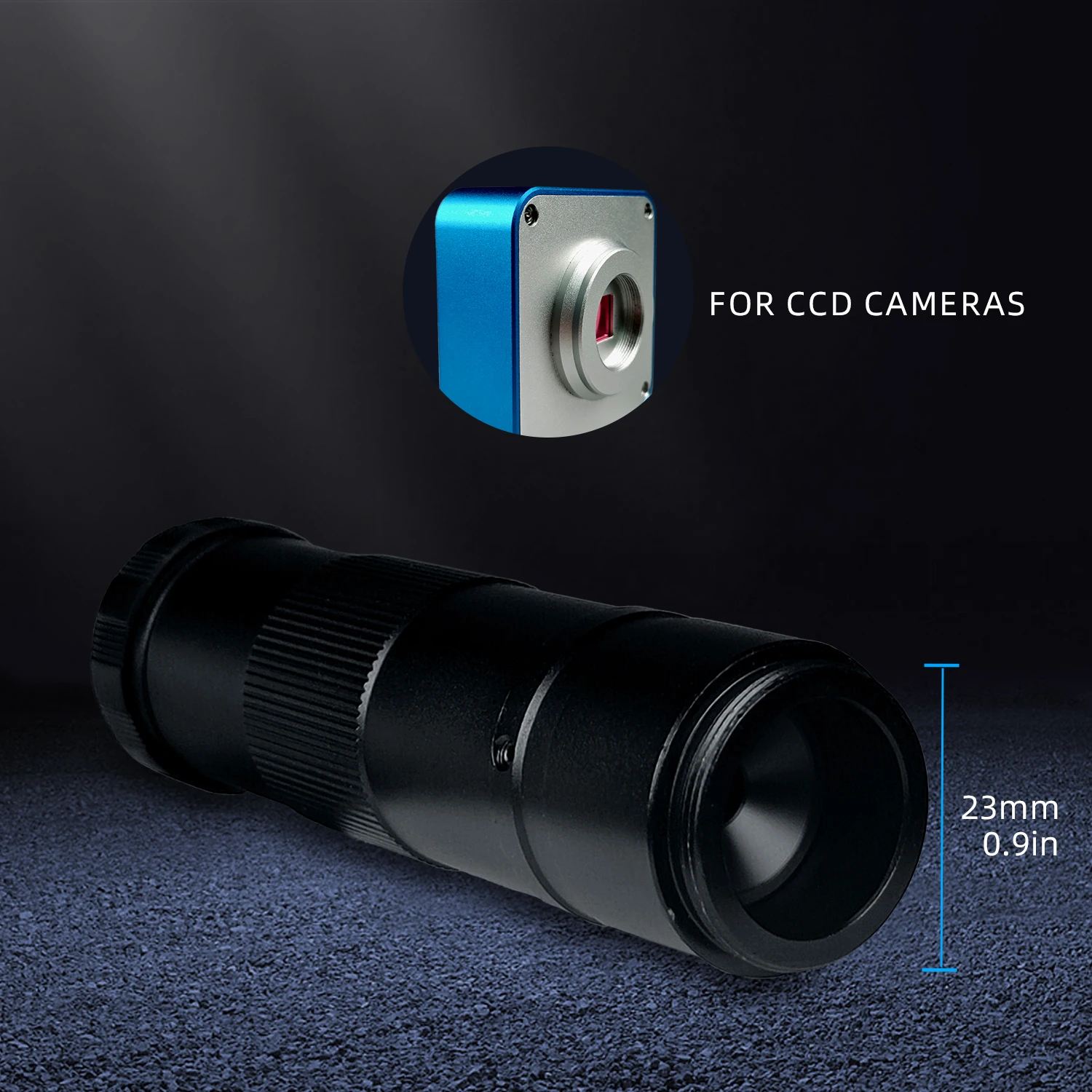

C-MOUNT Lens:Multiple options available

130X Lens specifications:
nstallation diameter: 40mm
Working distance:40mm-220mm
Zoom ratio:1:17
Magnification: 0.1-1.3X (approximately 1-130X on the display)
Maximum magnification field of view: 8mm*4.5mm
Minimum magnification field of view: 40mm*33mm
Size: 115mm (length) * 40mm (diameter)
Weight: 210g

150X lens specifications:
Installation diameter: 28mm/42mm
Working distance:50mm-1000mm
Zoom ratio:1:15
Magnification 0.15-2X (approximately 1-150X on the display)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Size: 99mm (length)
Weight: 100g
Suitable camera size: 25mm

215X Optical Zoom Lens
Working Distance : 100mm
Magnification : 35X-215X(21in displayer)
X-axis Visual Field :2.2mm-14mm
mounting dimensionr : Φ50mm
Optical Zoom: 0.7X-4.5x
zooming ratio: 1：6.5
View of field : 2.67-22.85mm
lens diameter Φ25.5mm

Bracket introduction, multiple options to choose from

Upgrade the folding bracket
Flexible Stand, Remote Control:The digital microscope adopts the latest upgraded stand, this stand is very flexible and stanble, 4 parts of the stand can be adjusted at different angles. You can choose the most suitable position for you to observe the samples more clearly. The video microscope can be controlled by remote control, but this function is only available in HDMI output mode.


Folding Stand Specifications:
Material: aluminum alloy
Size: 34*32cm
Weight: 540g
Maximum bottom installation size: 50mm
Function: microscope stand, microphone live broadcast stand, mobile phone stand
Small Base Specifications:
feature:
This microscope workstation can be adjusted up or down to suit your requirements
Can help the microscope rotate to any angle
The microscope lens can be fixed on this holder
Product size: Assembly base size: 150mm*220mm
Main column height: 290mm
Lens mounting inner diameter: 42mm

Middle base specifications
Features:
This microscope workstation can be adjusted up or down to suit your requirements
Can help the microscope rotate to any angle
The microscope lens can be fixed on this holder
Product size: Assembly base size: 260mm*290mm
Main column height: 290mm
Lens mounting inner diameter: 50mm
