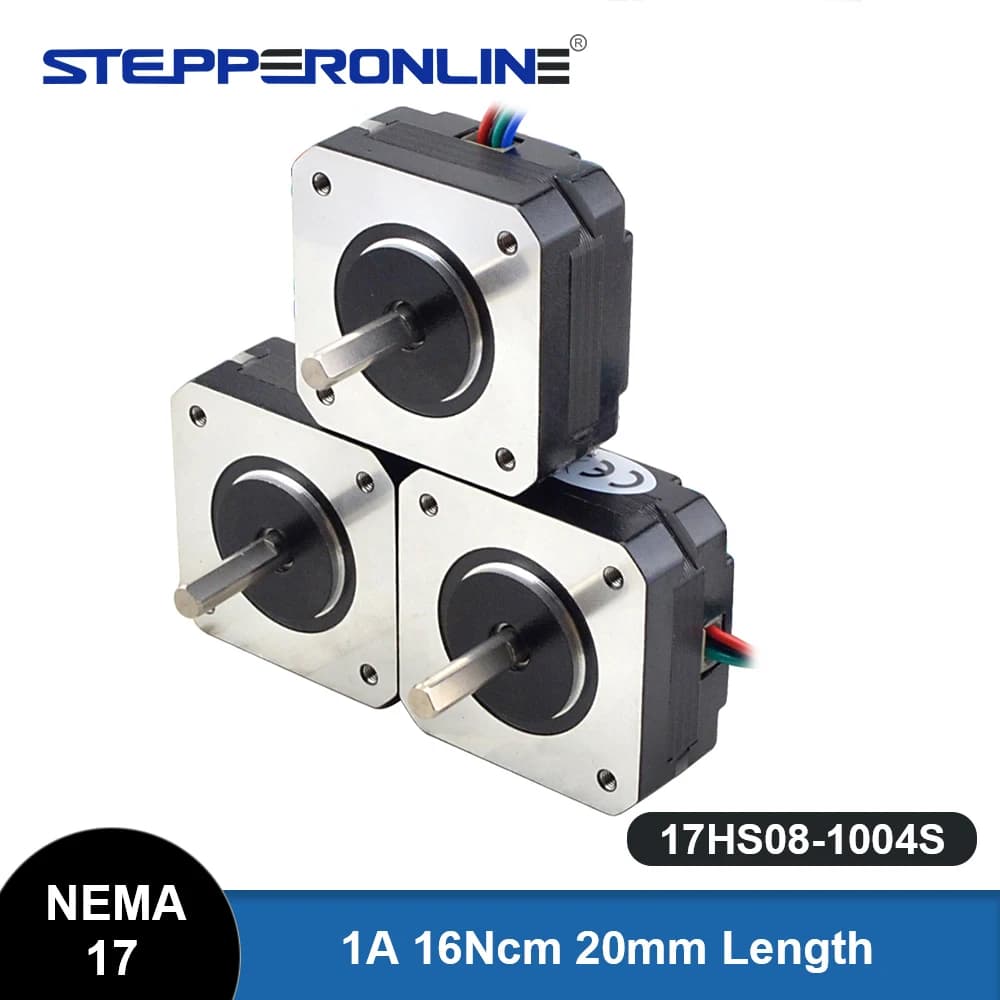

STEPPERONLINE 17HS08-1004S Nema 17 Stepper Motor 20.5mm 16Ncm 1A 42 Step Motor 4-Lead for Extruder CNC XYZ 3D Printer
18.58$
6.19$
Quantity:
1
Availability:
Ships From
Shaft Diameter
Card Payments
Crypto Payments
Easy return
Reliable Shipping
This is the shortest bipolar Nema 17 stepper motor we have, it with step angle 1.8deg and size 42x42x20.5mm. It has 4 wires, each phase draws current 1.0A, with holding torque 16Ncm (22.6oz.in).
Specification
ModelModel: 17HS08-1004S
Phase Number: 2
Step Angle(deg): 1.8deg
Holding Torque(N.cm): 16Ncm
Rated Current(A): 1.0A
Phase Resistance(Ohm): 3.7±10%ohms
Number of Leads: 4
Rotor Inertia(g.cm²): 15g.cm²
Shaft Diameter(mm): 5mm
Motor Weight(g): 140g
Wire Length(mm): 400mm

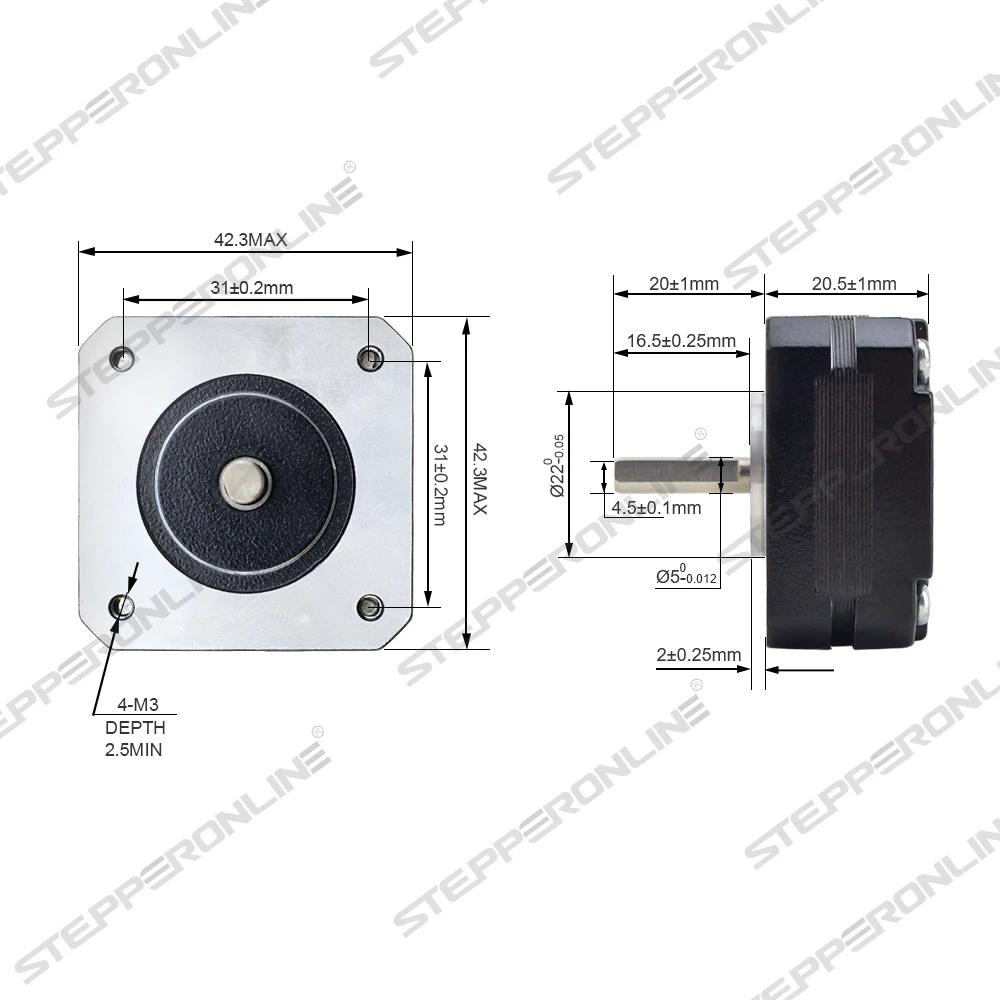

Drawing

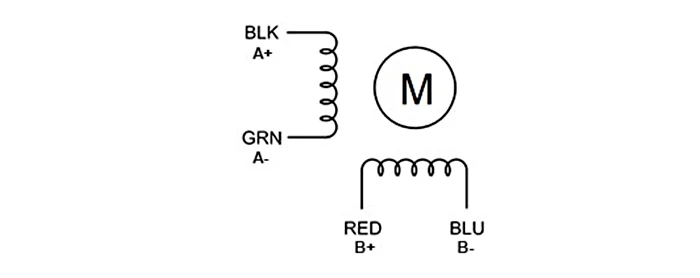

Wire Connection
Customer Reviews
No reviews yet
