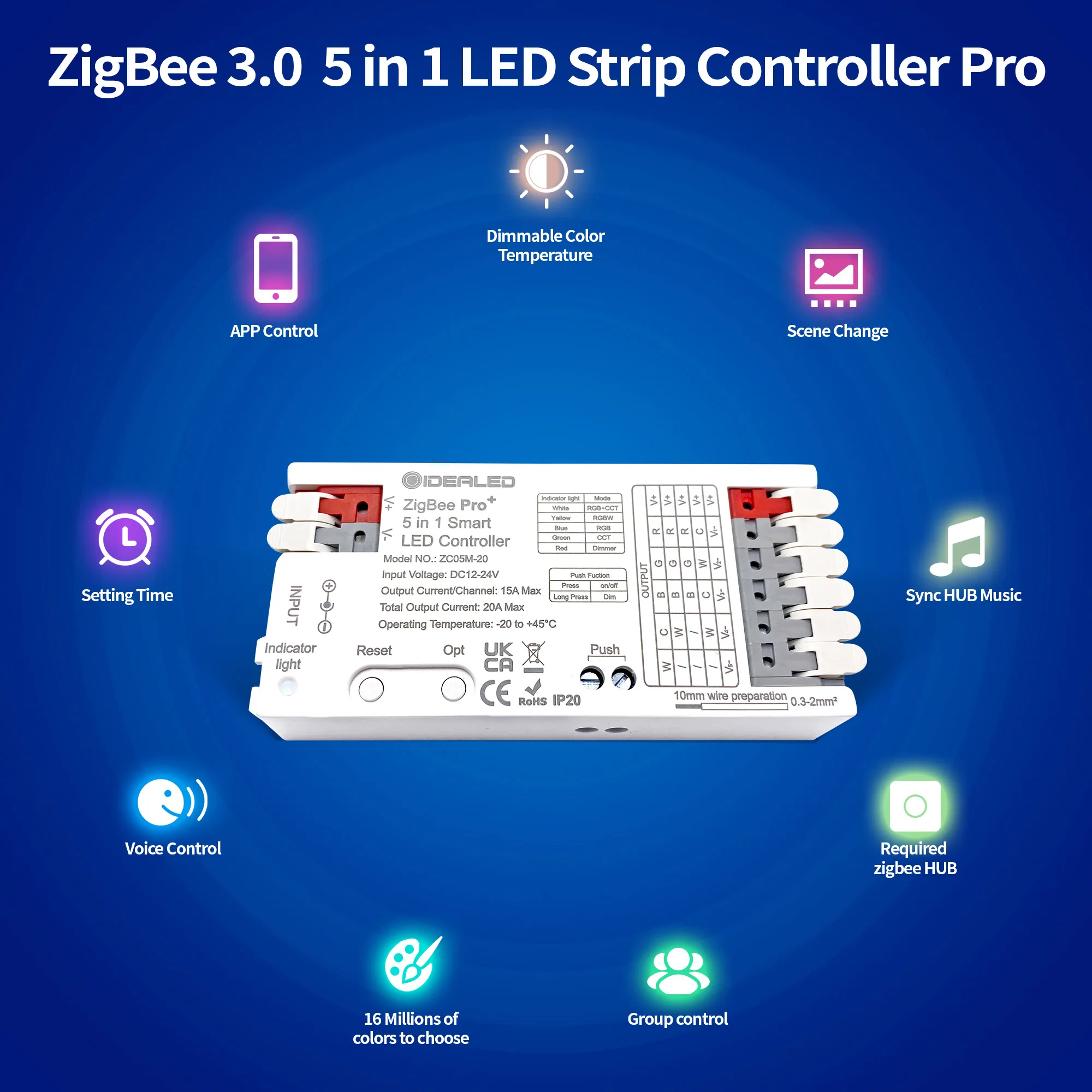

Zigbee 3.0 LED Light Strip 5 in 1 Dimmer Controller RGBCCT/RGBW/RGB/CCT DC12-54V 6-Zone Remote work with Smartthings&Echo Plus

Zigbee 3.0 LED Light Strip 5 in 1 Dimmer Controller RGBCCT/RGBW/RGB/CCT DC12-54V 6-Zone Remote work with Smartthings&Echo Plus

ADVANTAGE:

- 5 in 1 LED Controller:

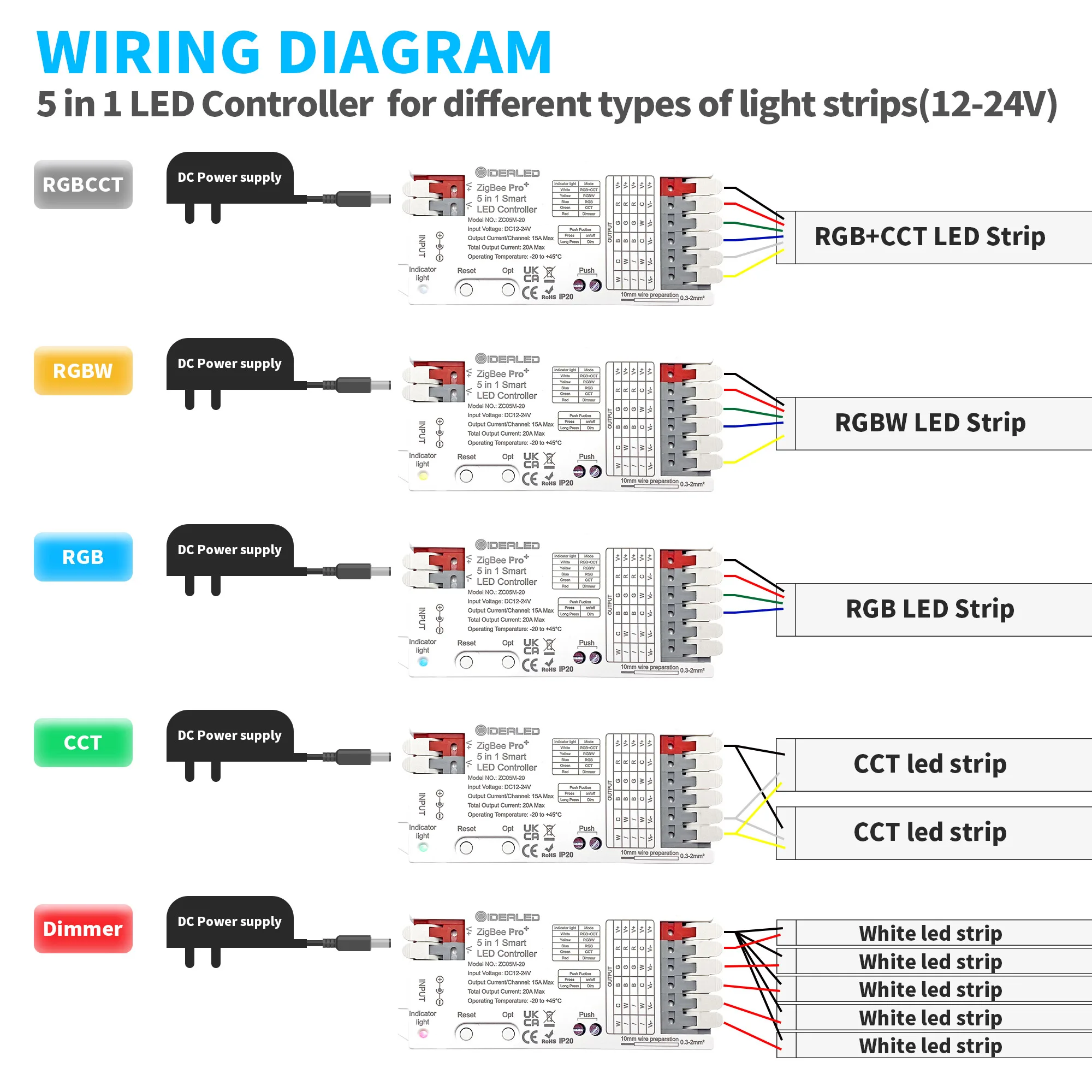

There has five modes to connect with led strip: RGBCCT/RGBW/RGB/CCT/Dimmer, and different color indicator correspond to different functions.

You can click the "opt" button, short press once to switch one of functions that you want according to the different indicator color, then you can connect between the inport of controller and corresponding wires of your led strip.

- Power-on Status Settings:

Long press "opt" button for more than 5 seconds, the indicator will flash in light blue color and resume to previous color after "off" for 4 seconds to complete power-on status setting.

The default power-on status is light on.The indicator flashing 3 times, in light blue means lighting on under power-on status, flashing 4 time in light blue means light off under power-on status.

- Selectable Frequency:

In order to be applicable to different power supplies, the frequency of device is selectable as 600Hz、800Hz、1000Hz、2000Hz、4000Hz、8000Hz with default frequency 1000HZ.

Once short pressing “Reset” key, the frequency will switch into the next one.

The indicator will flash in White color and resume to previous color after “off” for 2 seconds.

(There has specifications in user manual.)

FEATURE:

�� Support Tuya App/SmartThings App control. Support APP smart life app control in Android/IOS Phone.(There are some compatibility issues with IK*E*A at present)

�� Support voice control by Alexa Echo/Google Home via SmartThings hub or Tuya Zigbee hub.

�� Support 2.4G RF remote control directly, without zigbee hub.

�� Group: Create Rooms, divide your lamps into one or several rooms, to control lamps in each room together or separately.

�� 16 million colors for you to choose and make your life colorful, to create a relaxing and quiet atmosphere. Such as living room, kitchen, bedroom and so on.

�� Sync your light with movies, music, and games, enjoy the light effect which synchronizes with the plot of the picture immediately, and experience the more delicate atmosphere lighting effect.
