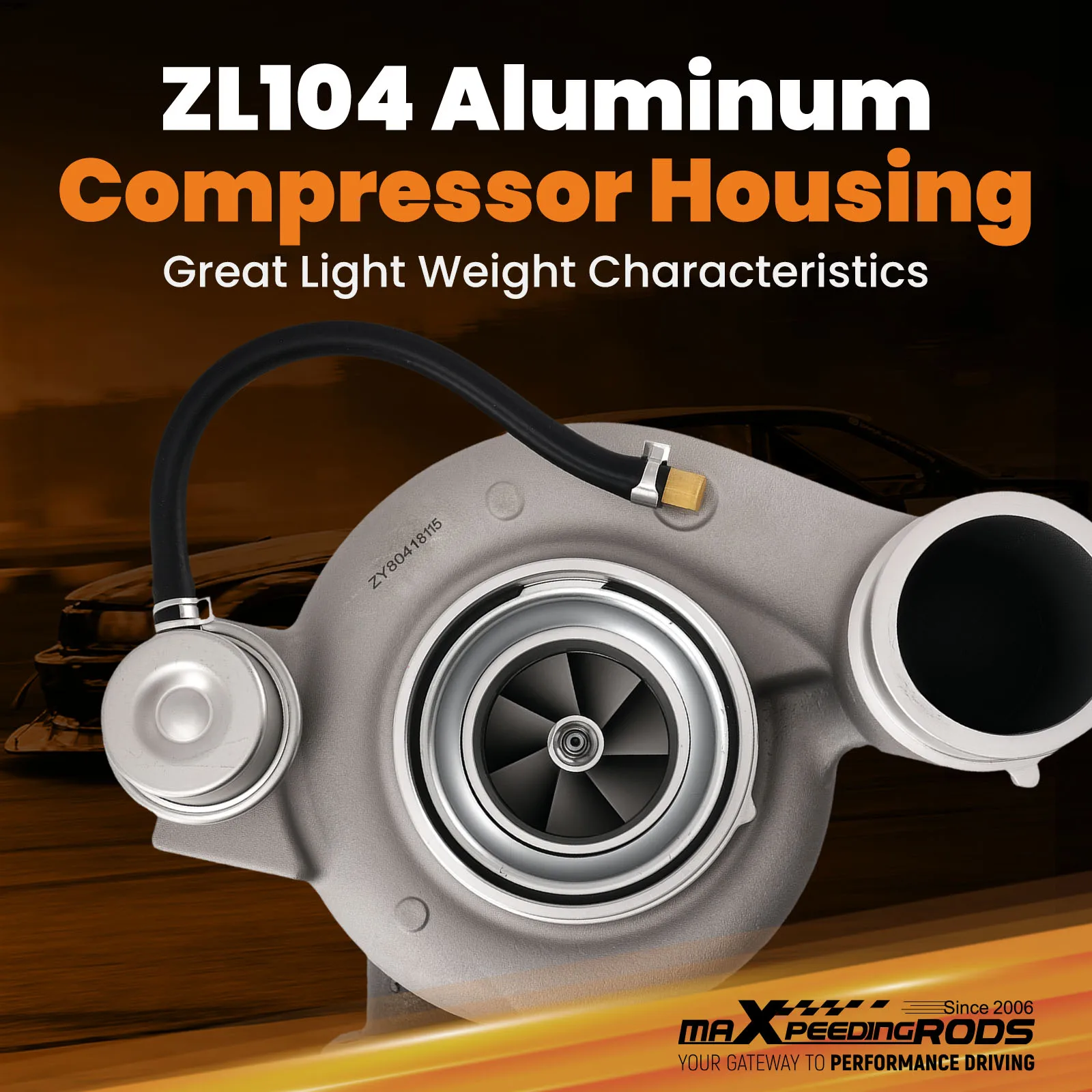

HE351CW HY35W Turbocharger 2004-2007 For DODGE Cummins 5.9L ISB 5.9L 4955452 4089392RX 5086863 5086863AA 5086863AB

HY35W Turbocharger for for Dodge Ram 2500/3500 04-07 Cummins 6Bt 5.9 Diesel

Applications:

for Cummins Truck DP, Leyland with 6BTA Engine 2003-2004

for Dodge RAM 2500/3500 with ISB Engine 5.9L 2003-2004

Part Number:

3599810, 3599811, 4089392, 4035044，4955452， 3593075, 4033667, 4035044, 4089141，

4089392NX, 408939200, 3599867，4033667, 4033667H， 4089392RX, 5086863, 5086863AA, 5086863AB

Specific:

Turbo Model:HY35W, HY35W-E7755AQ/B10JX35

Engine Type:ISB, HY35W

EngineCode :6BTA

Condition:100% Brand New

Warranty: 2 Year

Hose power:Capable of Boosting Horse Power up to 400+ BHP

Exhaust (Turbo Manifold) Flange:Standard T3

Exhaust (Downpipe) Flange:Standard HY for Dodge Cummins 4.375" Diameter V-Band

Bearing Type:Journal Bearing

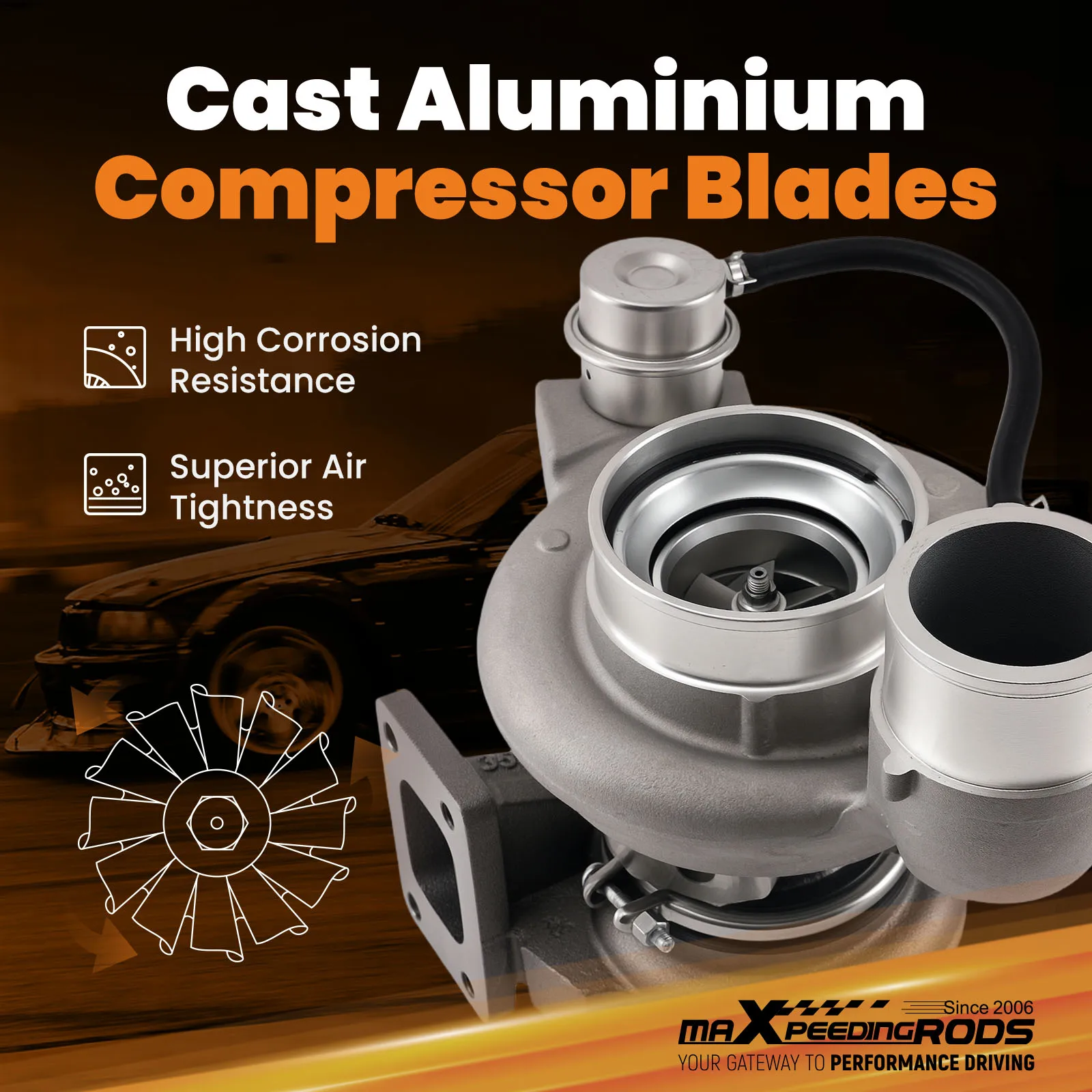

Compressor:

Trim:69

Inducer Diamter:68.7

Exducer Diamter:97.8

A/R: 0.66

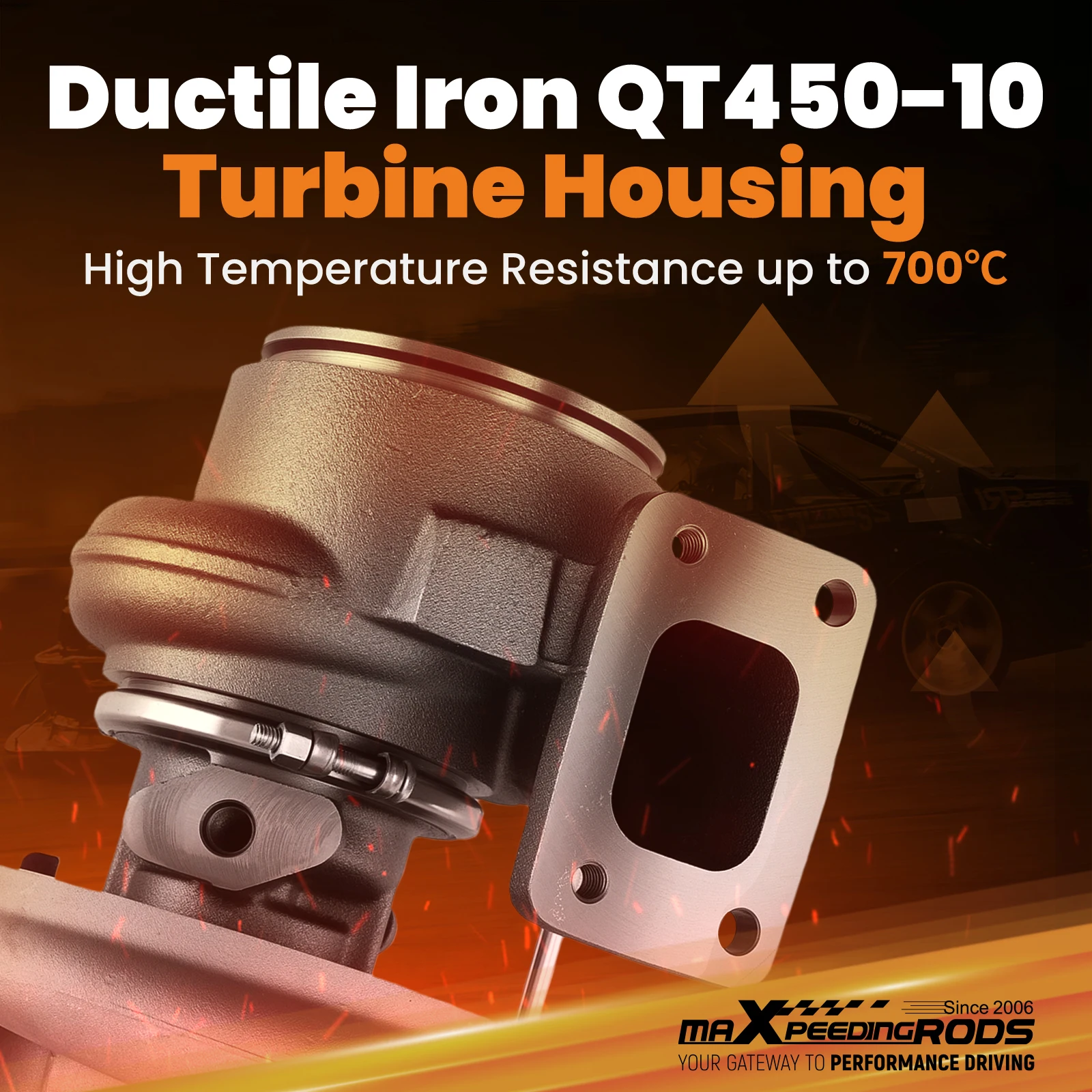

Turbine :

Trim: 92

Inducer Diamter: 87.4

Exducer Diamter: 77.8

A/R: 0.96

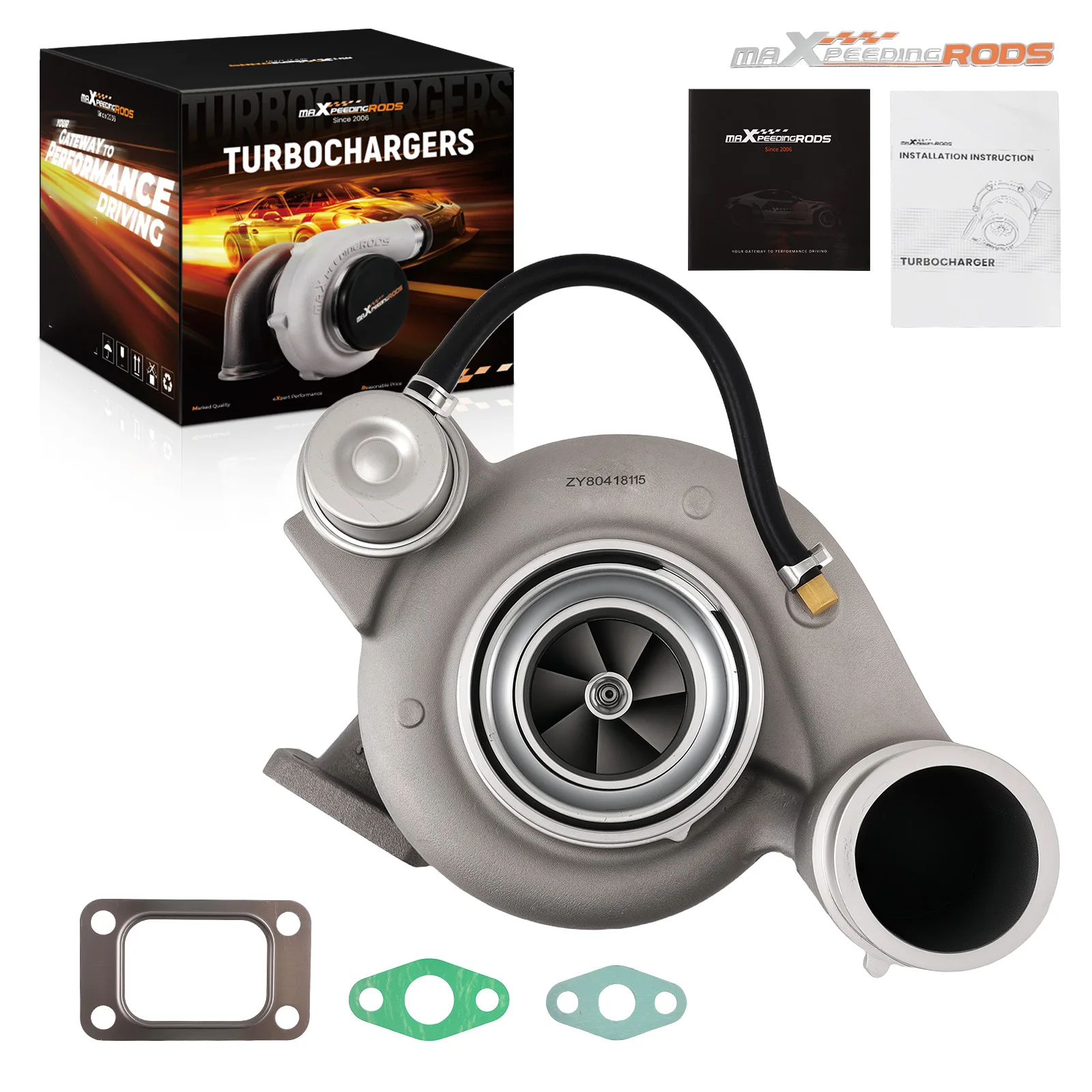

Accessories:

You will get exactly as shown in the picture above、

NOTE:
* Please confirm the fitment details before purchasing
* Professional installation and modification is highly recommended (No Instruction Included)
* For any questions please message to us

Importance Notice:
* Exhaust elbow is not Included.
* This item don't fit for HE351CW engineandnot has sensor hole, please double check your old part before purchase
