【USA Stock】3 Axis Upgrade 3018 Pro CNC Router Machine Kit,with Limit Switches & Emergency Stop,3018-PRO DIY Mini GRBL Control

Notice:

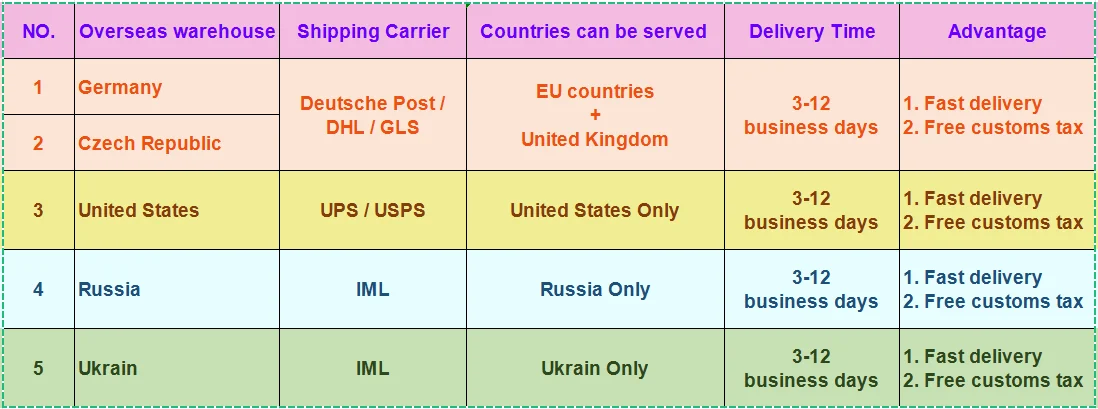

Dear friends,we havewarehouseinGermany/United States/Russia，we can ship to all EU countries from our Germany warehouse via DHL, ship to United States from our USA warehouse via UPS, which isfast delivery.

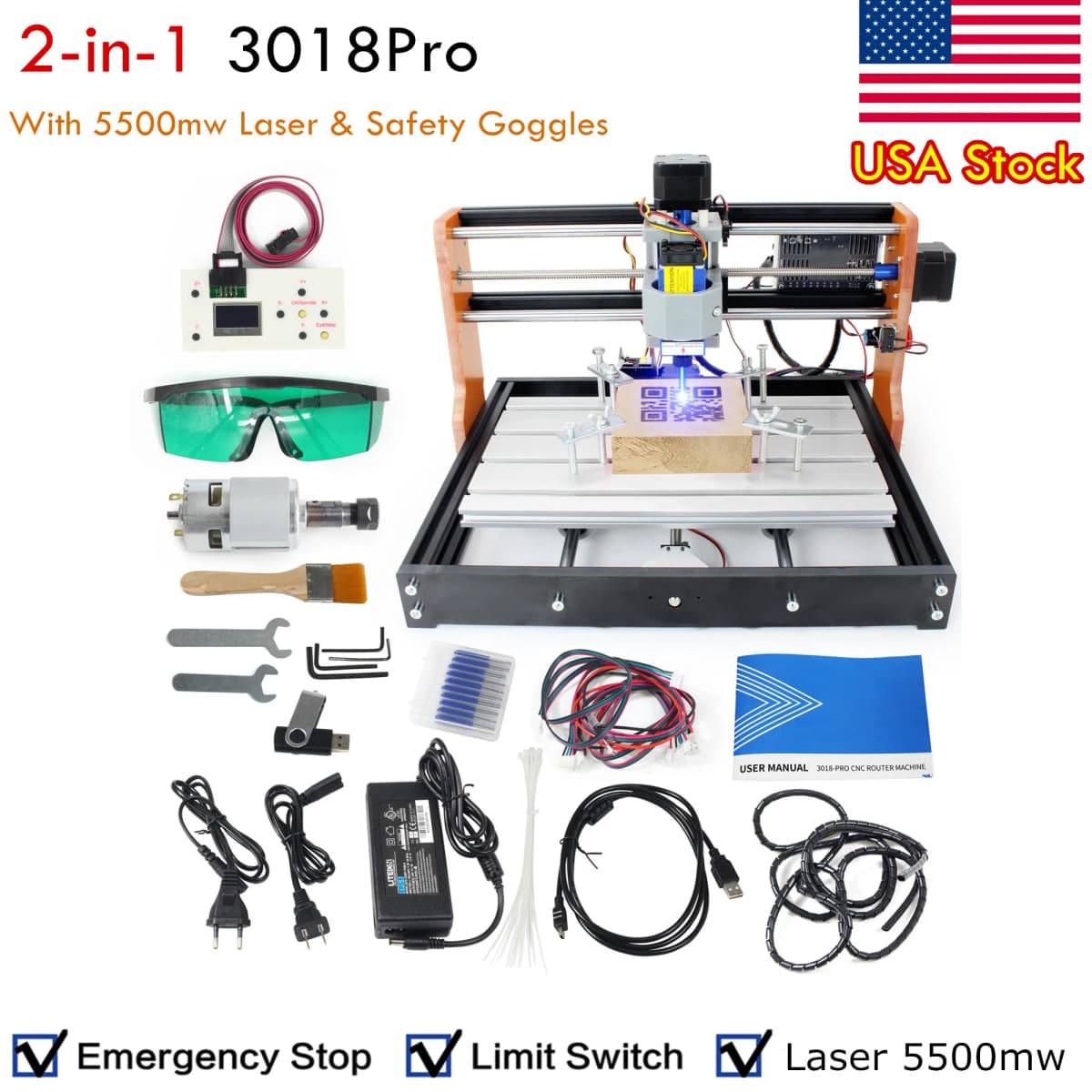

1Set Upgraded 3 Axis 3018 Pro CNC Router Engraving Milling Machine Kit

3x Limit switches (XYZ axis)

1x Emergency stop

1x GRBL 1.1f Control Board

1x 775 spindle motor with ER11 Collet

1x 24V DC 5A Power Supply

10 x Tip 0.1 mm, 20° φ3.175 mm Drill Bits

4x Plate clamps

1Set Allen Wrench

2x ER Wrench

1x Brush

1x Spindle motor harness 60cm

3x Stepper motor harness 60cm

1x 4G USB flash drive include the english user manual & GRBL software

Note:The offline controller and the laser module is optional, pls choose the one you want.

Notice:

The machine for a full set of spare parts, shall be installed by the

buyers,the package include the U Disk , with detailed user manual and

free software,buyers don‘t need to worry about machineAssembly.

We suggestcnc-based buyers to buy,This machine is not industrial grade level.

 Introduction:

Body used profiles and plastic, small size, light weight, USB interface,

GRBL control system, with Emergency stop and limit switch learning,

entry preferred. Can use carving knife, but also can use laser

engraving.

Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the other similar material.

Specification:

Working area : 30x18x4.5cm

Frame size      : 42x25x27CM

Spindle            : 775 spindle motor (12-24V) 10000r/min

Spindle Collet : ER11-3.175mm,Support 0-7mm

Step motor      : Nema17 Stepper,Torque 0.25N/M, 1.3A

Power supply  : AC110-240V

Software          : GRBL controller

Support System: Windows XP / Win 7 / Win 8 /

Drill bits:  tip 0.1mm, 20 degree , diameter 3.175mm.

Laser: 1000mw 405nm,12v / 2500mw 450nm,12v / 5500mw 450nm,12v.

Machining accuracy: about 0.2mm

Mchining instructions：1) NC：G-code, TAB, NC, NCC files

                                      2) laser: G-code, JPG, DXF file

Features:

I.The new GRBL1.1F control board

1.GRBL1.1F firmware, stable performance

2.Offline engraving (optional offline module),offline tool setting,engraving.

3.The laser supports PWM/TTL signal control, the power is adjustable from 0-100%.

4.Spindle supports PWM power 0-100% adjustable.

5.Stepper motor overcurrent protection to avoid damage,upgrate intergrated stepper motor driver,2A high current,high stability.

6.Thelaserdirectlyentersthepictureengraving,noprogramming,nodesign,simpleandconvenient.

7.Professional shell protection,the fan actively dissipates heat,and does not heat up for a long time.

II.The engraving machine adds an emergency stop button & 3 limit switches.

 F.A.Q:

1 Q: Does this machine need to be assembled when I received it?

  A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included

      in the kit.

2 Q:  How to assemble the kit?

   A:We'll provide whole assemble and operating manual,please share your email address,then we'll send to you.

3 Q: Are there software and instructions can I get it?

  A:You can get the software in a USB disk with machine.

4 Q: And what image format the software supports? Engrave Mode?

   A: Supported Image Format: jpg, bmp, svg, G-code

       Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving

5 Q: Whick type computer system can run its software?

  A:The software only support the Windows XP/7/8/10.

6 Q: What's the laser's lifetime?

   A: The laser module have over 6,000 hours lifetime.

 7 Q: What material can it engrave?

   A:Wood, bamboo, plastic, paper, leather, rubber,MDF.

8 Q:What material can it cut?

  A:wood, paper, thin leather.

9 Q:Can I use it to cut or engrave on metal?

   A:It can not engrave or cut on any metal.

10 Q: Can I regulate the laser power or the laser power is adjustable?

   A: Sorry that the Fixed laser power is not adjustable, but the engraving speed is adjustable.

11 Q: How long can the machine work continuously?

   A: It can work continuously about 45 minutes, after the laser mould cool

down(about half of an hour), then start work again. Long time work

continuously with shorten the laser module lifetime.

12 Q:My laser doesn't work, what should I do?

If the machine does not work, it might because:

A The wire connection is wrong.Please check the connection like the picture shown.

B Your computer could not support the software.Please use Win XP 7/8/10 to check it.

C Software problem .Please check whether wires are inserted rightly. And then check your data setting.

D The kit misses some accessories. Please compare with the instruction and tell us, we will solve it once you send us the email.

E Laser module/ driver board/power supply is broken.

   Please check which part is the main problem, and then send us a video to prove it.

   Or you can send us a video about your software setting, working laser and driver board. We will analyze it and give you a solution.

 Friendly Note:

Due to the different wattage of the laser head, the engraving material

range, engraving speed, depth, etc. are different. The greater the

power, the faster the speed

3W-5.5W laser:

1. Can carve wood, paper, plastic, leather, bamboo, bones, teeth, etc.

2. Can't carve metal

7W-10W laser:

1.Can carve Wood, paper, plastic, leather, bamboo, bones, teeth, acrylic and other materials that can be burned by fire.

2. Can carve 304 201 pure color stainless steel, painted metal (except

stainless steel, other pure metal with primary color smooth surface

cannot be carved)
