LASER TREE Laser Module 10W Optical Power Fixed Focus Laser Head With Air Assist for CNC Laser Engraver Cutting Wood DIY Tools

LASER TREE Laser Module 10W Optical Power Fixed Focus Laser Head With Air Assist for CNC Laser Engraver Cutting Wood DIY Tools

Note: Any type of laser head sold in our store doesn't come with engraving machine.

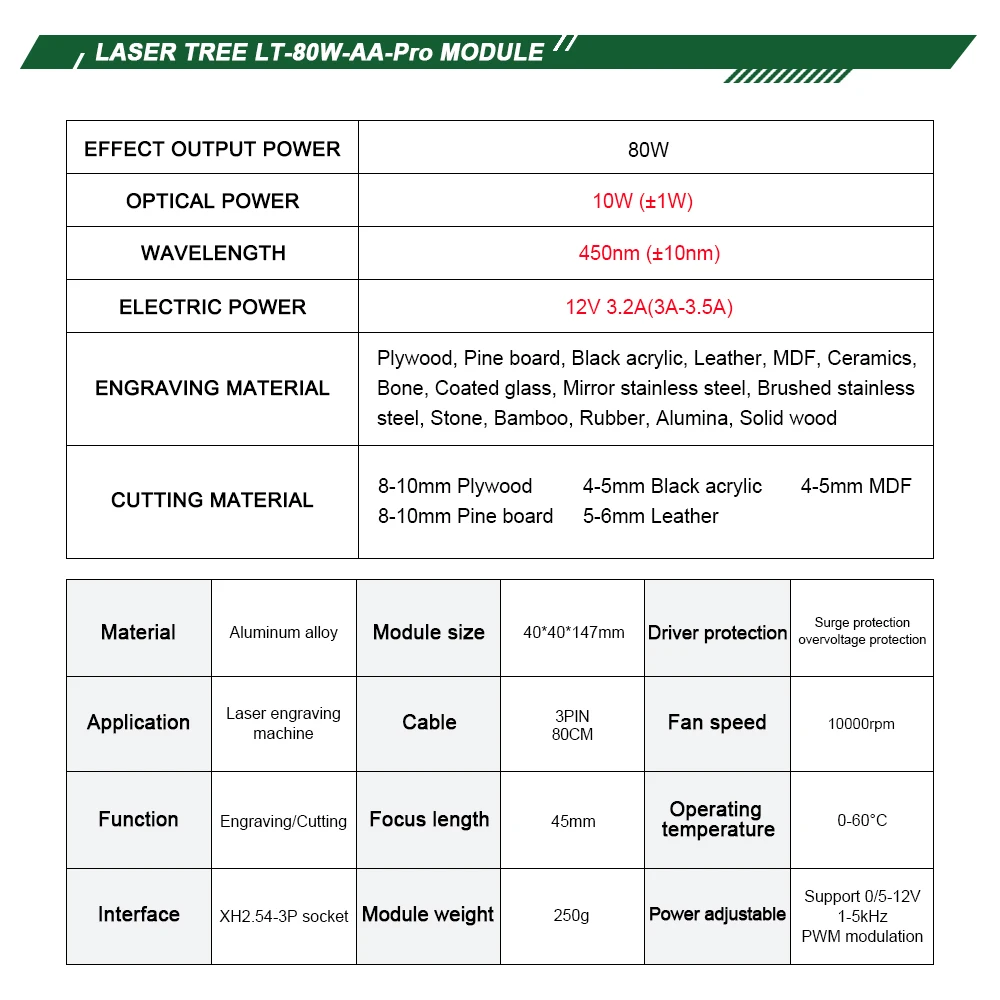

LT-80W-AA-PRO (Optical Power 10W) Features:

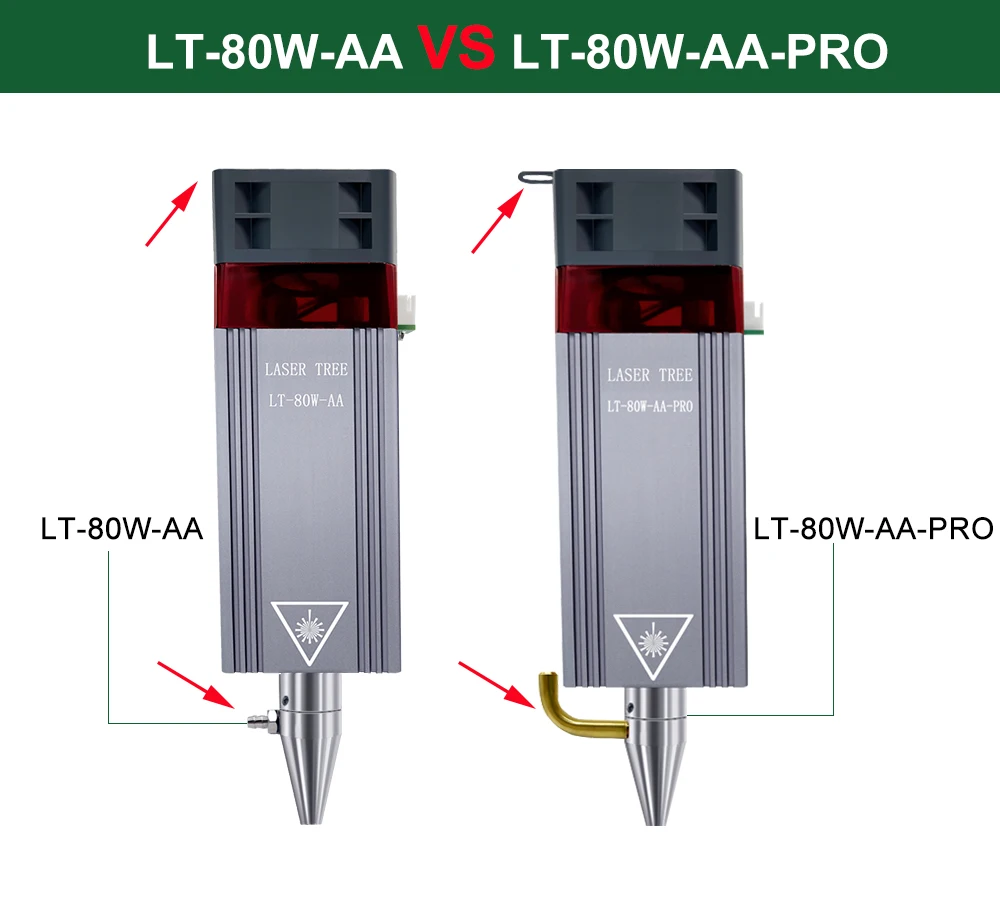

1.LT-80W-AA-Pro
It has an upgraded nozzle compared to the previous LT-80W-AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.

2.With the air asssit nozzle
The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

3. Remarkable cutting ability
Cutting 8mm bass plywood ,120mm/min ,one pass.
Cutting 5mm bass plywood, 50mm/min, one pass.
Cutting 5mm MDF by 2 passes, 150mm/min , 2 passes.

4.With the laser protective cover
Comes with a removable protective cover. Whether engraving or cutting, use this shield to filter blue light and work without laser glasses, convenient and fast. It's also easy to remove if you don't need it.

5. Widely Compatible Design
LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

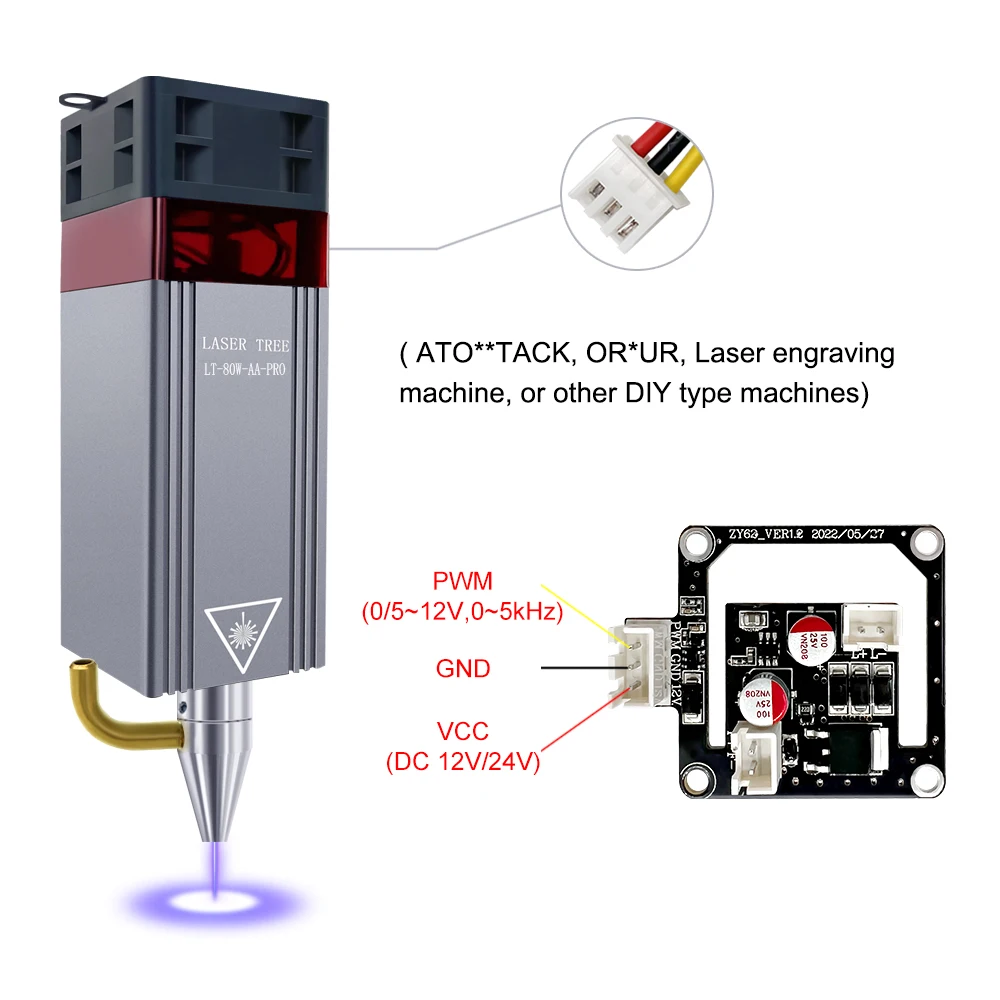

(If you are not sure if it is compatible, please send us a picture of your machine’s contro board, we will provide you with a connection diagram.)

Powerful Cutting Ability

Maximum material thickness that can be cut

With Air Assist VS No Air Assist

Using air assist helps to cool the material and prevent heat damage, and also helps to remove any debris and fumes generated during the laser cutting process, resulting in a clean cut surface.

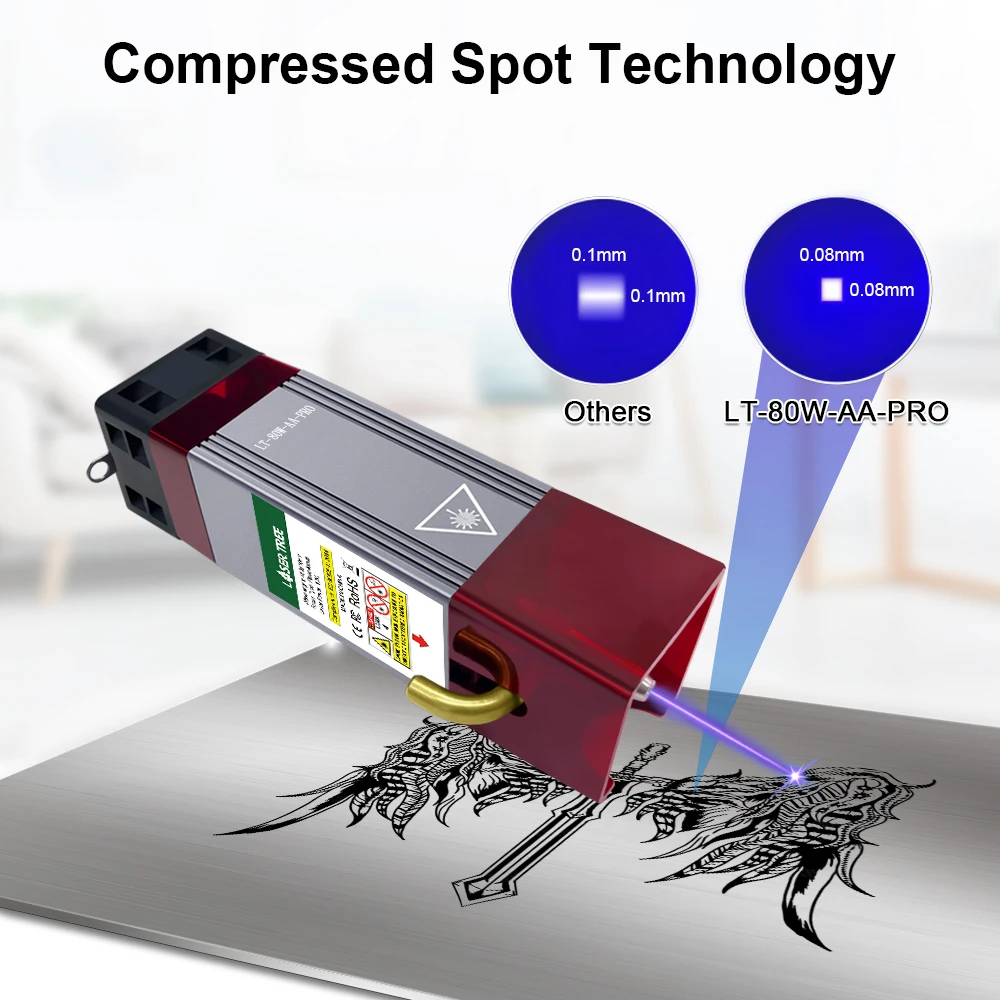

Dual-LDs with beam compressed technology

One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

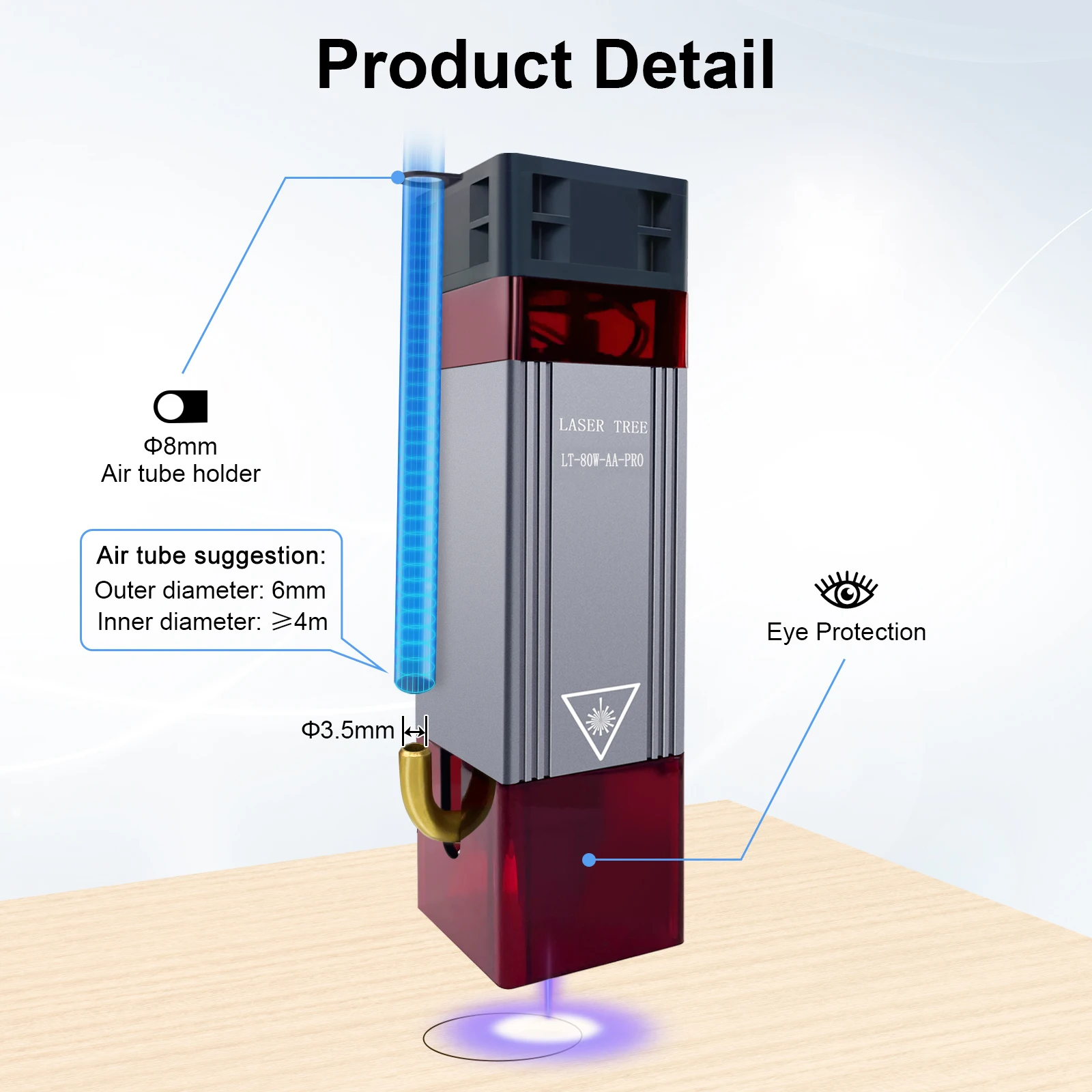

Interface diameter size

Air nozzle outer diameter: 6mm; inner diameter: 3.5mm
Air tube outer diameter: 8 mm;inner diameter: 6 mm
Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

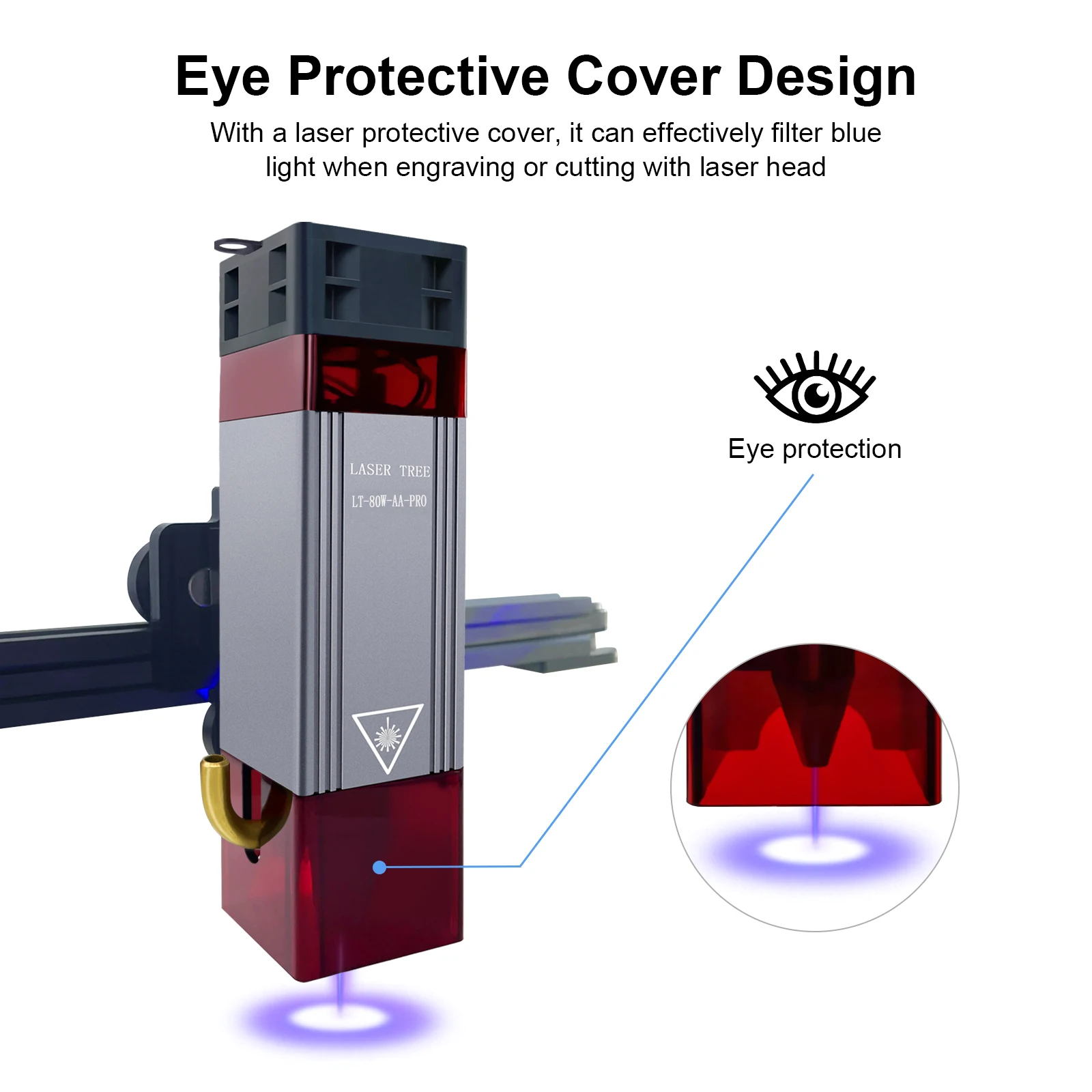

Eye Protective Cover Design

With a laser protective cover, it can effectively filter blue light when engraving or cutting with laser head.

Widely Compatible Design
