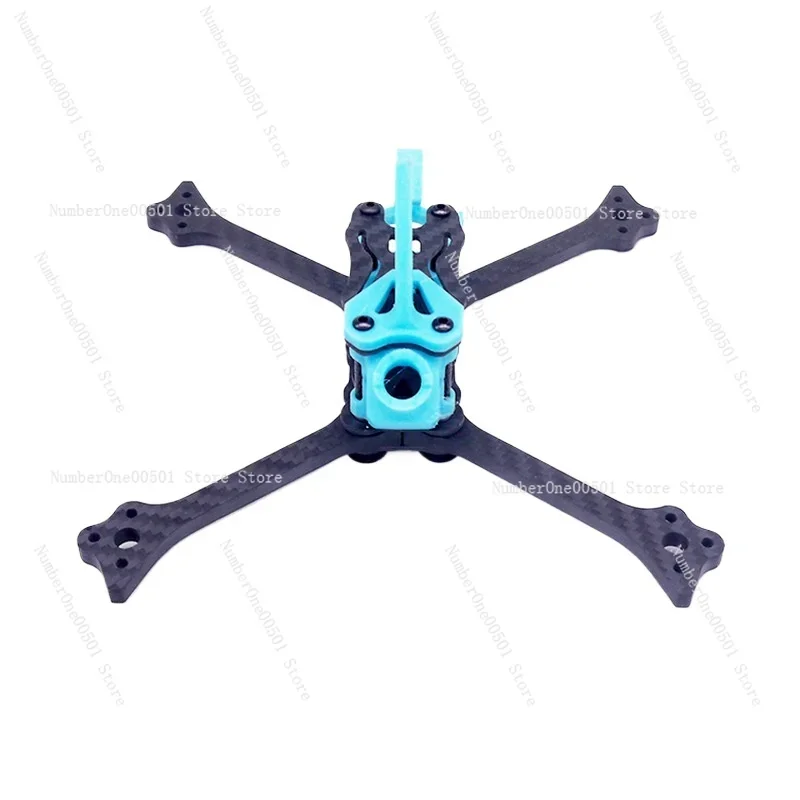

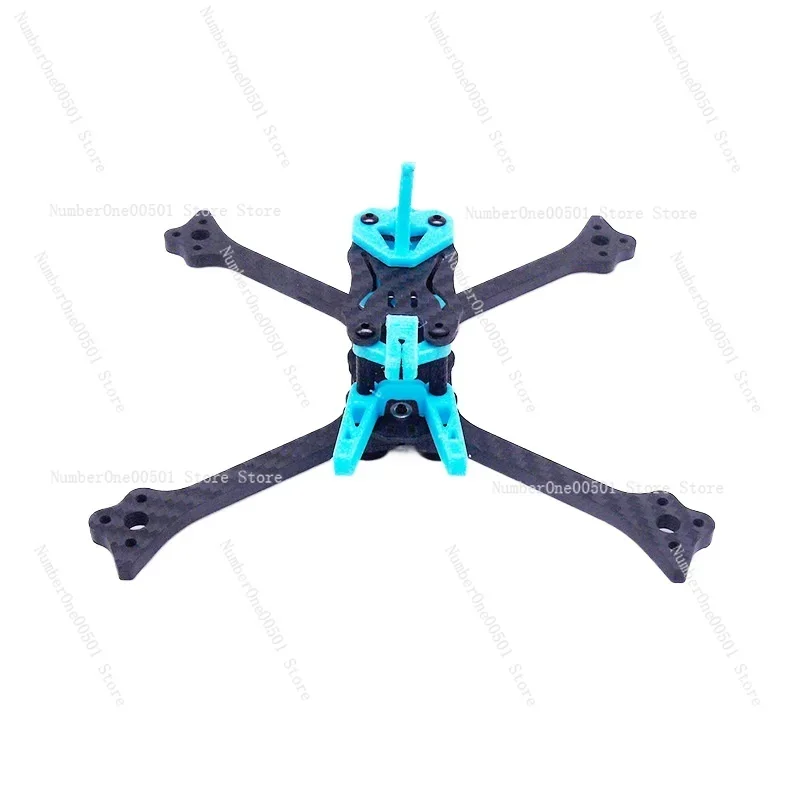

533Plus 5-inch crossover rack fpv competition simulation Vista competition Huafei FIVE33 rack

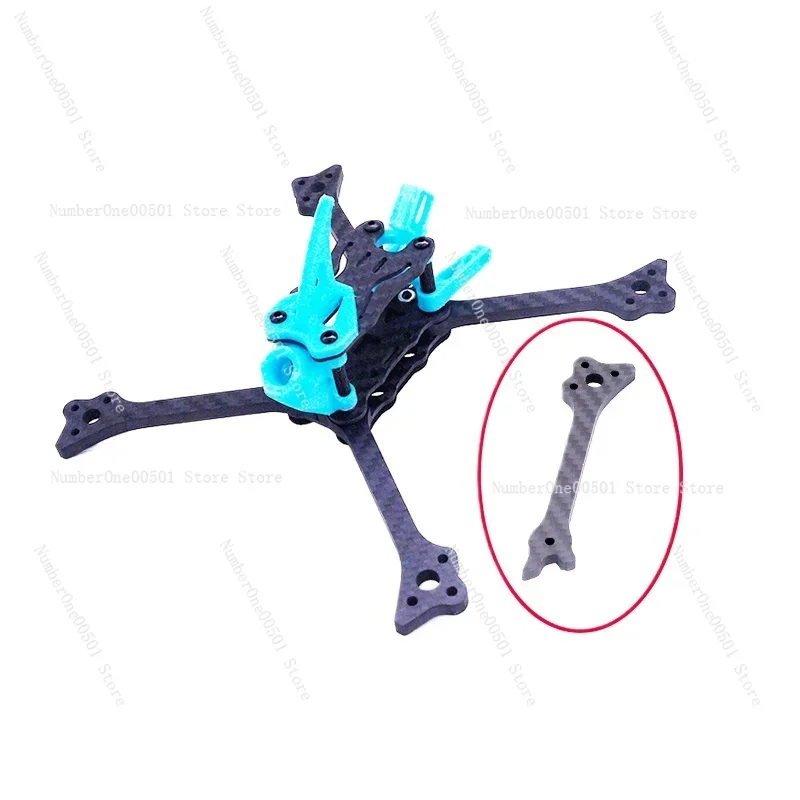

A set of 533plus racks 1 arm will be given as a gift.

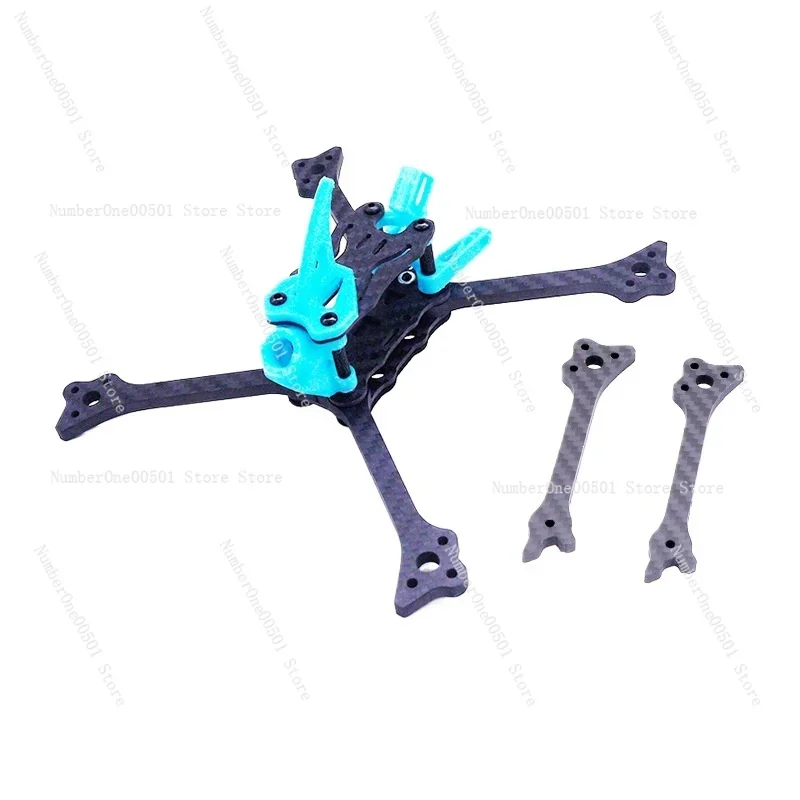

B:a set of 533plus racks 2 arms for free.
Attention
1. Our store only sells racks, not the whole machine, nor does it fly by hand, and does not sell any electronic accessories.
2. You need to prepare your own electronic accessories, screwdrivers and other accessories and assembly tools. Only the frame and the screw aluminum column of the assembly frame are shipped. The screws of other electronic accessories (such as flight control/flying tower/ESC/motor/camera, etc.) will not match. If you need to buy screws, there is a link in the store to take pictures together!
3. If you think the standard screws for rack delivery are too long or too short, you need to replace the appropriate screws yourself! Because everyone's configuration requires different screw lengths, we only match the screws for assembling the rack!
4. Metal accessories such as carbon fiber materials and screws will conduct electricity. Please do a good job of insulation when installing and using. You are not responsible for failures and damage caused by conductivity. Finally, thank you for your understanding and support!
Product parameters:
1. Wheelbase: 190mm

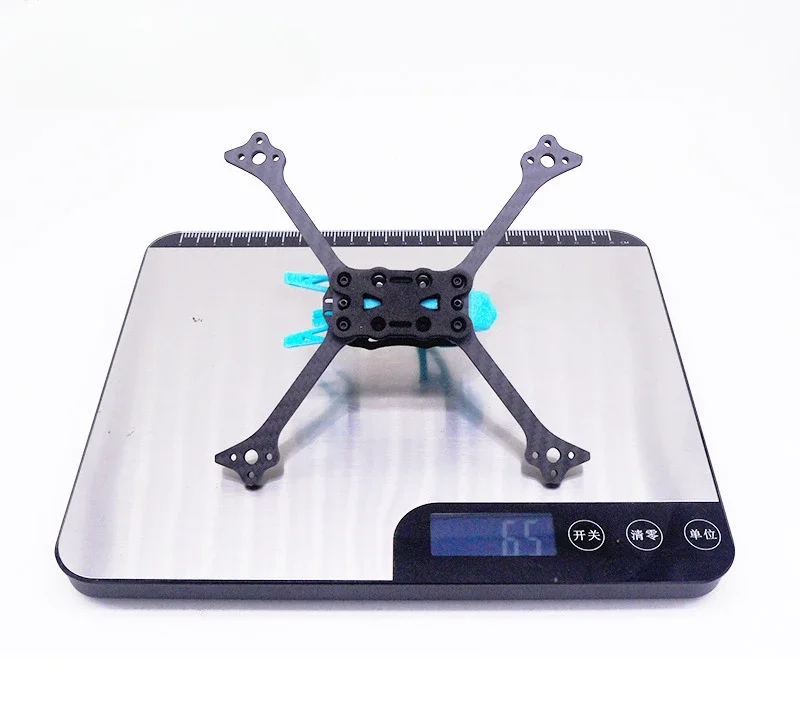

2. Weight: about 65G
3. Thickness: arm 5.Omm, arm fasteners 3.Omm, other 2.Omm
4. Paddle: 5.0 inch paddle
5. Flight control hole spacing: 20 * 20mm (M3)
6, Top plate mounting hole: 20 * 20mm (M2)
7. Camera installation width: 14mm (camera angle is about 50 degrees)
8. Motor mounting hole: 16 * 16mm (M3)
9. Structure: X-shaped split
10. Aluminum column height: M3 * 25mm
11. Distance between front and rear aluminum columns: about 45mm
12. Suitable for snails, nebulae, aurora, vista sky end, etc., 915 antenna
13. 3D printed parts: camera holder * 1, shark fin * 1,915 antenna holder * 1, arm fastener * 2, antenna mounting holder * 1 (the size of the antenna shell does not exceed 9 * 13mm, it is recommended to use a micro lollipop antenna)
