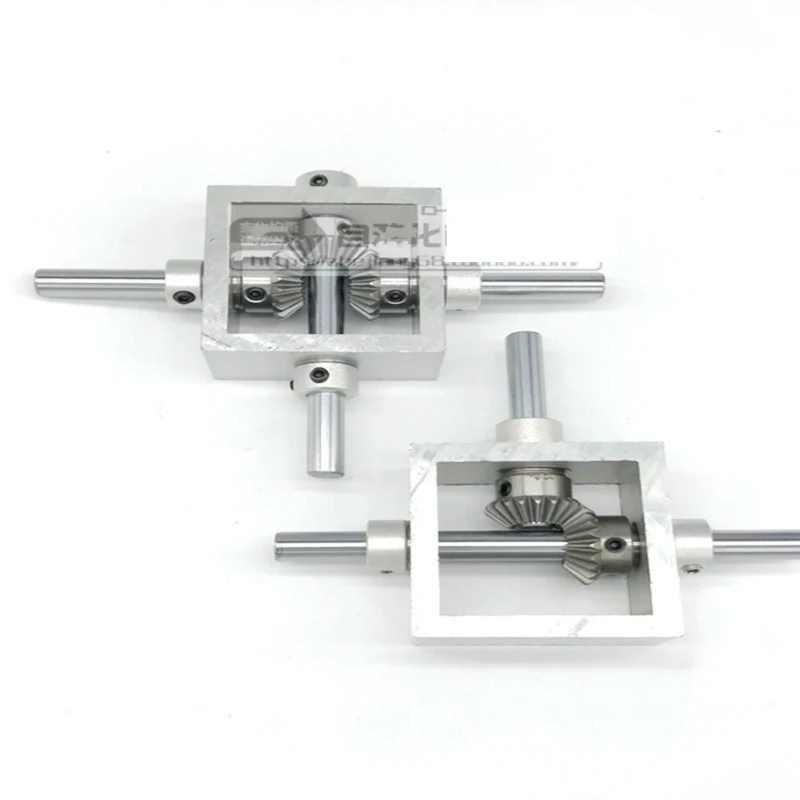

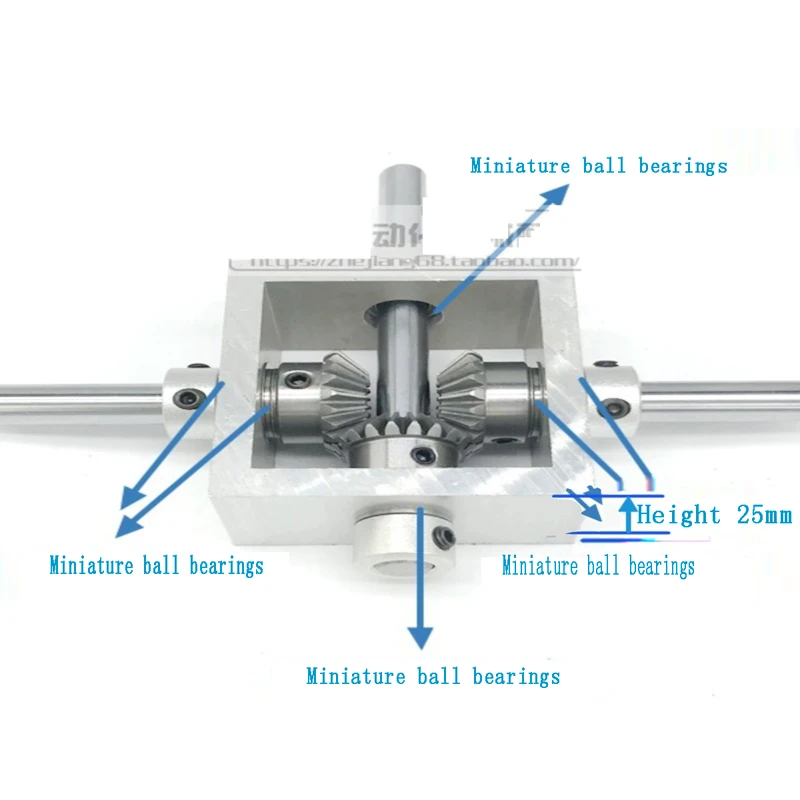

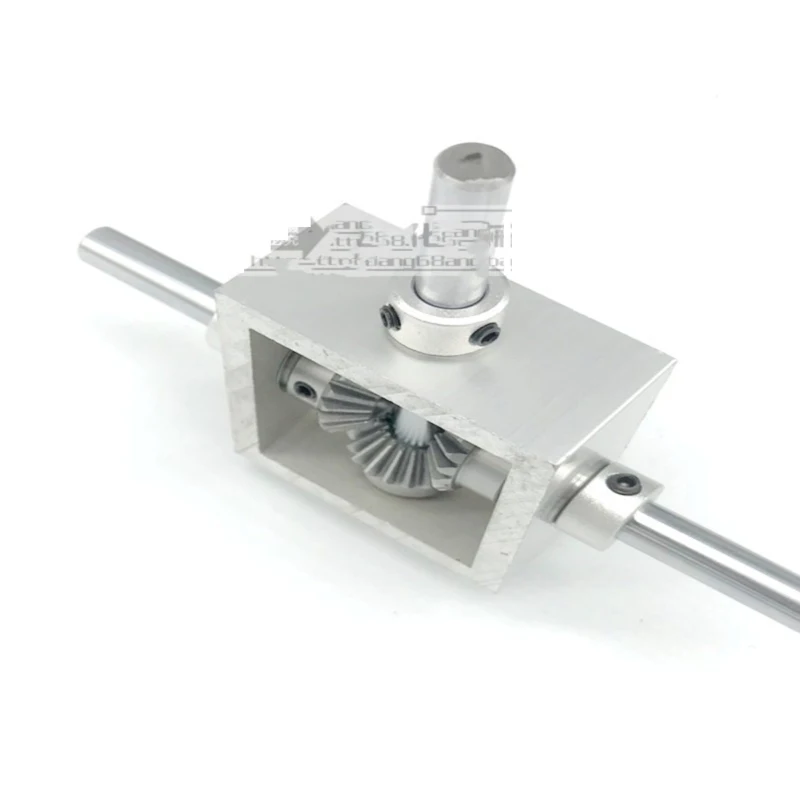

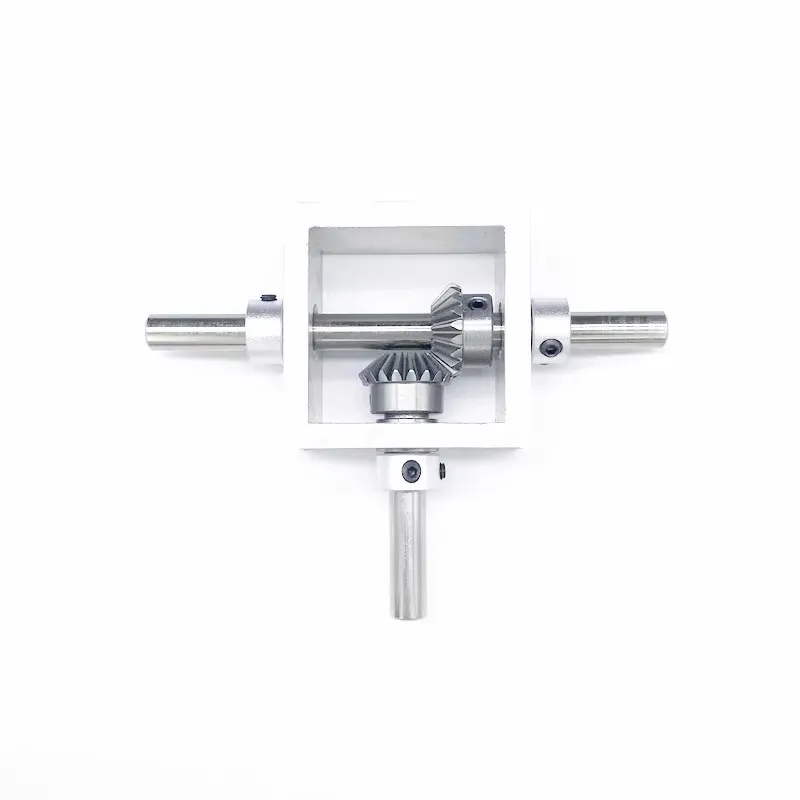

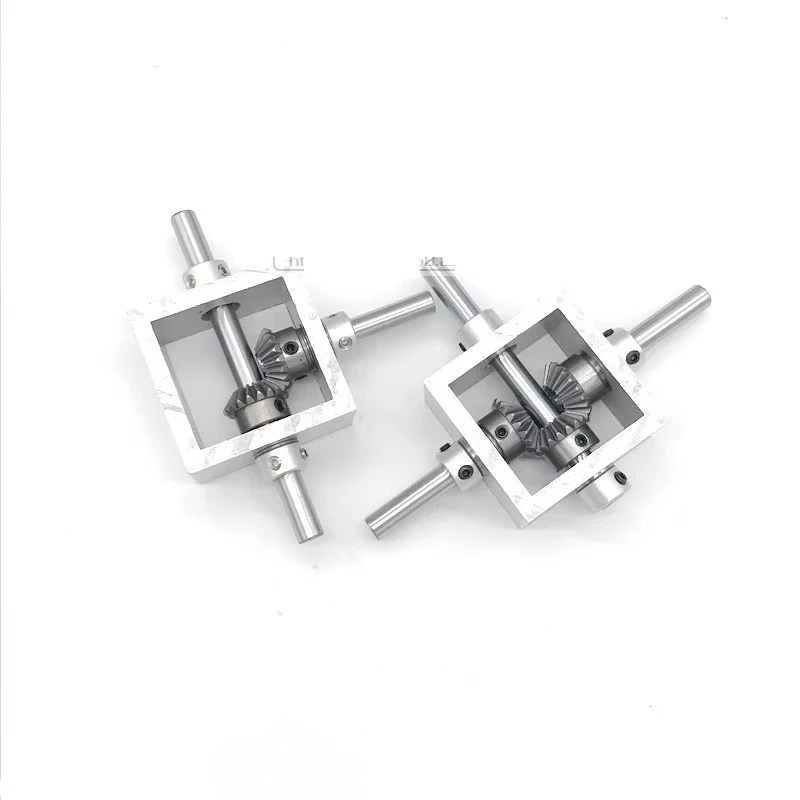

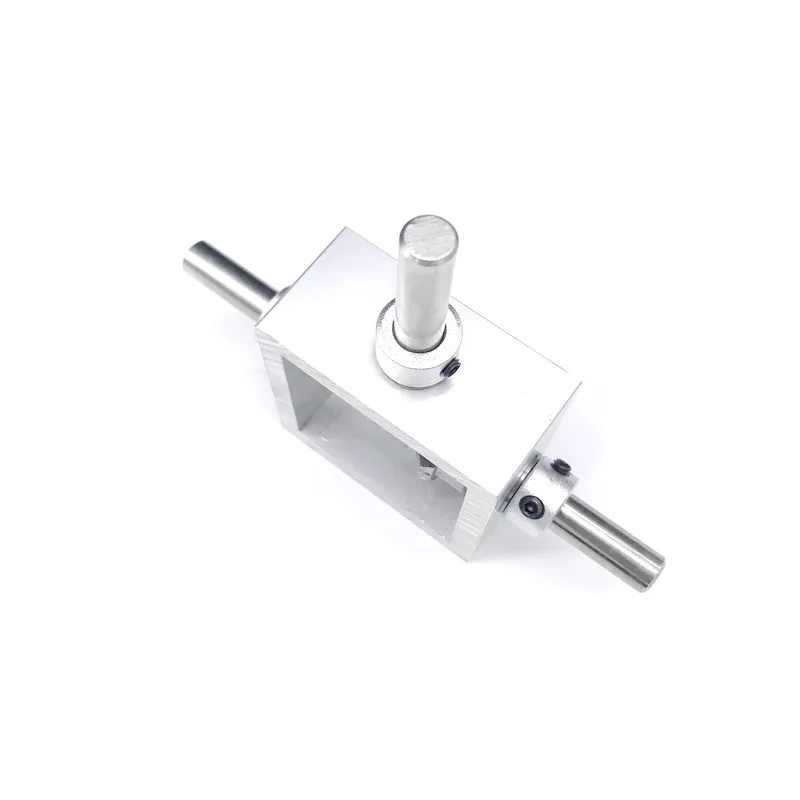

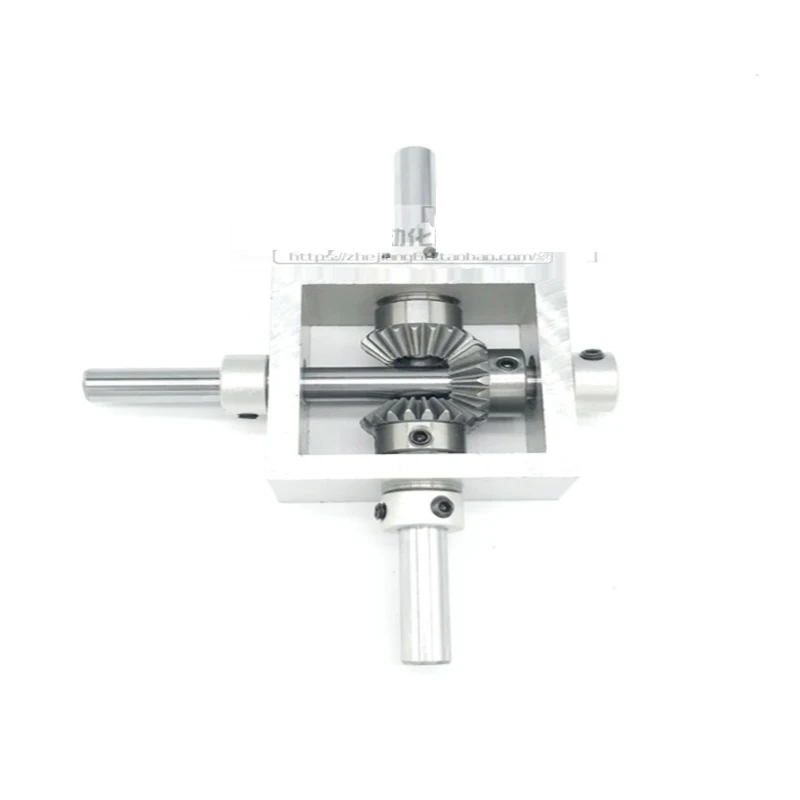

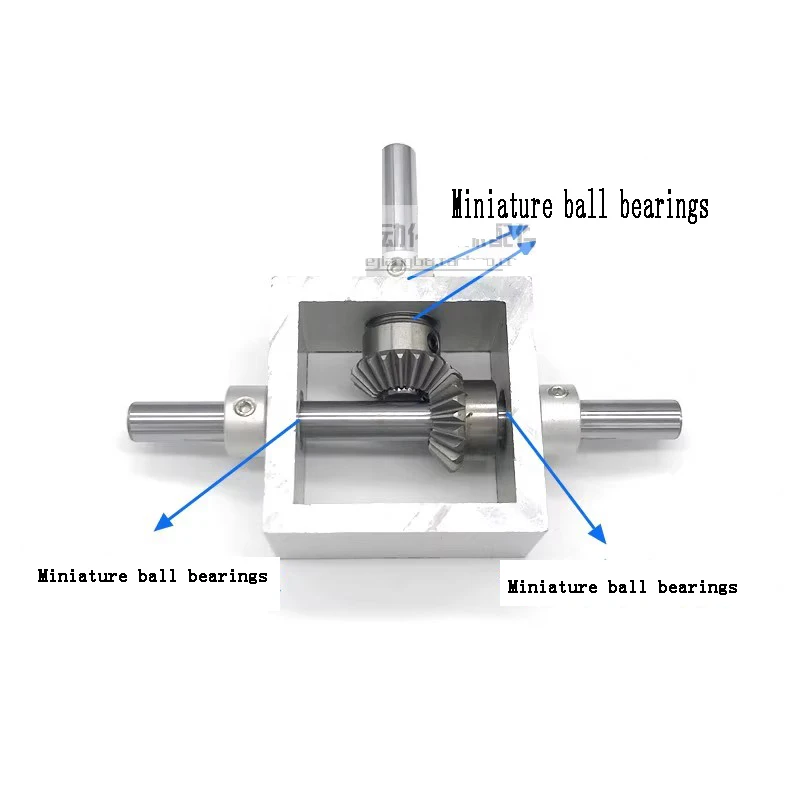

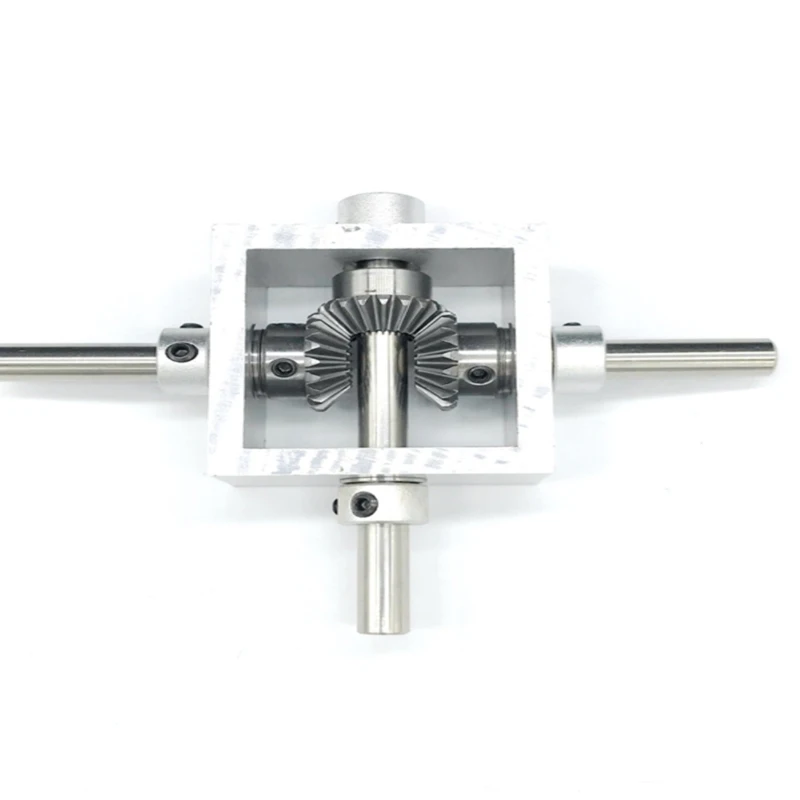

Transmission Reversing Gearbox Dual Output Shaft Bevel Gear Angle Converter Speed Ratio 1:1 Alloy Frame 90 Degree Right Angle

Parameter:

Product name: 90 Degree Right Angle Transmission Reversing Gearbox

Frame material: aluminum alloy

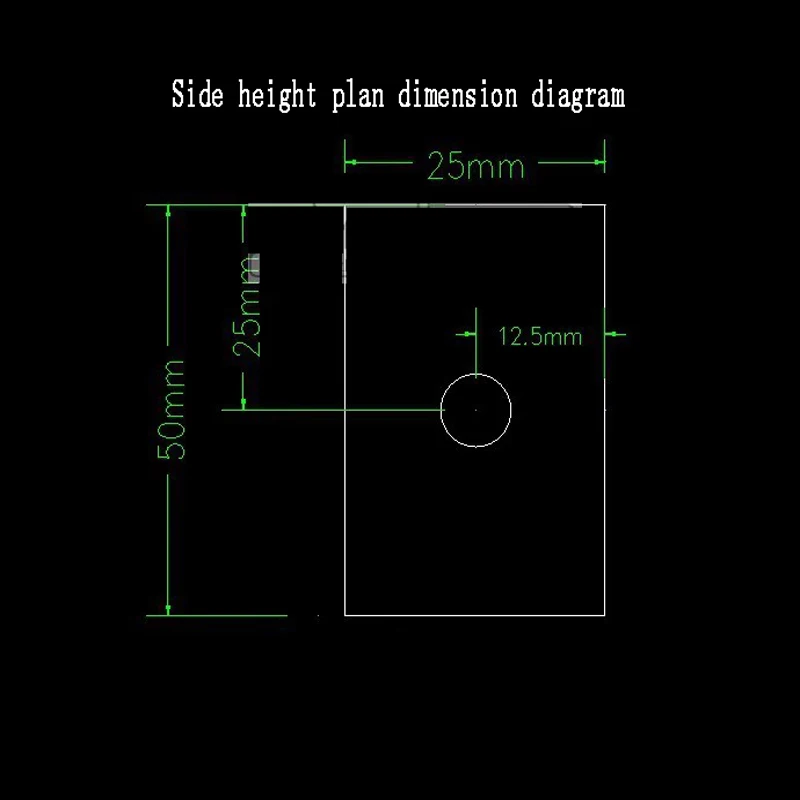

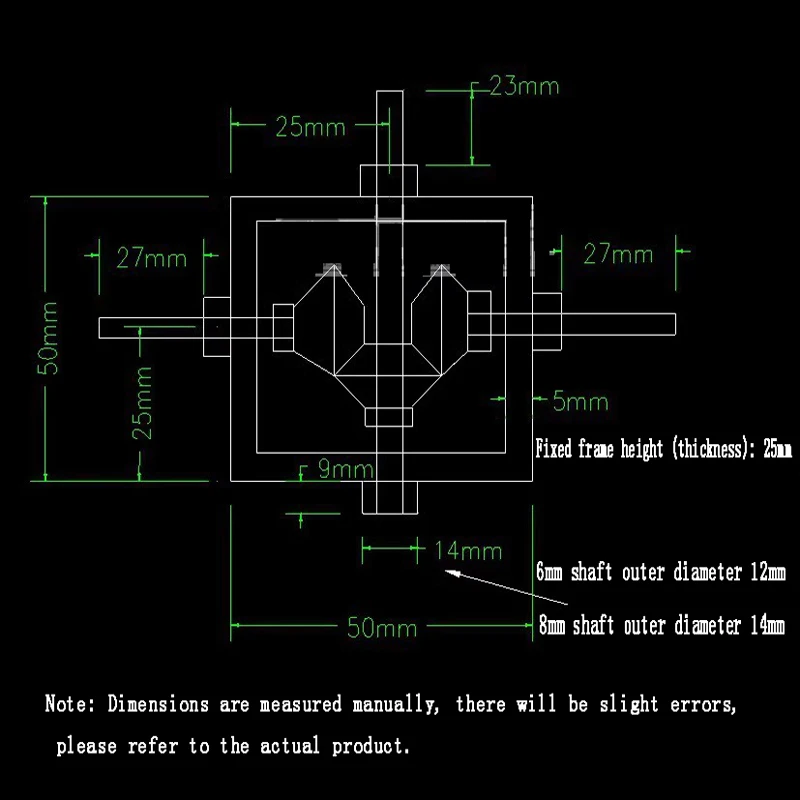

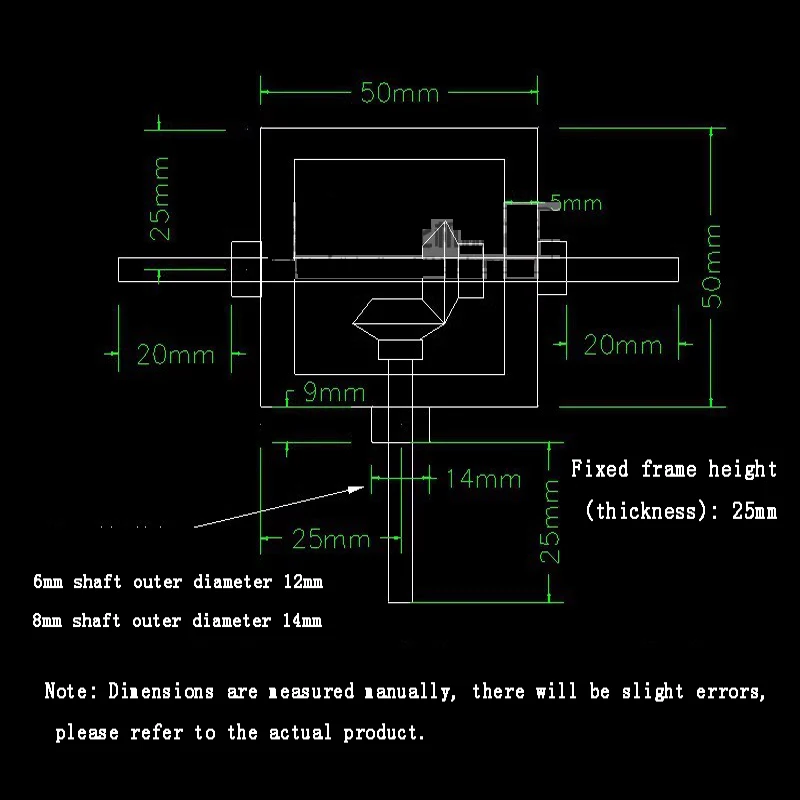

Frame size: 50x50x25MM

Gear teeth number: 20

Gear inner hole size: 6MM/8MM

Gear outer diameter: 21MM

Step outer diameter: 16MM

Tooth length: 7MM

Total length of gear: 13.2MM

Fixing screw hole: M4*2

Material: S45C carbon steel

Installation center distance: 18MM

Weight: Type A (0.16KG), Type B (0.17KG)

Note:

The alloy processing, drilling and cutting process may produce scratches, which will not affect the use.

The product has no fixed mounting holes, and the buyer needs to punch and fix it by himself, and there is no cover on the top and bottom.

This product is a simple model and cannot be used for high-speed operation. It is used in places that do not require high accuracy. Please do not purchase those with high accuracy requirements.
