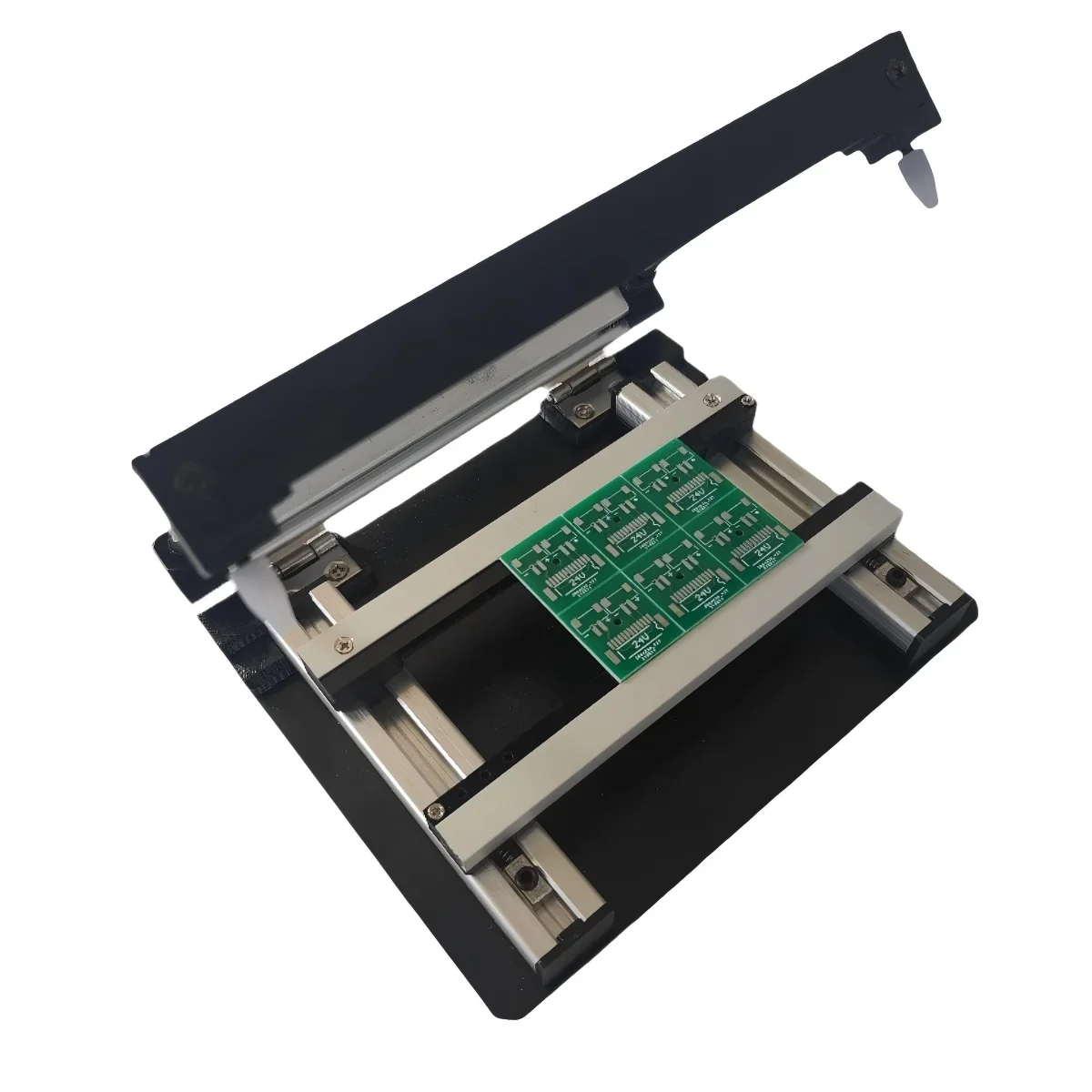

100*100mm SMT Steel Mesh Solder Steel Sheet PCB Solder Paste Printing Manual Micro Screen Printing Machine Printing Table

100*100mm SMT Steel Mesh Solder Steel Sheet PCB Solder Paste Printing Manual Micro Screen Printing Machine Printing Table
Specification:

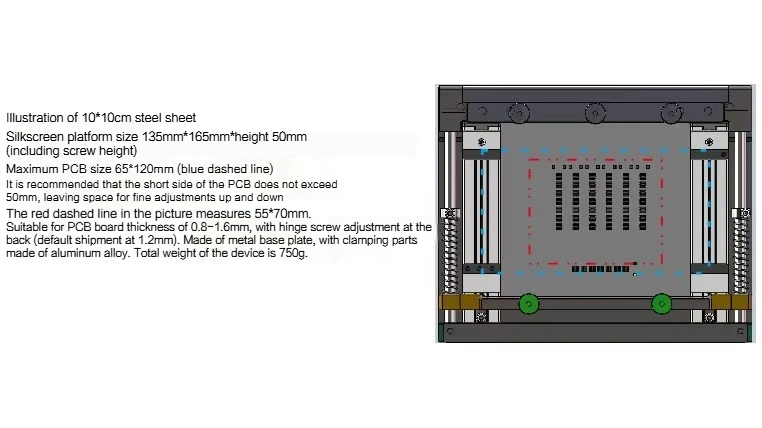

Model: 10*10 SMT Steel Mesh Steel Sheet
Size of Silk - screen Printing Table: 135*165*50mm (Including the Height of Screws)
Maximum Size of Circuit Board (Horizontal): 65*120mm
Effective Printing Range (Up - Down * Left - Right): 55*80mm
Printing Speed: Manual Control
Thickness of PCB Board: 0.8 - 1.6 (Default Adjustment to 1.2 for Shipment)
Weight of the Whole Machine: 750g
Positioning Steps:

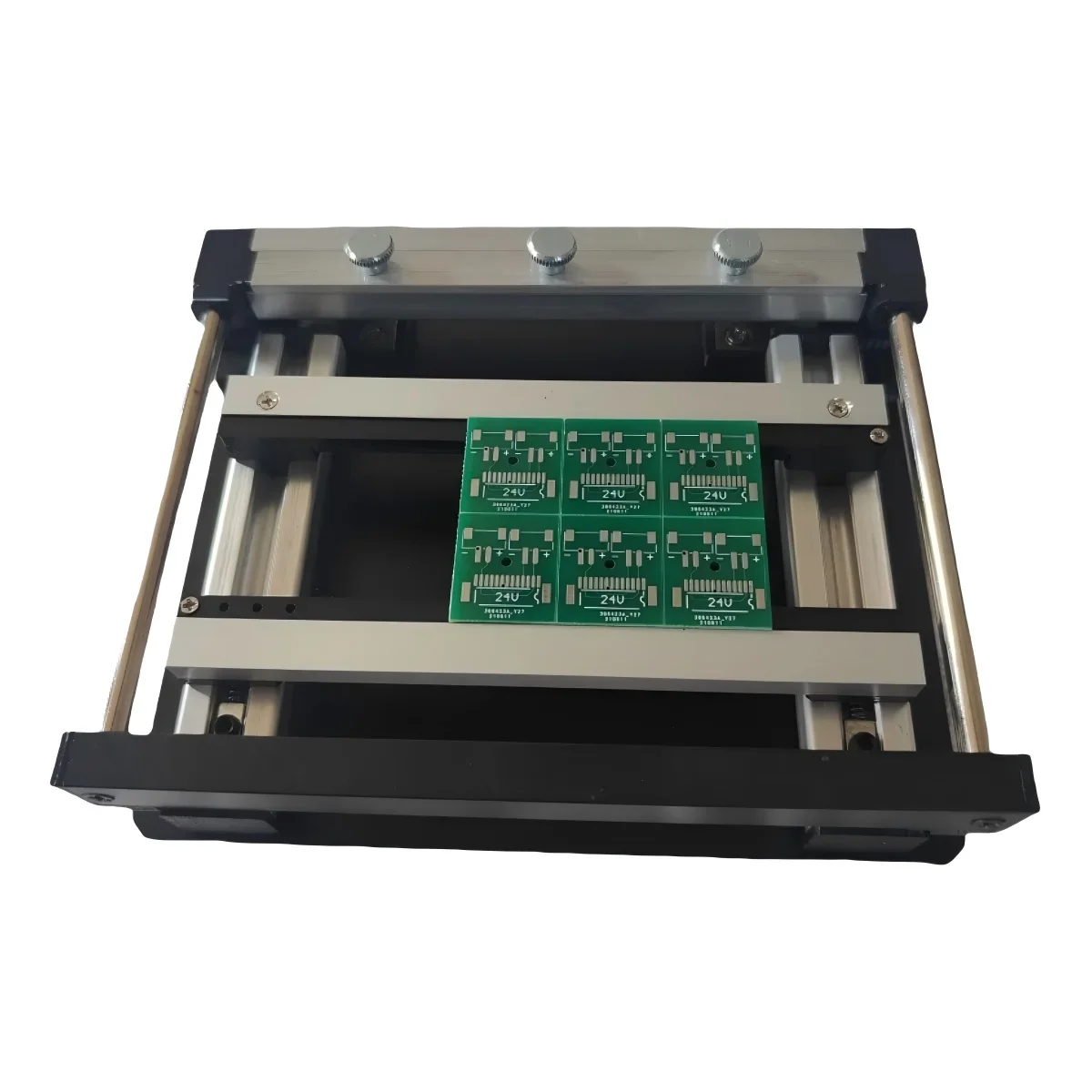

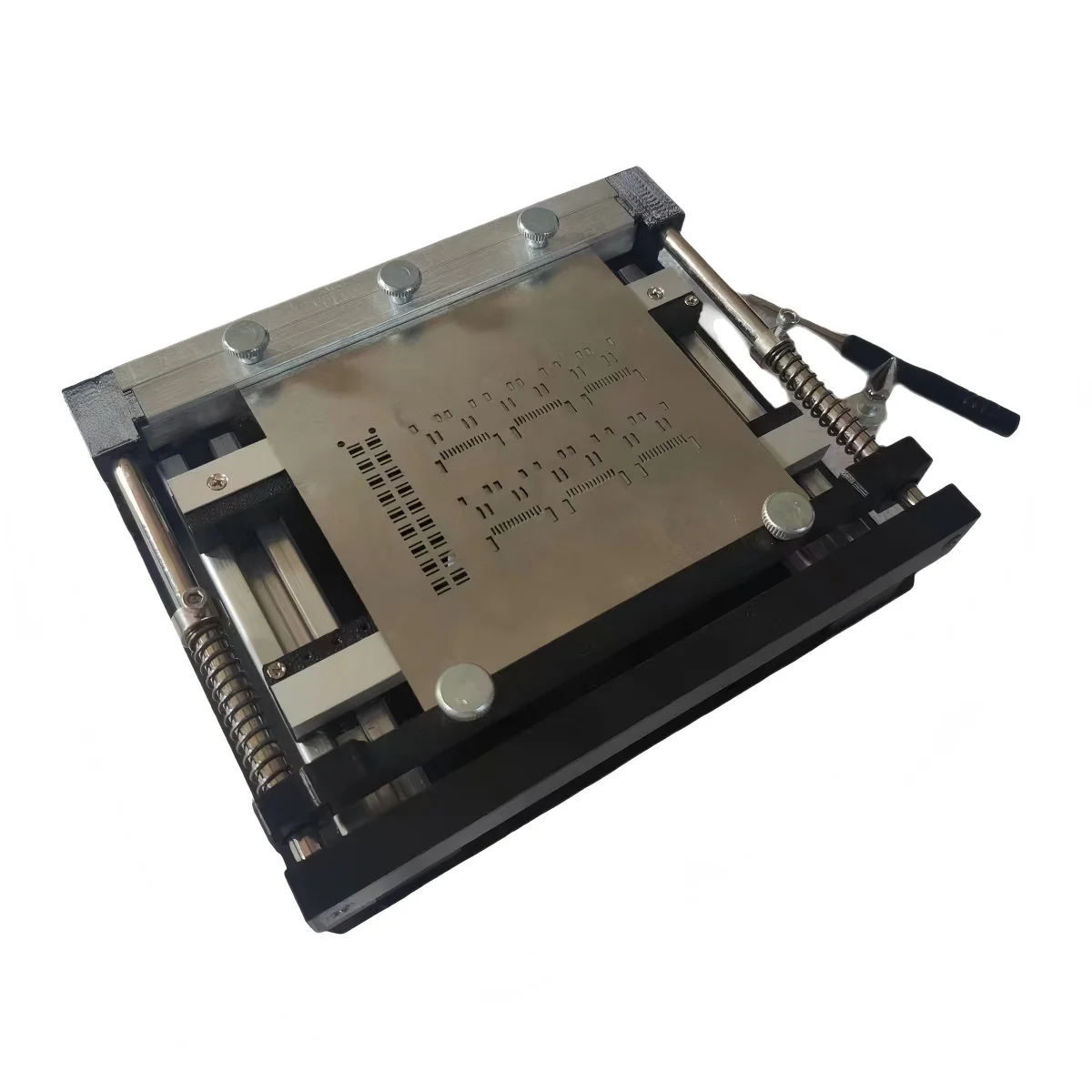

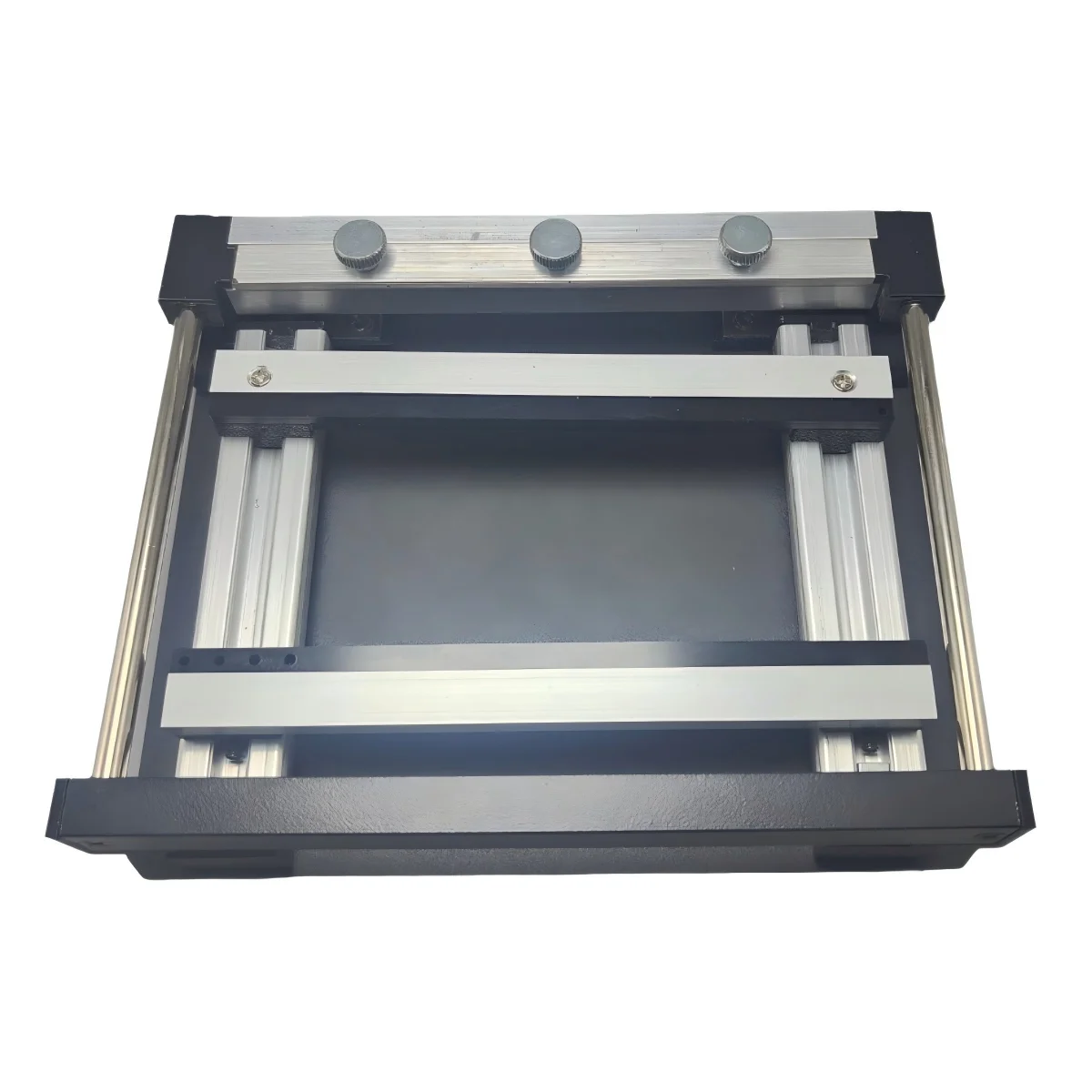

1.Put the steel sheet into the top slot, fix it slightly by hand - tightening, and place the PCB on the upper and lower sliding table.
2.Move the sliding table to adjust and align the steel sheet with the pad position on the PCB.
3.Finally, manually fine - tune and move the steel sheet. After reaching the position, fasten the hand - tightened nut for clamping.
4.Push the tensioning sliding slot to the tail end of the steel sheet, tighten 2 inner hexagon screws, and then lock the limit spring.
Package List:
4 - inch Squeegee * 1
Cross Screwdriver * 1
Inner Hexagon Screwdriver * 1
