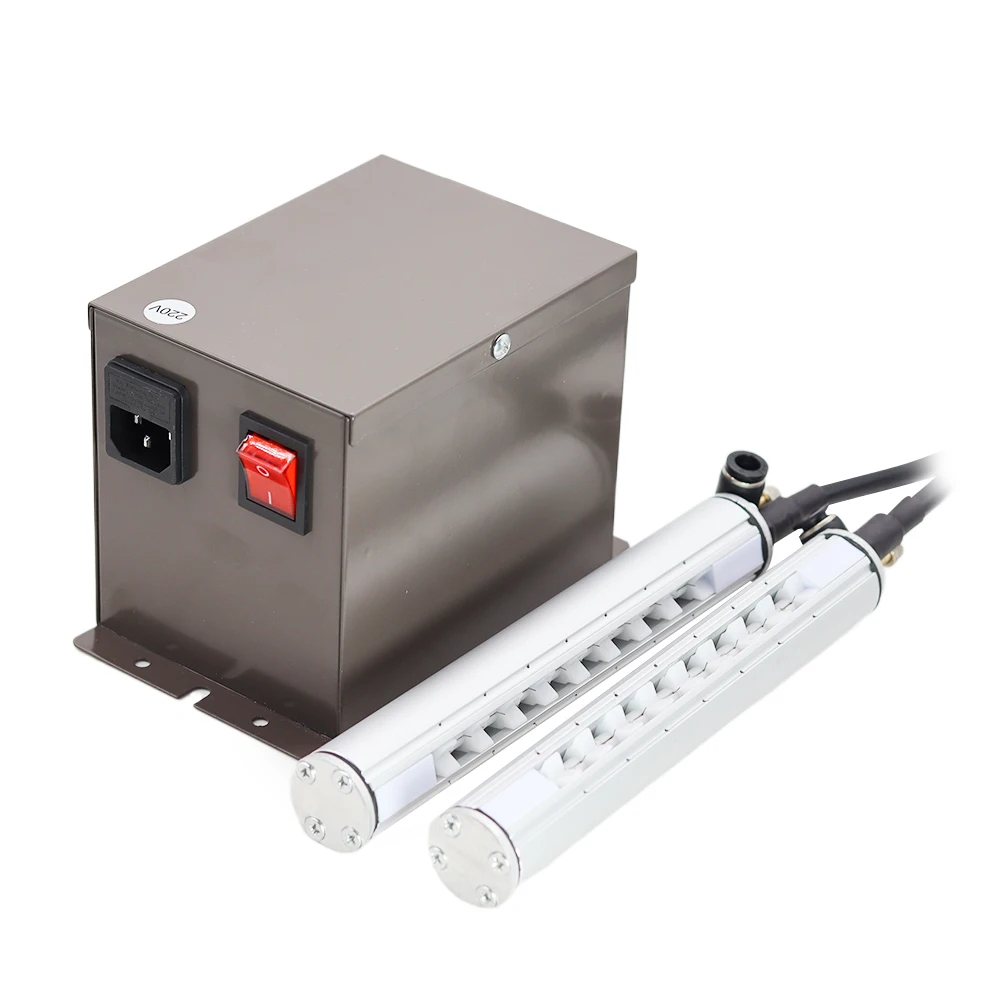

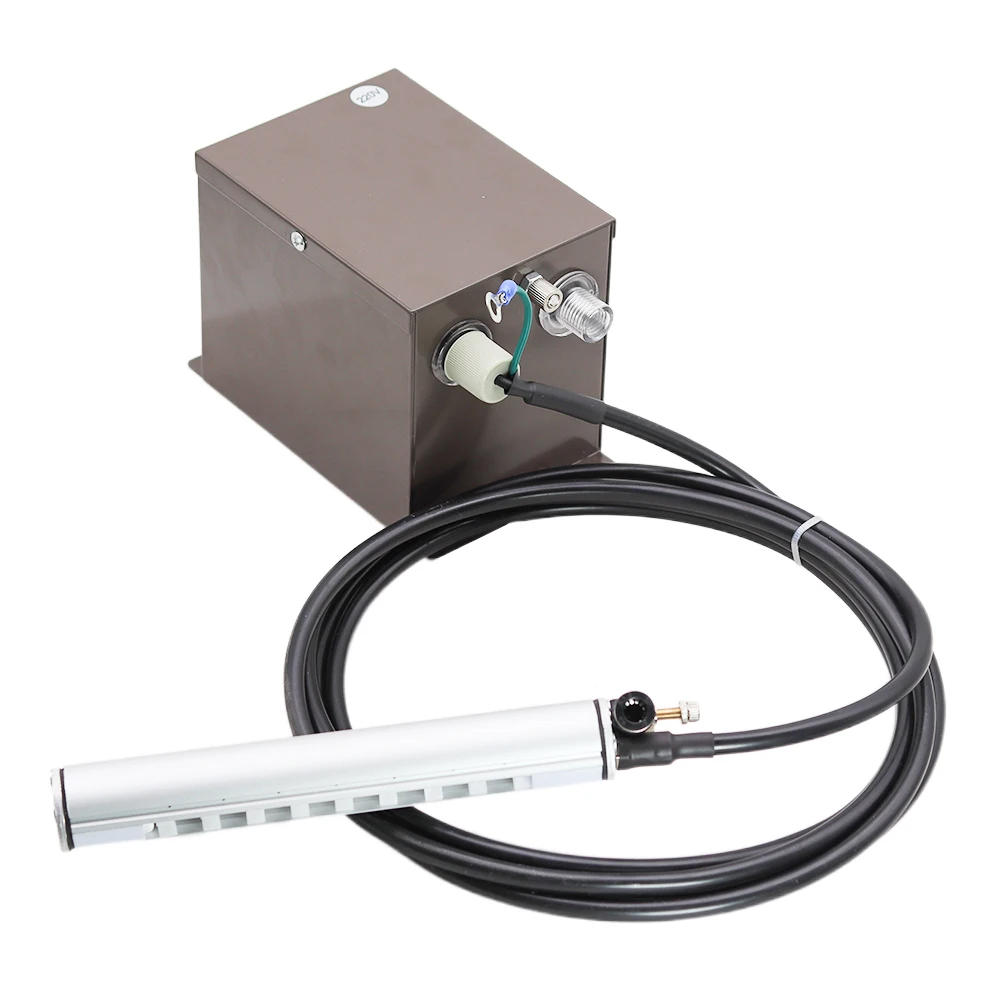

Ionizing Air Bar 22cm Static Eliminator Anti Static Ionizing Rod Anti Static Rod Ionizing Air Rod+7KV High Voltage Generator

Antistatic Ionizing Air Bar can produce large amounts of air with positive and negative charges; can neutralize the negative and positive charges from objects. When the object is charged for the negative charge on the surface, it will absorb the positive charge in air, when the surfaces are charged for a positive charge; it can absorb the negative charge in air. Neutralize the electrostatic to achieve static elimination purpose.
ESG anti static bar antistatic bar static eliminator ionizer bar
Ionization device: ionization device in high pressure under the effects of the low voltage high current generator, forming a stable, high pressure electric field ionization air plasma formation, by high pressure air flow out of the reach the surface of the object, to achieve the purpose of neutralizing static and dust removal.
Technical Parameter
Technical parameters:Operating Voltage 7.0KV
Operating electricity:0.36mA / M
Air Pressure:5-7 Bars
Flow rate:10m/sec
Operating Temperature:-10~50 °C
Weight:1.68Kg / M
Max. length:2 meters
Air Pressure:5-7 Bars
Flow rate:10m/sec
Operating Temperature:-10~50 °C
Weight:1.68Kg / M
Max. length:2 meters
Distance(mm)
20mm
40mm
60mm
80mm
100mm
300mm
600mm
Test results:Distance(mm)
With Compressed Air
0.3s
0.3s
0.5s
0.55s
0.7s
3.5s
5.5s
Without Compressed Air
0.3s
0.3s
0.5s
1.95s
2.05s

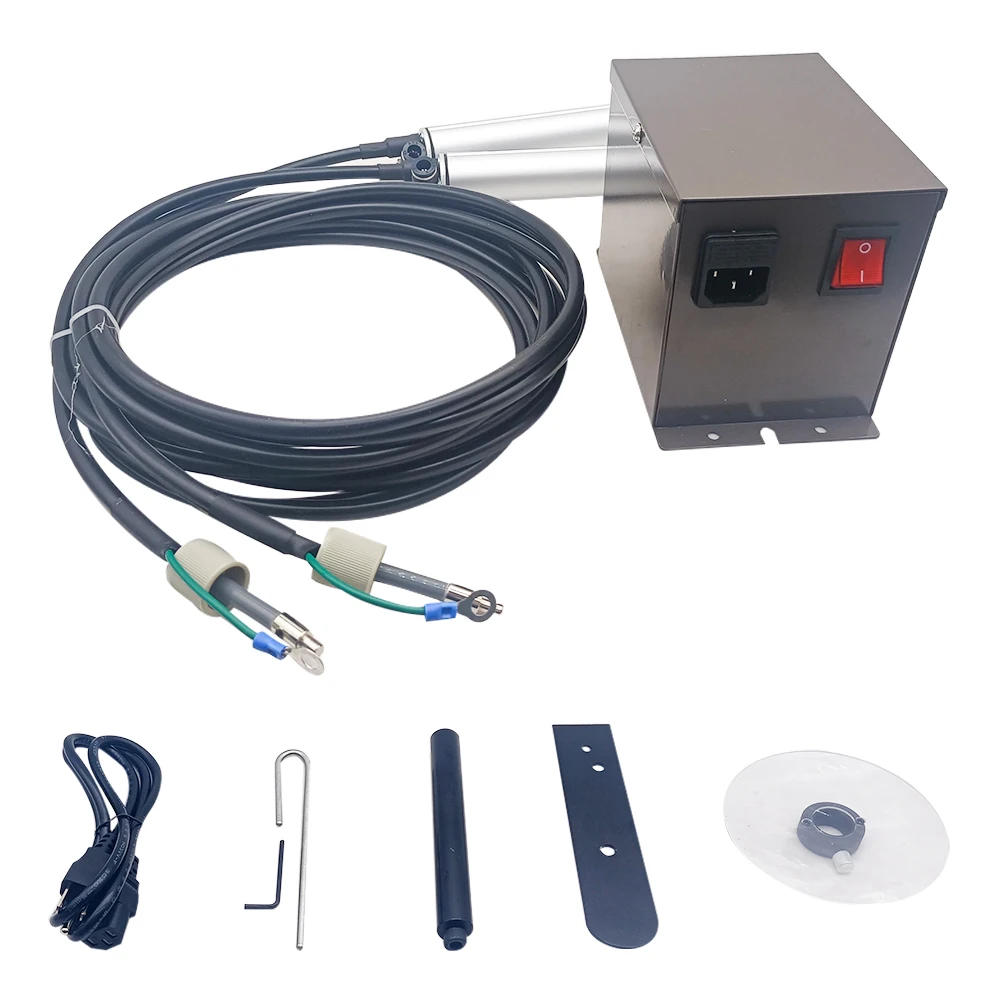

Package incluede:
1 x High voltage generator Optional accessories:
(1 x or 2x) Lonizing Air Gun (1x OR 2 x)Aluminum Bar
