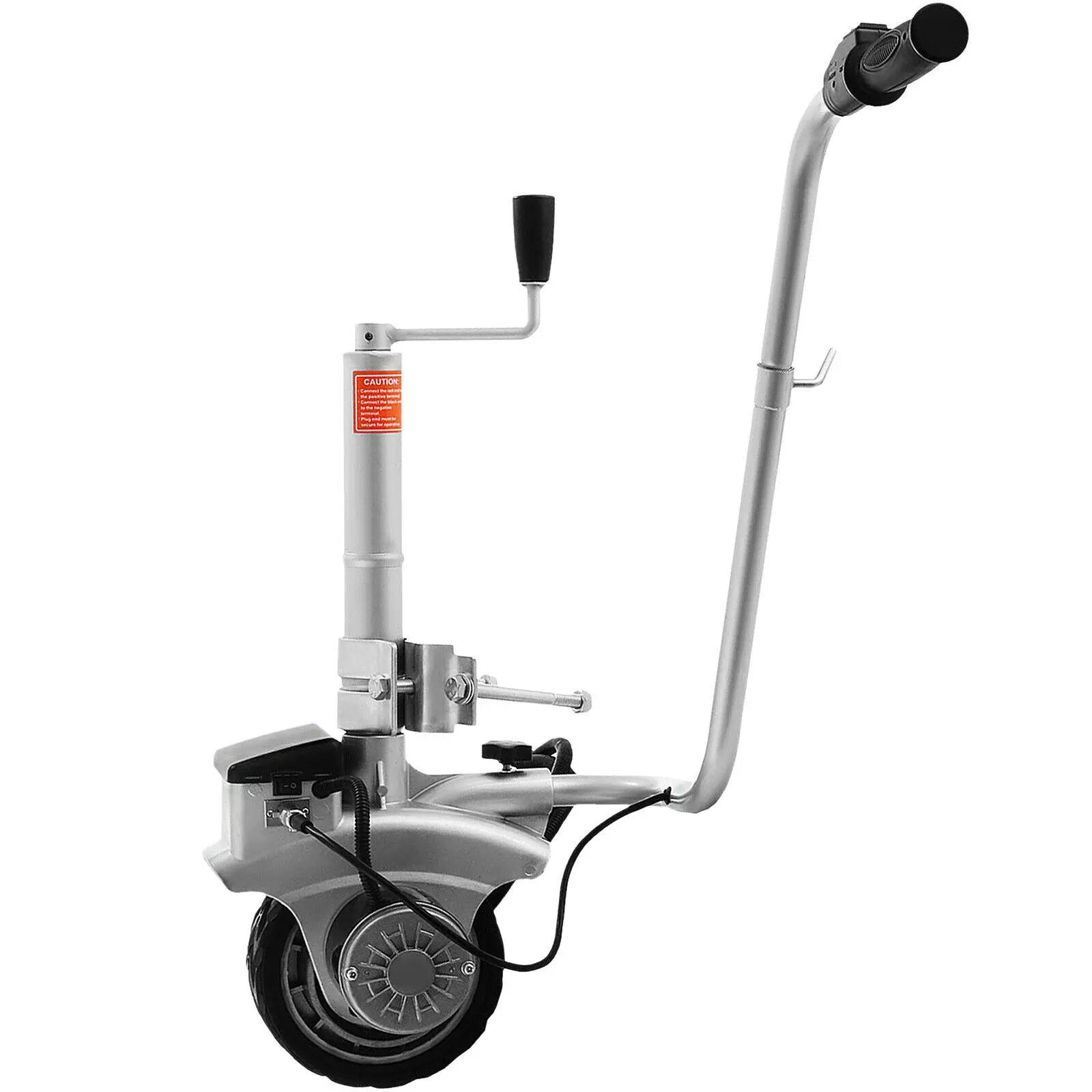

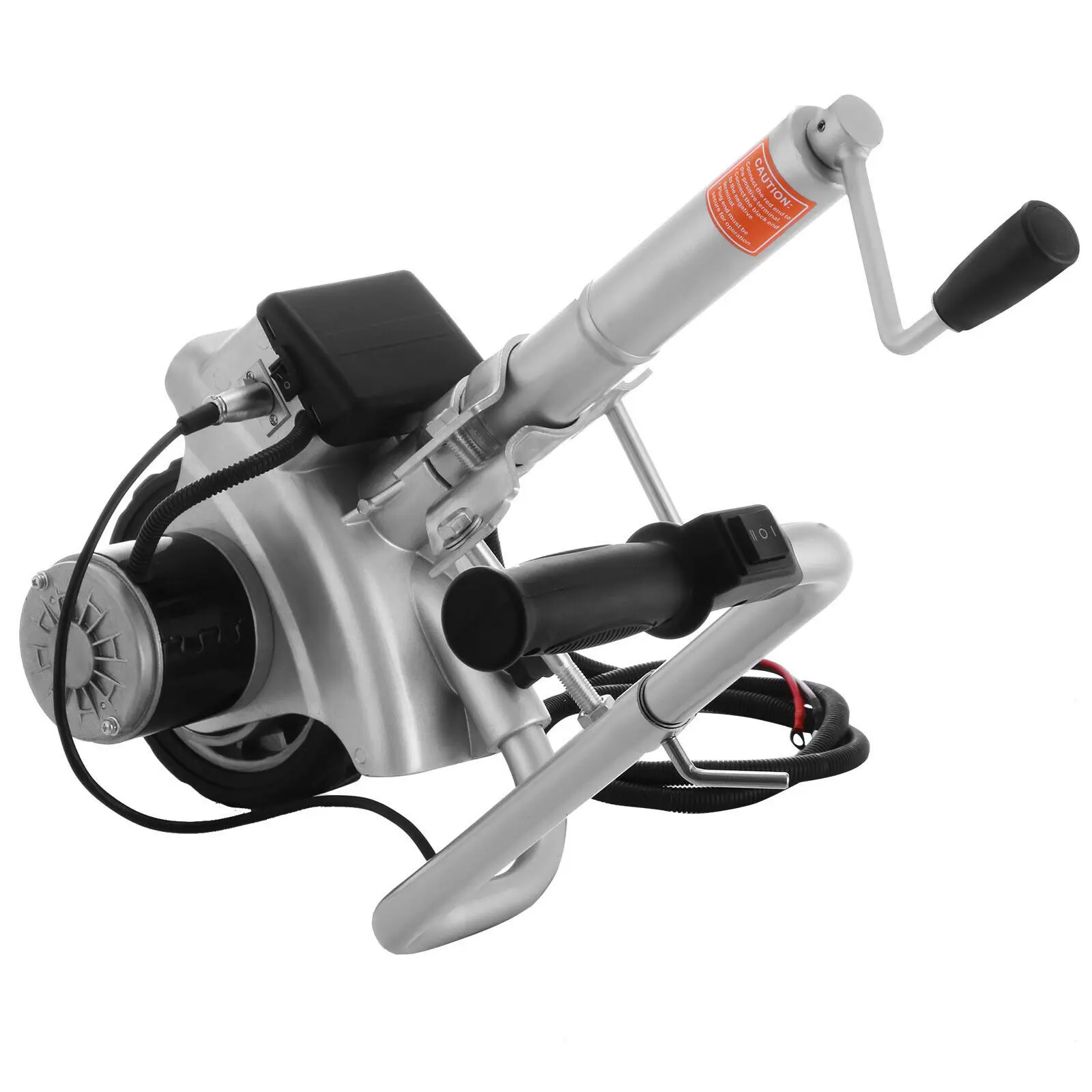

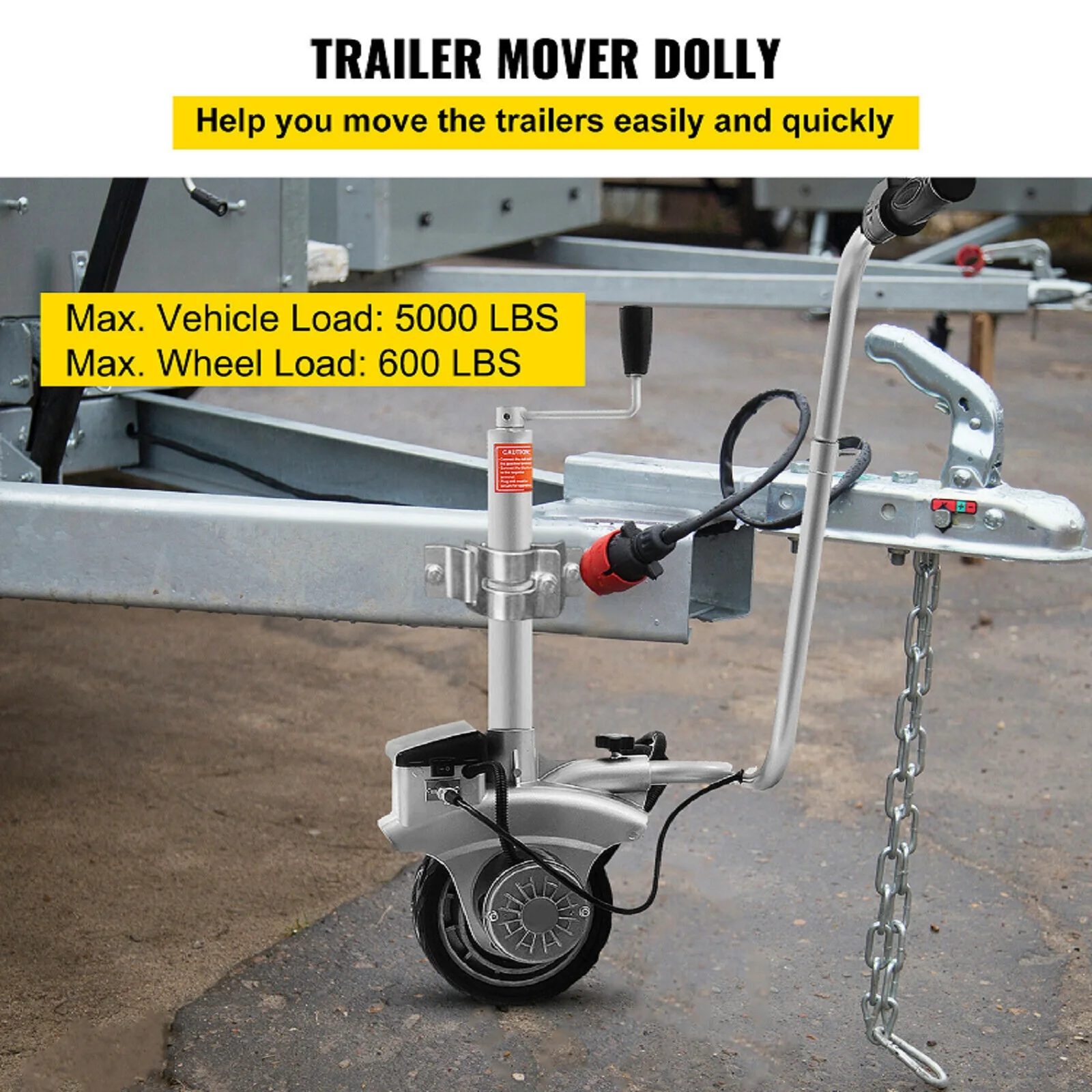

12V Motorised Jockey Wheels Electric Power Mover Maneuver Trailer Boat 350W Striker Power Jockey Wheel Foldable

12V Motorised Jockey Wheels

Applications:

12V Motorised Jockey Wheels, making you easy to maneuver your caravan, trailer, boat or horse float. The Striker Power Jockey wheel boasts forward and reverse motion, as well as automatic brake function. It also has an oversized anti-slip wheel and the ability to be used on slight inclines, which makes it ideal for shifting your prized possessions into awkward positions.

Brief description:

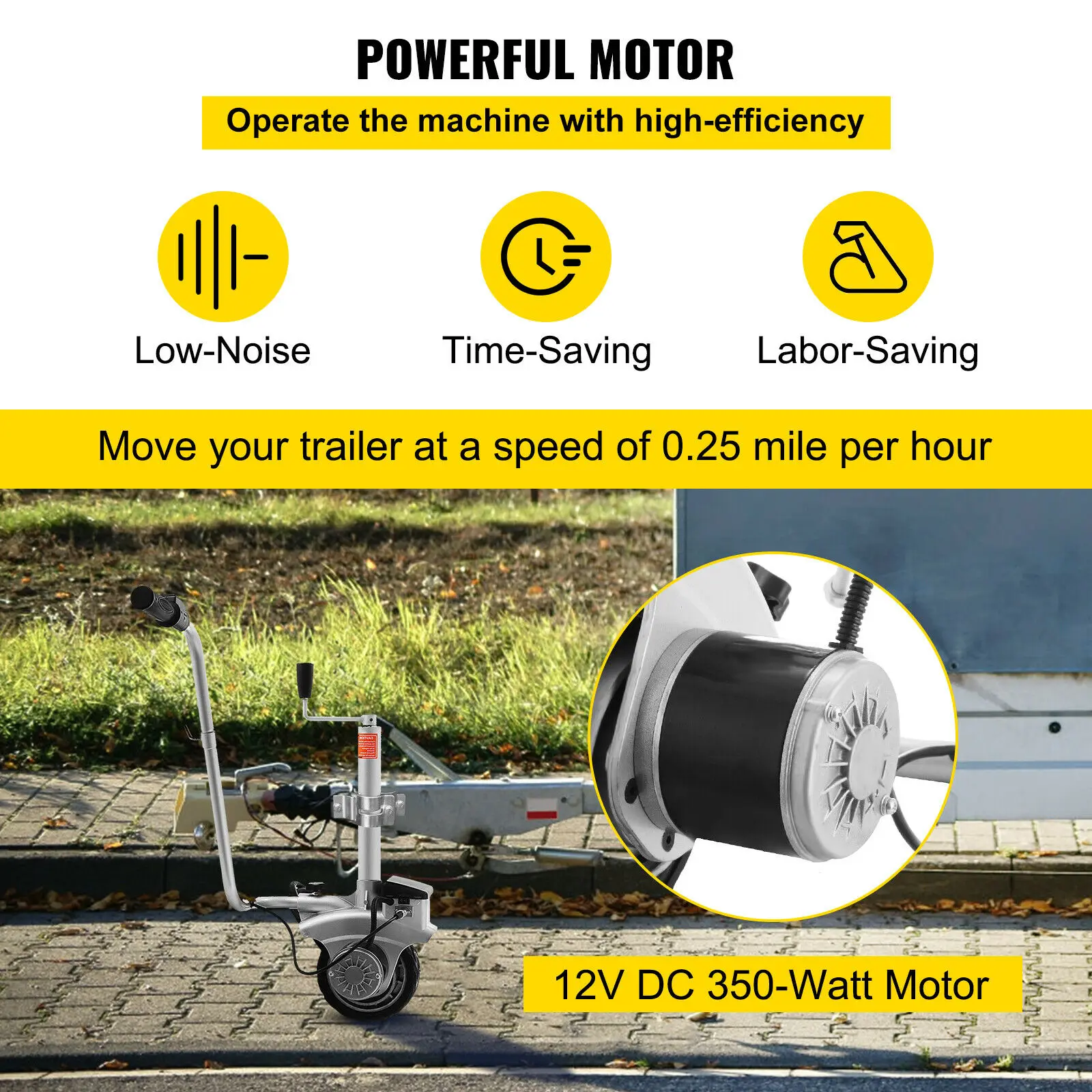

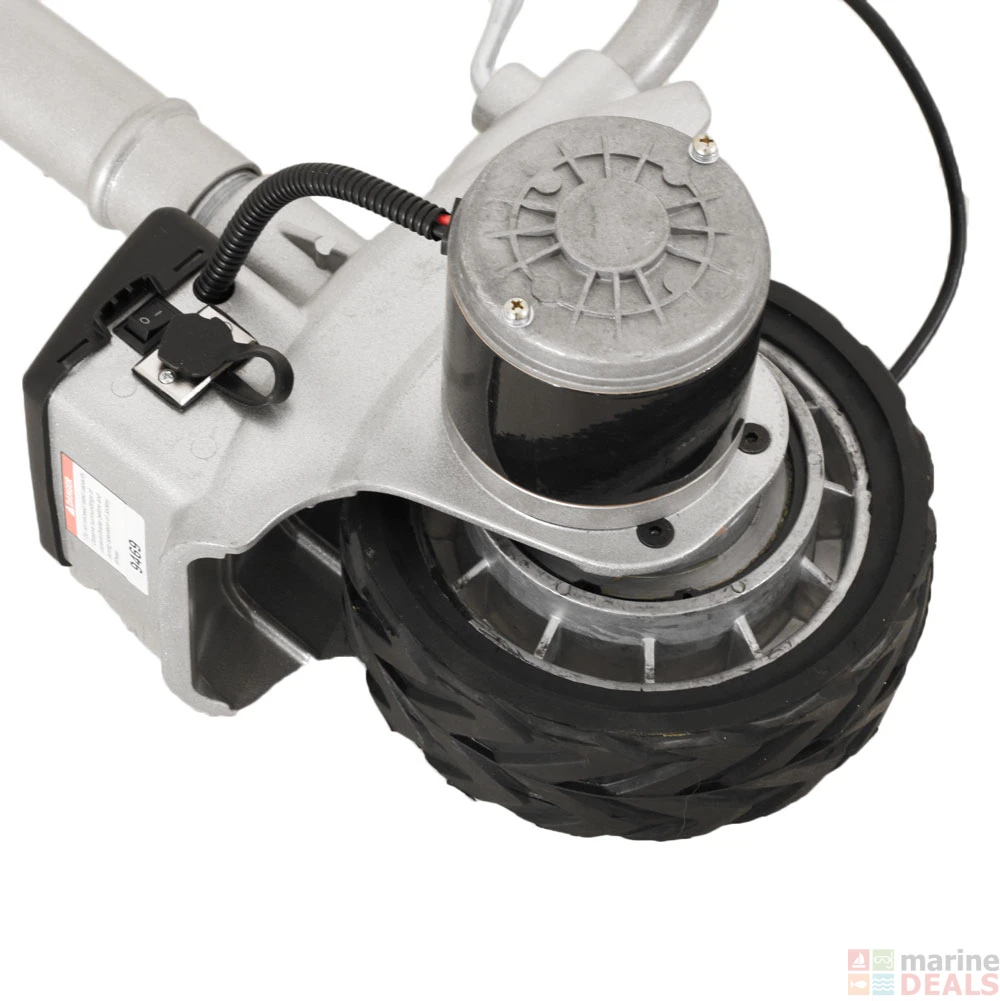

Motor & Gear system: DC motor provides power to the gear mechanism, and reduction gears converts motor power into moving force.

Control box: Include the electric components, and protect motor from over heat damage.

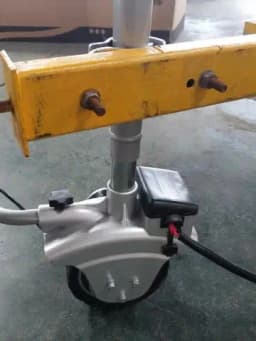

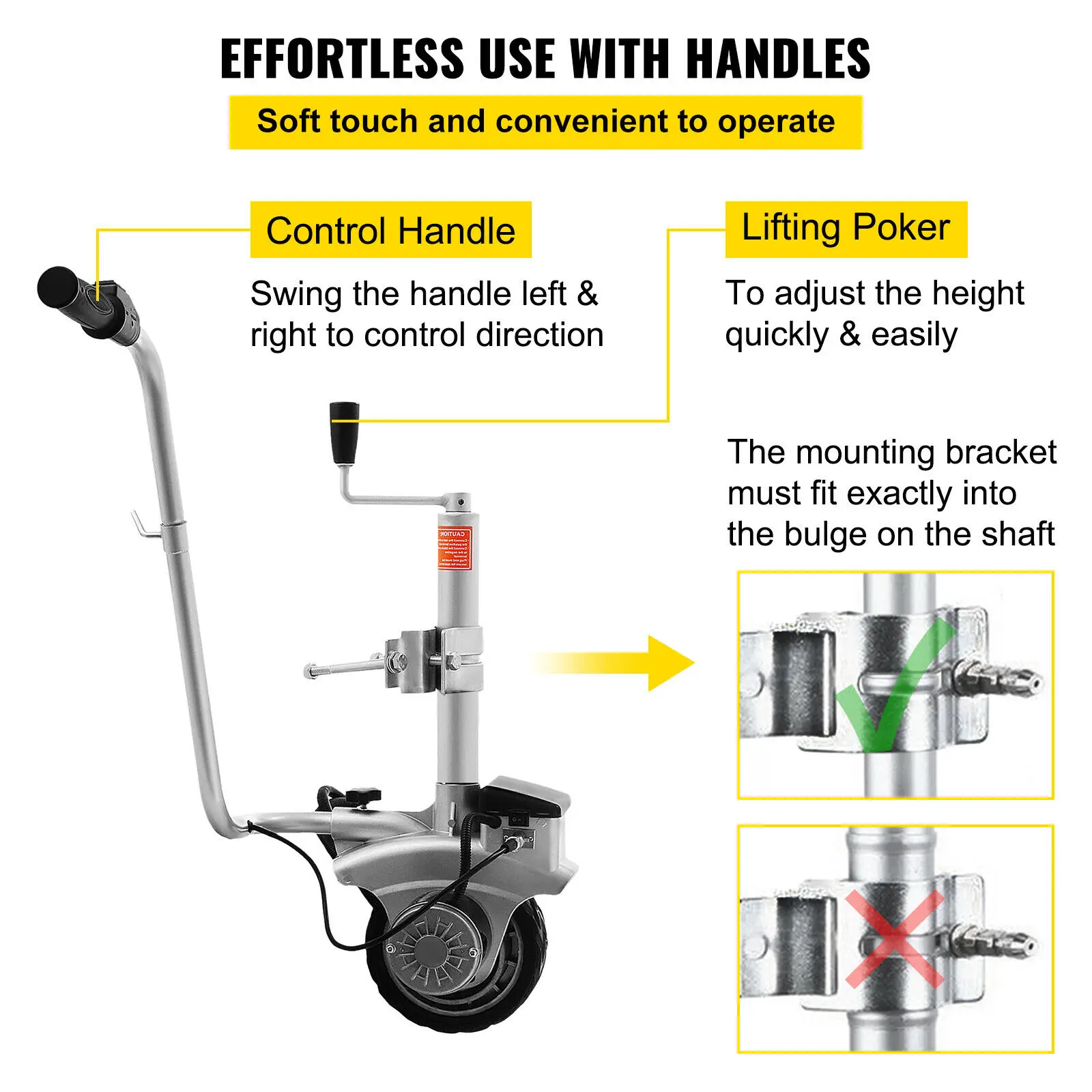

Clamp: It is same as normal jockey wheel clamp for fix Trail Jack to vehicle Chassis.

Lift Handle: Adjust the height of Trailer Jack.

Control Handle: It allows operator turning handle to right or left.

General tips for safe operation

1. Jack is rated at 2270 kg pulling weight and 272kg jockey wheel load. Overloads can damage the Mini Mover, motor, tire etc.

2. Check if the handle positioning key totally screwed with Mini Mover before you start operation.

3. Check if battery leads correctly connect to battery terminals.

4.Don’t use leads that being shatered, squashed or any damage.

5.Avoid rainy day when use the machine under the condition of open-air.

Features

Motor: 12V / 350W
Max Incline: 5 Degrees

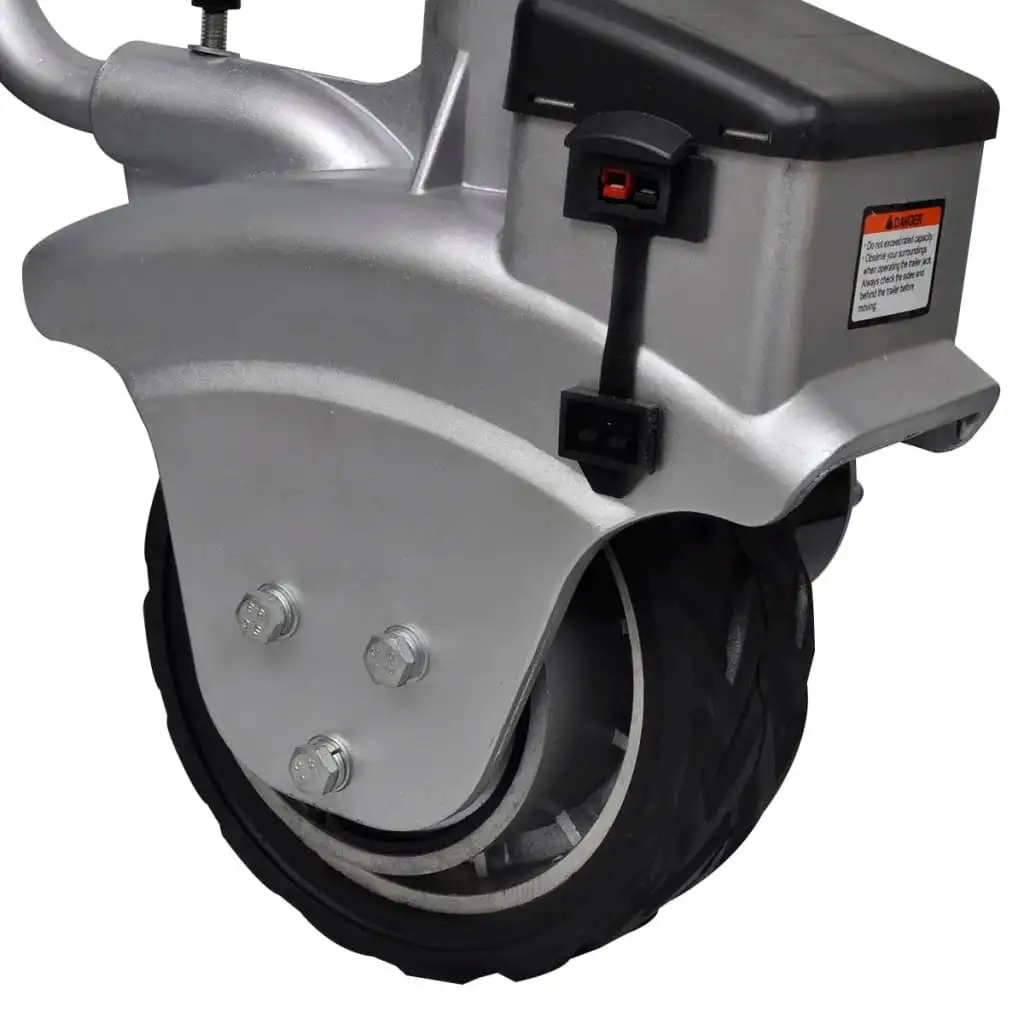

Tire Diameter: 8" (190 mm)
Max Speed: 22 Ft/min
Max. Vehicle Load: 5000 lbs (2270 kg)
Max. Jockey Wheel Load: 600 lbs (272 kg)
Adjusted Clamp Height: 12.6"-16.5" (320-420 mm)

Package Content

1 x Motorised Jockey Wheel
1 x Mounting Bracket
1 x Battery Leads
1 x Pair of Bolts
