300x100mm Optical Flat Solid Aluminum Breadboard Matrix Aluminum Breadboard M4 M6 High-Density Taps Thread Optical Experimental

For customers who need 400x 100x 11mm and 500x 100x 11mm bread boards, please go to the link below to purchase.

https://www.aliexpress.com/item/1005005210498263.html?spm=5261.ProductManageOnline.0.0.4aad4edfWaL1b4

For better communication, please add a Skype account or send an email to the mailbox. We will see the message and reply you as soon as possible.

Skype account:

[email protected]

Email:

[email protected]

Product information

The aluminum breadboard is a non-magnetic material, which can be used as the bottom plate of the optical device, a cost-effective carrier platform for experiments and installation of small optical systems. The surface of the breadboard is blackened by anodic oxidation, which can reduce the surface light reflection; it is arranged in a 25mm*25mm array, and the threaded holes with a distance of 12.5mm from the edge penetrate the bottom, and components can be installed on either side.

Characteristic

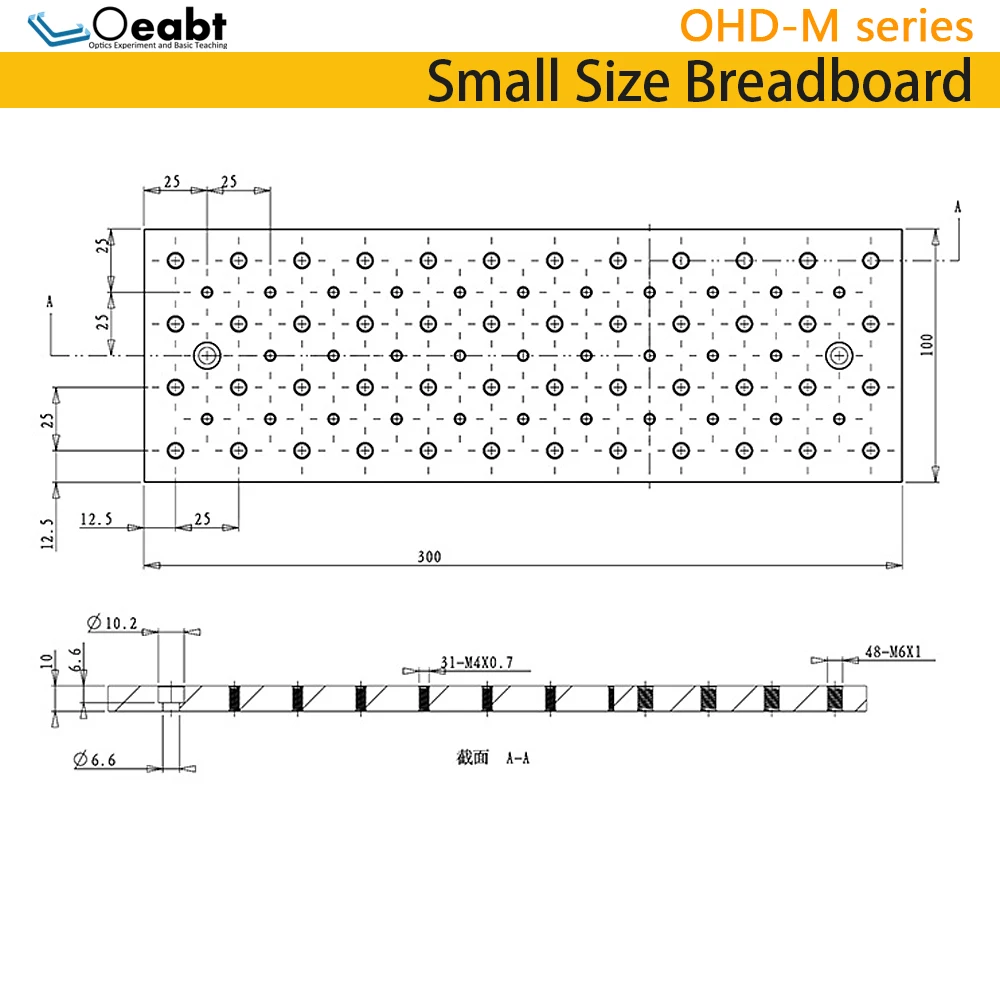

▶The platform surface adopts matrix arrangement, and the standard of hole diameter is M4/M6 threaded hole;

▶The hole distance is 25mm*25mm, the thickness is 10.1mm, and the flatness is <0.1mm;

▶The countersunk mounting hole does not affect the threaded hole array at all, and the distance from the edge is 25mm;

▶The standard threaded hole array can be installed with various optomechanics, optical benches, etc.;

▶It is precision processed with 7075 solid aluminum alloy, which is light in weight, easy to move, and the plane is not easy to deform;

Connect tablet/extension board

·Can connect two small breadboards in parallel;

·Align the installation screw holes with the 25mm standard hole spacing;

·The surface has undergone black anodizing treatment, resulting in low reflectivity;

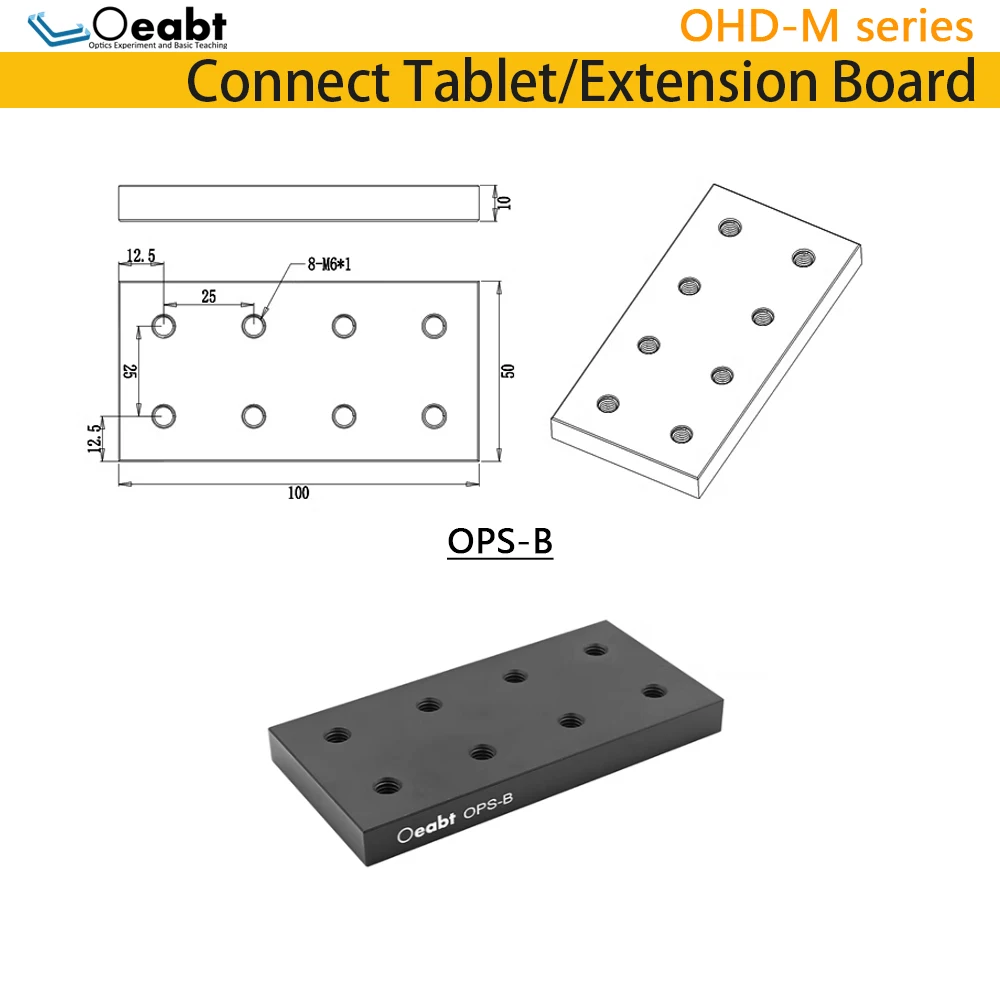

model: OPS-B

Specification: 100.0 * 50.0 * 10mm

Thread type: M6*8， Distance 25mm

Weight: 130.0g

Material: 7075 aluminum alloy

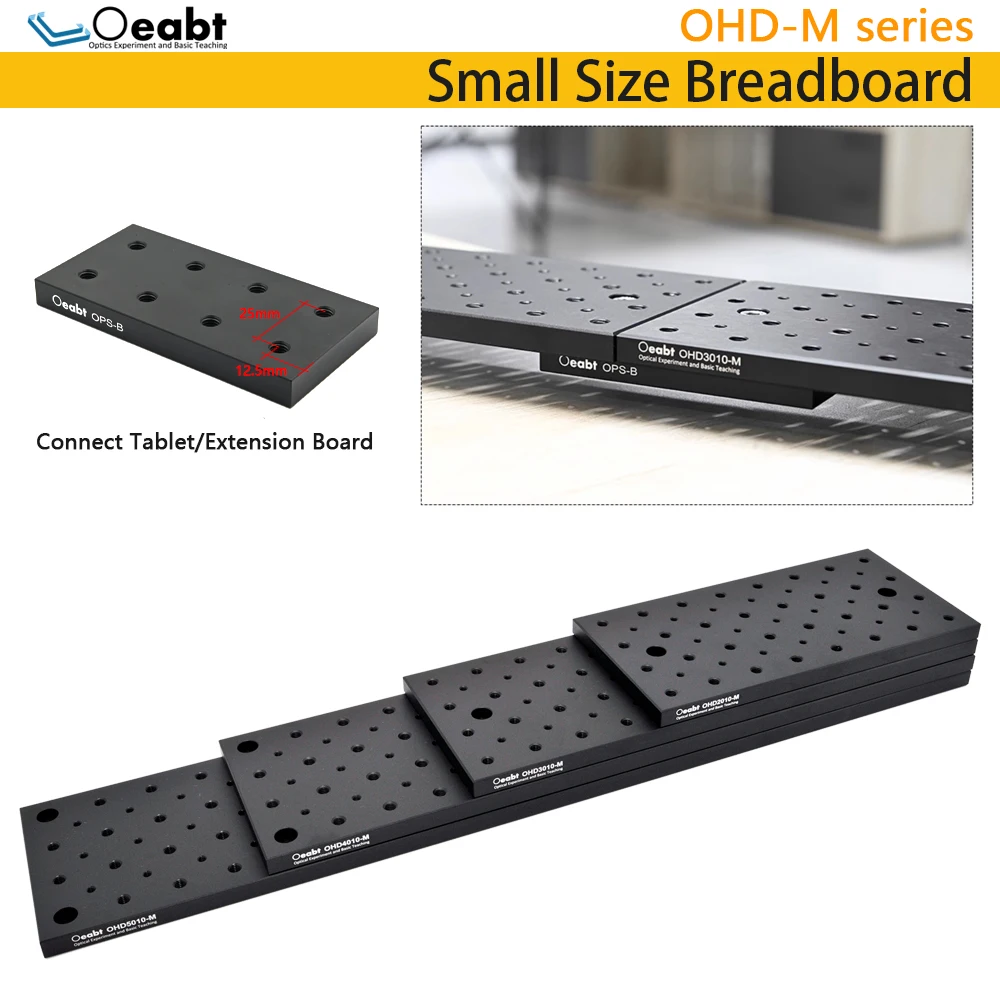

The OPS-B can be used to splice and extend bread boards of different lengths, with the same 100mm aluminum plate width as the bread board. The shorter bread boards are connected to the long bread board structure using countersunks.

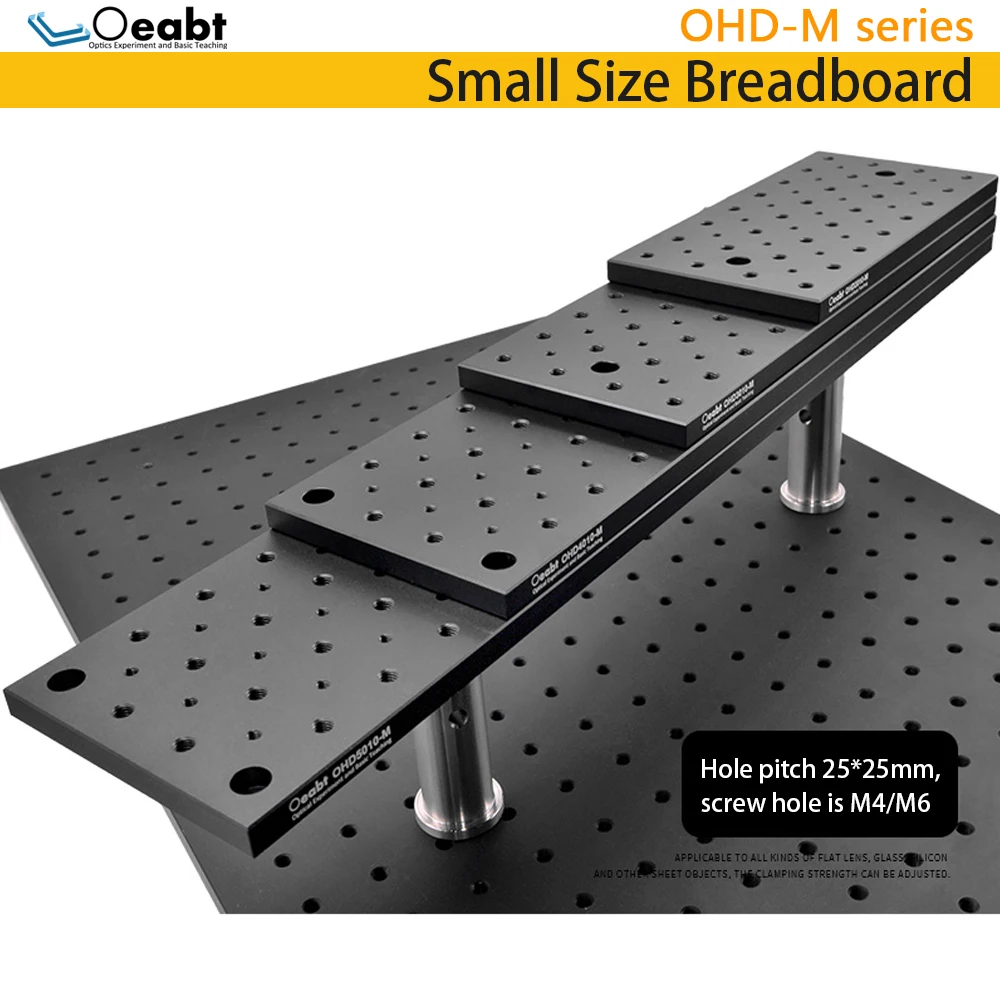

The surface of the breadboard has been anodized and blackened to minimize surface reflection, and the surface of the standard breadboard has been anodized and blackened to minimize the surface reflection, and has a standard 25mm*25mm threaded hole array. The distance from the edge of the breadboard is 12.5mm. For laboratories with limited space, these solid aluminum, non-magnetic aluminum breadboards are a convenient and cost-effective platform for assembling prototypes of optical devices, conducting experiments, and installing small subsystems.

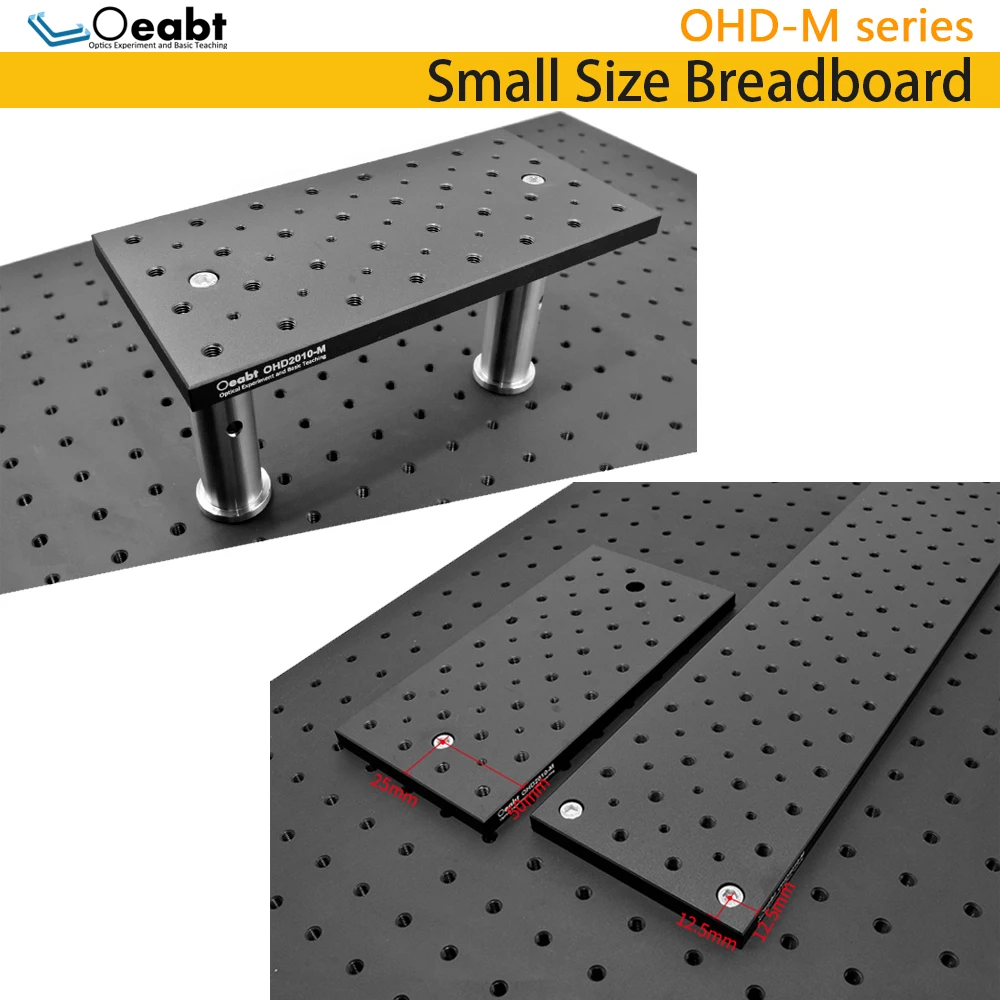

Each breadboard has 2 or 4 countersunk mounting holes with offset and staggered threaded hole arrays, so that it will not affect the mounting surface of the customer's intended application. 2 or 4 standard mounting holes are located at the corners of the breadboard, away from the edge (25mm/50mm) or (12.5mm/12.5mm).

The breadboard is connected to various surfaces and mounts through mounting holes, including optical tables, other breadboards, mounting posts or brackets

Why do we choose Alcoa 7075 aluminum alloy?

Lighter, stronger, more durable, and superior thermal stability

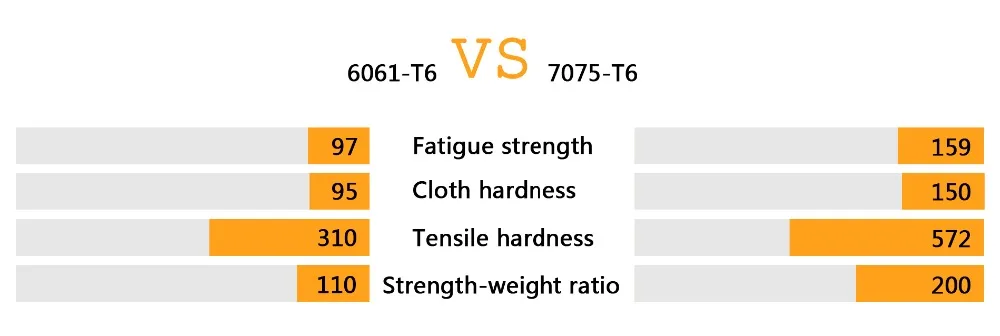

Because 7075 has better mechanical properties, and has good ductility, high strength, toughness and good fatigue resistance. Under the same material, the 7075 is 64% higher and 58% higher than the 6061, and the tensile strength and strength are 85% and 82% higher, respectively.

Ingenuity, excellence

In the eyes of the refined craftsman, the micron-level gap of the precision thread pair will lead to deviations in the optical test results. Only after dozens of manual grinding and inspections, we are careful and ingenious, only to create a more stable and reliable optical machine product. To help your experiment, teaching and research and development projects go smoothly.
