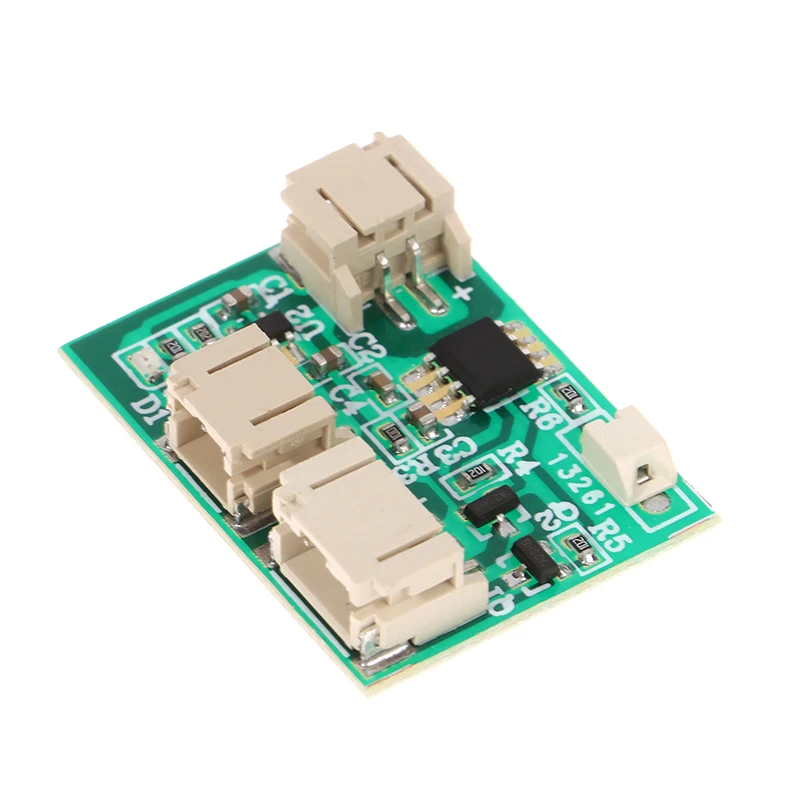

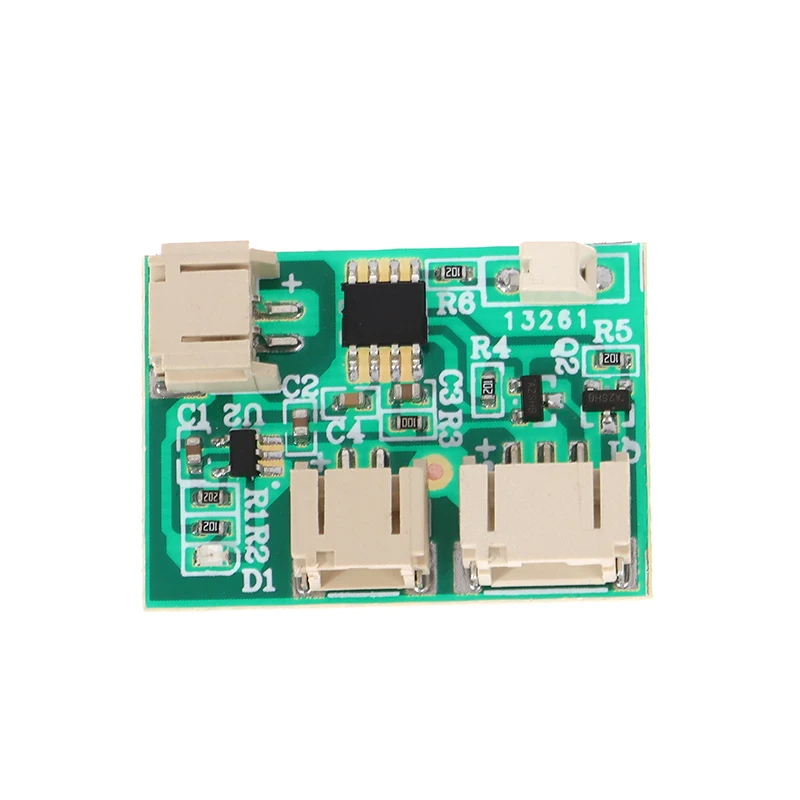

Touch Sensor Module For Making LED Touch Sensitive Smart Epoxy River Light Module Touch Control Panel Induction Switch

Description:
This touch sensing river table module uses high-quality materials, which are stable and reliable, easy to install, non heating, and low power consumption.
Easy to use, easy to operate, and ready to use when connected and powered on.
Wide application range, suitable for various materials: wood, organic glass, acrylic resin, stone, plastic cardboard, etc., not suitable for metal materials.

Product Parameters:
Trigger method: touch switch
Input voltage: DC 5V (can support 12V, 12V power supply requires 12V light strip)
Power supply interface: TYPE-C or XH2.54 3P plug
LED light supply voltage: Factory DC 5V (12V power supply, 12V light strip is used)
Maximum working current of a single module: ≤ 120mA

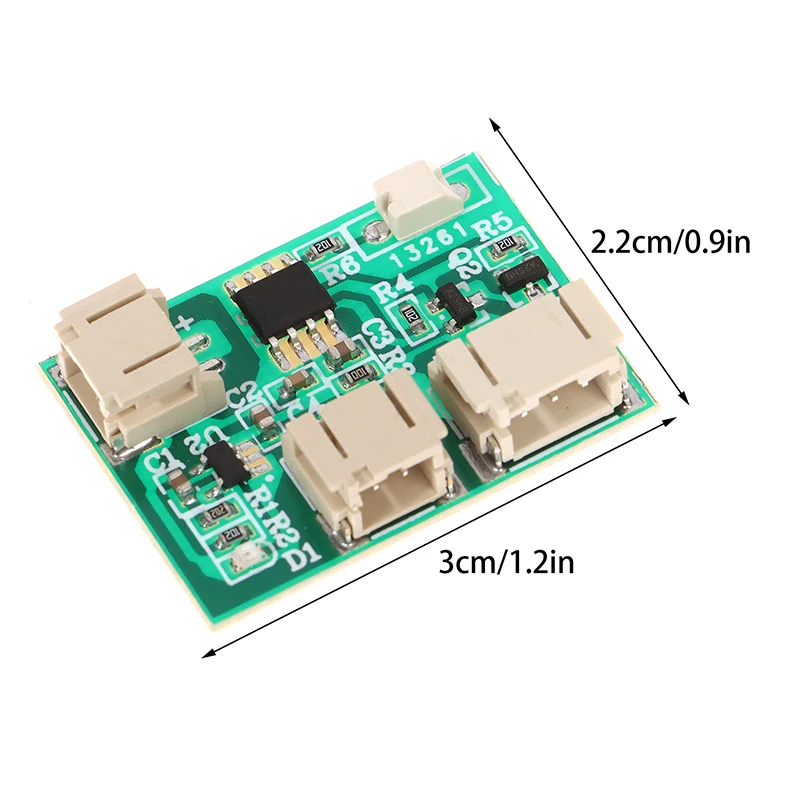

Size: 1.2*0.9in/30 * 22mm
Usage:

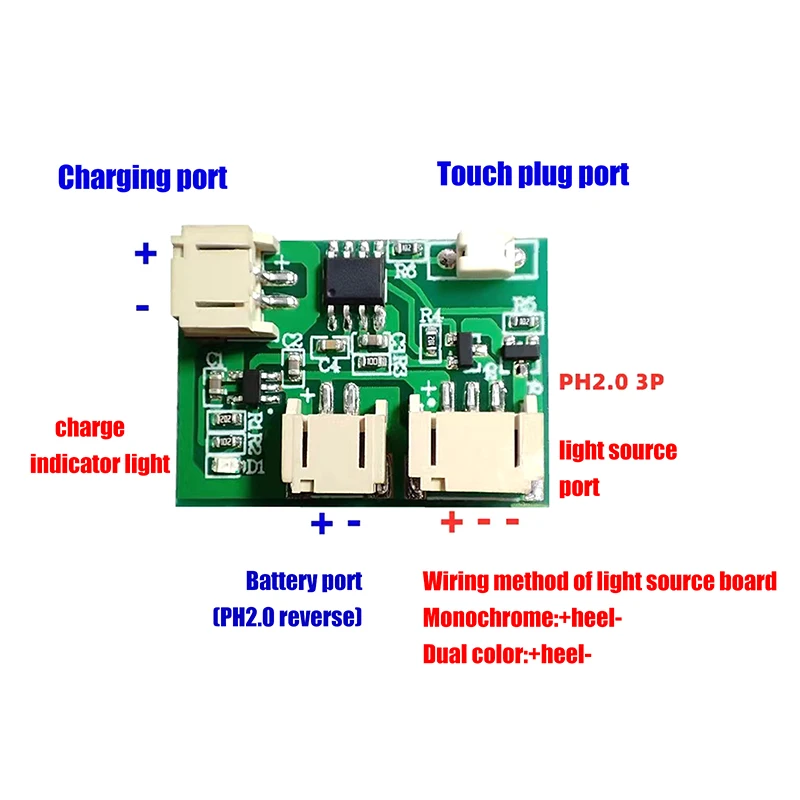

1. First, plug the 2P touch socket into the module;
2. Connect to a 4P RGB LED socket;
3. Connect the TYPE-C or 3P XH2.54 plug again for power supply, and the LED light will light up slightly;
4. Wait for the touch to sense the highlight of the rear light, and after leaving the touch range, the light will turn off. Each touch will cycle on in seven colors.

Precautions:
The first time you use it, you must first connect the 2P touch plug, then connect the LED socket and power socket to power on. Touching requires a self check of the usage environment. If you connect the power first and then the touch plug, it may not work properly. You need to power on the self check again.

Package Included:
1X Module

Notes:
Due to differences in lighting and screen settings, the color of this item may vary slightly from the picture.
Please allow slight size differences due to different manual measurements.
