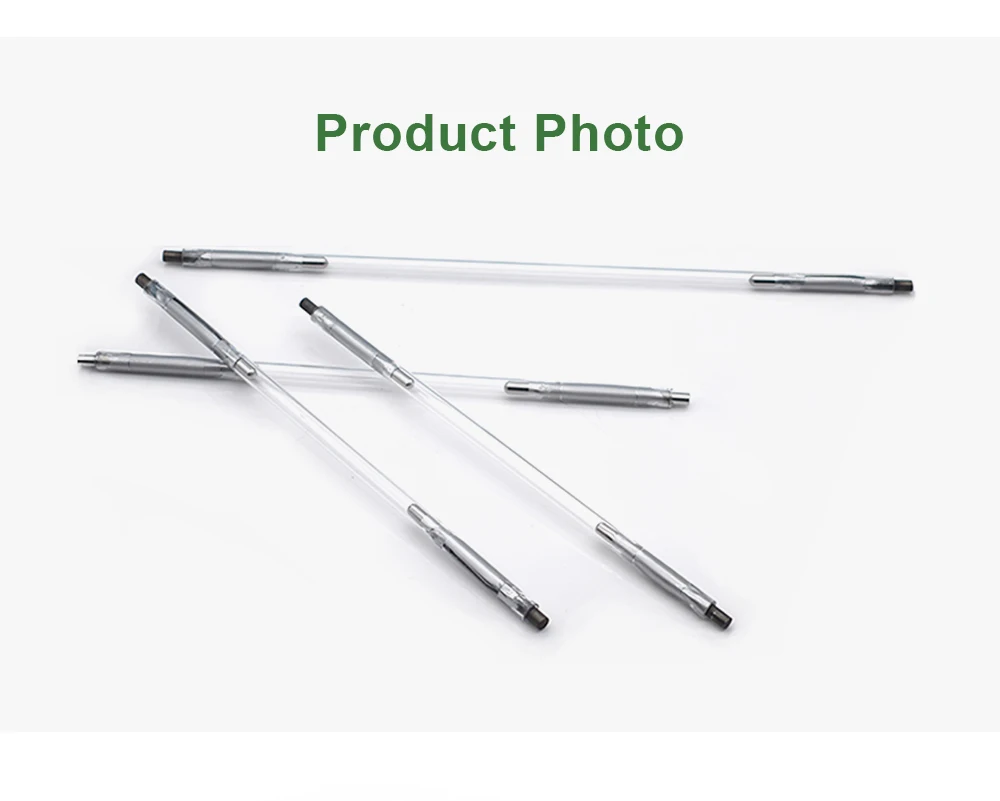

FireRay Laser Xenon Lamp Welding Equipment Krypton Xenon Arc Lamp Flash Laser Pulsed Lamp for YAG Marking Machine Parts

Application Field:

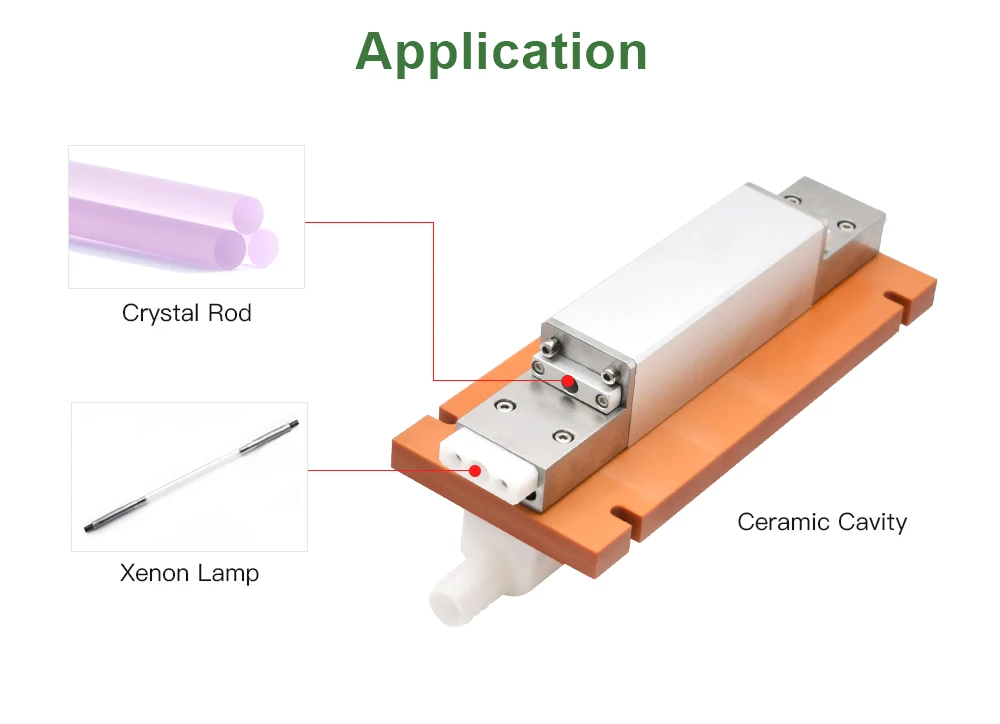

It is widely used in laser inner engraving machine, laser welding machine, laser beauty machine. Laser cutting machine

Features:

Pulsed argon lamp chooses high-quality UV-filtering quartz tube as the lamp material, and high-density electrode as the electrode of the argon lamp. It has the characteristics of strong load capacity, high pumping efficiency, good laser beam quality and long life.

Performance:

①Rated working energy (outside the cavity, luminous time 1MS) 145-160 Joules
②Working voltage: 1.1-1.7kV
③Maintaining voltage: 140-200V
④40 times/second, more than every 40 times/second should decrease the single input energy inversely as the repetition rate increases
⑤ Cooling method: water cooling. When the water cooling of the lamp tube is higher than 20 times/sec, the electrode terminal also needs water cooling
⑥Average life (times): 10 million times
