PO Series Adapter Mounting Holes Mounting Block Collimator Mounting Holes Ø8-16mm Component Mounts Oeabt

Characteristic

• Integrate lasers, collimators and other cylindrical components into lens sleeve and cage systems;

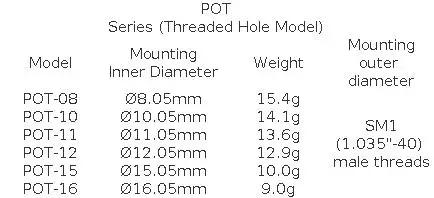

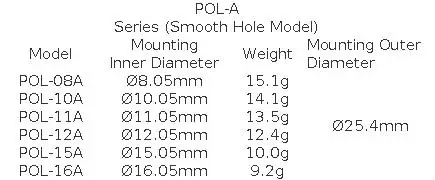

• POL-A series is Ø1‘ (Ø25.4mm) smooth OD, POT series is SM1 (1.035’-40) male OD;

• Mounting device size Ø8-16mm optional;

• Two captive screws secure the laser in the adapter;

Fixed adapter mounting holes for easy integration of lasers, collimators and other cylindrical components into free-space optics.

Product information

(1)Fixed adapter mounting holes allow for easy integration of lasers, collimators, and other cylindrical components into

free-space optics. Available with ∅1’ smooth OD and SM1 male threads, the threaded hole version is compatible with our lens casing systems, cage systems, and a variety of optical components. The smooth bore adapters are best suited for use in

optical alignment racks, where the collimated beam can be controlled from the rack.

Application Mounting Optical Adjustment Frame

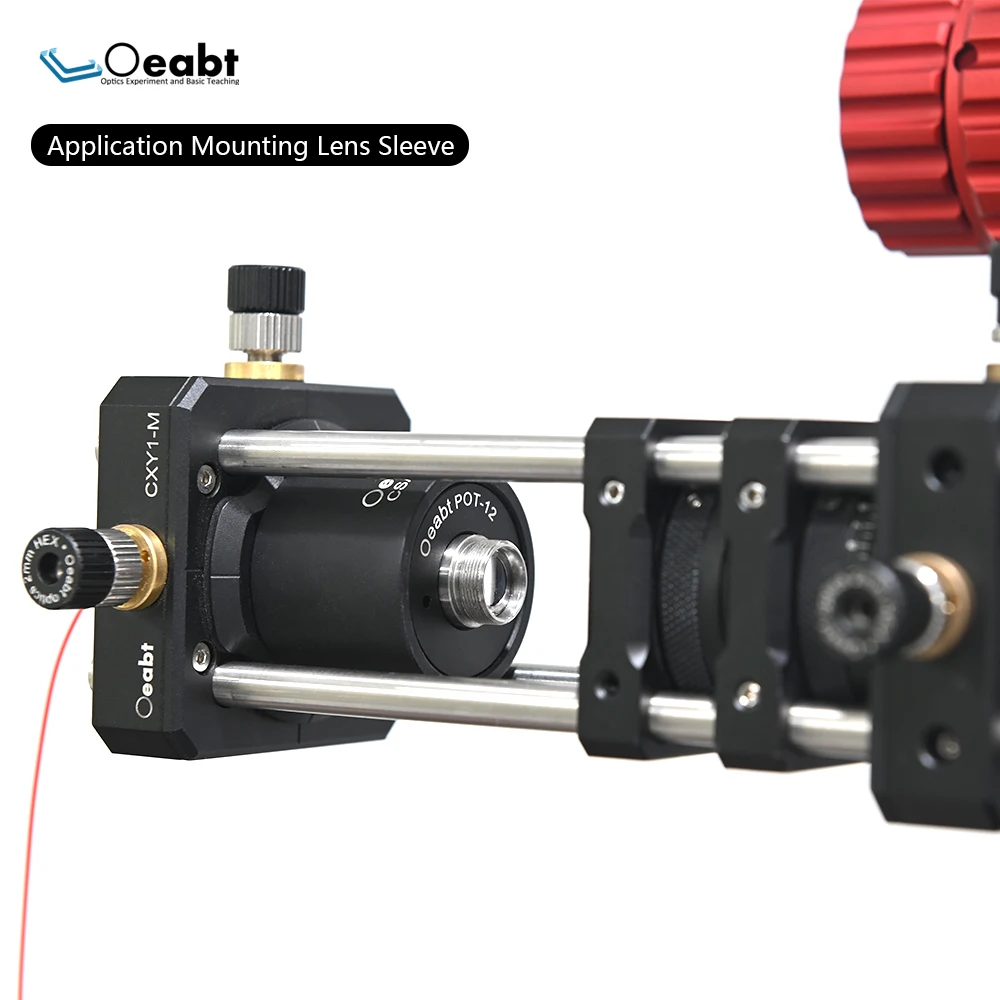

Application Mounting Lens Sleeve

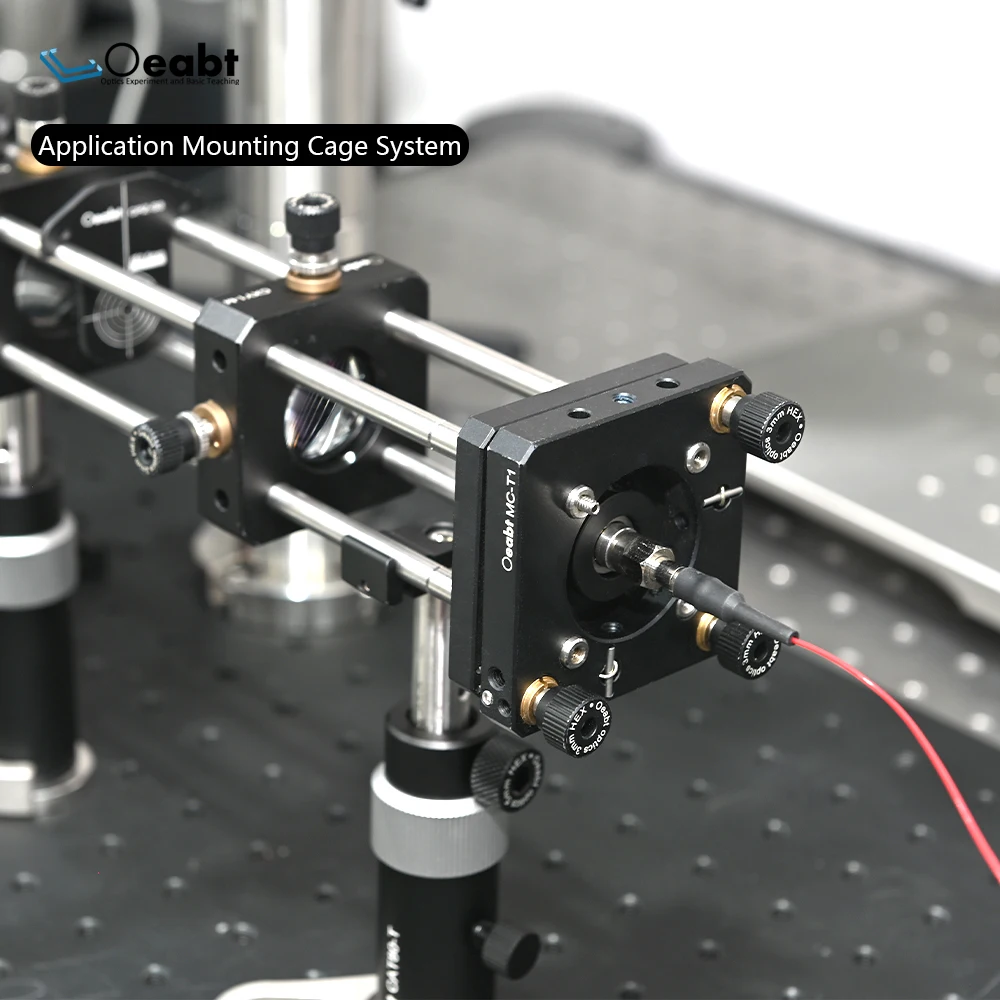

Application Mounting Cage System

(2)Two fastening top wires are used to secure the mounting device in the limit holes, which are tightened into position using a 2mm hexagonal spanner.
