Product information

Characteristic

Connecting rod bracket

The extension bracket not only has the general function of the standard extension bracket, but also has the compactness of the base pressure fork design. The fork type pressing block can lock the extension bracket on the optical bread plate and can rotate 360 degrees. It can be temporarily positioned before locking the extension rod. The through-hole design allows a wide range of adjustment of the height of the extension rod.

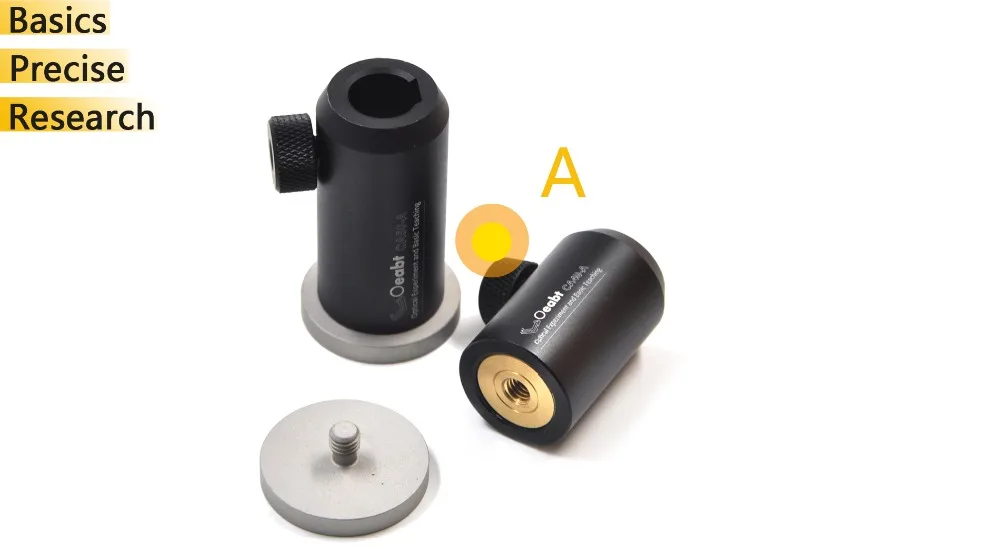

A:Positioning calibration adjustment

Each bracket contains a spring loaded hand screw to position the lift extension before tightening.

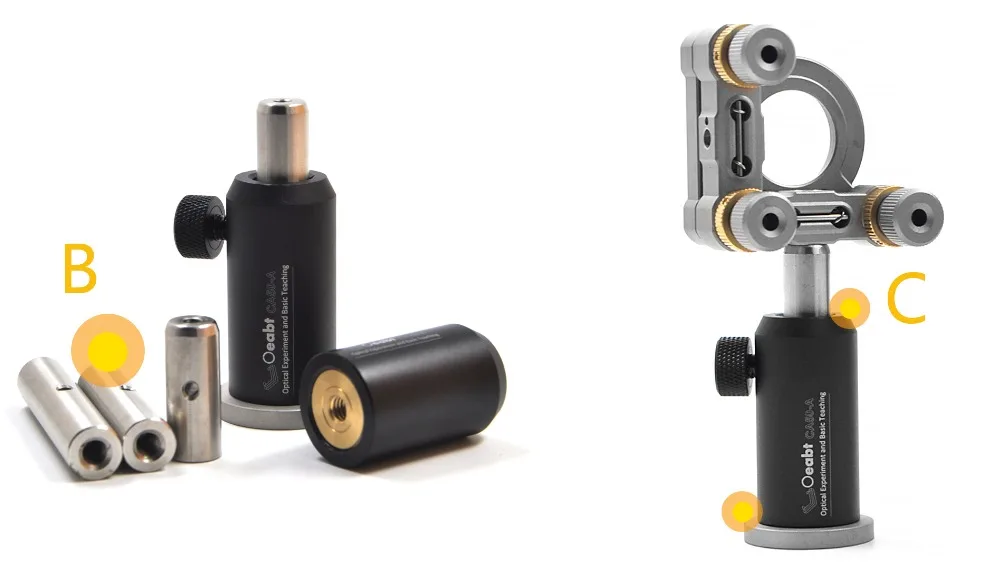

B:Simple fixed strut

The bottom M6 threaded hole is convenient to connect with other optical bases, and the extension rod can pass through the bases to reach the ideal low beam height.

C:Stable contact

Precision machined widened undercut to provide stable double line contact with φ 1 / 2 inch (12mm) extension bar.

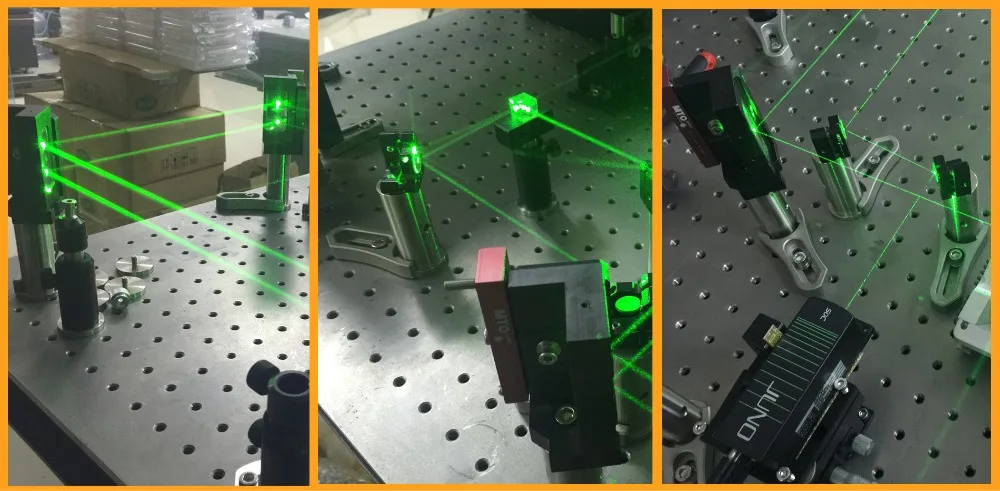

Application scenario display

We supply a wide range of optics to create an easy-to-build experimental platform in an optical system.

Why do we choose Alcoa 7075 aluminum alloy?

Lighter, stronger, more durable, and superior thermal stability

Because 7075 has better mechanical properties, and has good ductility, high strength, toughness and good fatigue resistance. Under the same material, the 7075 is 64% higher and 58% higher than the 6061, and the tensile strength and strength are 85% and 82% higher, respectively.

Ingenuity, excellence

In the eyes of the refined craftsman, the micron-level gap of the precision thread pair will lead to deviations in the optical test results. Only after dozens of manual grinding and inspections, we are careful and ingenious, only to create a more stable and reliable optical machine product. To help your experiment, teaching and research and development projects go smoothly.
