Split Stainless Steel 303 Precision Tapered Dispensing Tip (because of "split", you have to buy the Tip and the Hub separately)

Split Stainless Steel 303 Precision Tapered Dispensing Tip (because of "split", you have to buy the Tip and the Hub separately)

 "split", you have to buy the Tip and the Hub separately.

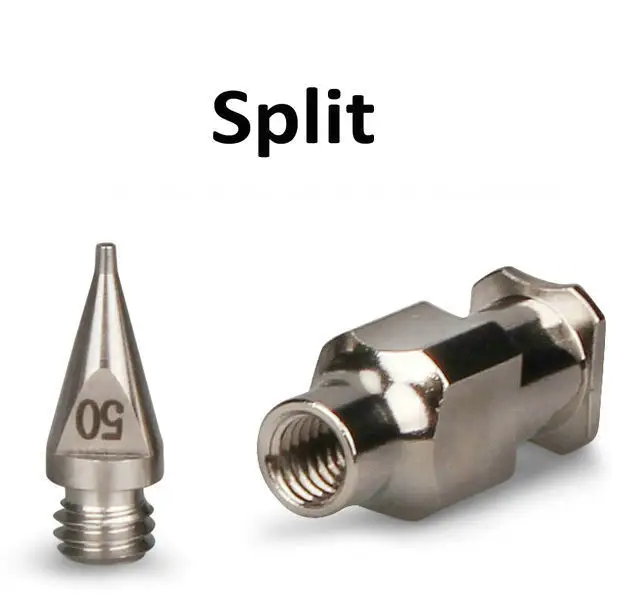

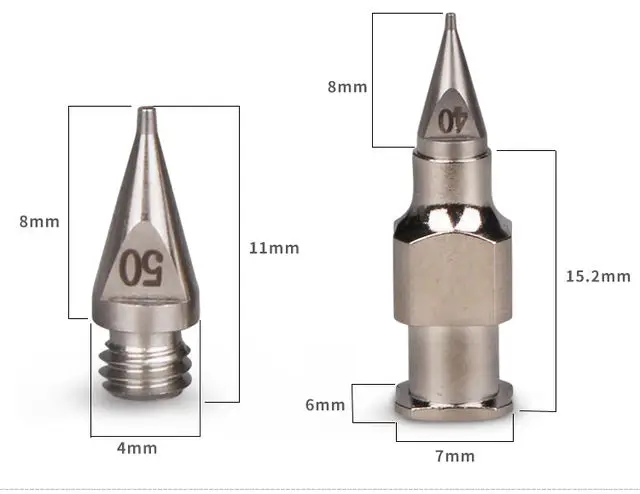

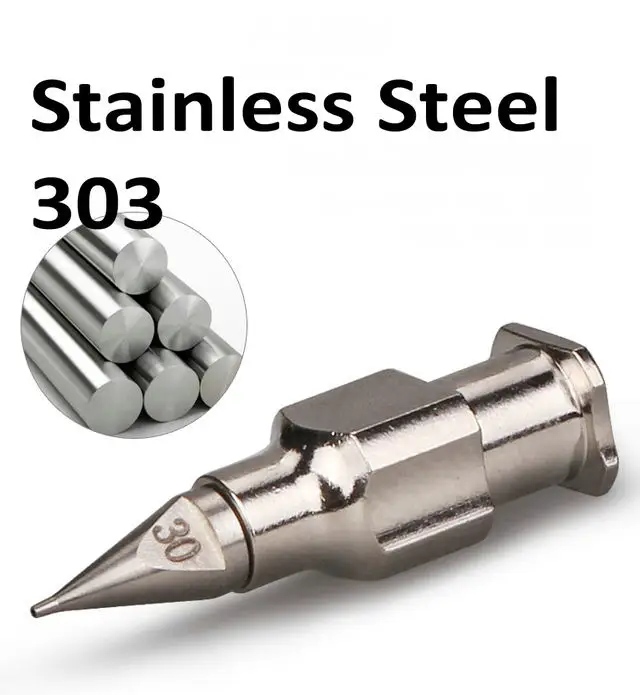

The Slip Precision Tapered Dispensing Tips consists of two parts - the Tip and the Hub, both are made from High Quality Stainless Steel. It provides a hard, abrasion resistant nozzle with low resistance to fluid flow. It features thin and rigid wall, resulting in a smaller outer diameter (OD) required for large inner diameter (ID) fluid paths. This can be particularly useful where a small gauge tip is needed, without compromising on fluid dispense rates. The thin walls further enhance the accuracy and definition of dots, lines or special patterns, and dramatically reduce fluid stringing or tailing tendencies.


It was designed for accurate dispensing of dots, beads or in-fills. Their streamline conical fluid path delivers considerably gher fluid flow rates and lower dispense pump back pressures than most standard dispensing tips. This results in improved dispensing accuracy and component life. The thin wall nozzle cores are produced using a deep drawing process, giving particularly low resistance to fluid flow, and exceptional accuracy and robustness compared to plastic dispensing tips or nozzles.

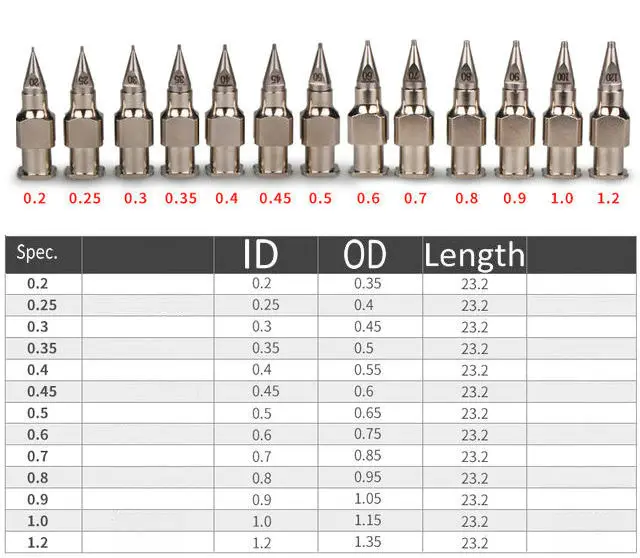

It was measured by metric unit mm with outlet size ranging from 0.2mm to 1.0mm to meet different dispensing applications.  To correct read the specification that was marked on the tip, please follow the digit "40" means outlet 0.4mm, "20" means 0.2mm, "80" means 0.8mm, and so on.
