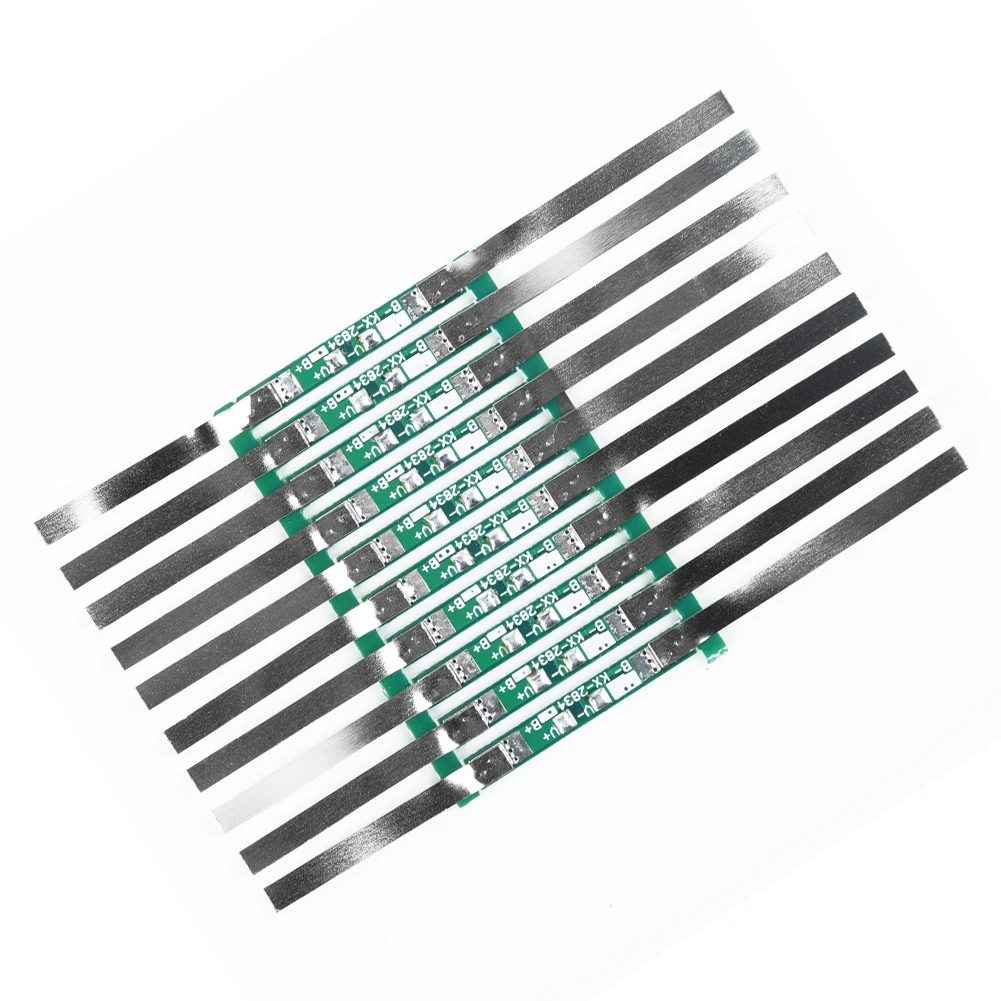

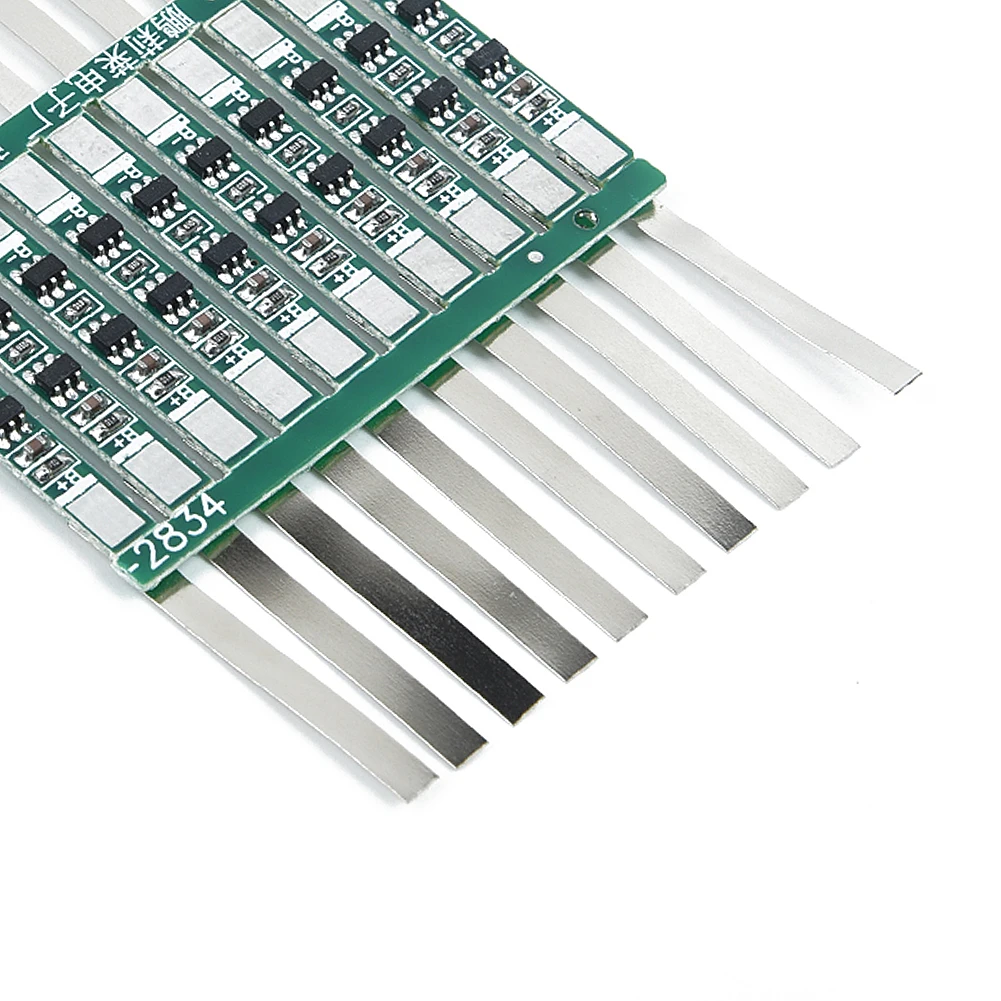

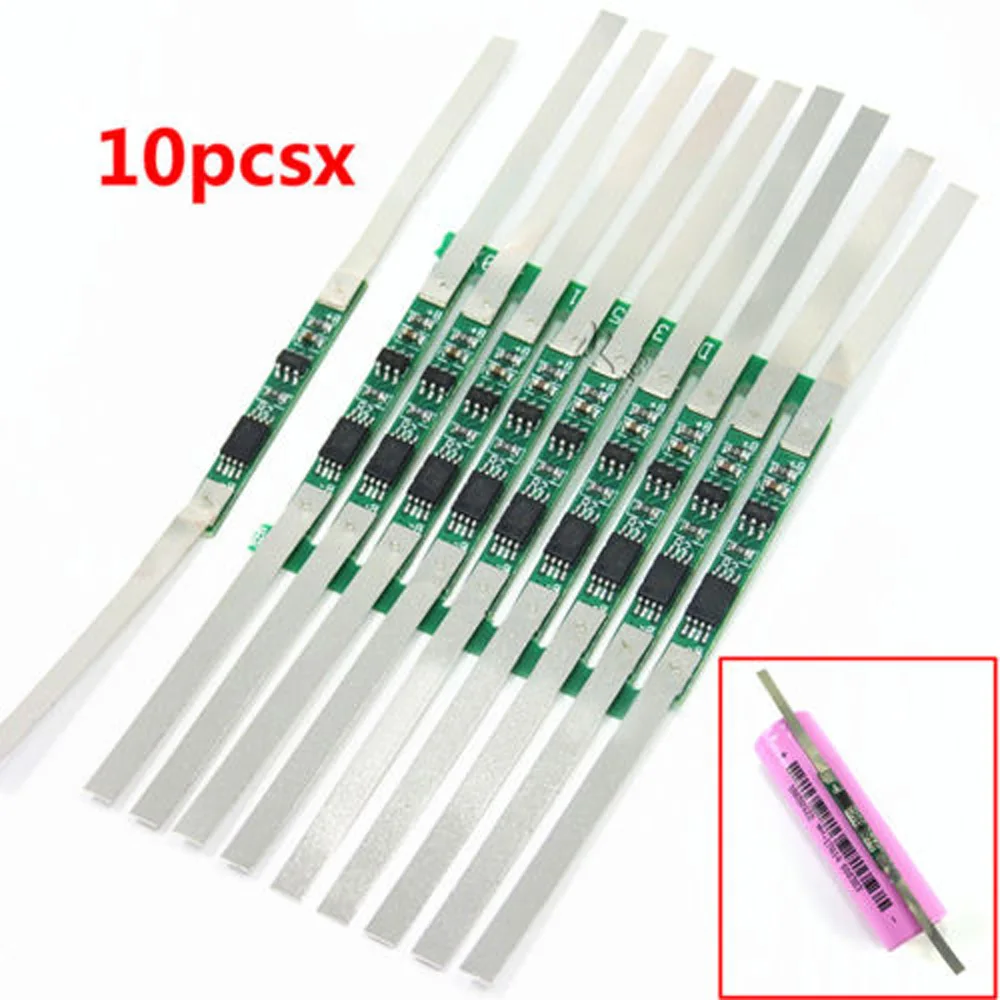

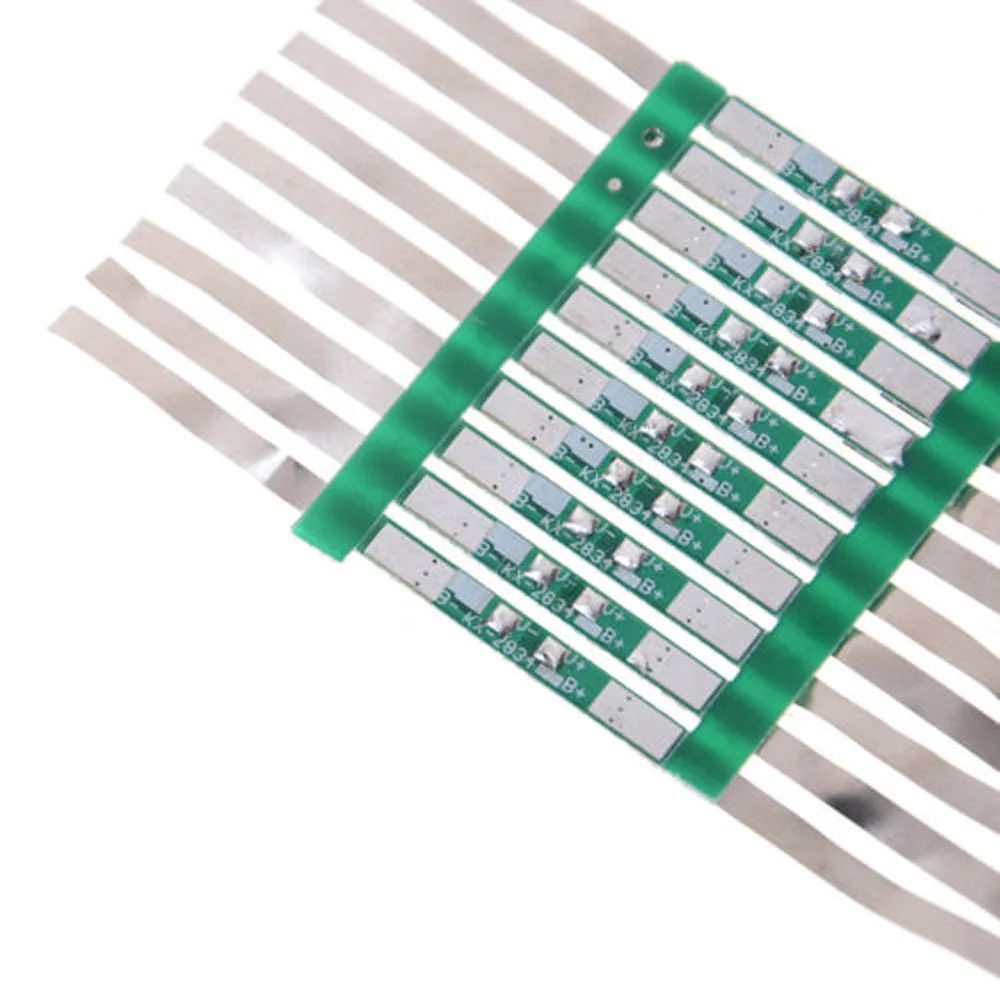

10Pcs Protection Board For 3.7V 18650 Li-Ion Lithium Battery W/ Solder Be JB 28*3mm Protectiive Board Replacement

Features:

Main IC using original "precision" imported components.
With over charge, over discharge, short circuit, over current protection function, for a variety of different shapes of 3.N capacity lithium batteries.
Low current consumption.
Stable performance.
Fine workmanship and durable.
Can meet the performance requirements of many aspects, to ensure, the absolute safety of the battery group.
Suitable for many requirements of high integration, low cost occasions.

Specification:

Dimension: 28*3mm (Approx)
Over Charge Release Voltage: 4.275±0.025V
Over Charging Voltage Range: 4.075±0.025V
Over Discharge Voltage Range: 2.5±0.1V
Over Current Detection Current: 2.8±0.3A
Main function: over charging protection, over discharge protection, short circuit protection, over current protection function.
Connection description:
B+ connect to battery+
B- connect to battery-
P+ for battery output input+
P-for battery output input-

Package Contents:

10 * Protection Board

Notes:

1,The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2,Please allow slight manual measurement deviation for the data.
