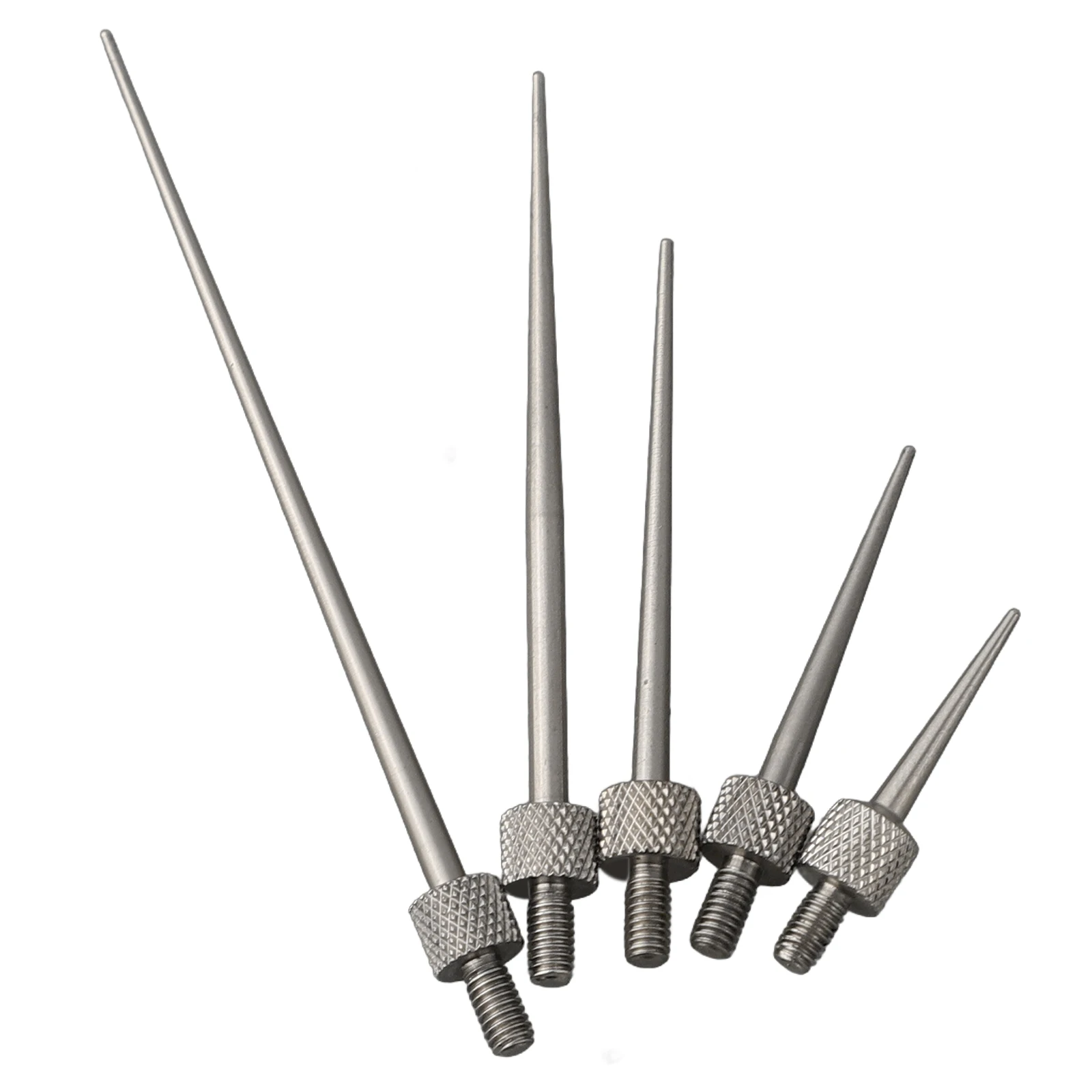

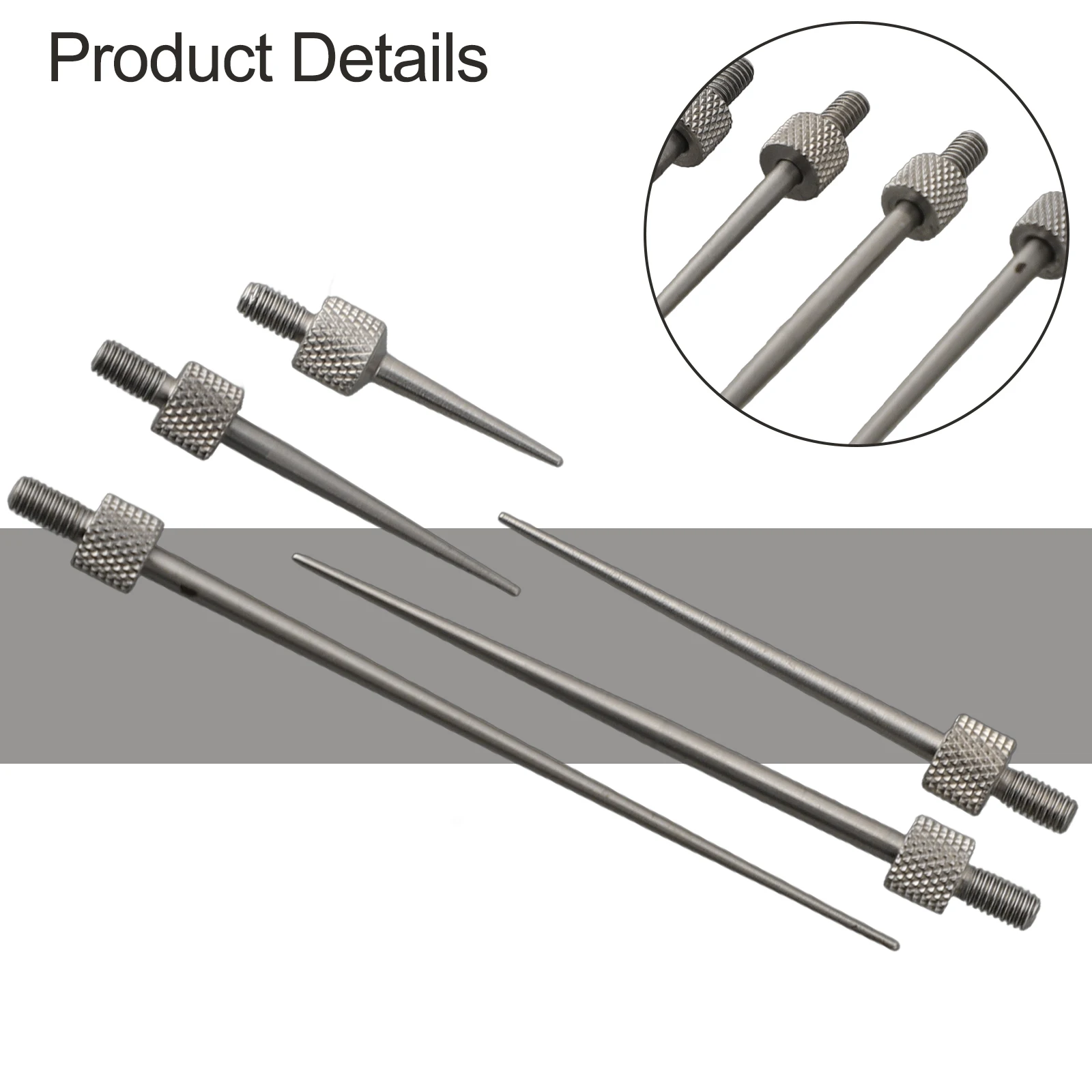

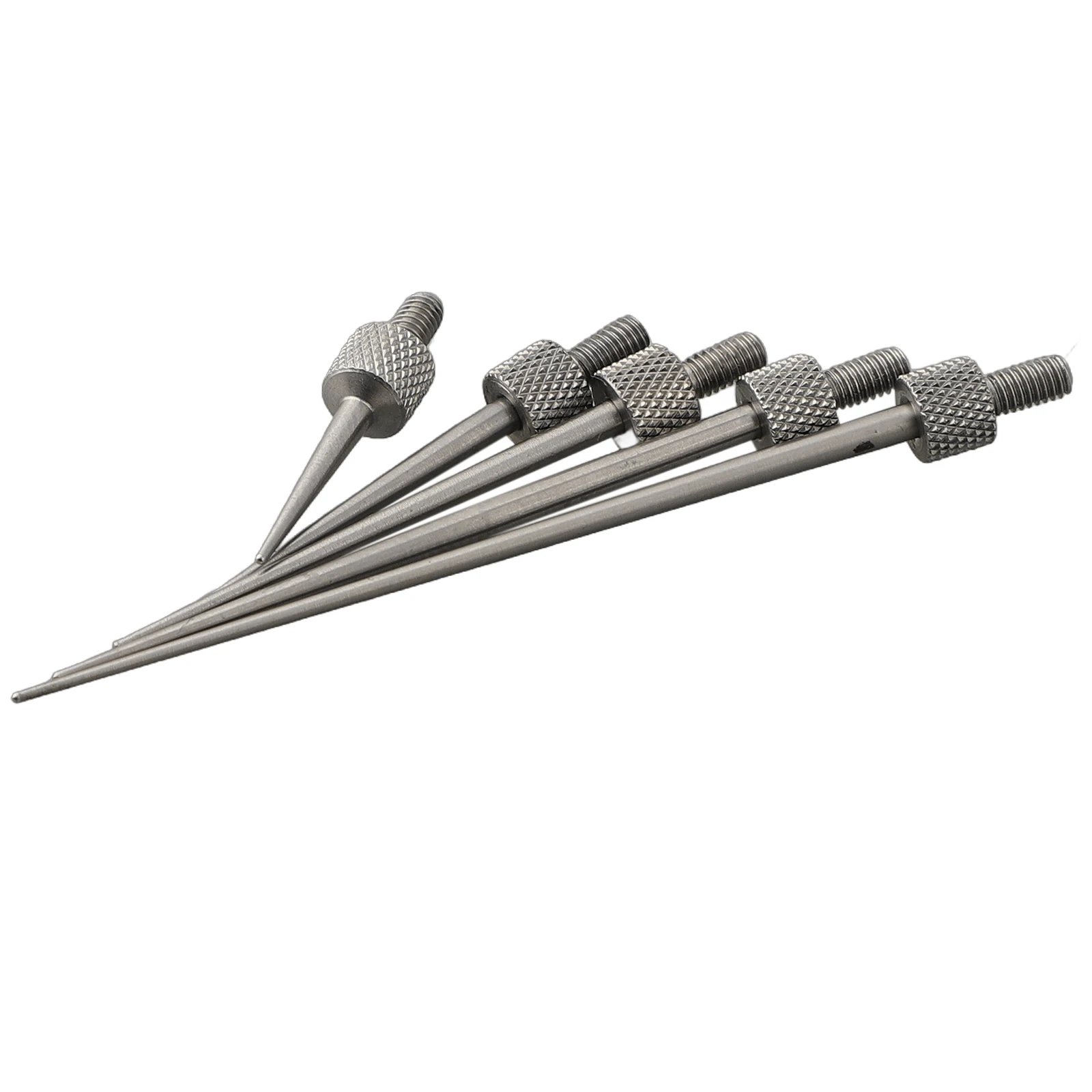

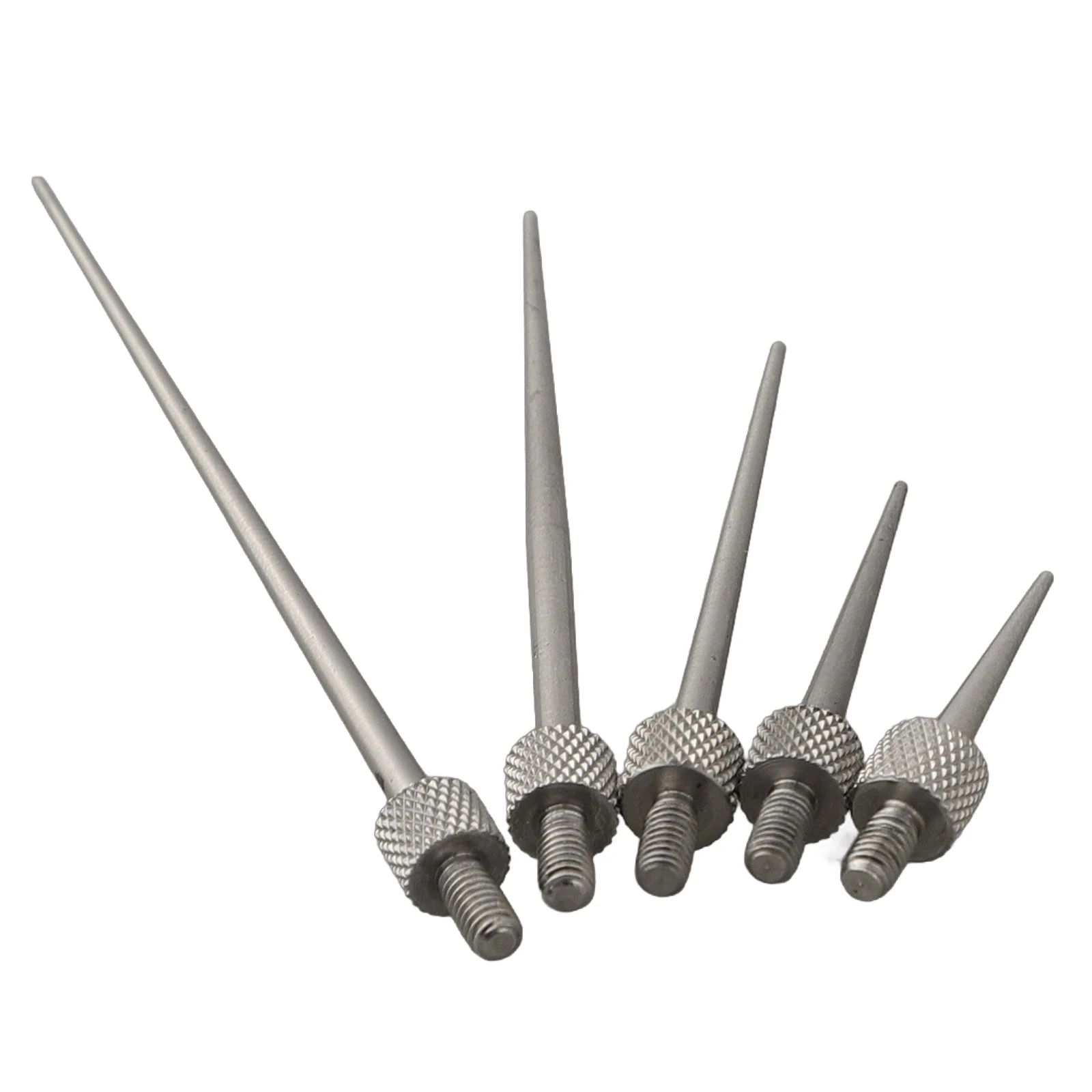

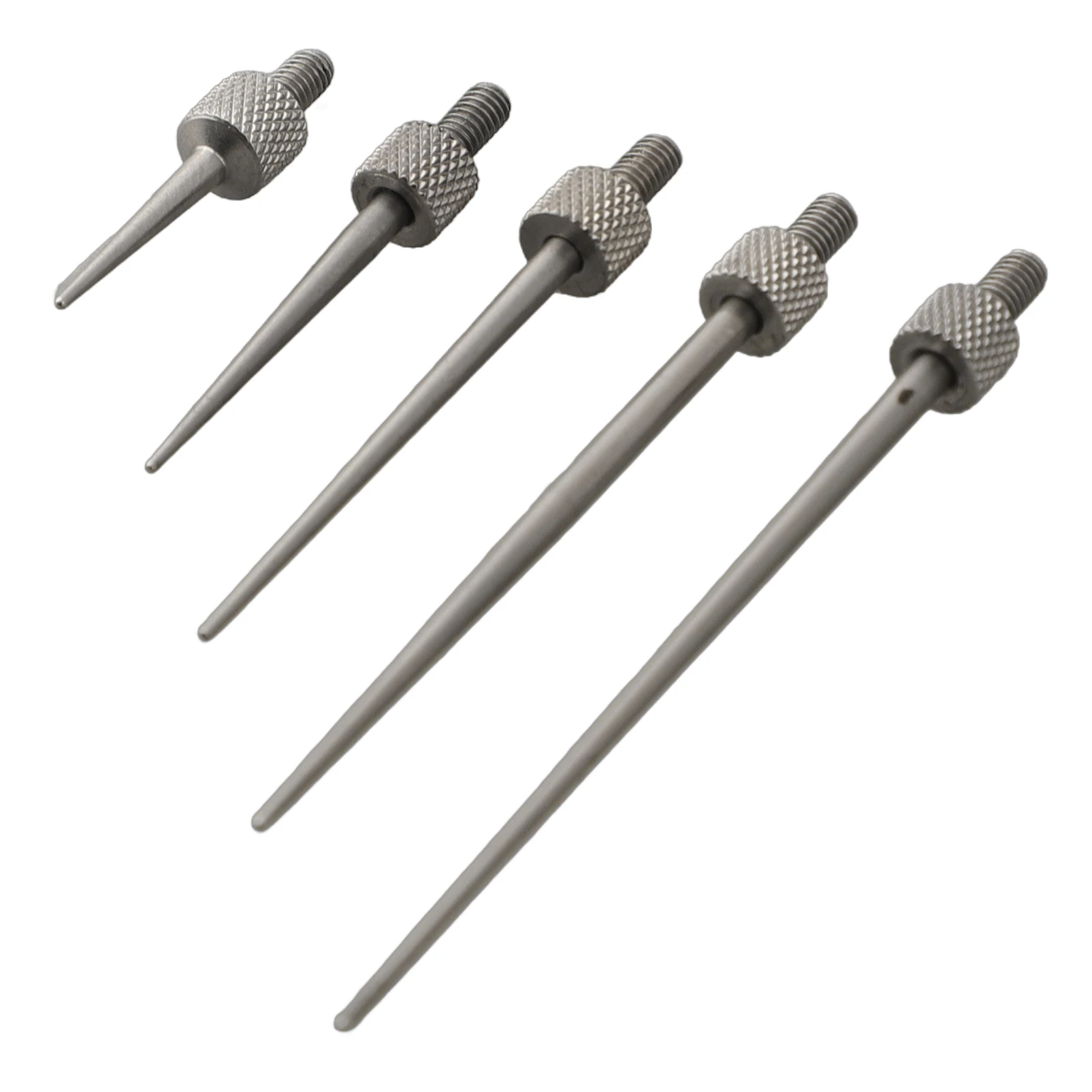

3/5/6pcs Dial Digital Test Indicator Contact Point Stem Rod Depth Gauge Measurer Tool Set Measuring Instruments Parts

Features:

brand new and high quality
Made of high-quality materials,
Fixed rod dial digital test indicator valve stem depth gauge measuring instrument tool M2.5
It is suitable for interchangeable measuring tools such as dial indicator, dial indicator, test indicator, depth gauge, etc.
Suitable for detecting the bottom of grooves or holes.
For all threaded shanks M2.5, the effective length does not include threaded shanks and knurled shanks.


Product parameters:

Material: high-speed steel
Optional package: P1P2P3P4P5, P6P7P8P9P10, P11P12P13P14P15, P16P17P18P19P20, J1J2J3J4J5J6, J7J8J9J10J11, J12J13J14

Size: P1P2P3P4P5
P1: diameter ø1.0mm (0.0394 inches), effective length 10mm (0.3937 inches)
P2: diameter ø1.0mm (0.0394 inches), effective length 20mm (0.7874 inches)
P3: diameter ø1.0mm (0.0394 inches), effective length 30mm (1.1811 inches)
P4: diameter ø1.0mm (0.0394 inches), effective length 40mm (1.5748 inches)
P5: diameter ø1.0mm (0.0394 inches), effective length 50mm (1.9685 inches)
Package includes: 5 levers

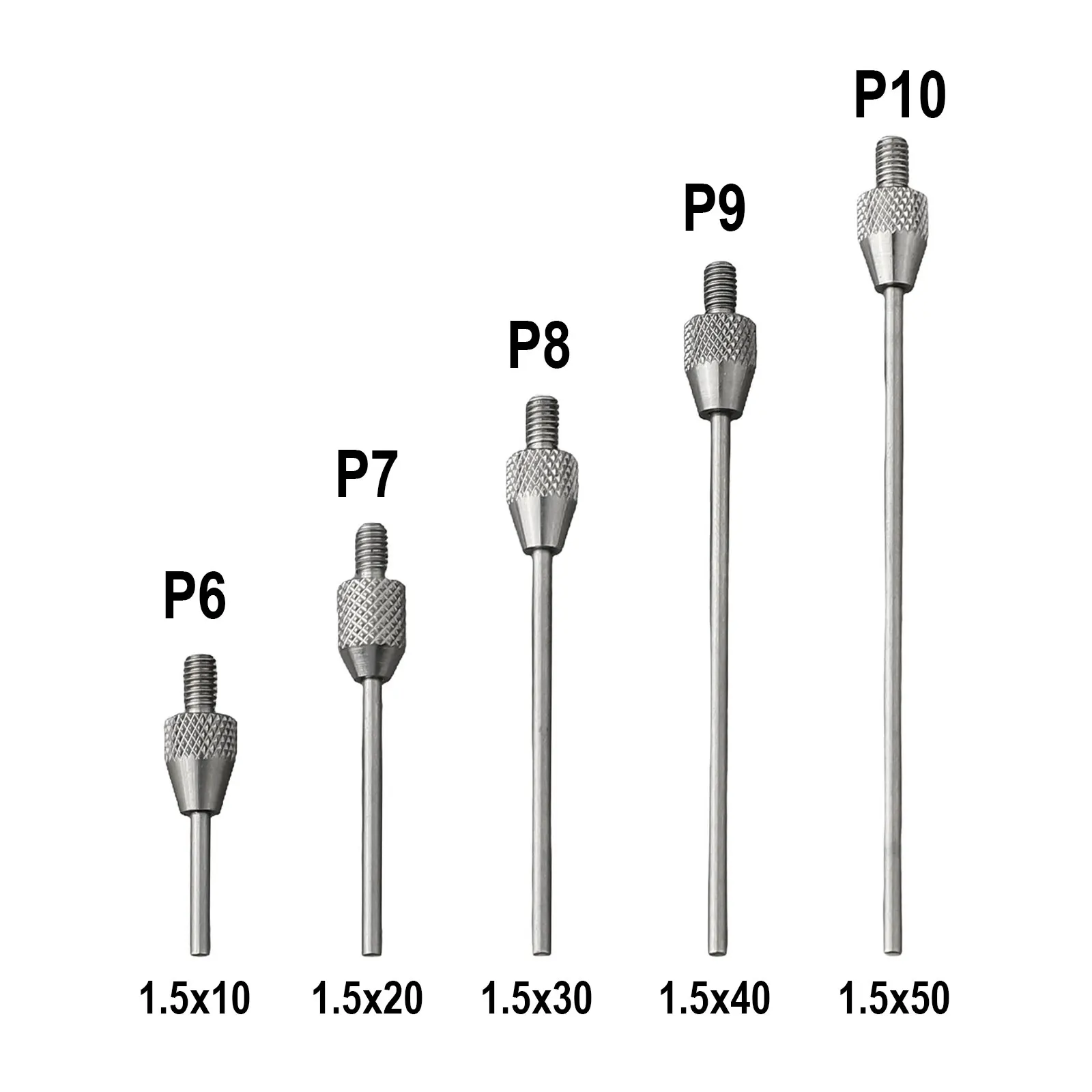

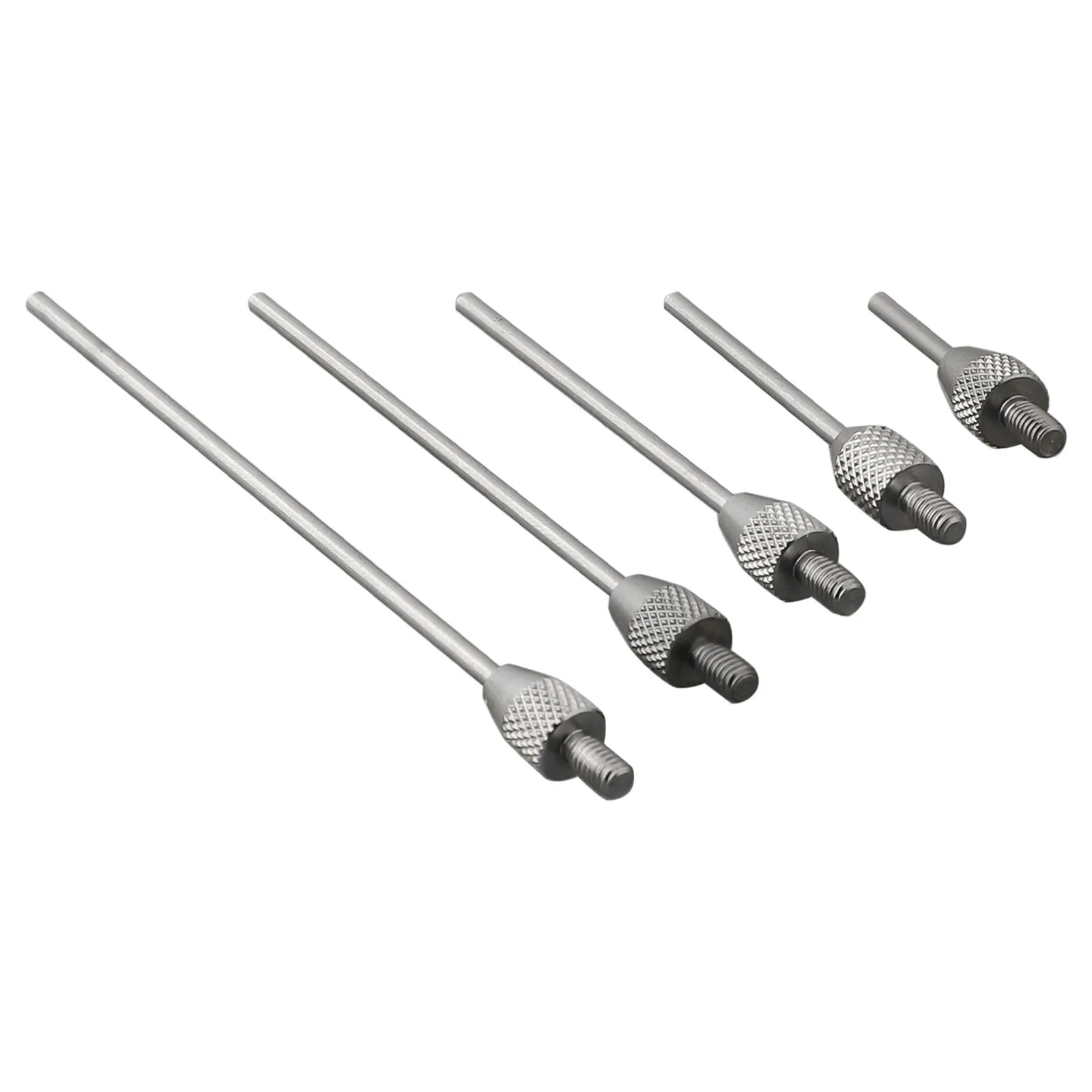

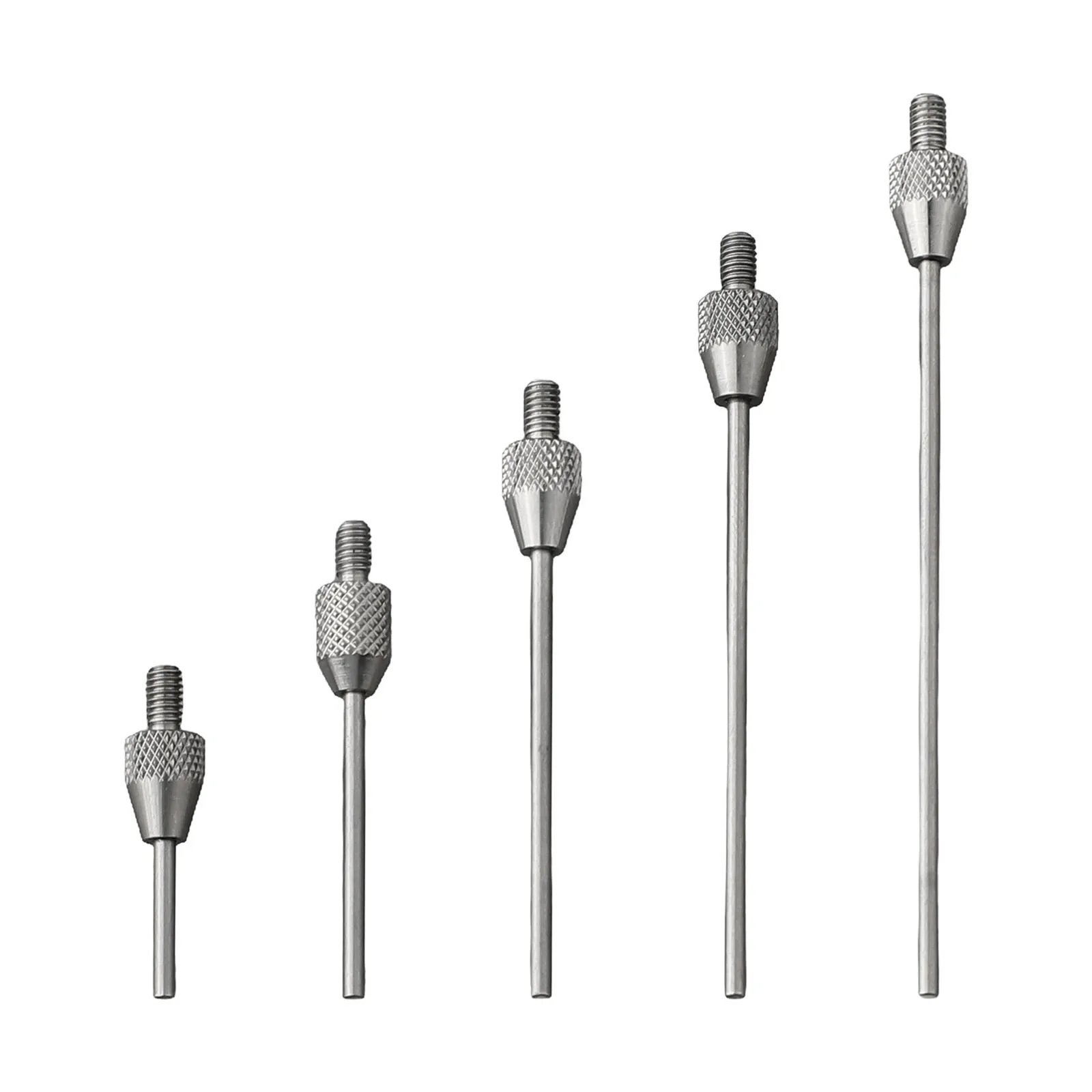

Size: P6P7P8P9P10
P6: diameter ø1.5mm (0.059 inches), effective length 10mm (0.3937 inches)
P7: diameter ø1.5mm (0.059 inches), effective length 20mm (0.7874 inches)
P8: diameter ø1.5mm (0.059 inches), effective length 30mm (1.1811 inches)
P9: diameter ø1.5mm (0.059 inches), effective length 40mm (1.5748 inches)
P10: diameter ø1.5mm (0.059 inches), effective length 50mm (1.9685 inches)
Package includes: 5 levers

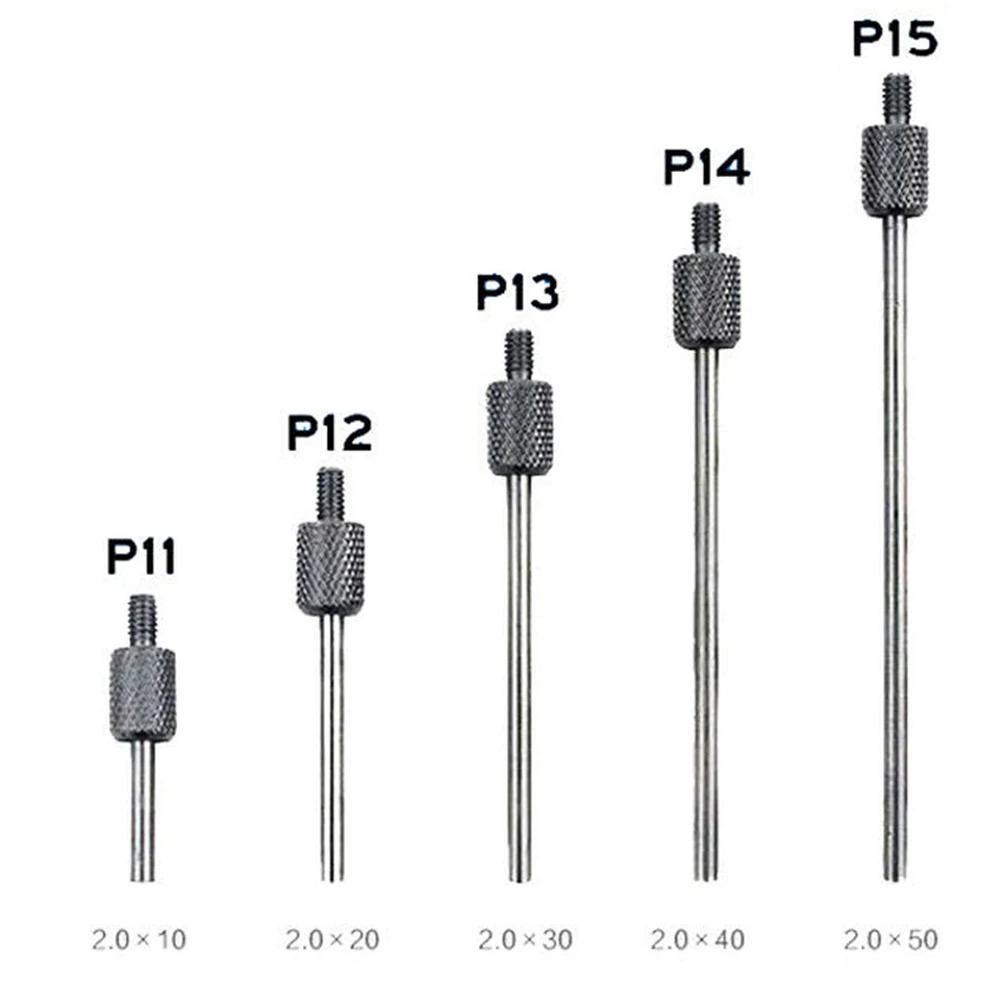

Size: P11P12P13P14P15
P11: Diameter ø2.0mm (0.0787 inches), effective length 10mm (0.3937 inches)
P12: diameter ø2.0mm (0.0787 inches), effective length 20mm (0.7874 inches)
P13: diameter ø2.0mm (0.0787 inches), effective length 30mm (1.1811 inches)
P14: Diameter ø2.0mm (0.0787 inches), effective length 40mm (1.5748 inches)
P15: diameter ø2.0mm (0.0787 inches), effective length 50mm (1.9685 inches)
Package includes: 5 levers
Size: P16P17P18P19P20
P16: diameter ø3.0mm (0.1181 inch), effective length 10mm (0.3937 inch)
P17: diameter ø3.0mm (0.1181 inch), effective length 20mm (0.7874 inch)
P18: diameter ø3.0mm (0.1181 inches), effective length 30mm (1.1811 inches)
P19: diameter ø3.0mm (0.1181 inches), effective length 40mm (1.5748 inches)
P20: diameter ø3.0mm (0.1181 inches), effective length 50mm (1.9685 inches)
Package includes: 5 levers

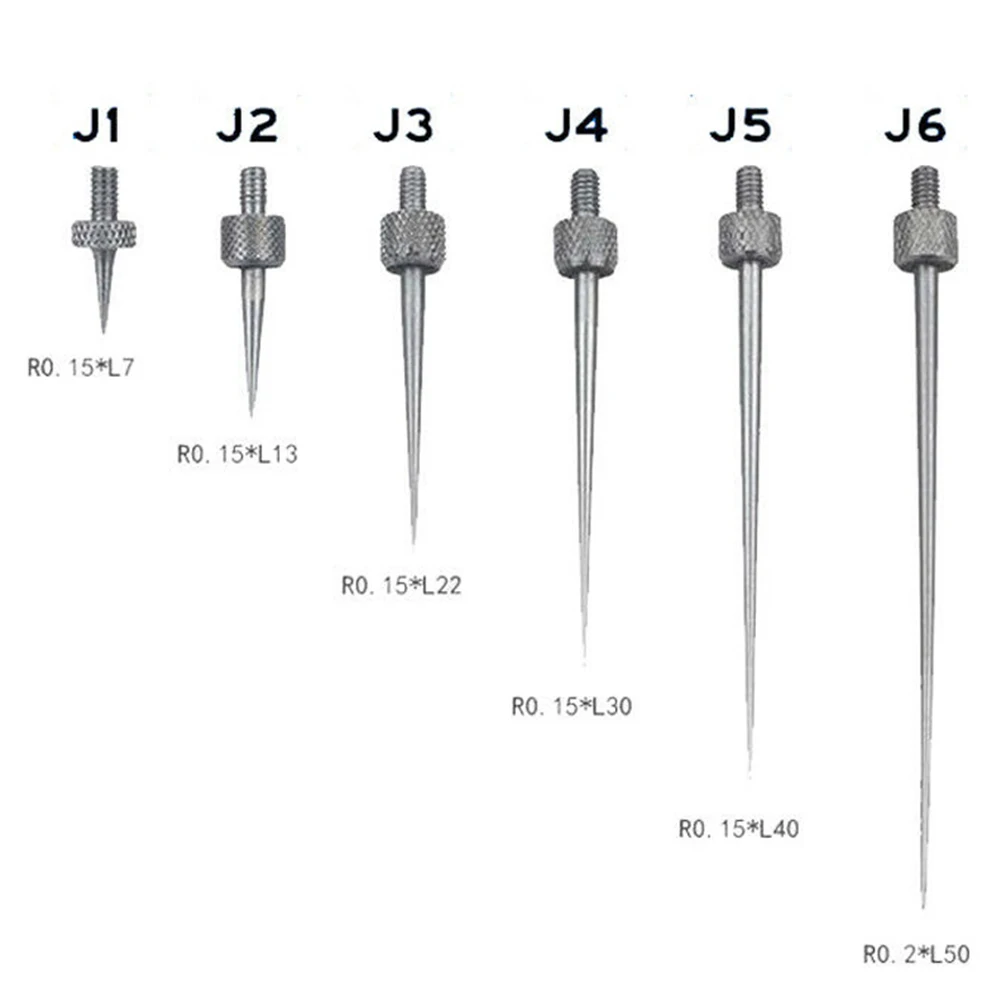

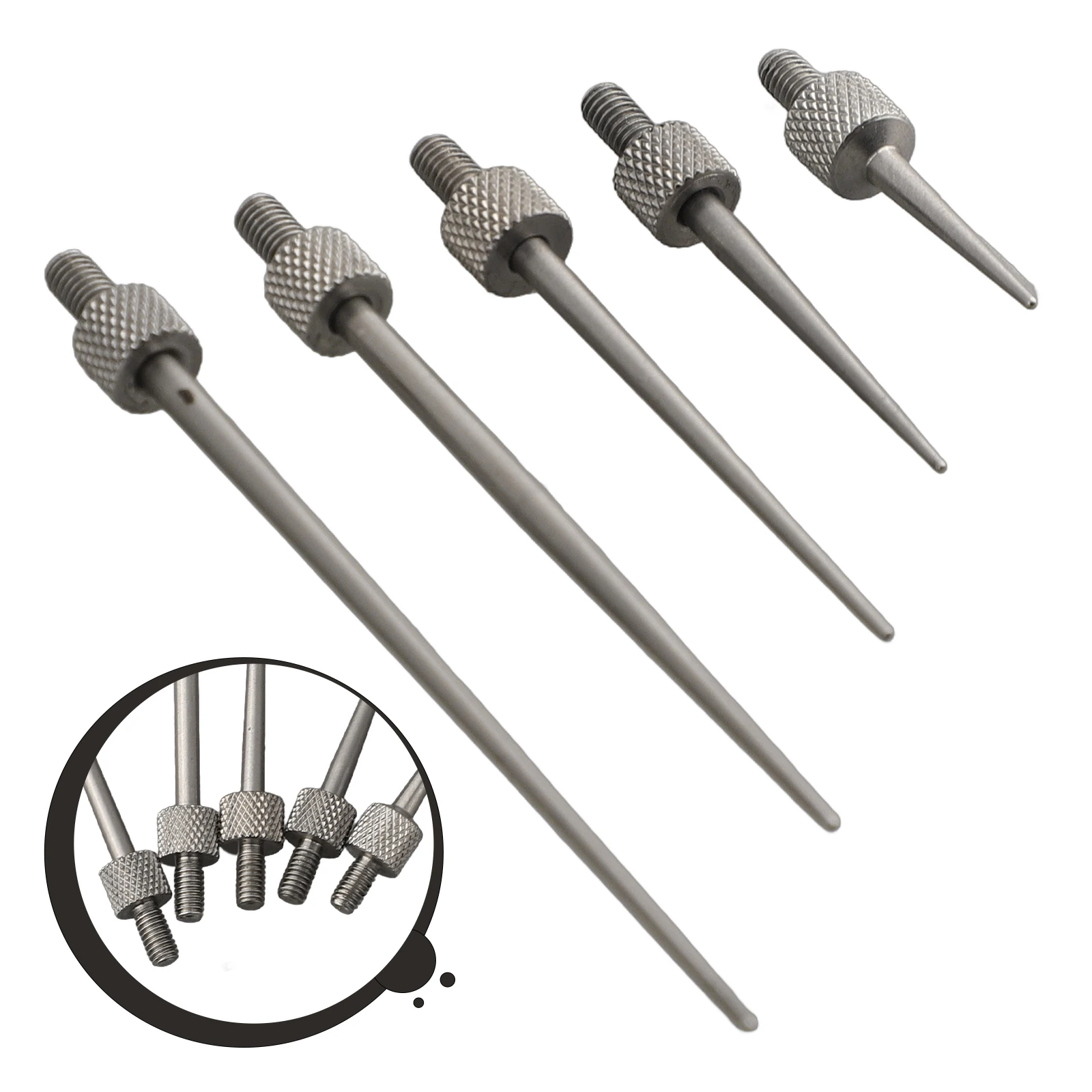

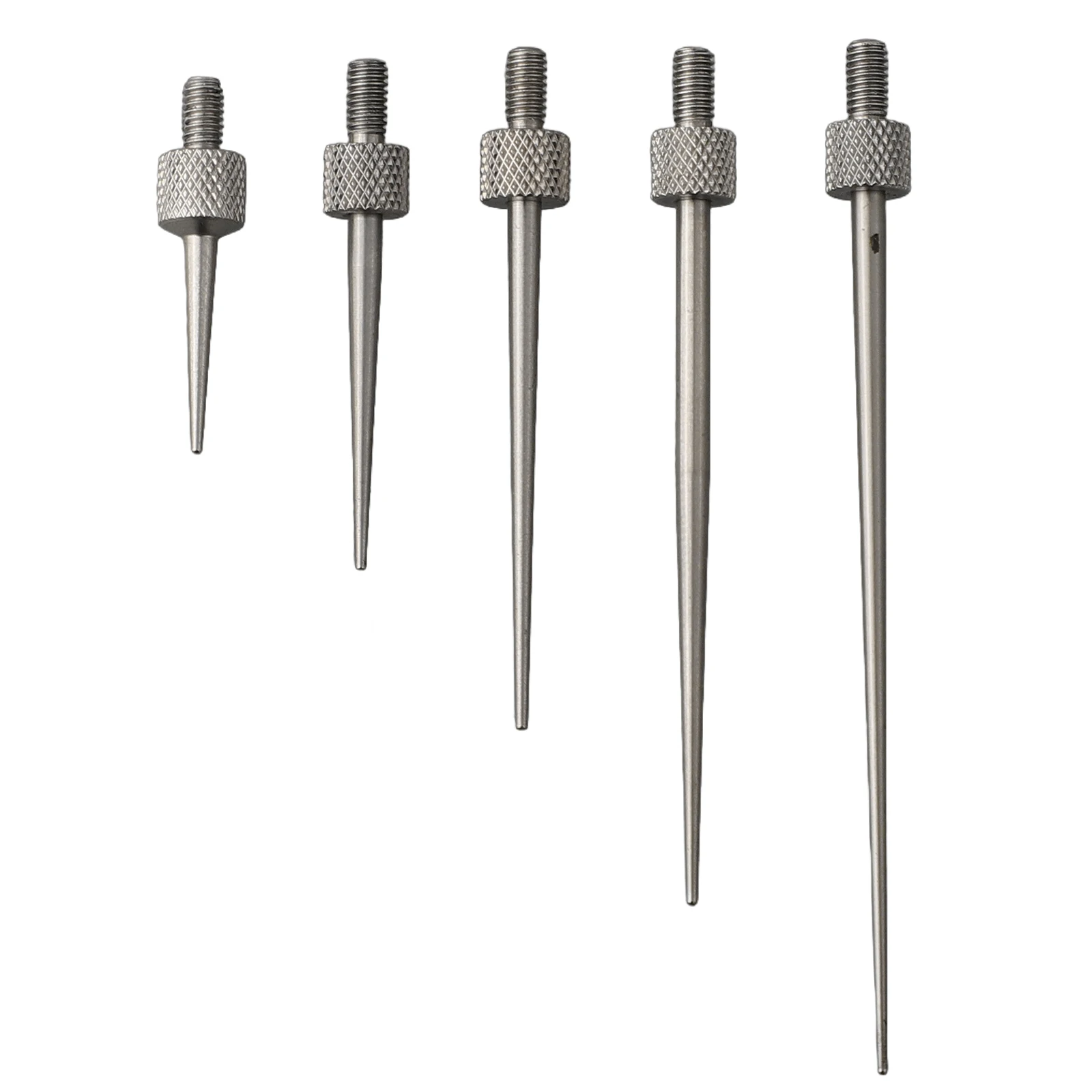

Size: J1J2J3J4J5J6
J1: radius R0.15mm (0.0059 inch), effective length 7mm (0.2756 inch)
J2: radius R0.15mm (0.0059 inch), effective length 13mm (0.5118 inch)
J3: radius R0.15mm (0.0059 inch), effective length 22mm (0.8661 inch)
J4: radius R0.15mm (0.0059 inch), effective length 30mm (1.1811 inch)
J5: radius R0.15mm (0.0059 inches), effective length 40mm (1.5748 inches)
J6: radius R0.2mm (0.0078 inches), effective length 50mm (1.9685 inches)
Package: 6 levers
Size: J7J8J9J10J11
J7: radius R0.3mm (0.0118 inches), effective length 13mm (0.5118 inches)
J8: radius R0.3mm (0.0118 inches), effective length 22mm (0.8661 inches)
J9: radius R0.3mm (0.0118 inches), effective length 30mm (1.1811 inches)
J10: radius R0.3mm (0.0118 inches), effective length 40mm (1.5748 inches)
J11: radius R0.4mm (0.0157 inches), effective length 50mm (1.9685 inches)
Package: 5 levers

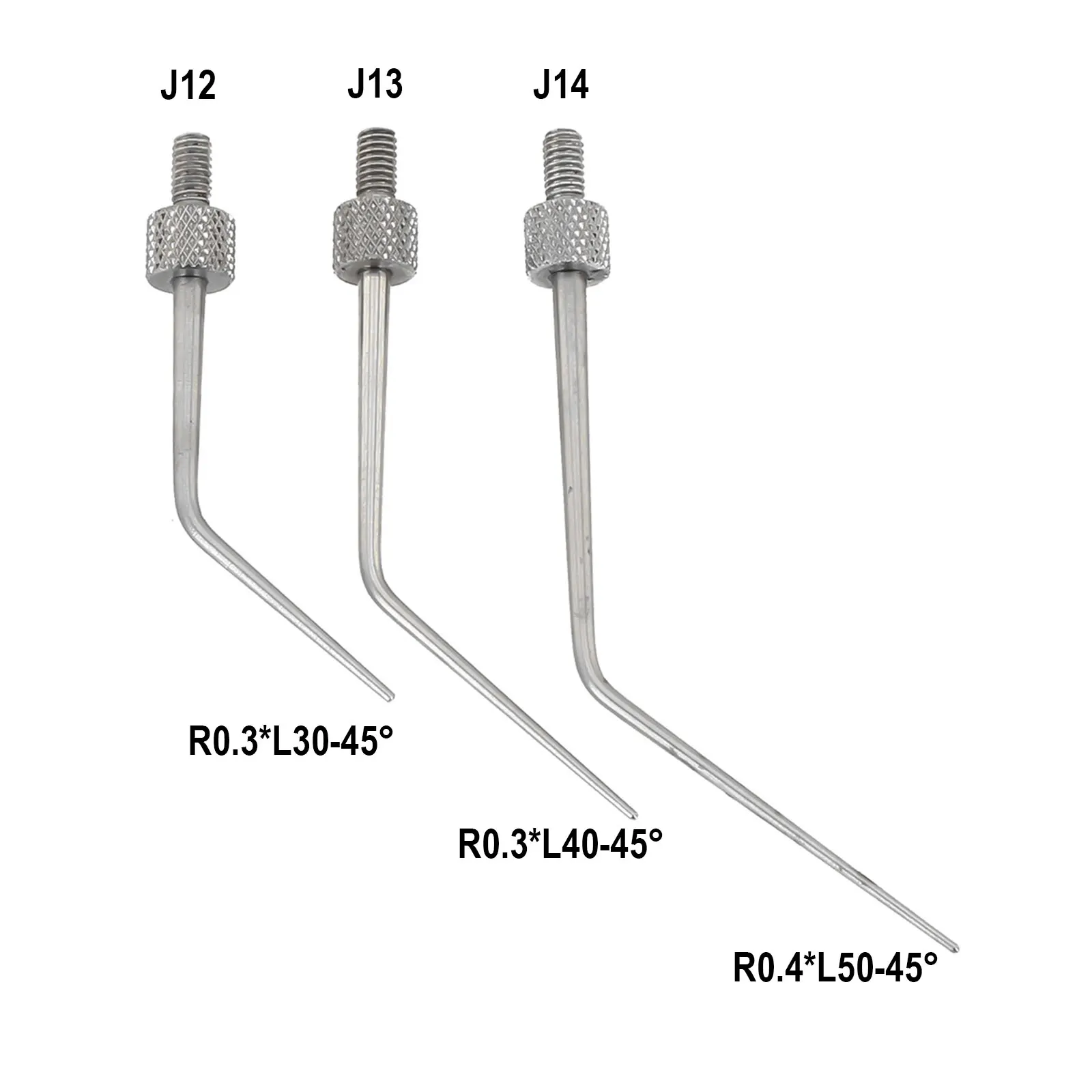

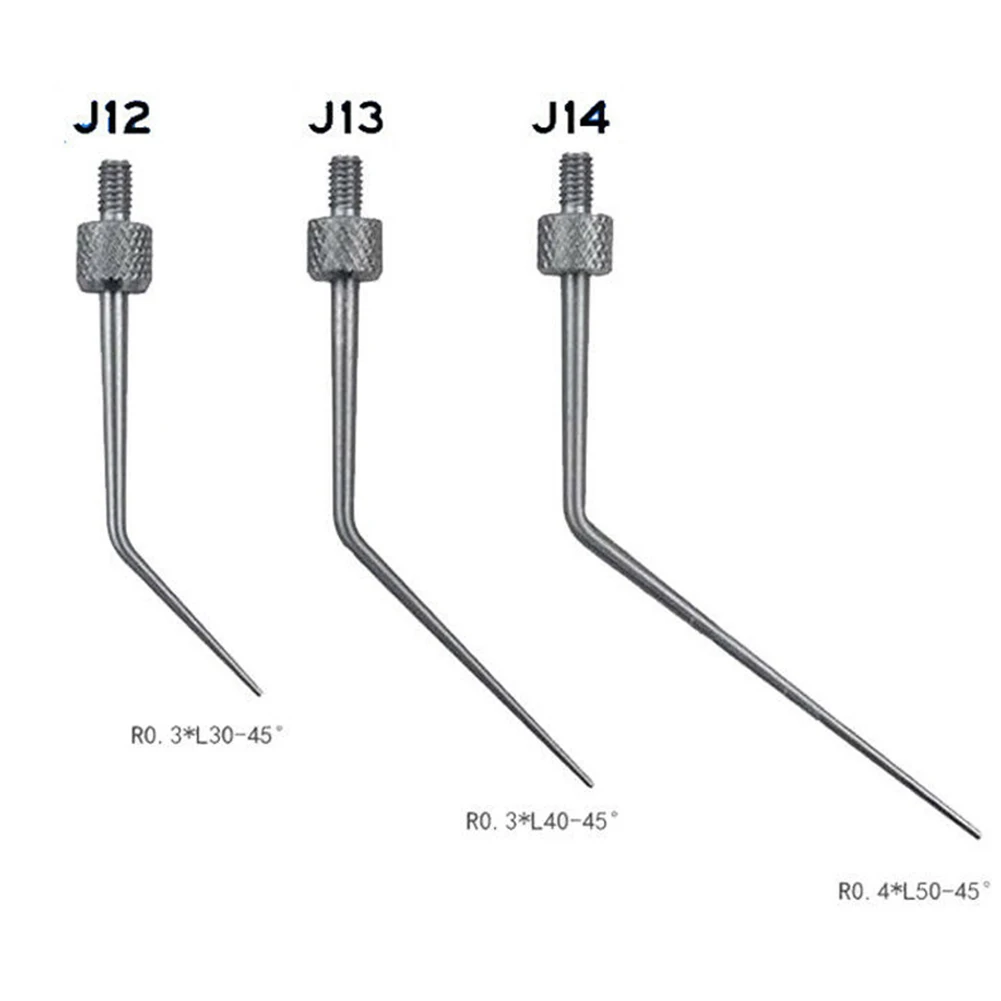

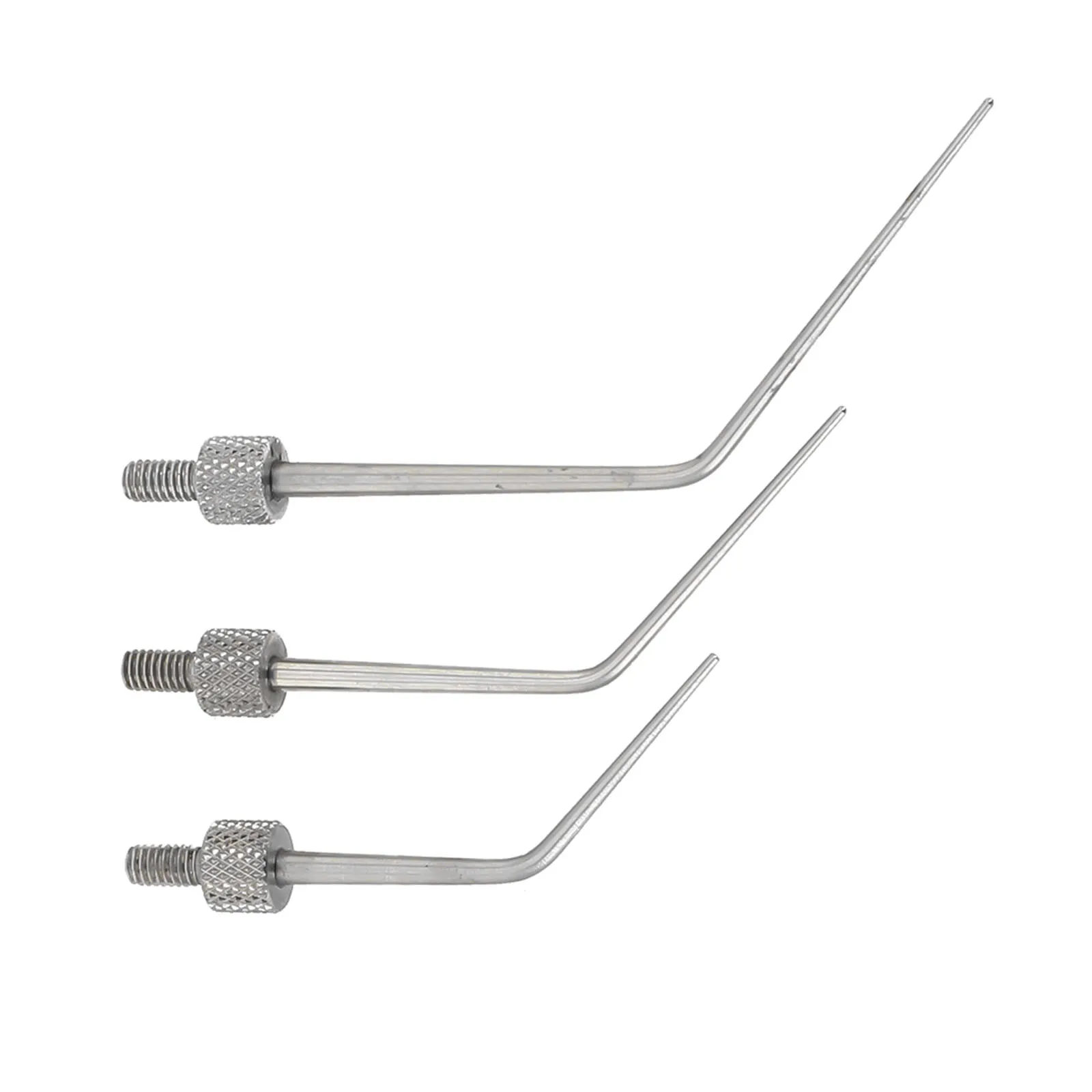

Size: J12J13J14
J12: Radius R0.3mm (0.0118 inches), effective length 30mm (1.1811 inches) Angle: 45 degrees
J13: Radius R0.3mm (0.0118 inches), effective length 40mm (1.5748 inches) Angle: 45 degrees
J14: Radius R0.4mm (0.0157 inches), effective length 50mm (1.9685 inches) Angle: 45 degrees
Package: 3 levers


Package list (optional):

Package 1: 3 * lever
Package 2: 5 * lever
Package 3: 6 * lever

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
