PC12 Series Ø12mm Post Angle Clamp 1/2 Inch Support Rod Assembly Accessories Cage Rod Optical Column

Characteristic

PC12 Series Ø12mm Post Angle Clamp

• Mounting clamps for different angles of Ø12mm or 12.7mm posts;

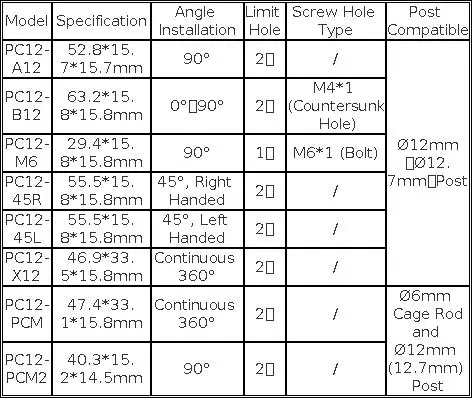

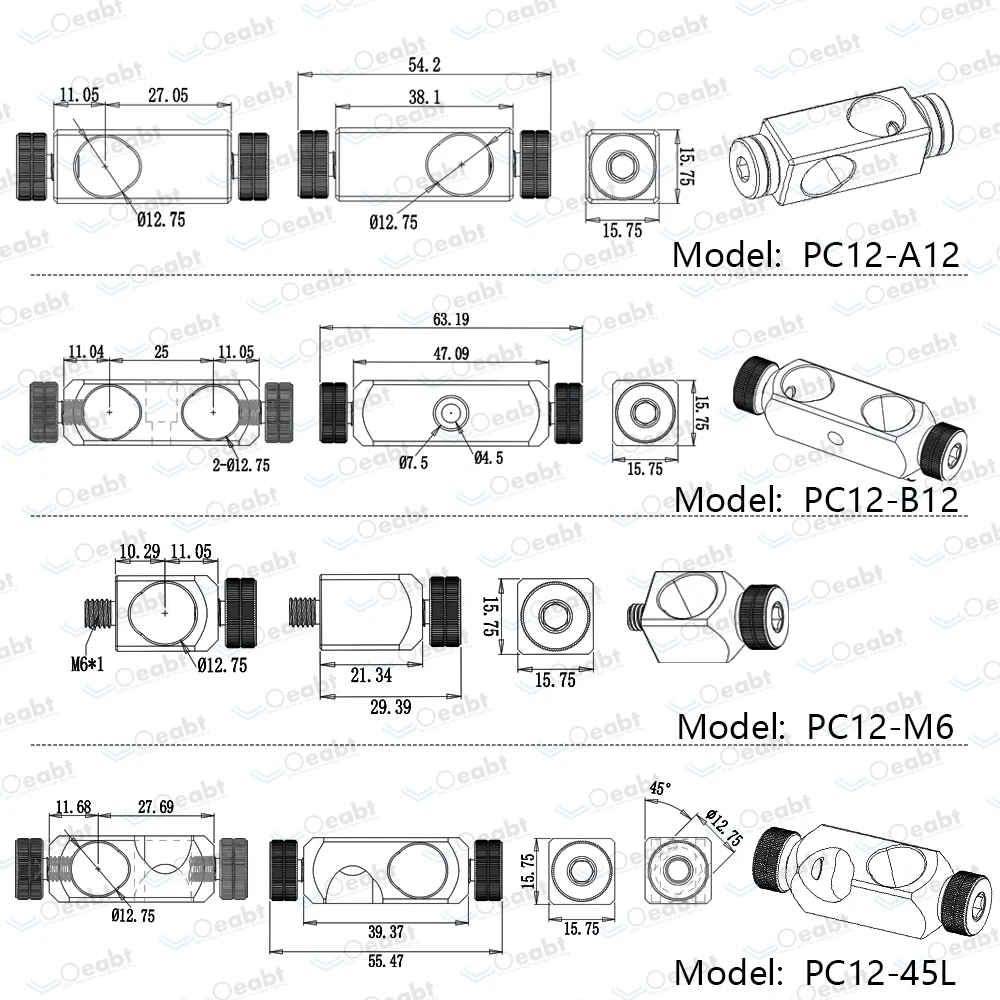

• Angle options: fixed 90°,single limit hole;

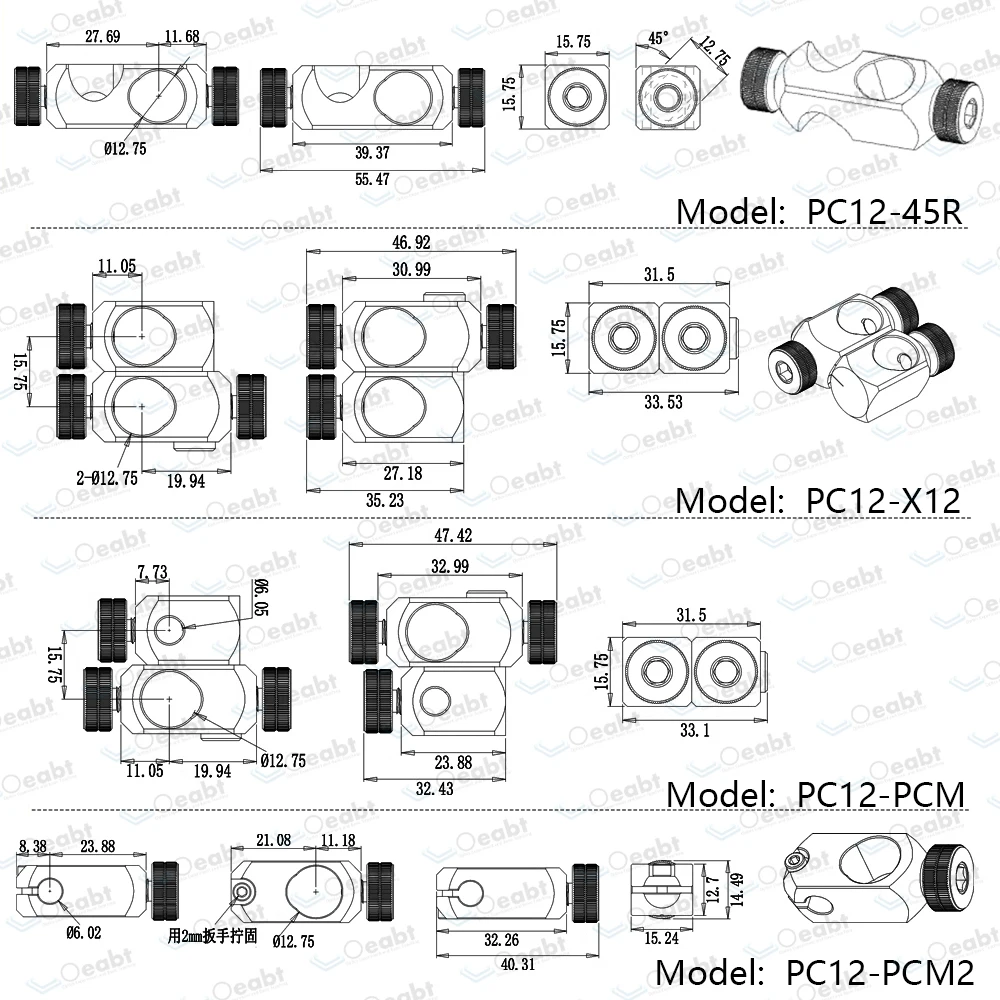

• Fixed at 45° (left or right), two limit holes;

• Fixed installation at 90° or 0° parallel to each other, two limit holes;

• Continuous 360°rotation, two limit holes;

• Aluminum thumbscrews provide the clamping force required for locking;

PC12 series angle clamps are multi-functional assembly accessories designed for optimized post installation.

Describe

(1) PC12 series angle clamps are multi-functional assembly accessories designed for optimized post installation. They securely position Ø12mm (Ø12.7mm) posts in a variety of angular orientations, including fixed 0°, 90° mounting or continuous 360° rotation, allowing for flexible and compact rigid structural layouts.

(2) In addition, the angle clamp can effectively combine the installation of Ø12mm (Ø12.7mm) posts and cage components, and is compatible with the option of installing Ø6mm poles to Ø12mm posts: for installation in the vertical direction, and also provides 360° continuous Adjusted version.

(3) There is an individual locking mechanism for each post, and aluminum thumbscrews secure the post securely. Combined with the angle of rotation, each component can be easily adjusted individually.
