Pcm-s PCM-E Series Cage Support Rod Extension Diameter M6 Cage System Extension Rod Optical Experiment Stainless Steel Support

For better communication, please add a Skype account or send an email to the mailbox. We will see the message and reply you as soon as possible.

Skype account:

[email protected]

Product information

Characteristic

▶Using standard U.S. specifications;

▶6mm diameter/compatible with all Ø 6mm through holes;

▶C position interface thread adopts American-made coarse thread/inner diameter 4-40, hole depth 5mm;

▶Compatible with 4-40American-made machine rice screws; the precision of the joint is not easy to loosen;

▶The material is made of 304 stainless steel, which has been finely ground and processed to improve the surface smoothness;

▶Different lengths are available, you can arbitrarily match the adapter for building a cage coaxial system;

▶The female thread specifications at both ends of the support are easy to increase the length.

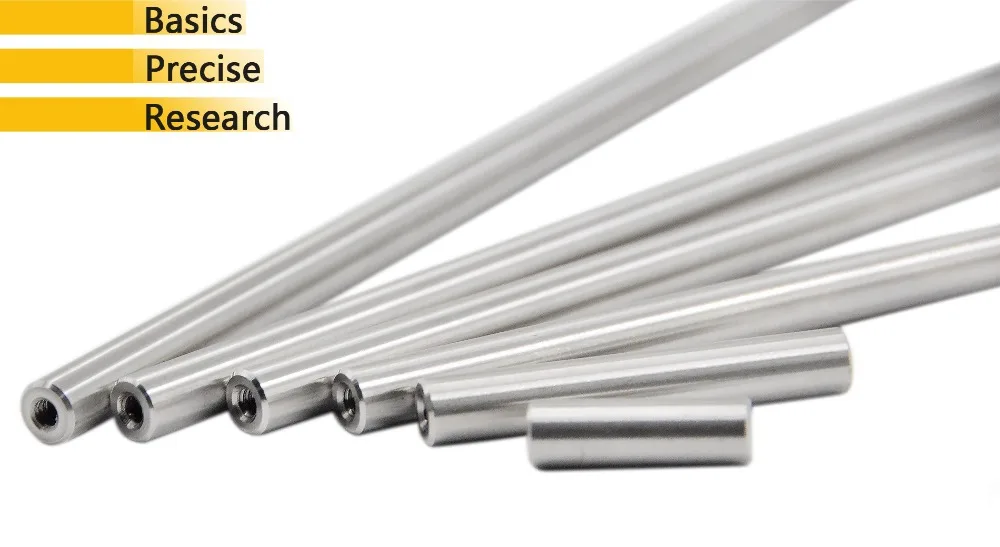

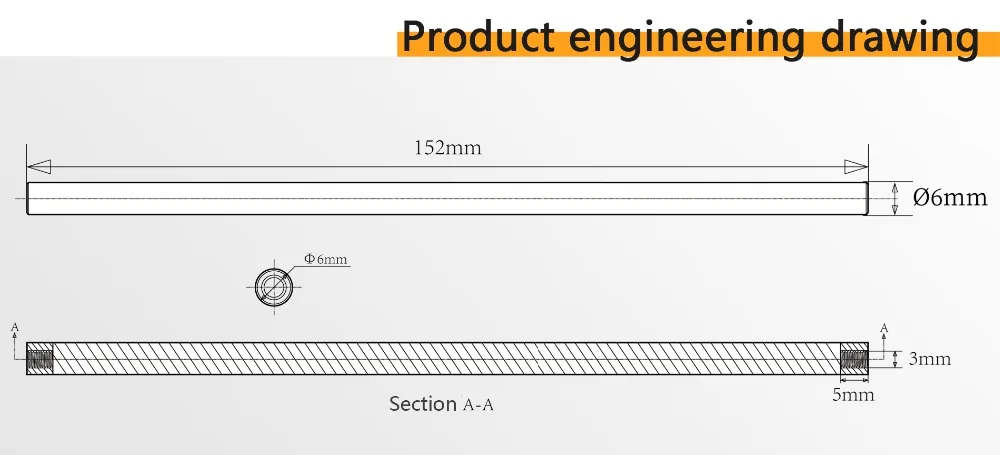

There are 4-40 threaded holes on both ends of the 6mm diameter pole, and one end of the pole is attached with a 4-40 machine meter screw, which can be detached and exposed 4-40 threaded holes, so that multiple cage rods can be connected together for 30mm And 60mm cage system, easy to construct experimental applications.

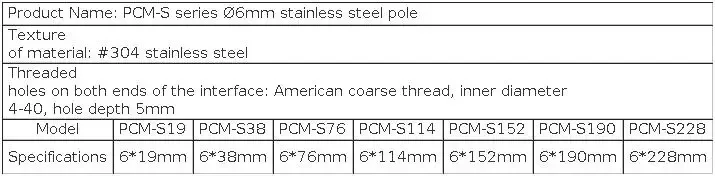

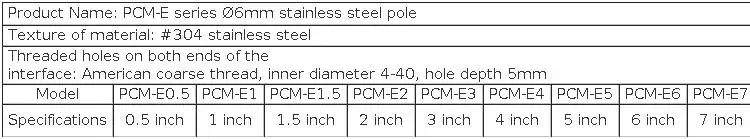

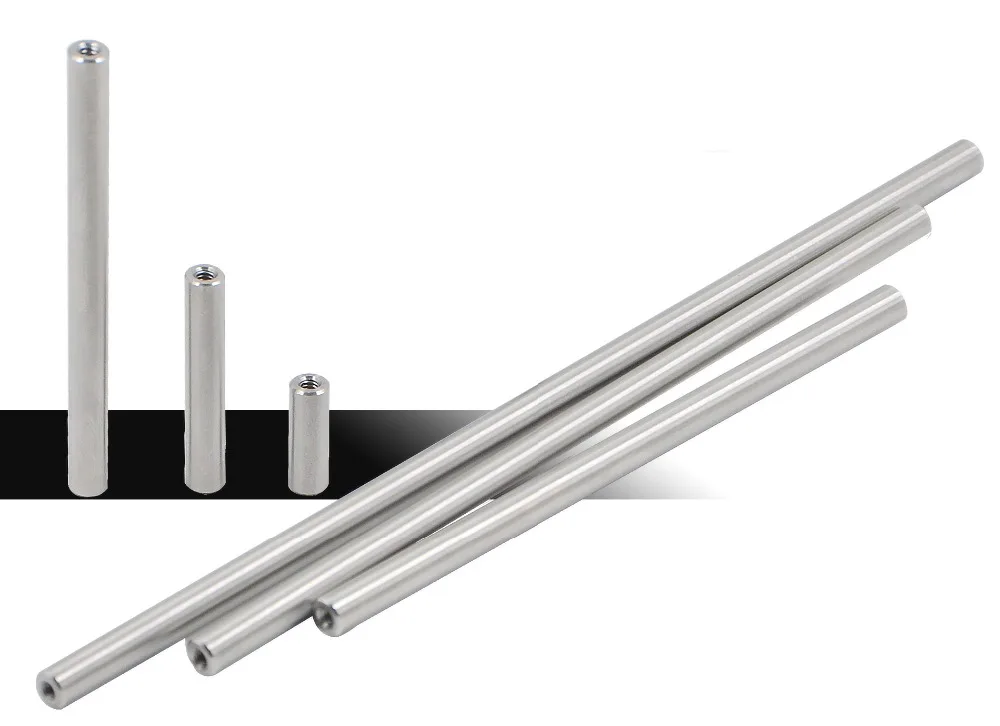

There are many optional length specifications, and the length of the PCM-S series is optional from 19mm to 228mm. The length of the PCM-E series is available from 0.5 inches to 8 inches.

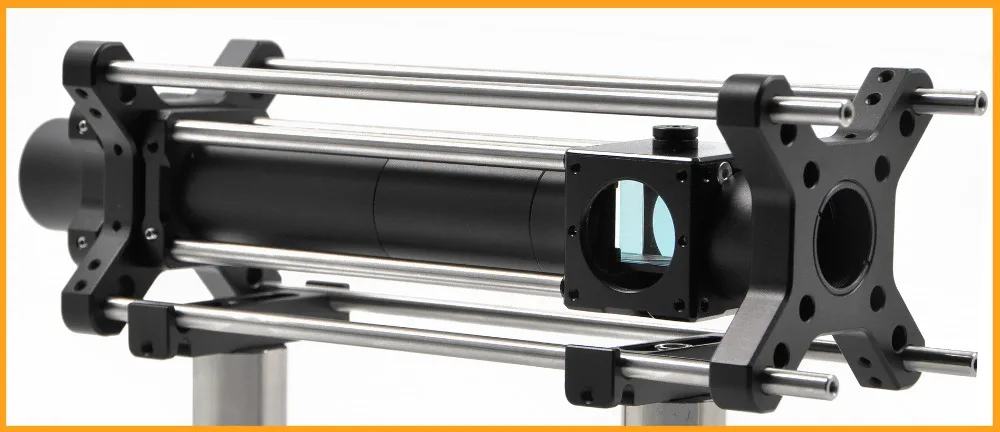

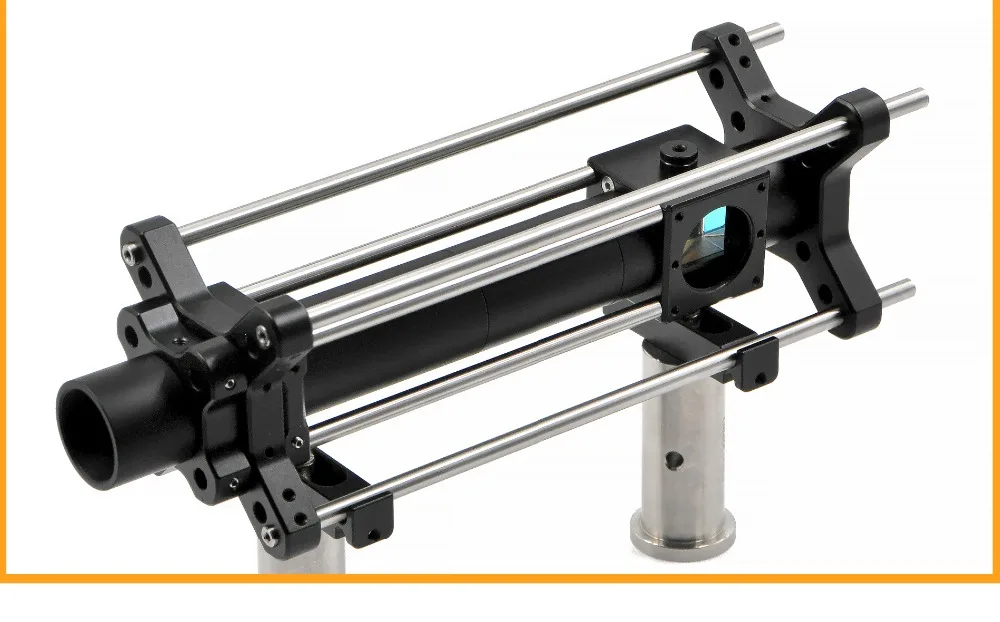

Application scenario display

We supply a wide range of optics to create an easy-to-build experimental platform in an optical system.
