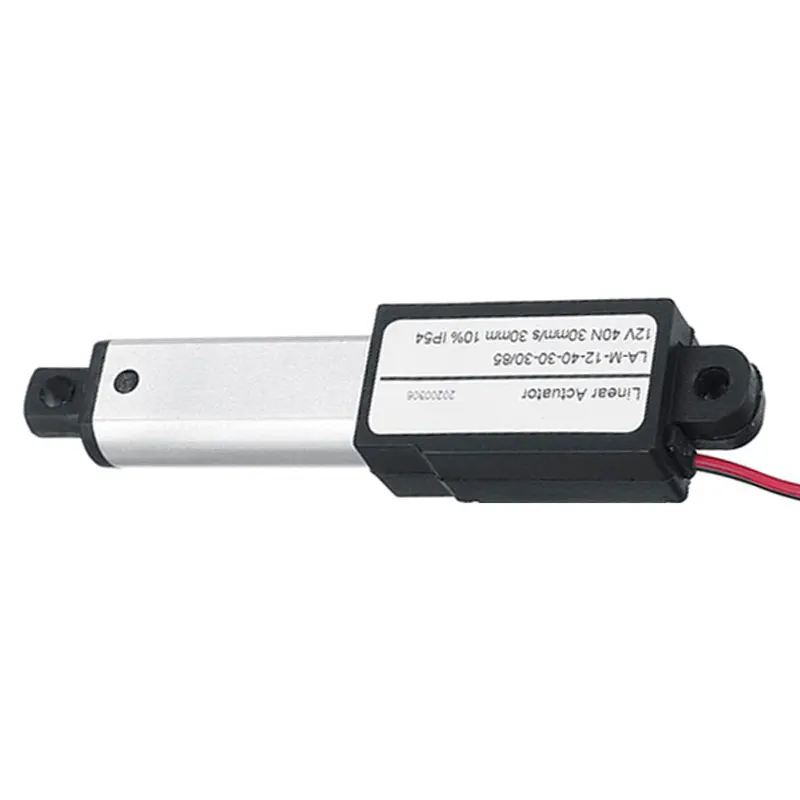

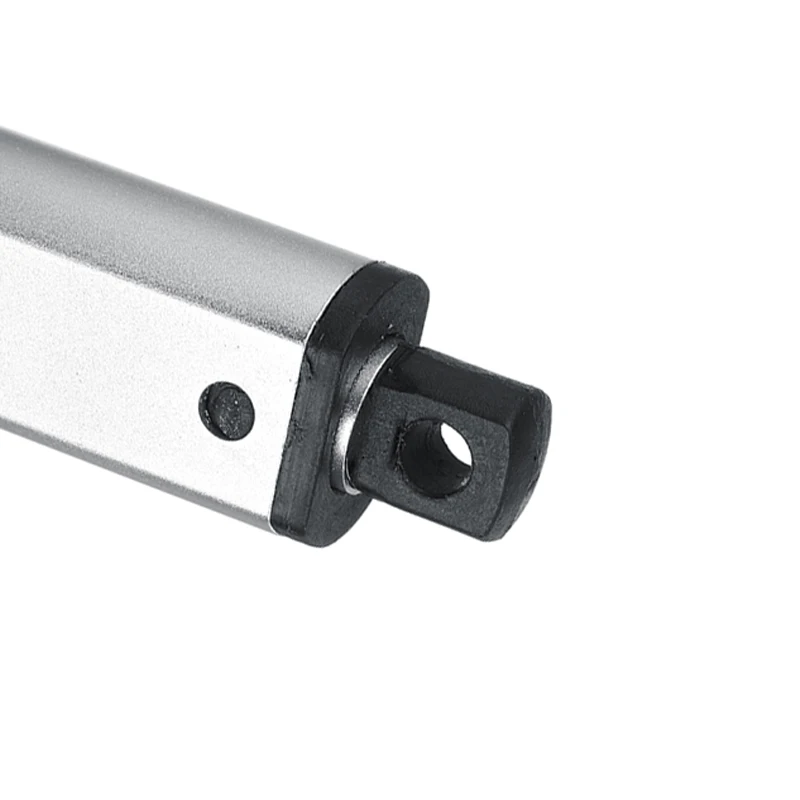

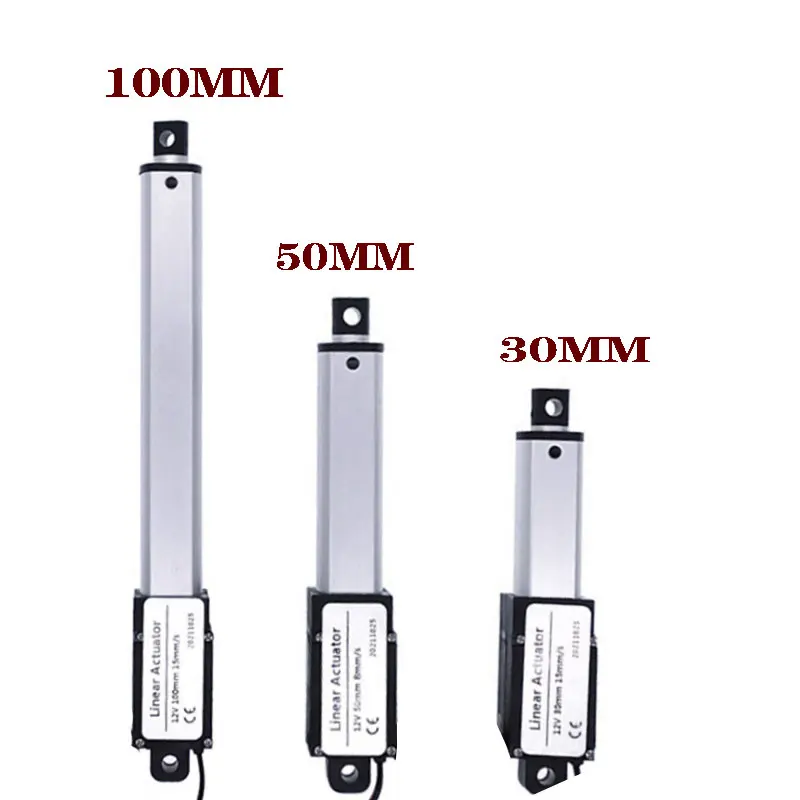

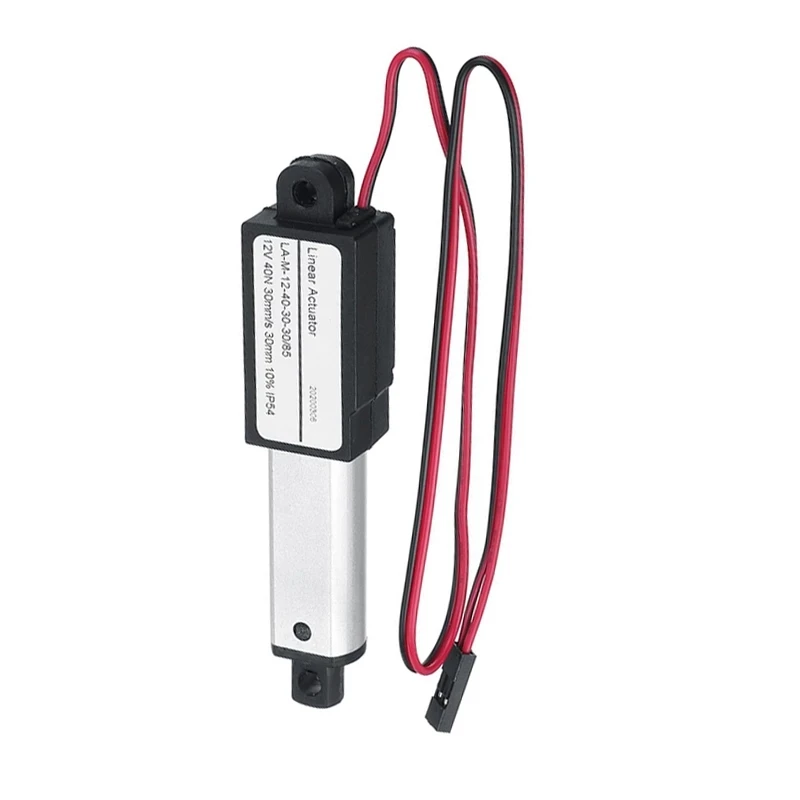

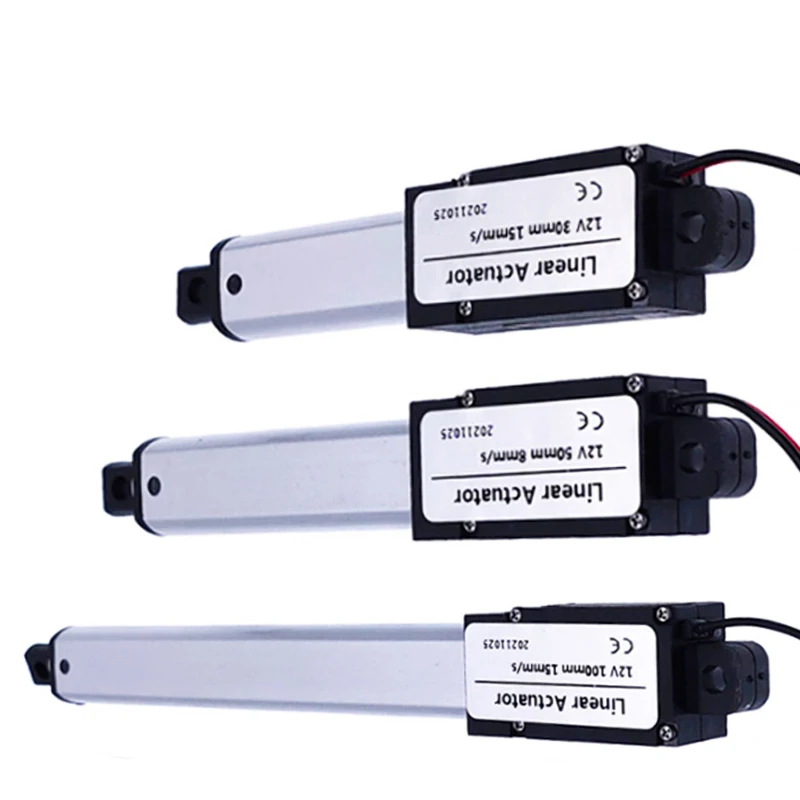

30mm/50mm/100mm DC 12V Mirco Electric Linear Actuator 30N/60N/90N/150N Motor Controller Mini Eectric Push Rod Putter

Features:

1.This miniature linear actuator is using for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications.

2.It can be replaced by hydraulic, pneumatic products ideal for saving energy consumption.

Operation run:

1.Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity.

2.The motor will not idle. Cut off the power, it can be stop at any position, with self-locking function.

3.The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.

4.The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.

5.Ambient temperature -20°C to +60°C.

6.Standard protection class: IP54.

7.Low noise design, noise level less than 50dB.

8.Please do not disassemble the machine.

9.Product features: drive other objects to push, pull, rise, drop.

Product Applications:

TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more

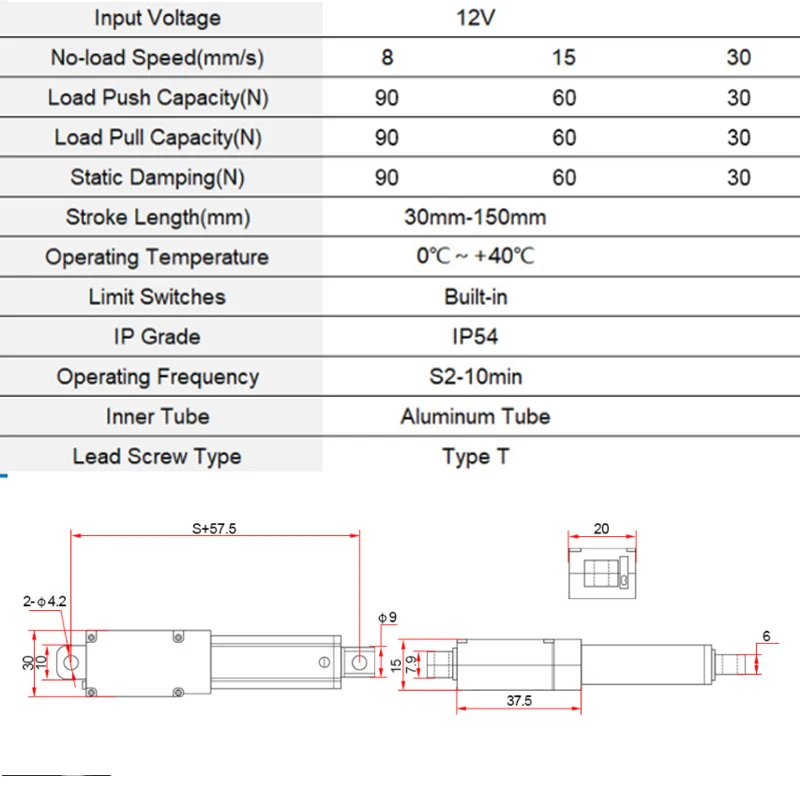

Specifications:

30MM

30mm 30mm/s 30N

30mm 15mmls 60N

30mm 7mm/s 90N

30mm 4mmls 150N

50MM

50mm 30mm/s 30N

50mm 15mm/s 60N

50mm 7mm/s 90N

50mm 4mm/s 150N

100MM

100mm 30mm/s 30N

100mm 15mmls 60N

100mm 7mm/s 90N

100mm 4mm/s 150N

Package Included:

1×Linear Actuator Motor
