PCA-S/PCA-S1 Series Height 30-100mm Optional Stainless Steel Support Rod 12mm Lifting Adjustment Rod Optical Scientific Research

For better communication, please add a Skype account or send an email to the mailbox. We will see the message and reply you as soon as possible.

Skype account:

[email protected]

Email:

[email protected]

Product information

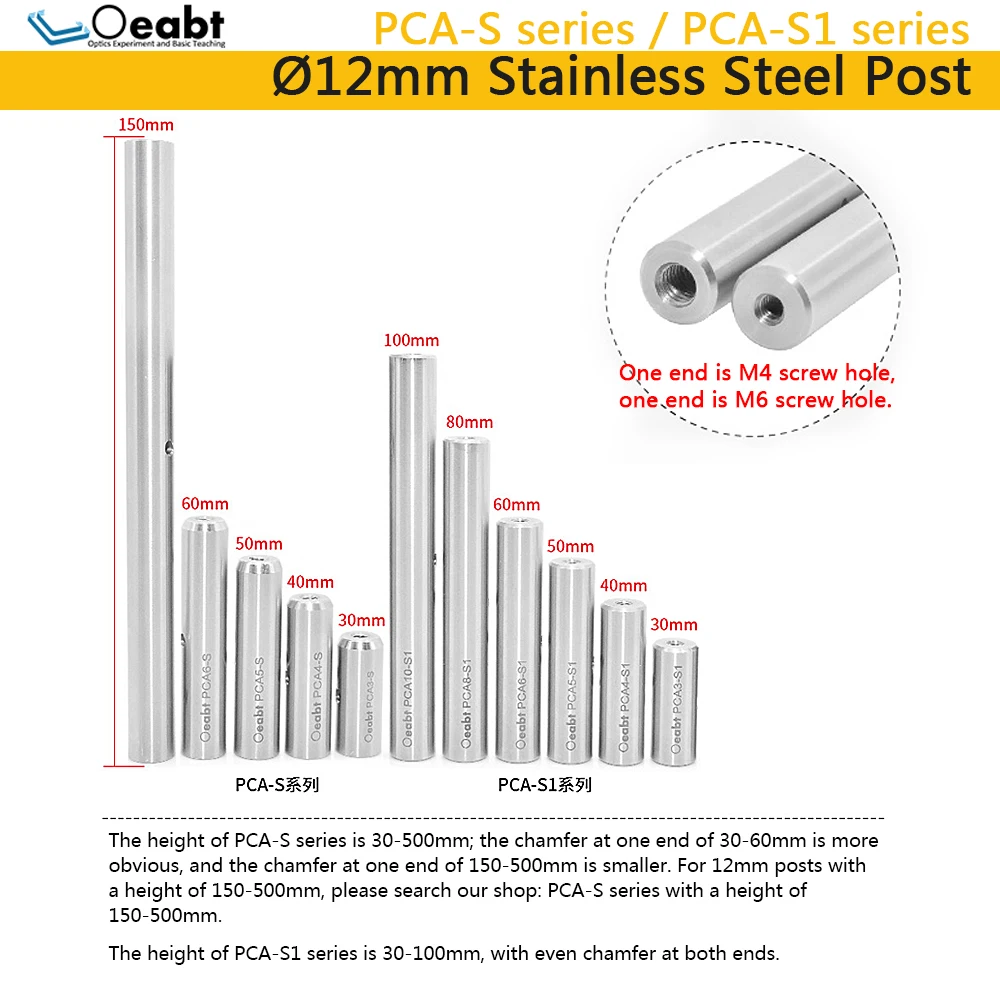

The difference between PCA-S series and PCA-S1 series

The height of PCA-S series is 30-500mm; the chamfer at one end of 30-60mm is more obvious, and the chamfer at one end of 150-500mm is smaller. For 12mm posts with a height of 150-500mm, please search our shop: PCA-S series with a height of 150-500mm.

The height of PCA-S1 series is 30-100mm, with even chamfer at both ends.

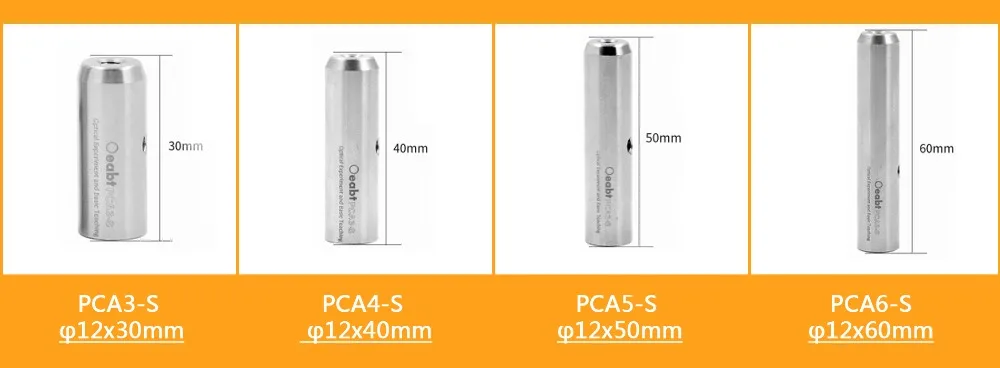

PCA-S series

For PCA15-S/PCA30-S/PCA50-S models of support rods, please search for "PCA-S series height 150-500mm stainless steel rod".

PCA-S1 series

Characteristic

►Stainless steel precision ground post with a diameter of 12mm;

►The length ranges from 30mm to 500mm, increasing the options of these posts;

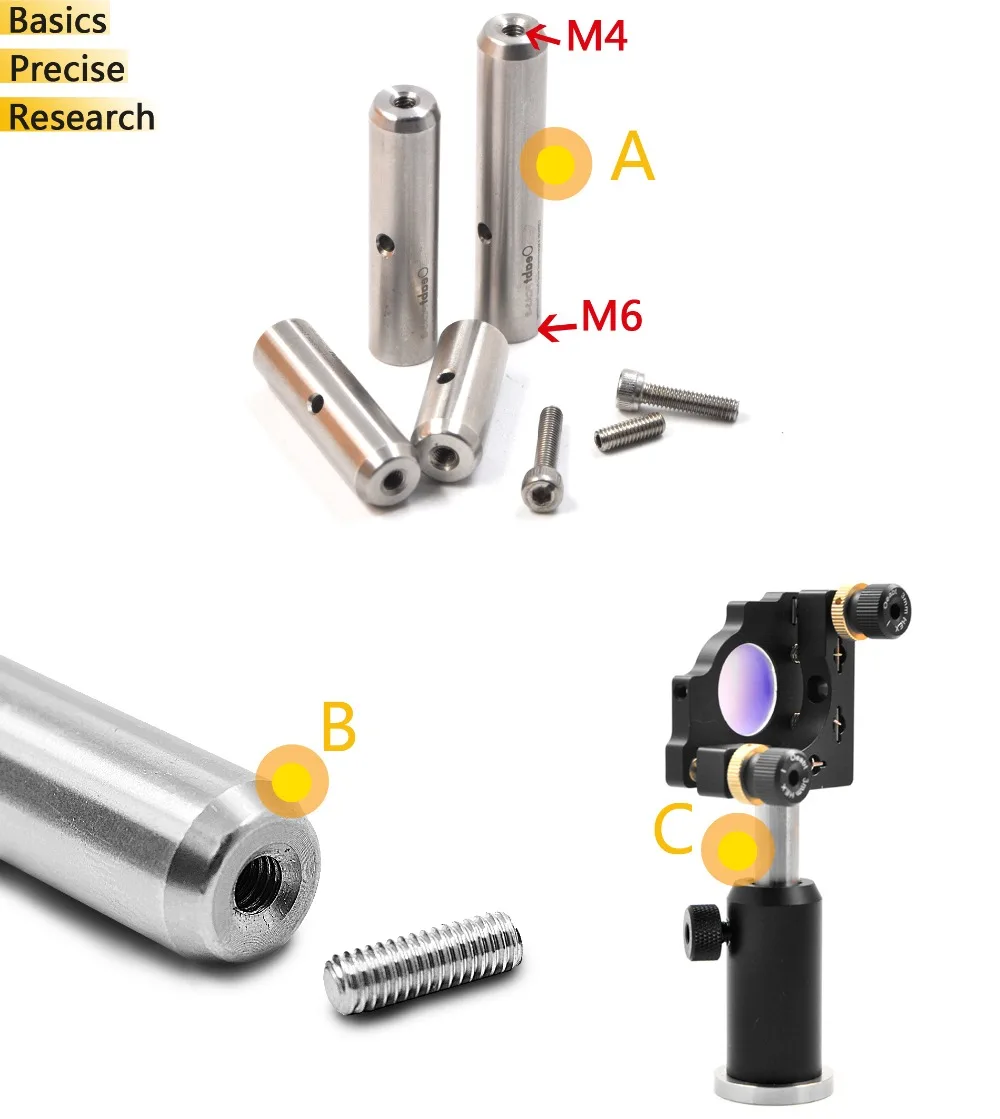

►There is an M4 threaded hole on one end of the post and an M6 thread on the other end;

Description

(1) The Ø12mm stainless steel post can be provided in different lengths, which provides an irreplaceable function for optical experiment adjustment and manual optical path calibration in free space. , The length of the post ranges from 30mm to 500mm and a variety of specifications are available. The precision ground stainless steel post is made of 304 stainless steel and is compatible with our post bracket and structural accessories.

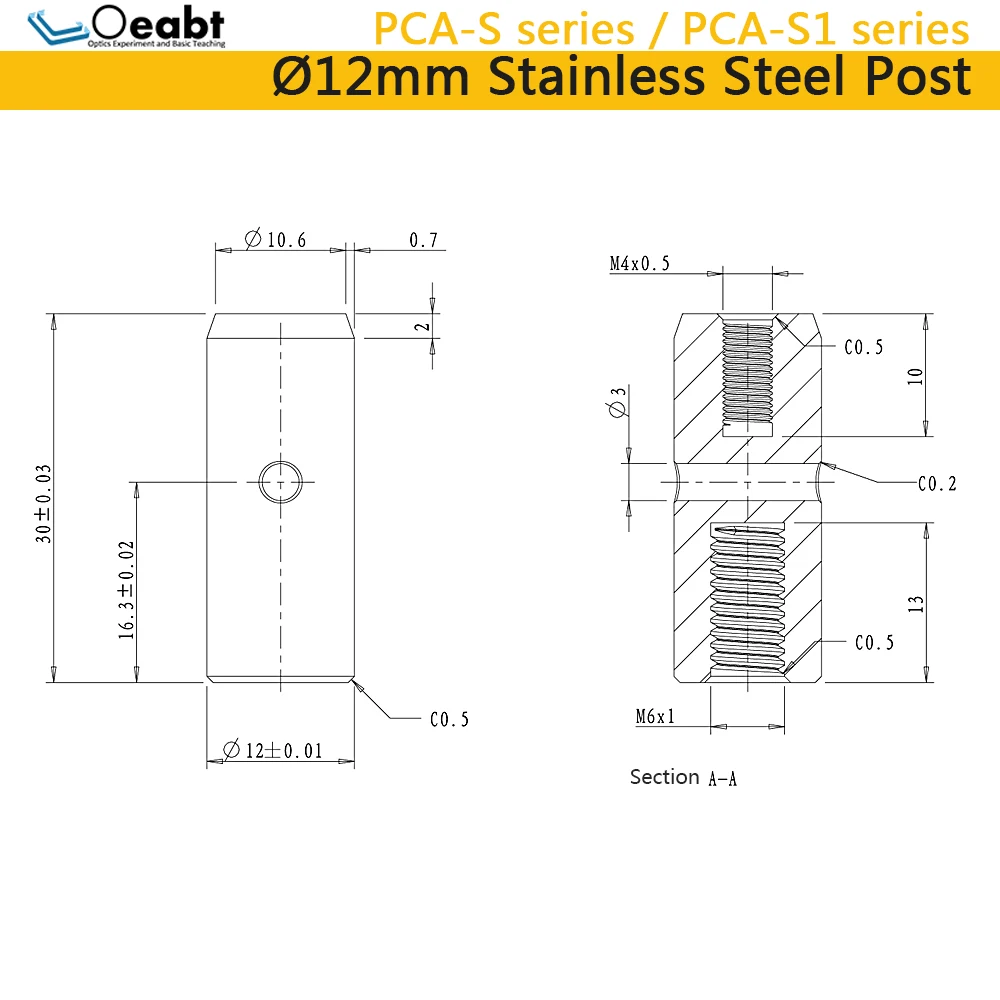

(2) M4 threaded hole at one end of the post, the hole depth is 10mm. M6 threaded hole at the other end, 13mm deep. Various opto-mechanical components can be installed arbitrarily, with different specifications and sizes of posts, to easily achieve different optical axis heights.

(3) There is a Ø3mm through hole on the side of the post, through which a balldriver or wrench can provide more torque when tightening components and provide additional leverage.

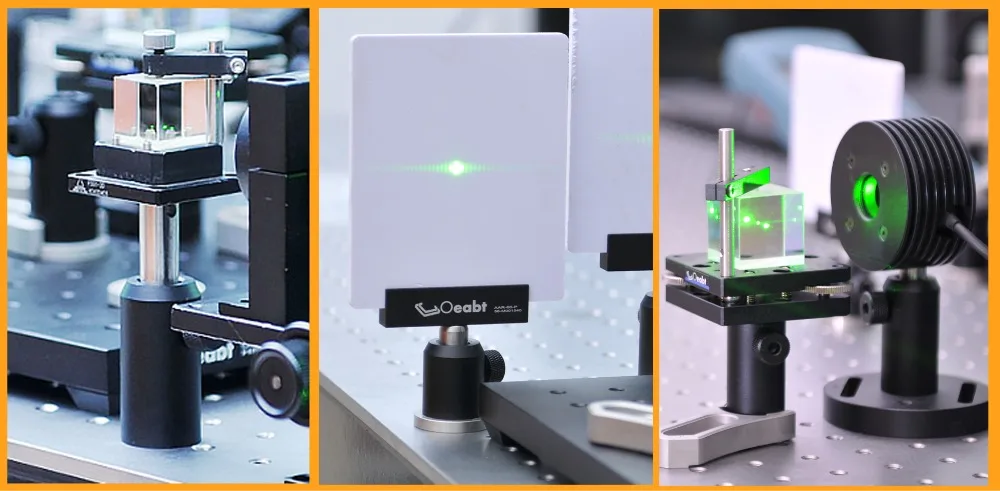

Application scenario display

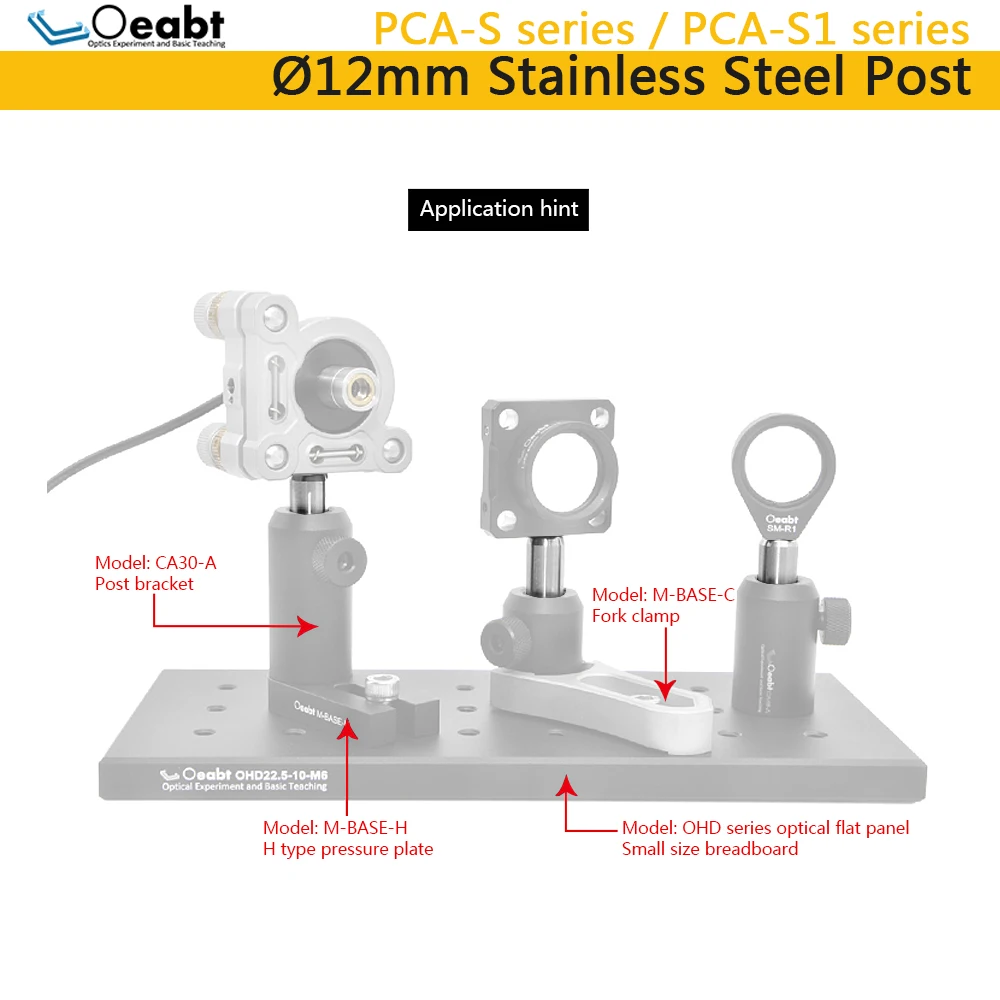

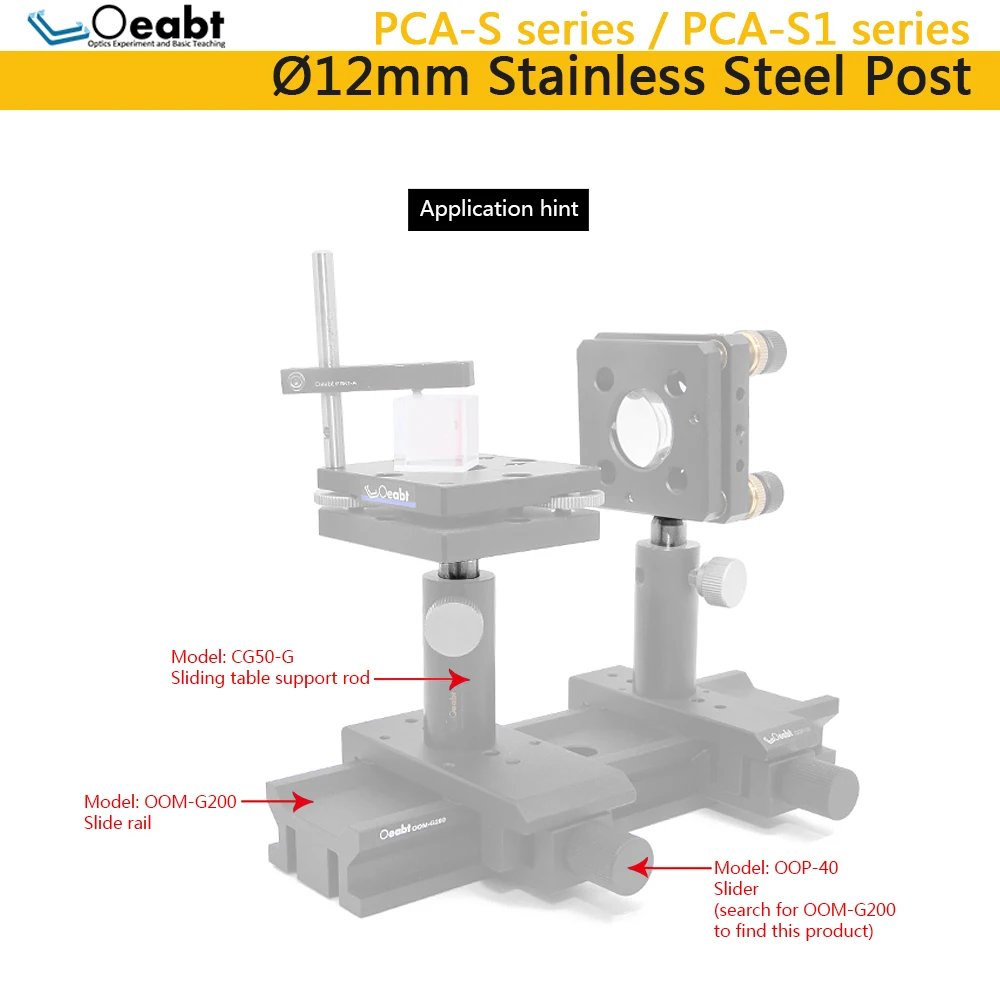

We supply a wide range of optics to create an easy-to-build experimental platform in an optical system.

Why do we choose Alcoa 7075 aluminum alloy?

Lighter, stronger, more durable, and superior thermal stability

Because 7075 has better mechanical properties, and has good ductility, high strength, toughness and good fatigue resistance. Under the same material, the 7075 is 64% higher and 58% higher than the 6061, and the tensile strength and strength are 85% and 82% higher, respectively.

Ingenuity, excellence

In the eyes of the refined craftsman, the micron-level gap of the precision thread pair will lead to deviations in the optical test results. Only after dozens of manual grinding and inspections, we are careful and ingenious, only to create a more stable and reliable optical machine product. To help your experiment, teaching and research and development projects go smoothly.
