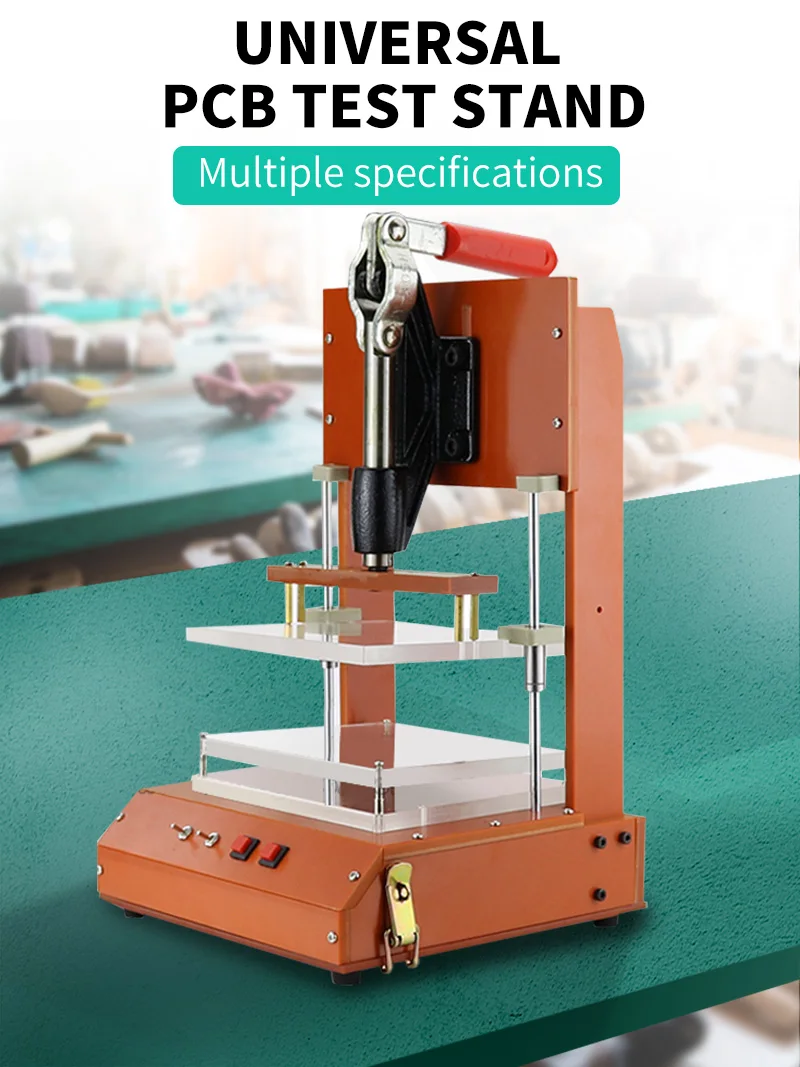

PCB Testing Jig PCBA Test Fixture Tool Universal Test Frame Bakelite Fixture Testing Rack Circuit Board Test Fixture Pin Plate

Description:

The test rack of each model contains the corresponding ABC board, such as FC80X50X42, which contains 80X50X42ABC board.If you need to purchase ABC board separately, please contact customer service to purchase it!

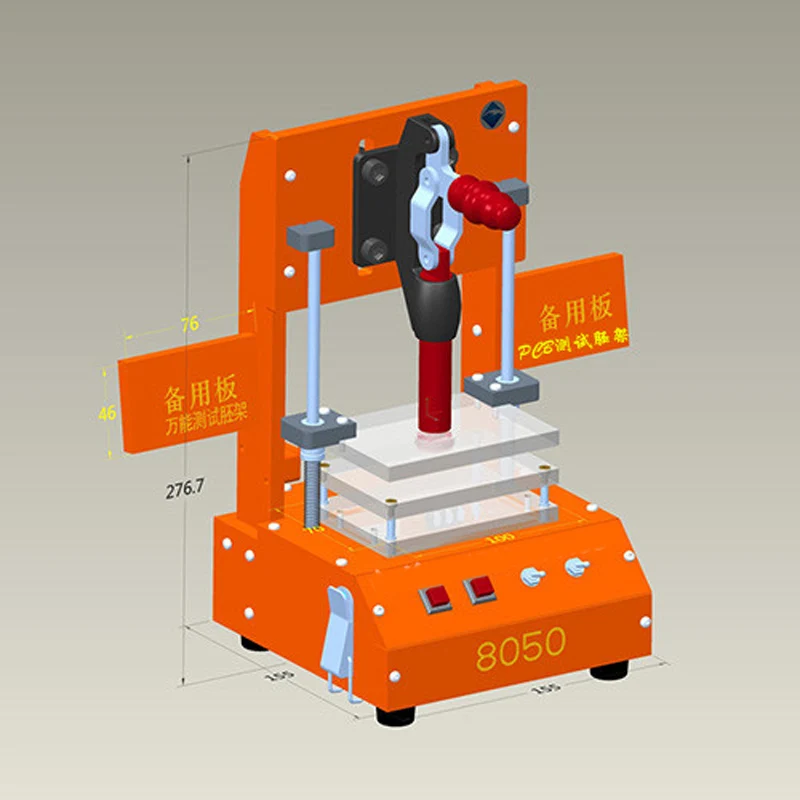

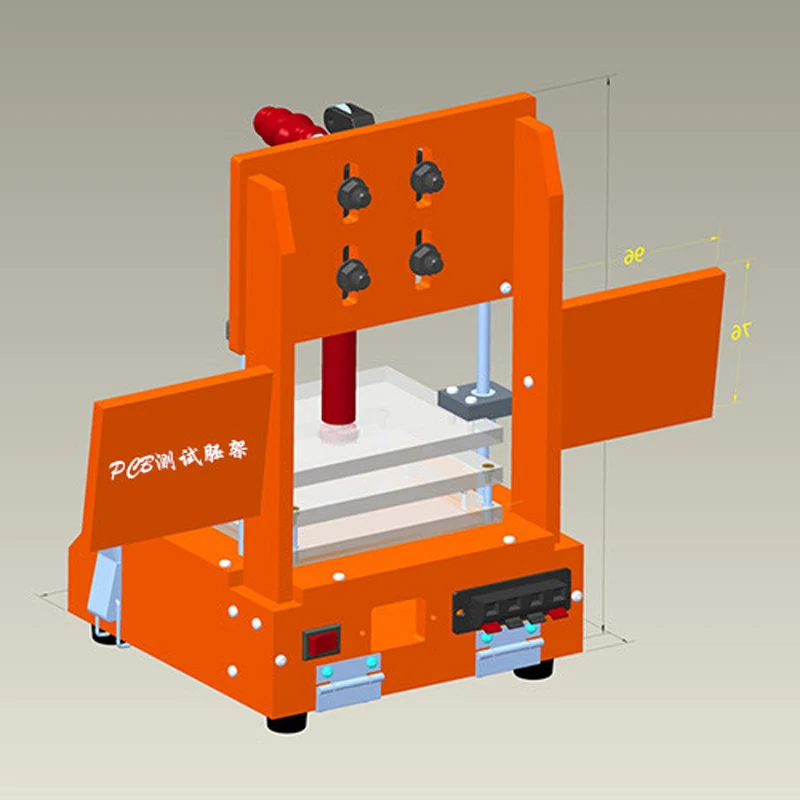

The FC80-50-42 can be tested with a PCB board with a maximum size of 80X50mm, and a PCB board within 80X50mm can be used to select the frame, and 42mm indicates the test schedule.If you need to test different PCB boards, you can process the ABC board and suggest several sets of ABC boards.

The material of ABC third board is: 8-10mm transparent acrylic sheet (80-50-42, 100-80-42, 130-100-42, transparent acrylic thickness is 8mm,150-130-60\180-150-60-240-180-60. 3 board transparent acrylic thickness is 10mm.)

The frame material is the electric wood, the express logistics is very safe

How to choose the embryo frame:

The size of the circuit board is within 80*50mm, and the embryo frame of model 80-50-42 is selected;

Within the size of 100*80mm, select the frame of 100-80-42 type;

Within the size of 130*100mm, select the 130-100-42 type embryo frame;

Within the size of 150*130mm, select the frame of 150-130-60;

Within the size of 180*150mm, choose the 180-150-60 type embryo frame;

Within the size of 240*180mm, choose the 240-180-60 type of embryo frame;

If the size is larger than 240*180mm, contact customer service and give you a private order!

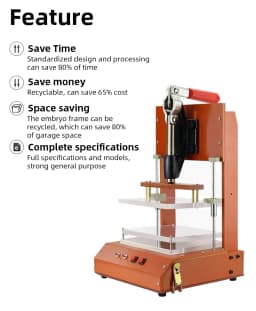

Feature:

1. The cover can be opened to facilitate the welding line;

2. Replace the A, B, C board for easy replacement

3. The distance between B and C board is adjustable;

4. The positioning pin has insufficient elastic force, and 4 holes are reserved for convenient increase;

5. Standard fitting hole position, accessories are free to choose;

6. The C board adapter plate can be rotated by 90°.
