For drilling, grinding, polishing, polishing and engraving, high precision ER16 idle spindle

Description:

This ER16 Idle Spindle delivers exceptional precision for demanding applications like drilling, milling, grinding, polishing, and engraving. The core spindle is heat-treated and precision ground, featuring a locking nut for secure tool retention. Housed in a robust aluminum alloy body with a baked enamel finish, it ensures durability. The tail end provides a dedicated pulley mounting shaft (10mm Ø x 30mm L).

Engineered for ultimate accuracy, it utilizes two step-flange bearings paired with a fine-thread lock nut system, eliminating play and ensuring zero backlash operation.

Requires standard ER16 collets (sold separately) for holding tools from 1mm to 12mm diameter. Specify your needed collet size(s) upon order. Achieve remarkable concentricity: within 0.02mm with AA-grade collets, or ultra-precise 0.008mm runout with UP-grade collets.

Mounting is simple via the four holes (38mm x 54mm pattern). The package includes the spindle, M5 mounting screws, and two essential wrenches.

Note: Collets are NOT included. Worldwide standard ER16 collets must be purchased separately.

Features:

Premium Spindle Construction:

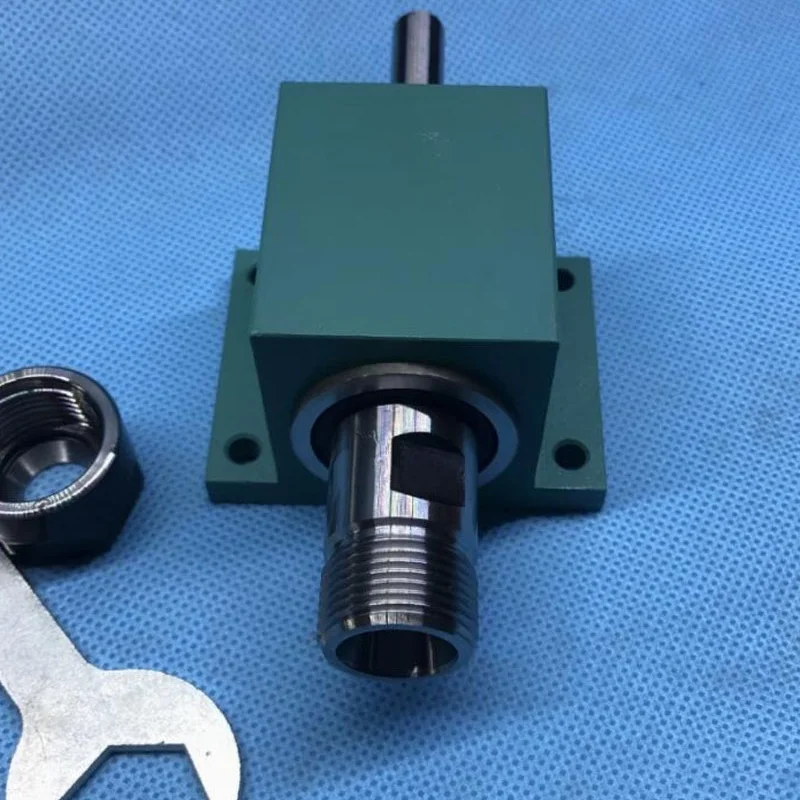

Heat-treated, fully ground precision spindle with lock nut design.

Durable Housing:

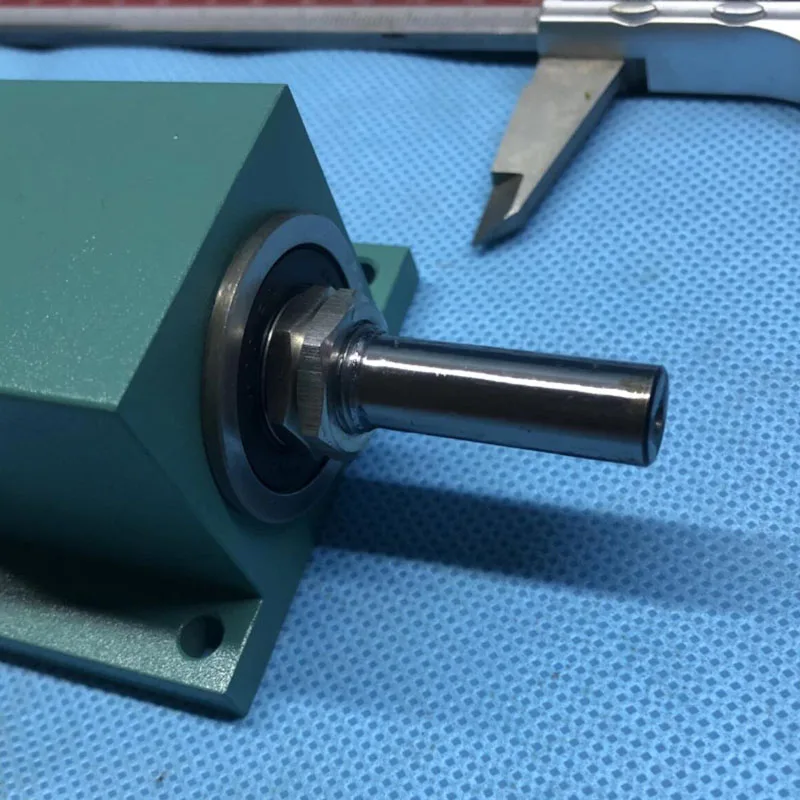

Aluminum alloy spindle box with baked paint finish. Precisely bored inner chamber. Tail end features a 10mm diameter x 30mm long pulley mounting shaft.

Zero Backlash Bearing System:

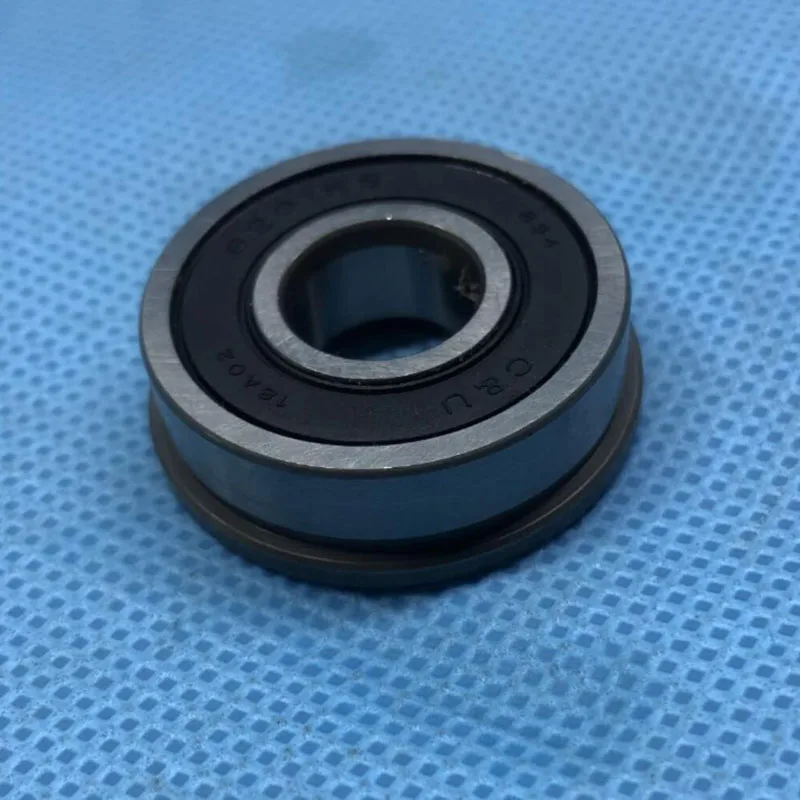

Equipped with 2 step-flange bearings and fine-thread lock nuts for zero clearance and zero play.

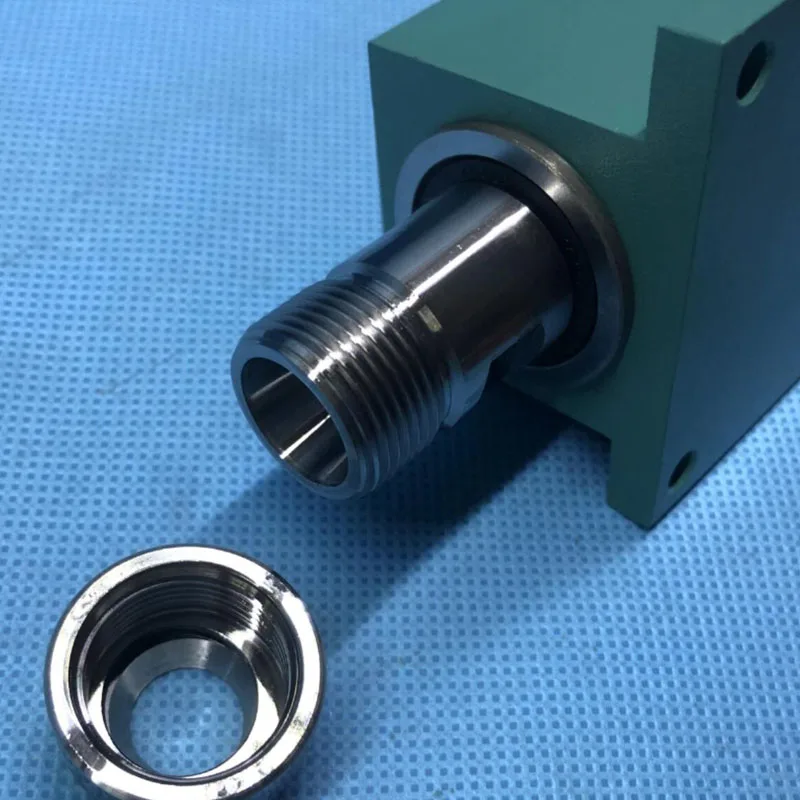

ER16 Collet Compatibility:

Compatible with standard ER16 collets (sold separately).

Supports collet sizes: 1mm - 12mm (Individual collets available per mm increment).

Specify required collet size(s) when ordering.

Achievable Runout:

Within 0.02mm using AA-grade collets.

As low as 0.008mm using UP-grade precision collets.

Easy Mounting:

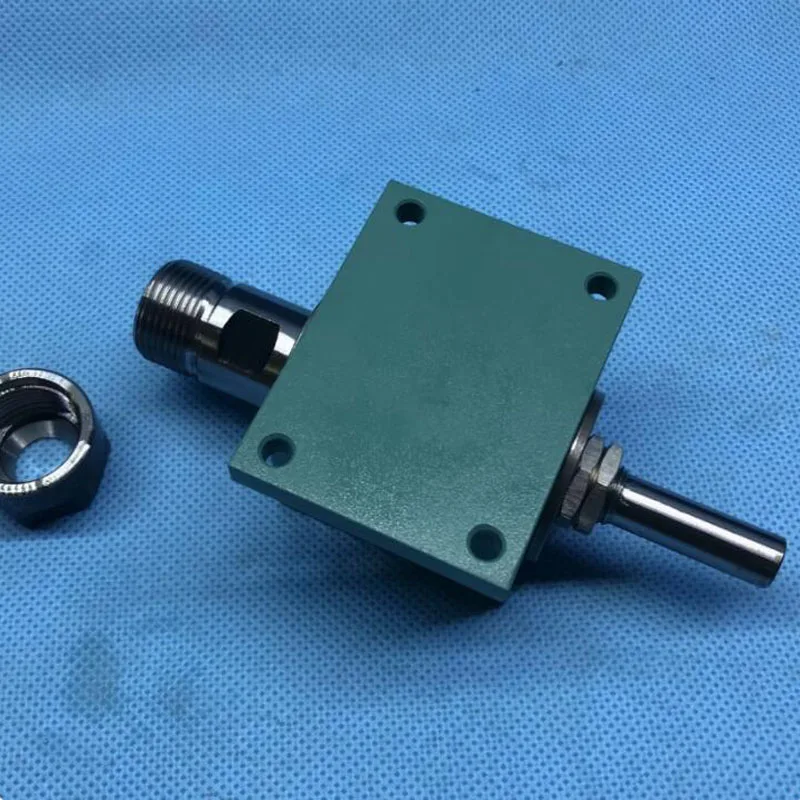

Features 4 mounting holes with 38mm x 54mm center-to-center spacing. Includes M5 mounting screws.

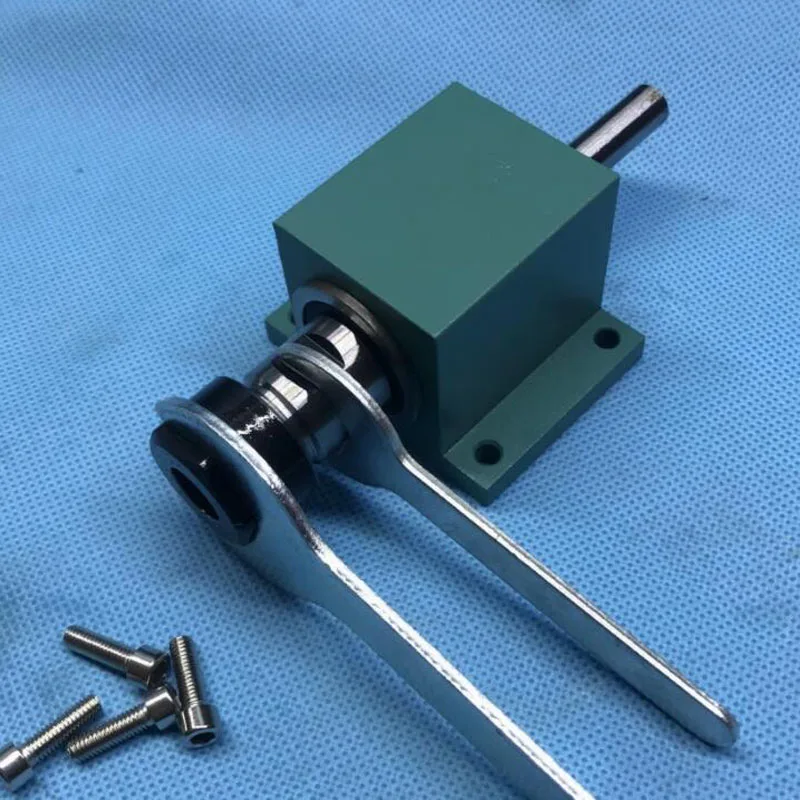

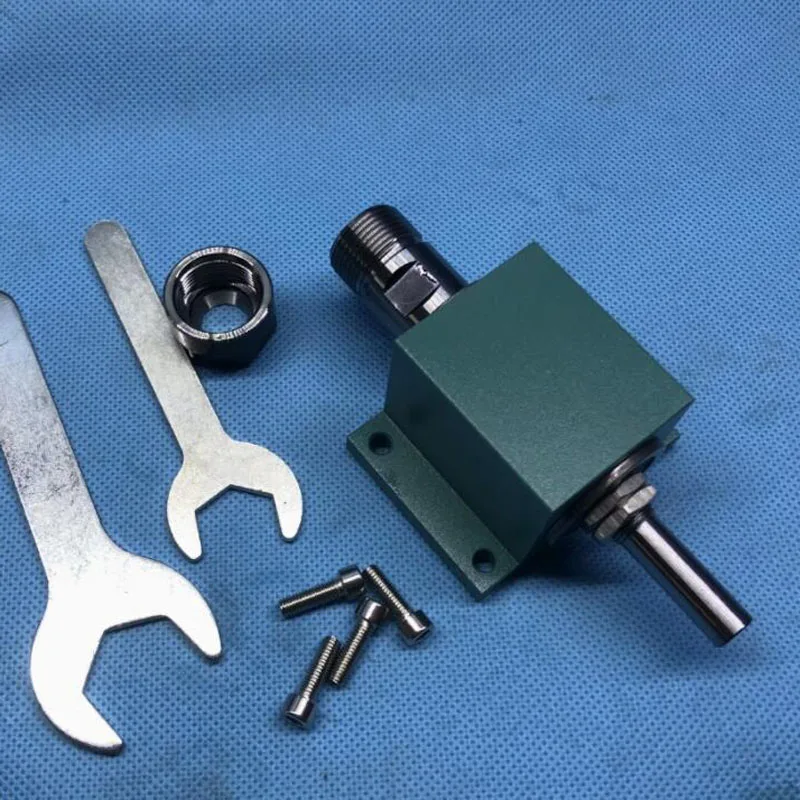

Package Includes:

1 x ER16 Idle Spindle

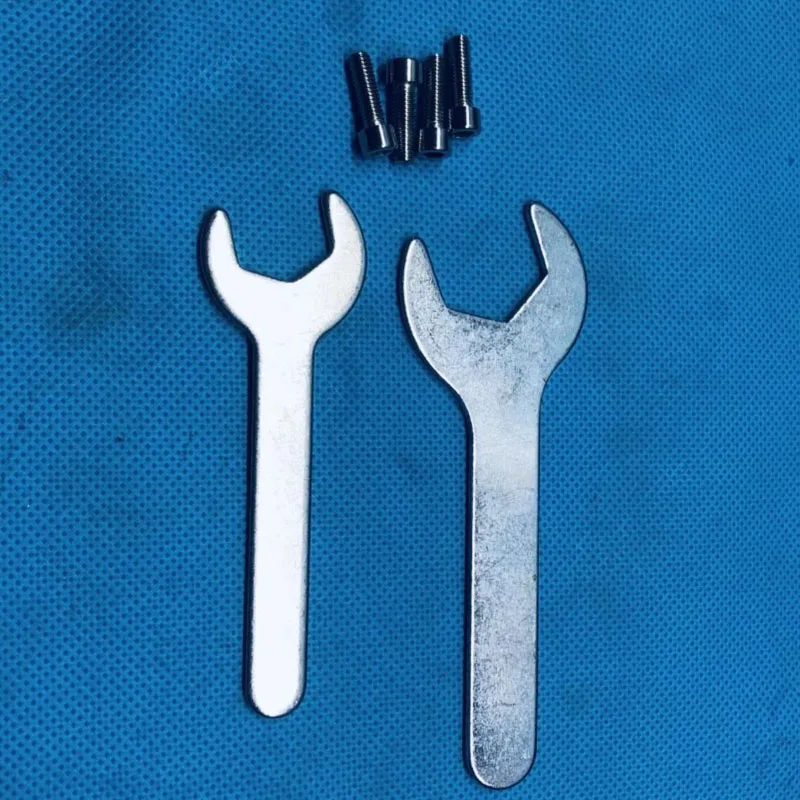

4 x M5 Mounting Screws

2 x Wrenches (for spindle nut)
