CA-XC Series Rotating Magnetic Post Support Magnetic Base Optical Scientific Research Experiment Support Frame Adjusting Frame

For better communication, please add a Skype account or send an email to the mailbox. We will see the message and reply you as soon as possible.

Skype account:

[email protected]

Email:

[email protected]

Product information

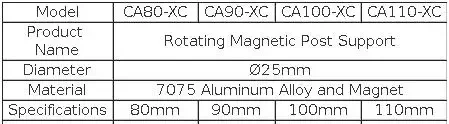

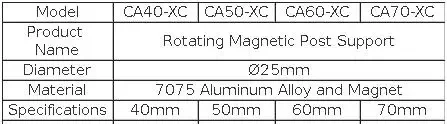

CA30-XC , Height：30mm

Characteristic

►The universal post bracket has a rotating fork press block and a magnetic base for easy alignment;

►The spring-loaded thumb screw fixes the post before the final locking;

►360°rotating base for easy installation;

►The post can be raised and lowered through the base of the bracket to make the beam height the lowest;

►The magnet of the base provides clamping force before being fixed to the optical table;

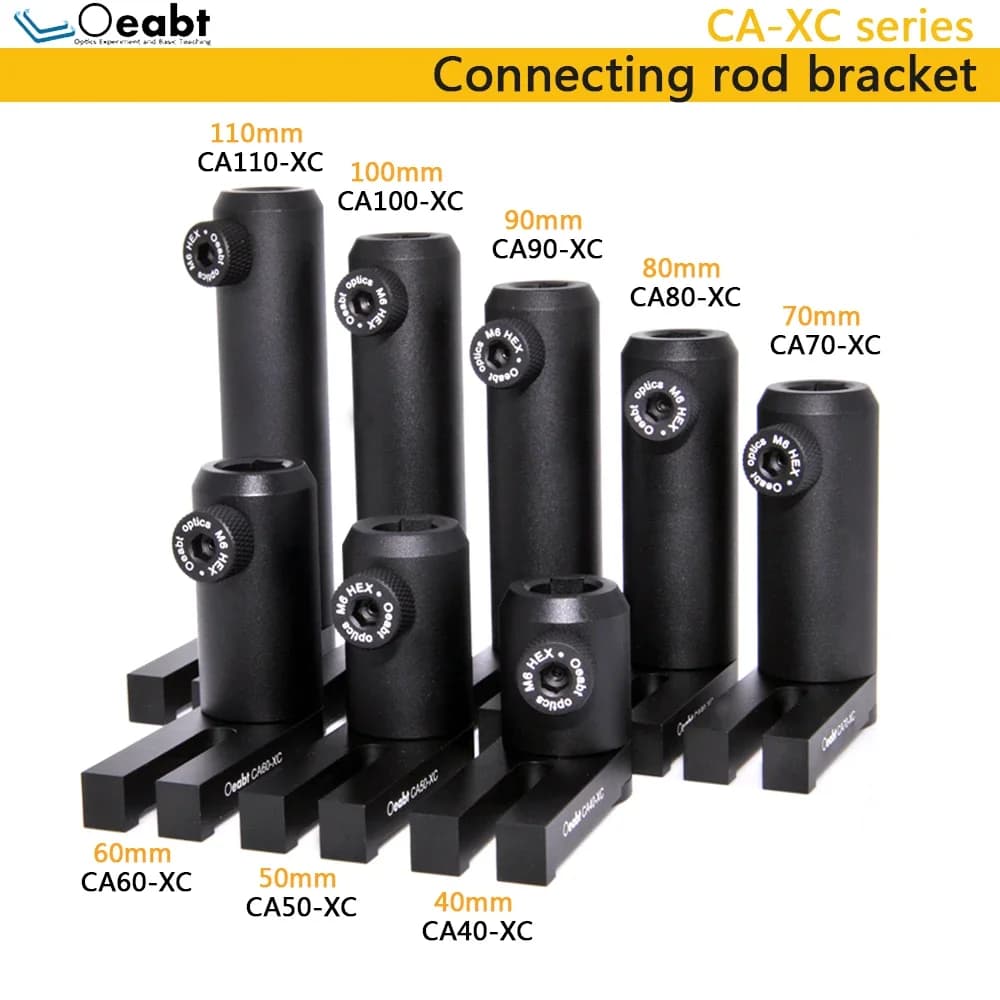

►The height of the bracket is 30mm~100mm, suitable for use in different free spaces;

Description

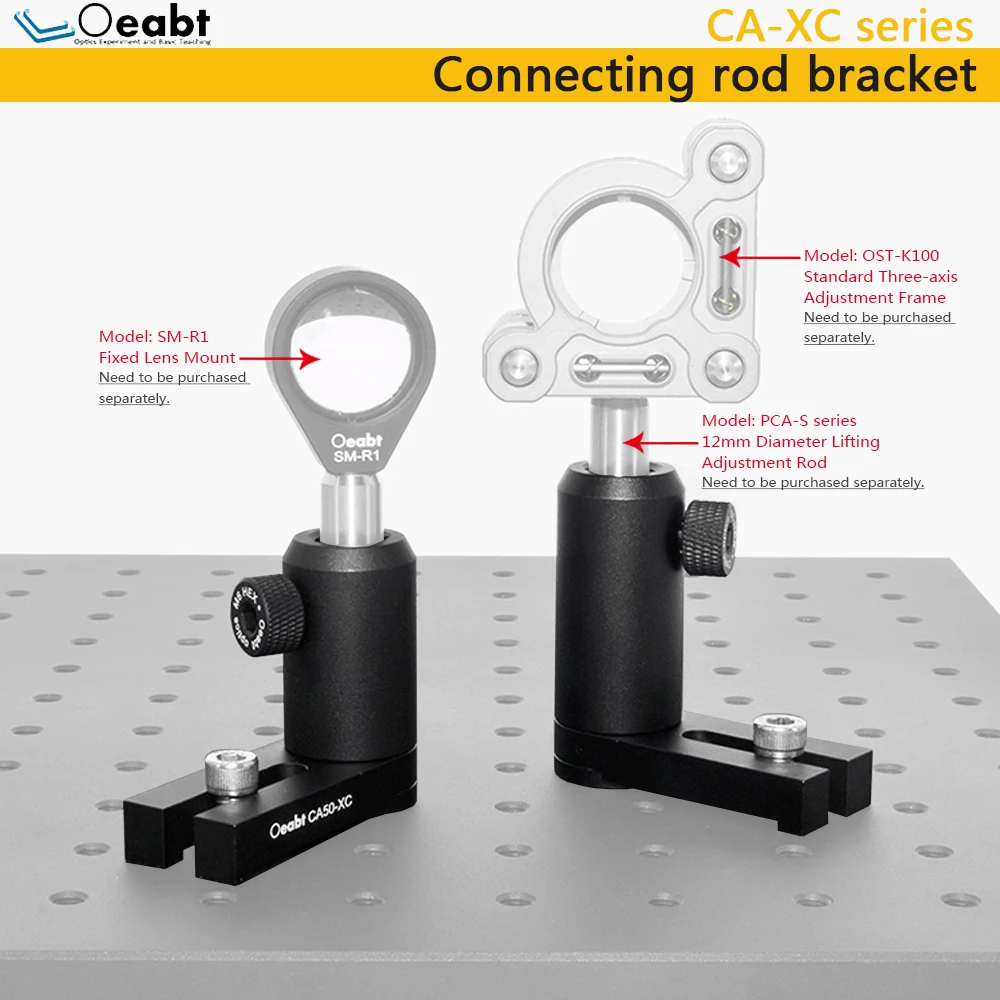

(1) These post brackets use a rotating base, which can be installed between multiple mounting holes on the breadboard. The magnet at the bottom of the base helps provide clamping force for rough optical alignment before final locking, making it collinear with the mounting holes on the optical table. The 360° rotating base can add rotation and magnetic positioning functions to the post bracket, which can minimize the time for users to assemble the optical system.

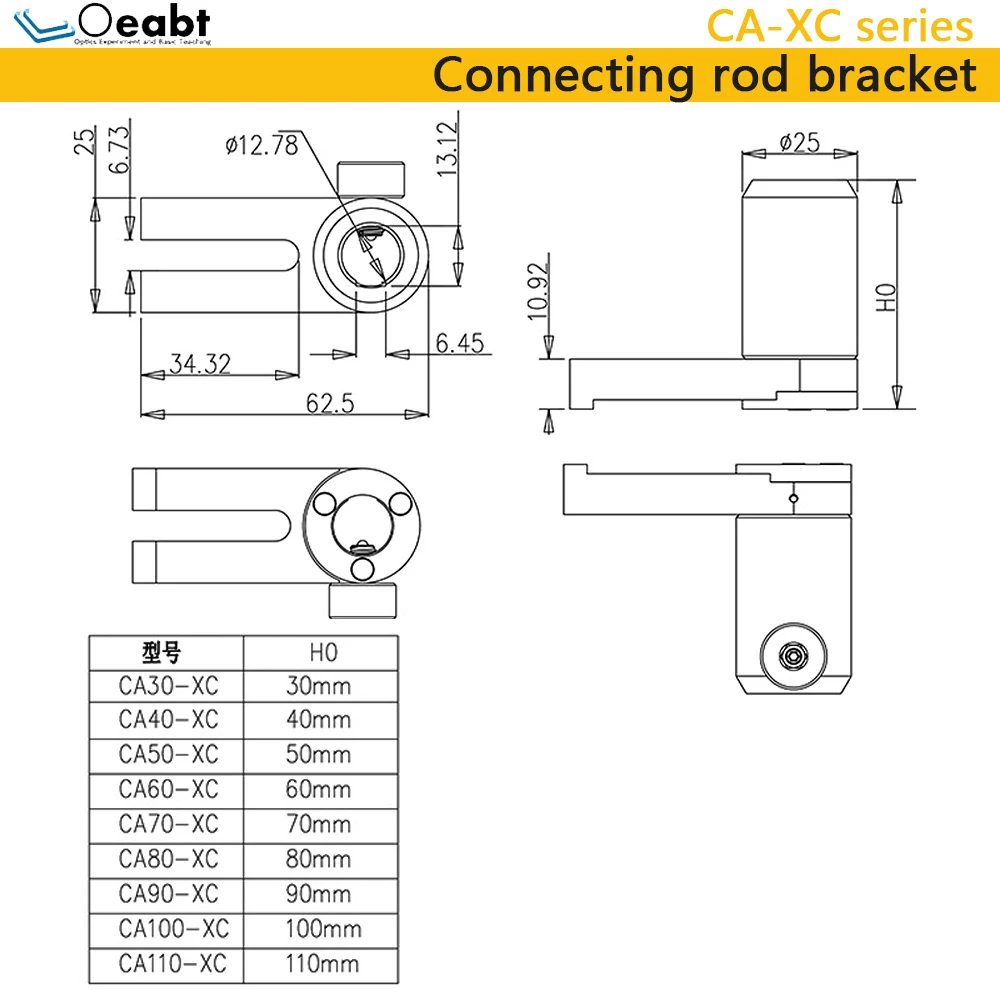

(2) In addition, the base is a recessed structure with a direction perpendicular to its length. In terms of height adjustment, the hollow base allows the Ø12mm post to contact the optical table, maximizing the height adjustment of the post. The groove can provide a highly stable two-wire

contact between the post and the post holder. Other post brackets that do not have a square groove design have a smaller fixing force, and the post will slide down over time.

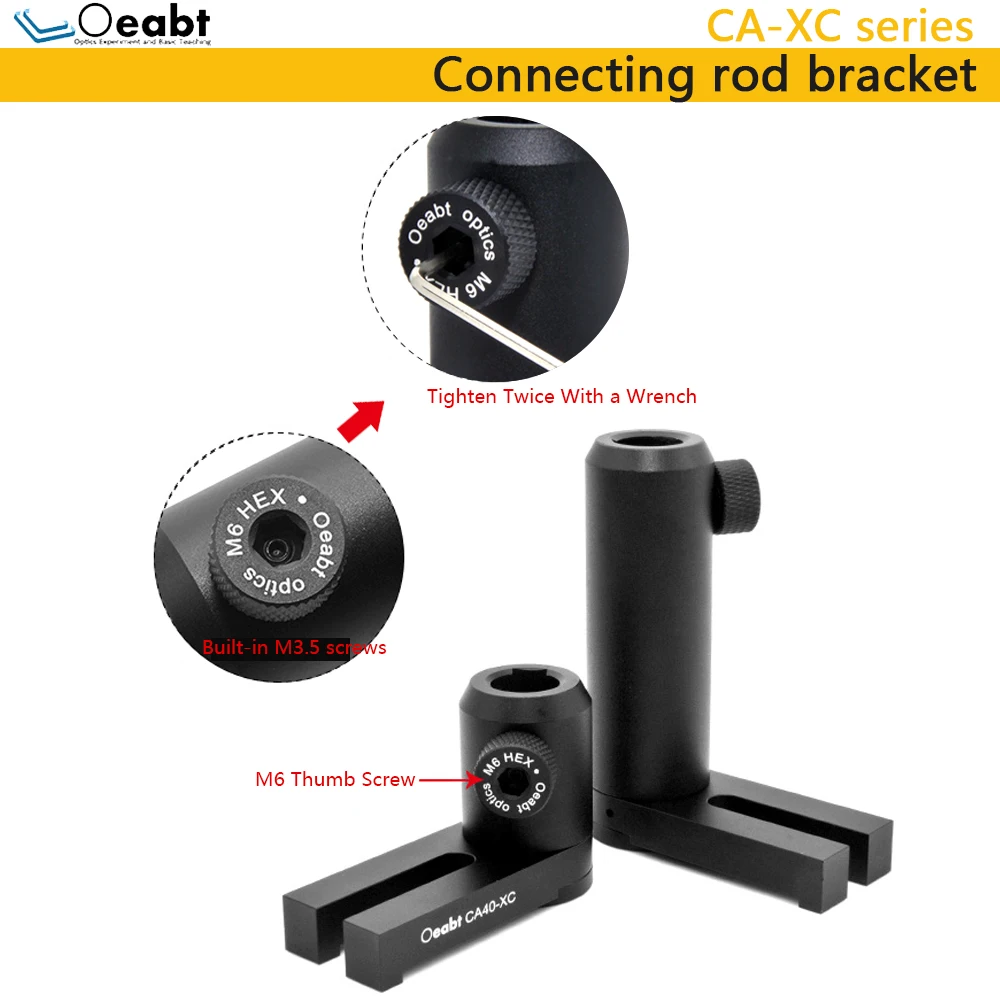

(3) Each post bracket comes with an M6 hexagonal spring-type thumbscrew. It is recommended that the maximum torque does not exceed 3.2Nm (the tendency of the force to rotate the object around the axis of rotation or fulcrum is called torque. Rotation torque) Also called torque.). Tighten the thumb screw to fix the height position of the post;
