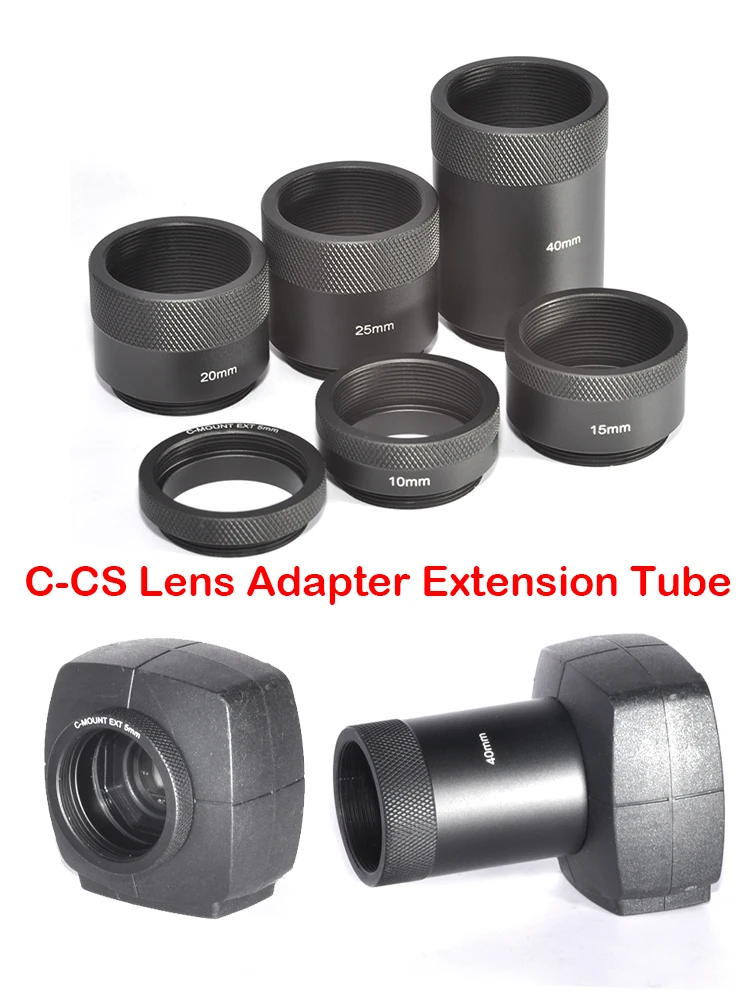

C-CS MOUNT Extension Tube Adapter 5 10 15 20 25 40mm C-Mount Adaptor Spacer Ring For CCTV Lens and Industrial Camera Lens

The same range extender ring, the product is the same, only the marking text is different. Welcome to order.

https://vi.aliexpress.com/item/3256807817865737.html?gatewayAdapt=glo2vnm4itemAdapt

Function

1. The camera is CS-Mount and the lens is C-mount, which makes the interface consistent and also increases the focal length.

2. Both the camera and the lens areC-mount, thus increasing the focal length.

3. Can directly install Ø 23mm optical components, compatible with SM1 cage systems using C-SM1 conversion rings.

4.This extension tube does not come with a C-Mount snap ring, please purchase itseparately if needed.

Characteristic

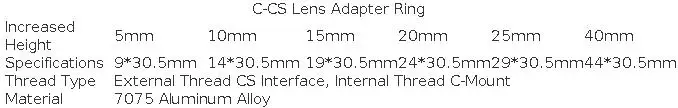

1.Different height specifications are: 5/10/15/20/25/40mm

2.Simple distinction between lens C interface and CS interface: Classification by lens installation. All camera lenses are threaded. There are two industrial standards for camera lens installation, namely mounting base and mounting base. The threaded parts of both same.

3.This series of adapters is 7075 Aluminum Alloy. It has fine workmanship and good quality. The lens extension tube is non-slippery, does not chip or paint. It is suitable for both video surveillance and industrial vision. When the lens is not focused clearly, you need to find the rear focus. At this time, the conversion between interfaces is realized through the connecting circle, and the best image presentation is

achieved.

4.It is suitable for surveillance camera C port, but uses CS lens, so this adapter ring is used at this time. What is C-CS C-CS lens adapter ring - C-type mount from base plane to focus The distance from the focal point is 17.562 mm, and the distance from the focal point of the CS type is 12.5 mm. If you want to attach a mount lens to a mount camera, you need to use a lens adapter. This converter is called a C-CS lens adapter ring.

    5. But the distance from the lens to the photosensitive surface is different between the two. The two main lens mountingstandards are C-       mount and CS-mount. They both have a 1-inch thread and look similar. The difference lies in the distance between the lens and the sensor

after the lens is installed on the camera.
