Geophone Element 4.5Hz

Horizontal

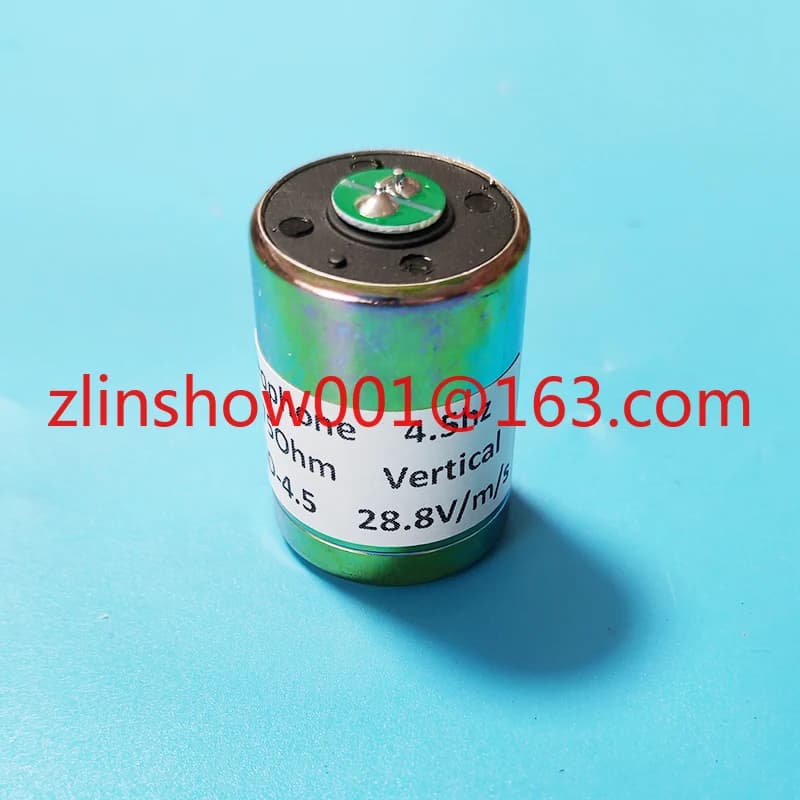

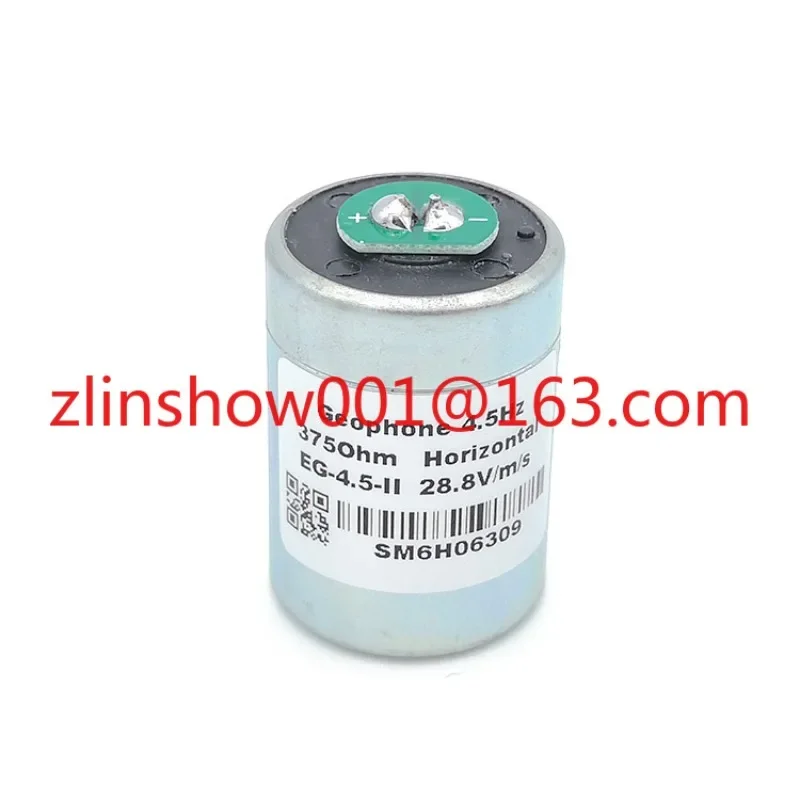

The geophone 4.5hz (EG-4.5-II) is a conventional type of moving coil geophone with small

error in working parameters and stable and reliable performance. The structure is reasonable in design, small in size and light in weight, and is suitable for seismic exploration of strata and geological environments of different depths.

It is equivalent to SM-6 B coil 4.5hz geophone.

Widely used in industrial vibration-monitoring systems.

Ideal choice for shear-wave horizontal elements.

Geophone Response Curve and Phase Lag of Geophone 4.5Hz

Specification

All parameters specified here in are rated at a temperature 20鈩�±2鈩� .

Type

EG-4.5-II

Natural Frequency ( Hz )

4.5±10%

Coil resistance(Ω)

375±5%

Damping

0.6±5%

Open circuit intrinsic voltage sensitivity ( v/m/s )

28.8 v/m/s ±5%

Harmonic distortion ( % )

鈮�0.2%

Typical Spurious Frequency (Hz )

鈮�150Hz

Moving Mass ( g )

11.3g

Typical case to coil motion p-p ( mm )

4mm

Allowable Tilt

鈮�20º

Operating Temperature Range ( 鈩� )

-40鈩� TO +100鈩�

Height ( mm )

36mm

Diameter ( mm )

25.4mm

Weight ( g )

86g
