Mini DC Brushless Permanent Magnet Geared Motor Hall Drive High Speed Motor DC 12V 24V Built-In Drive BL4260

Specification:
Product Name: Mini DC Brushless Permanent Magnet Geared Motor
Model: BL4260
Voltage: DC 12V/24V (Optional)
Speed: 3000RPM-10000RPM (Optional)

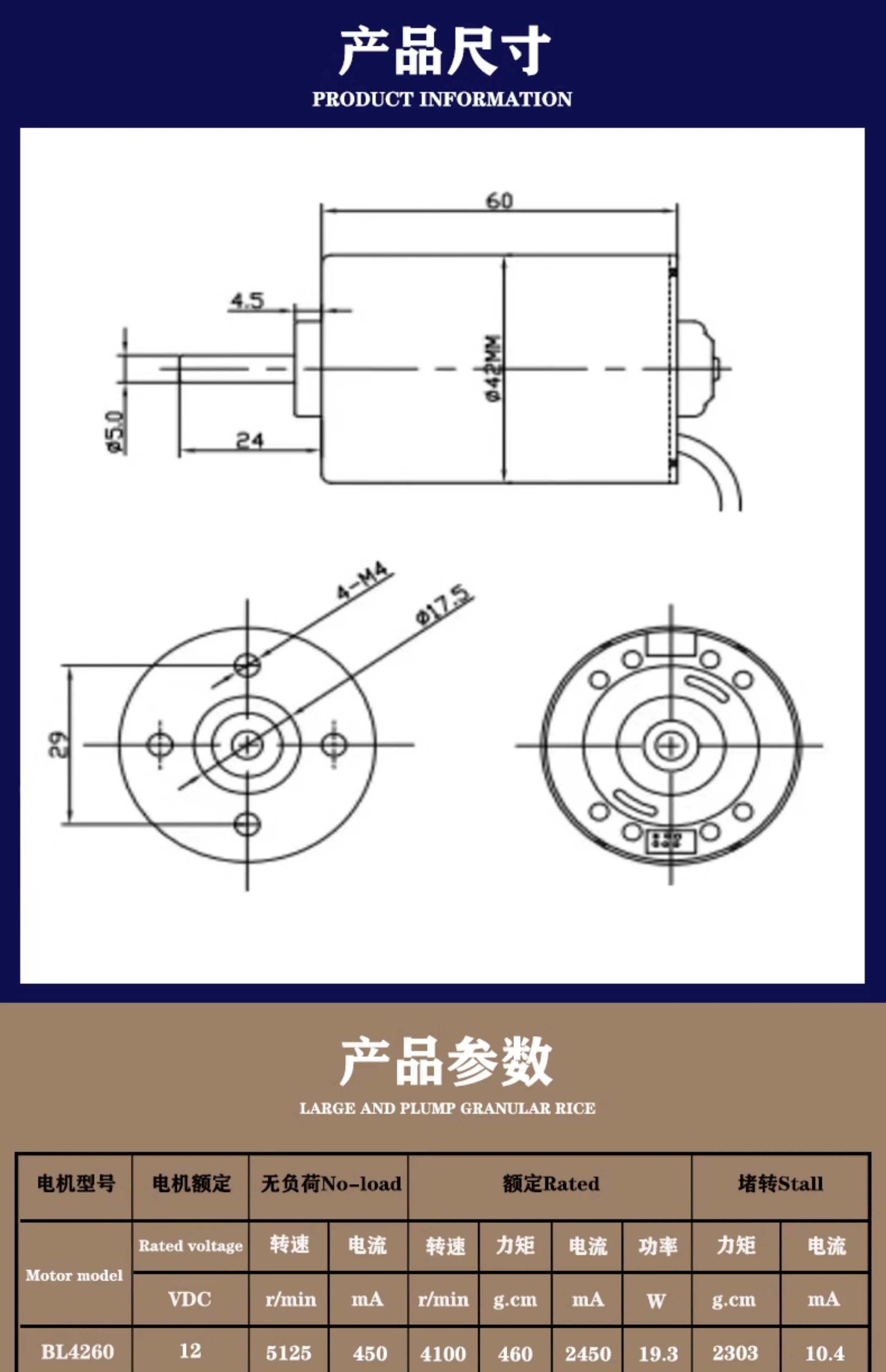

Output shaft length: 24MM
Output shaft diameter: 5MM
Weight: 295G

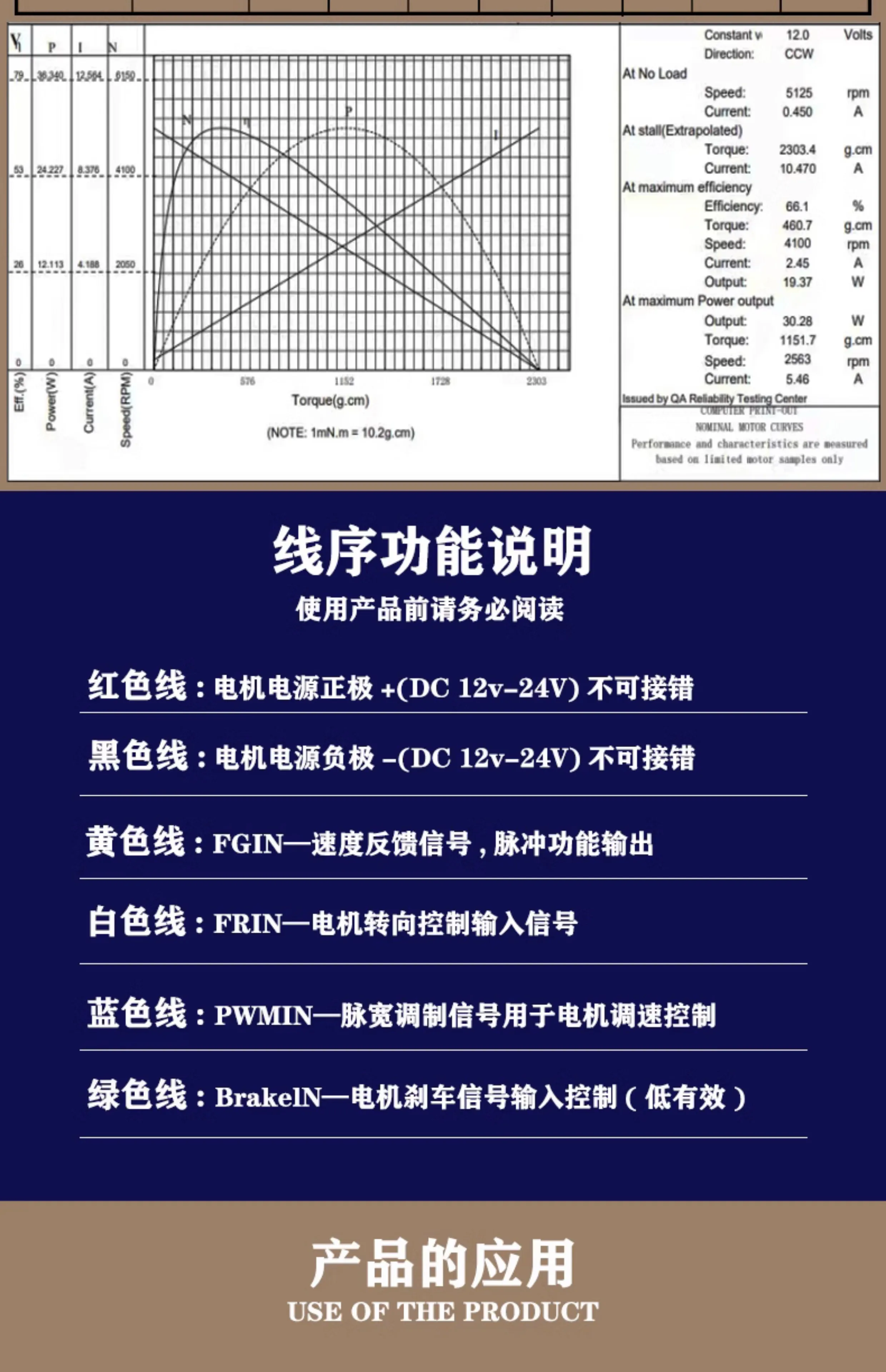

Line Sequence Function Description:
Please be sure to read before using the product
Red line: Motor power positive pole + (DC 12v-24V) Do not connect incorrectly
Black line: Motor power negative pole - (DC 12v-24V) Do not connect incorrectly
Yellow line: FGIN-speed feedback signal, pulse function output
White line: FRIN-motor steering control input signal
Blue line: PWMIN-pulse width modulation signal for motor speed control
Green line: BrakeIN-motor brake signal input control (low effective)
Feature:

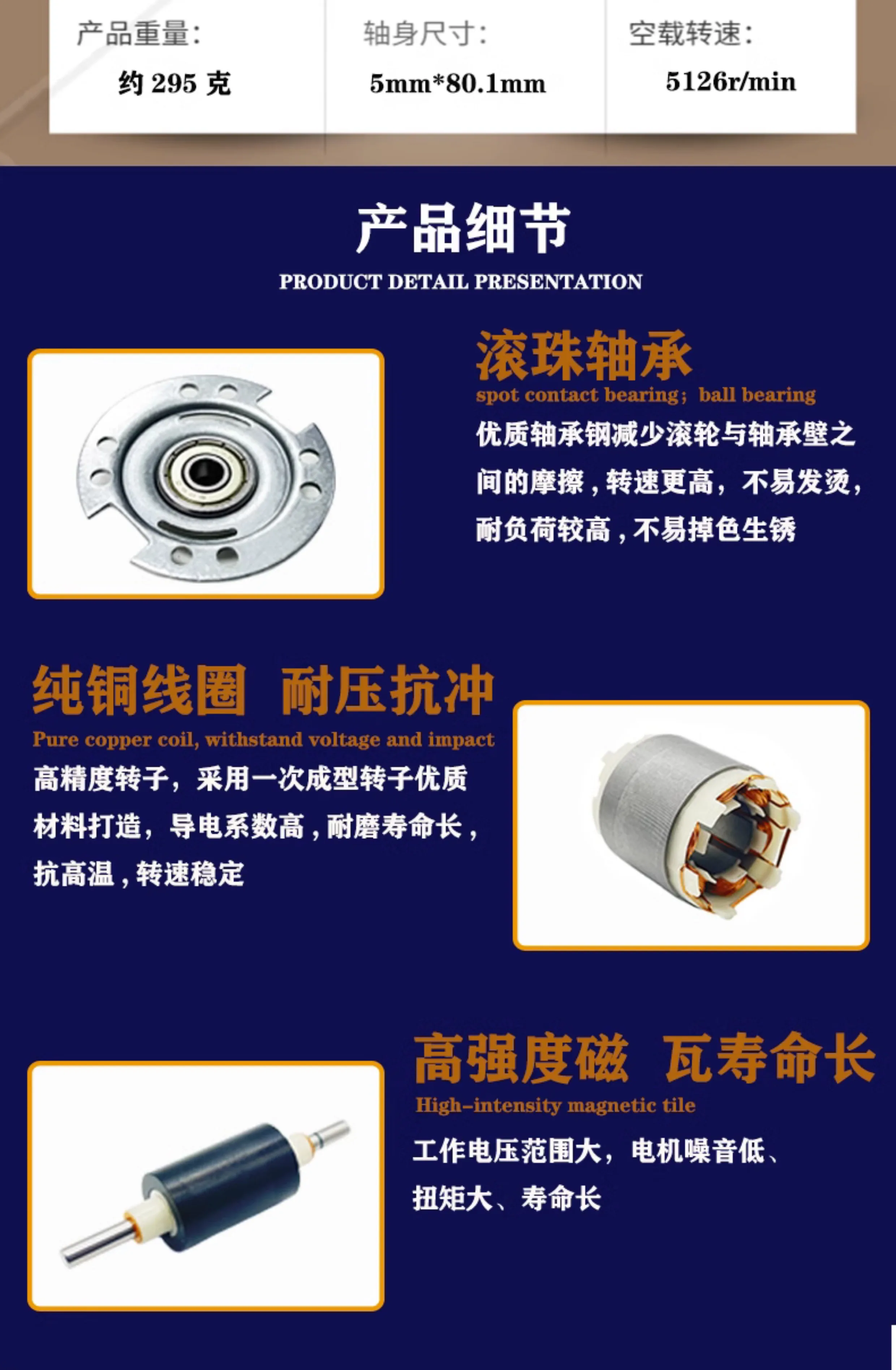

1.High quality steel ball bearing.
2.Pure copper coil motor, high precision rotor, stable speed, high temperature resistance.
3.Flame retardant shell, safer to use.
4.Built-in drive, more convenient and efficient operation.
5.Various speeds available, wide range of applications.
