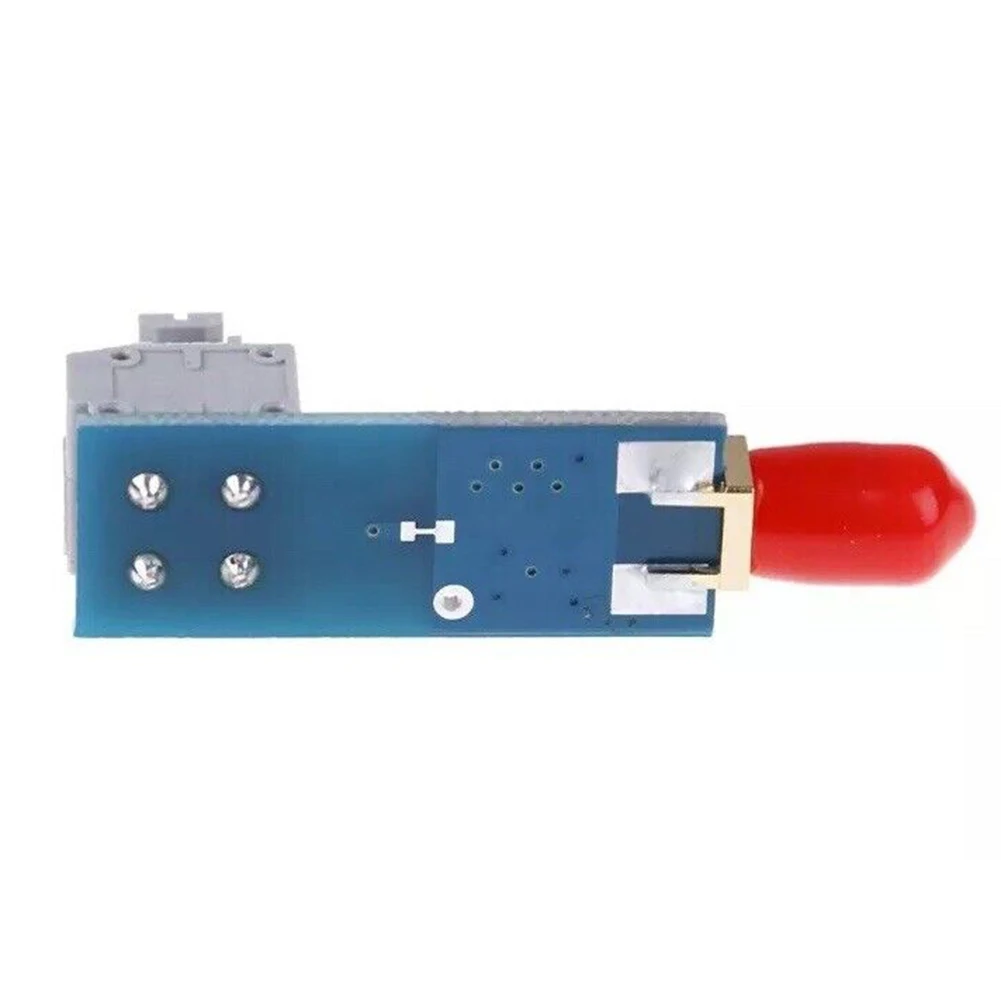

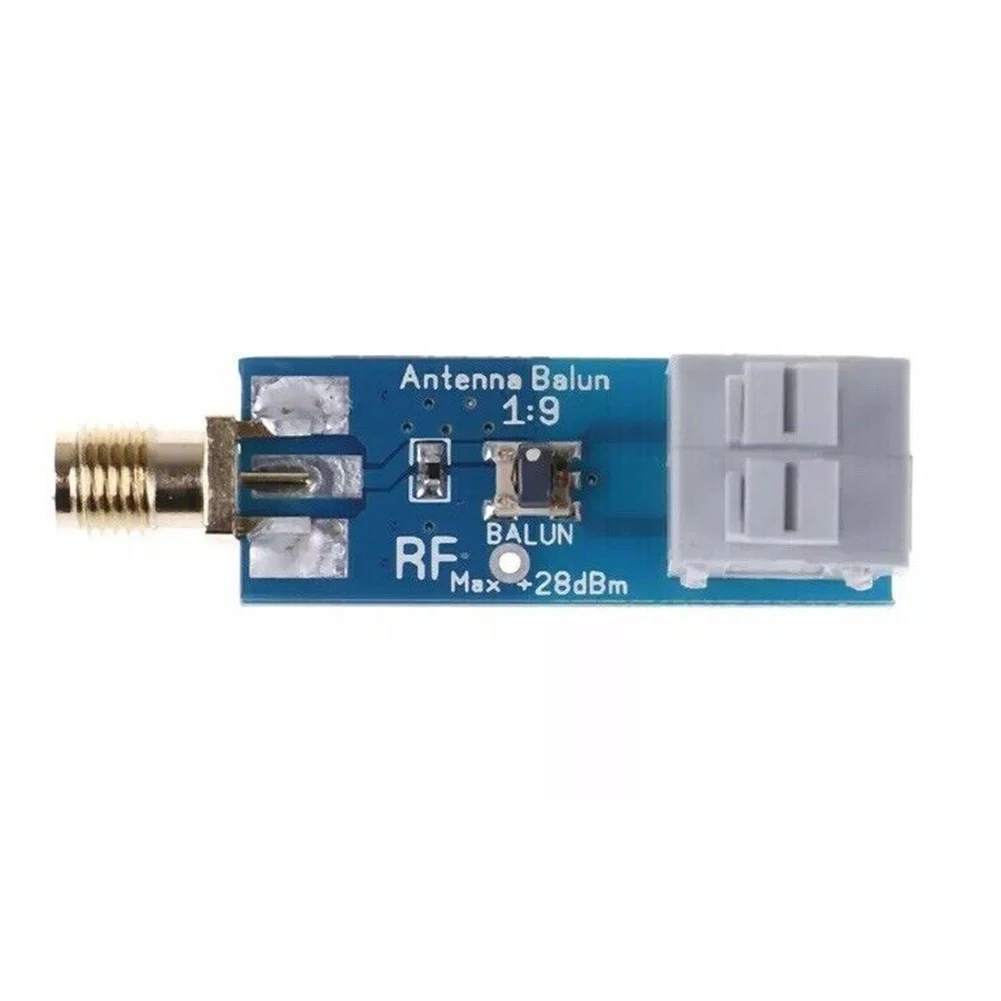

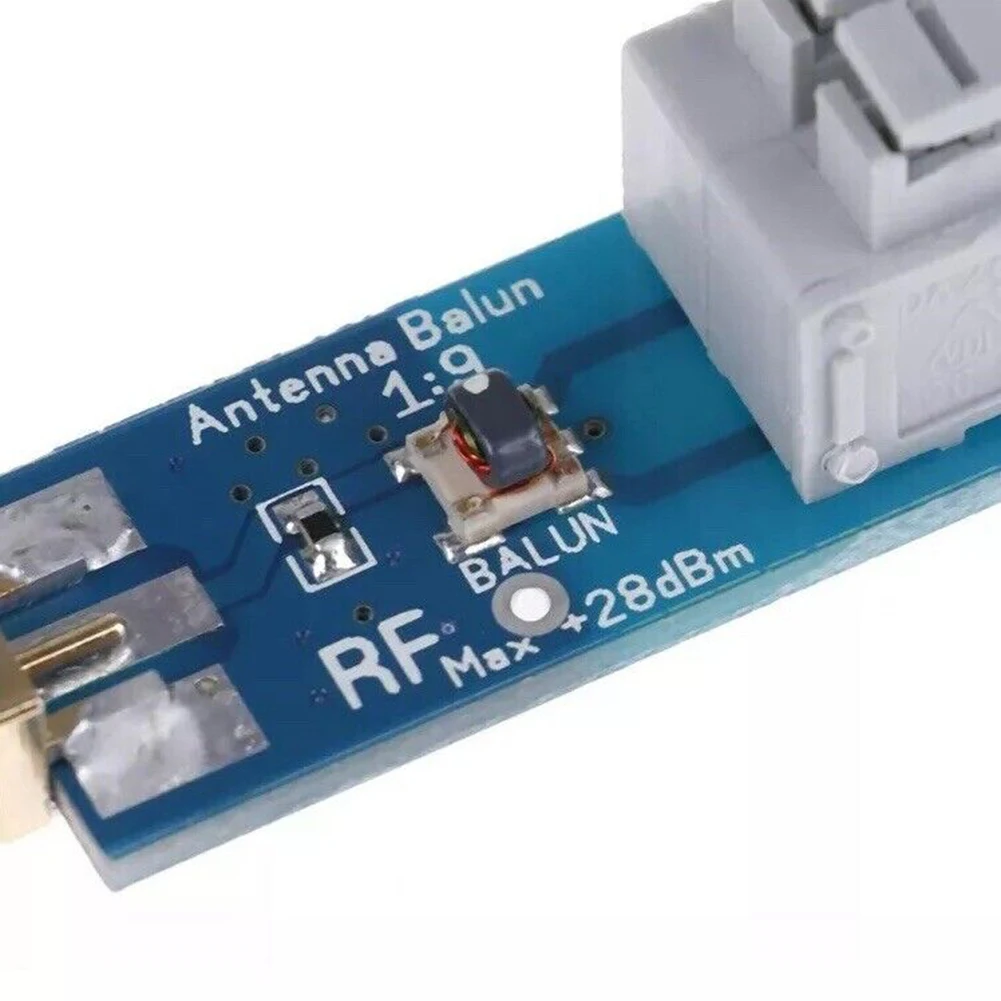

Balun 1:9 Long Wire High Frequency Antenna RTL-SDR Amp Lifier Radio Dipole SMA Female Module For High Frequency Antenna Balun

Features:
* Brand new and high quality
* Made of high quality materials, durable

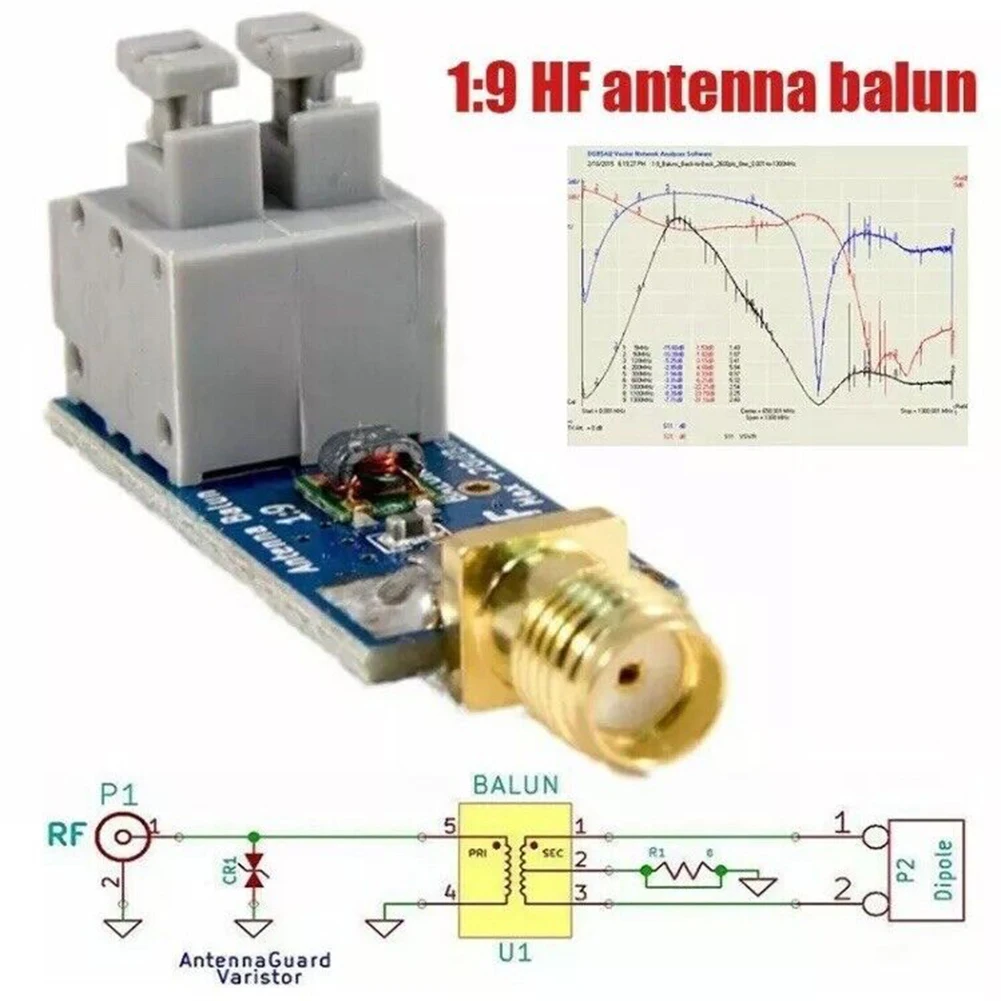

* This is a small, cost-effective balun. This 9:1 balun is a great way to connect long wires or dipoles to your Ham It Up or any other HF capable radio, it features an SMA output port and high quality spring type terminals for coaxial cables block input.
* The Balun O ne Nine includes an AntennaGuard varistor on the input to protect your SDR setup from stray ESD. ESD protection is excellent, passing the IEC61000-4-2 8kV contact discharge test with a response time of only 300ps.
* With overall dimensions of 39.2mm x 13.0mm (including connectors!), this balun is lightweight and saves your wallet.
* Extremely low insertion loss of -1.3dB (typ), maximum input power is +28dBm. Designed specifically for HF applications but accurately specified to frequencies up to 90MHz+.

Specification:
Model: Balun 19
Applications: High frequency antenna balun, SDR/amp lifier ESD protection
Antenna input: Spring-loaded terminal block

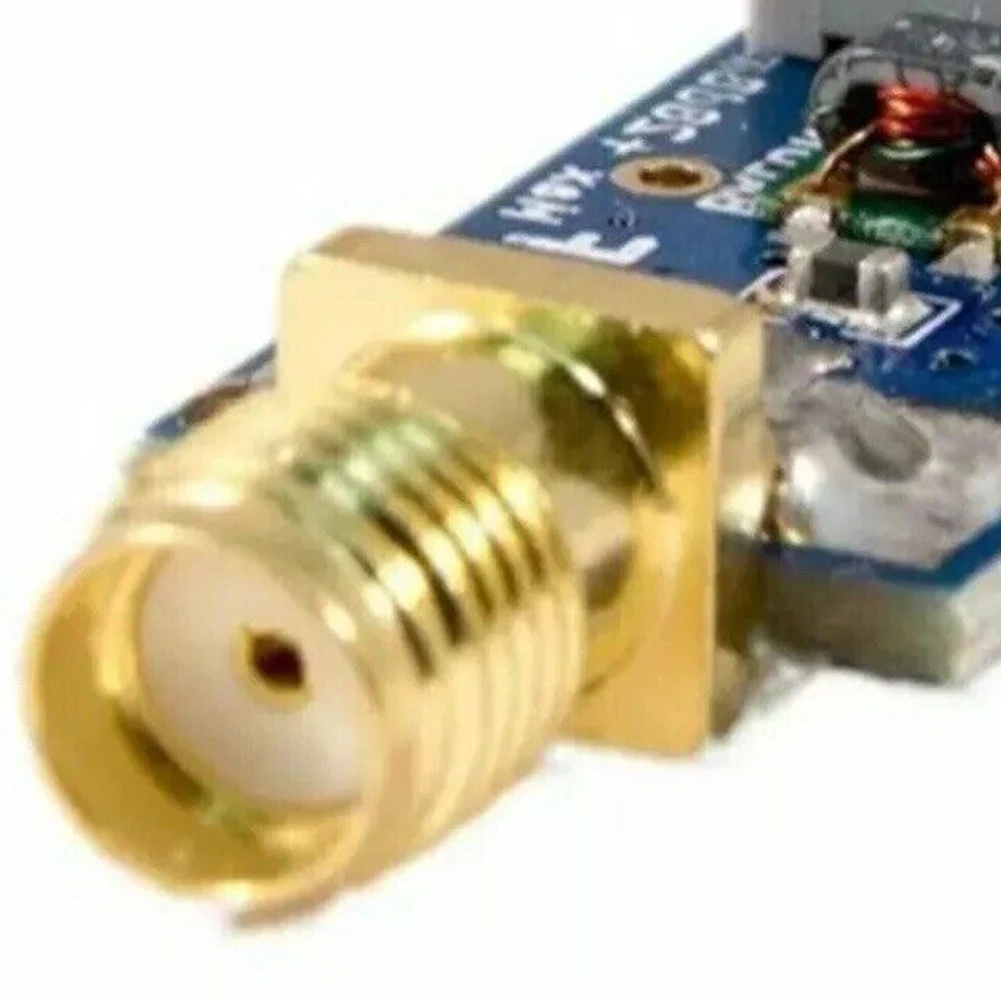

RF output: SMA female
Dimensions: 39.2mm x 13.0mm
Maximum input power: +28dBm
Can make cables up to 160M
Insertion loss is extremely low at -1.3dB (typ) and maximum input power is +28dBm. Designed specifically for HF applications but accurately specified to frequencies up to 90MHz+.

Package Included:
1 x Balun 1:9 Long Wire High Frequency Antenna RTL-SDR Amp lifier Radio Dipole SMA Female Module

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
