Acrylic PVC Plastic Strip Heater Bender Handheld Channel Letter Bending Machine with Bracket

Acrylic Bending Machine 800W Channel Letter Heater Plexiglass PVC Plastic Bender

Features and specifications:

Bending width: 30cm/60cm, free to choose

Voltage: 110V /220V

Power: 800W

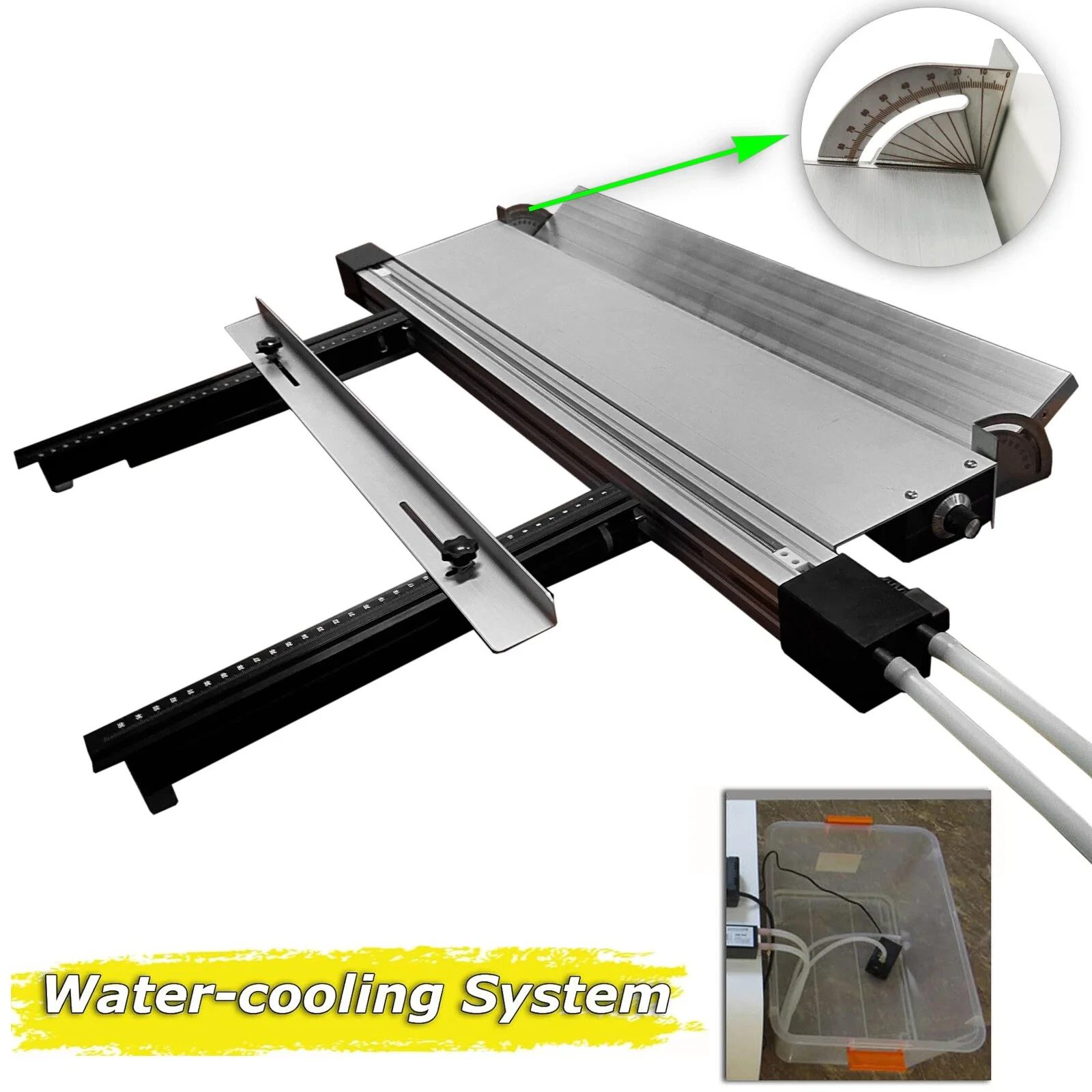

Cooling Form: Water Cooling

Material / Metal Processed: acrylic, Plexiglass PVC Plastic ABS PP

Working Thickness of Acrylic sheet: ≤6mm

- New type linear acrylic bending;

- Adopt  thermal insulation, space insulation, shell cooling and automatic air-cooled and other technologies;

- Easy to operate, environmentally friendly energy-saving, it can work 24 hours a day without maintenance;

- can be used alone or with the rack and backup plate.

Showcase

Acrylic hot bending machines are increasingly widely used in decoration engineering, label production, including square columns, door and window edges, display cabinets, fish tank edges, supermarket shelves, curtain walls, large light boxes, and other acrylic or plastic board bending.

At present, the common hot bending machines on the market are mostly multifunctional and large in size. However, hot bending processing often requires on-site processing according to the actual shape at the construction site. Moving a large hot bending machine to the construction site is indeed troublesome.

Therefore, we need a machine that is easy to carry and easy to operate. At the same time, it also solves the problem for users who want to buy an acrylic hot bending machine but do not want to occupy too much space in the store

Suitable for a wide range of materials, such as acrylic, organic boards, PVC materials, and various thermoplastic materials.

How to USE

The machine will produce some smoke from thermal insulation layer, please set Power regulator to 100 for few minutes after smoke disappear, then set  power regulation around 45-65 according to operation situation.

Note：we also can remove smoke in our factory, but the heating area will have burn mark.

Please put the heating wire into the bottom of the heating groove if heating wire off heating groove or  incorrect positioning and then operate machine

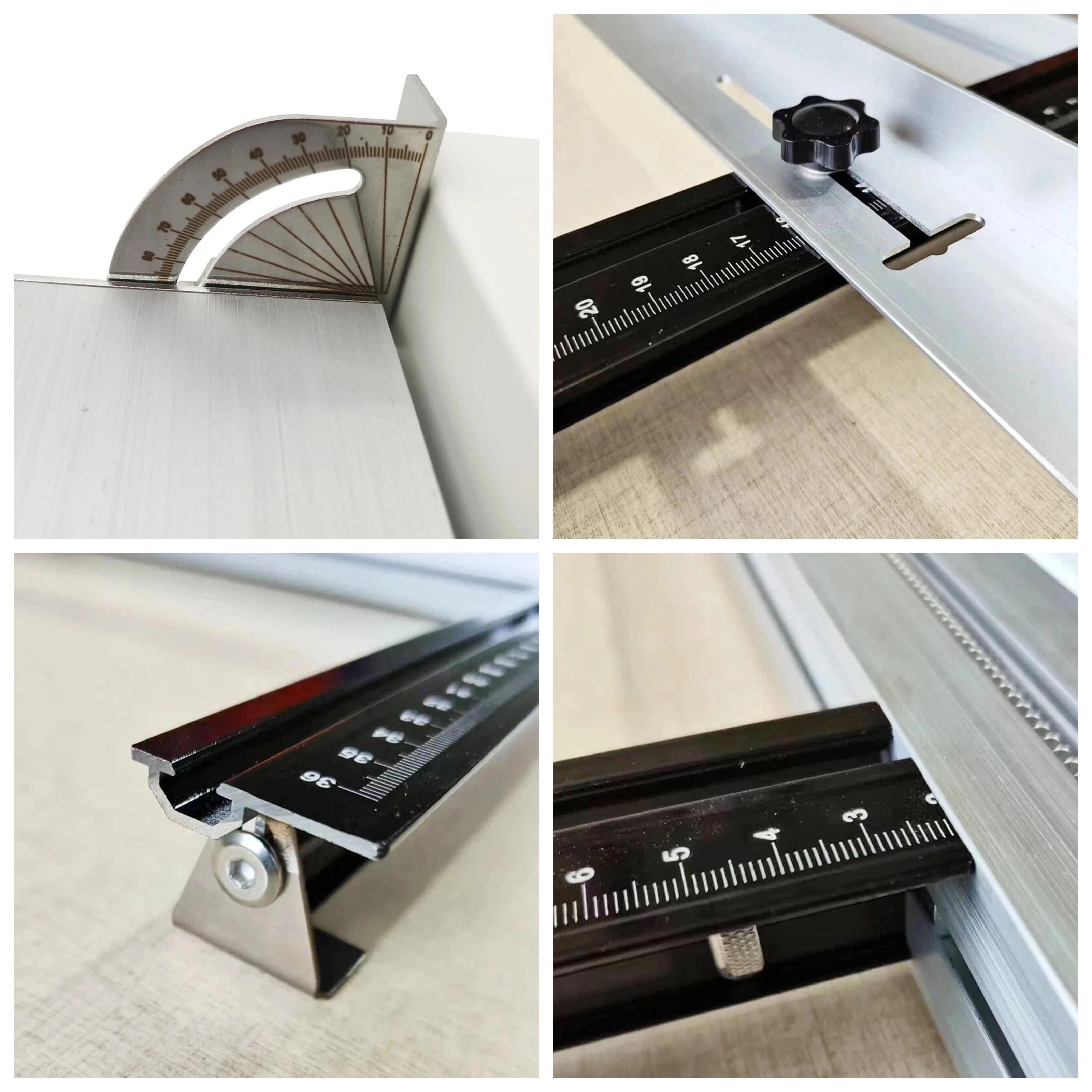

Adjust the ruler to 90° angle against linear heating groove

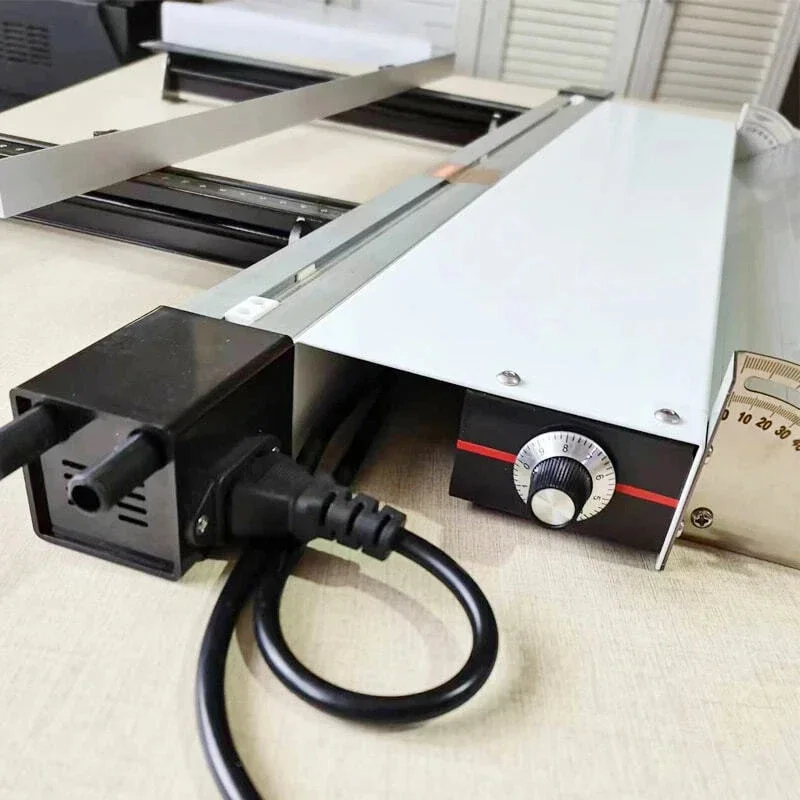

Plug Power cord in power outlet then the power regulation display light on, adjust it as 50-60 till heating wire to light red color

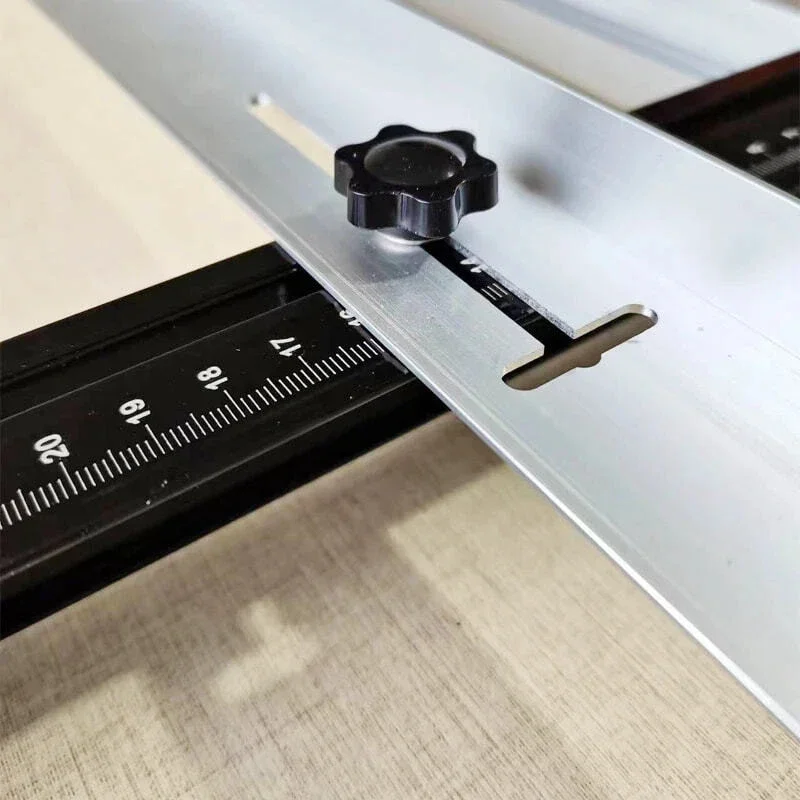

Put acrylic panel one side to guiding rule and align heating position at heating groove.

Waiting 20-30 seconds(May be different indoor temperature and machine setting) then the heating position soften to be bent, move acrylic panel away from machine and adjust bending angle on table.  The acrylic will take shape in few seconds.

Please unplug power cord after work.

The machine heater shell can be naturally cooled at 25℃ under rated power operation.

100% Heater power operation or ambient temperature is high and the case of heating temperature of the shell exceeds 50 ℃ ± 5 ℃, the heater will automatically open the air cooling and cooling device.

When the temperature of the heater shell drops below 35 ℃ ± 5 ℃, the cooling device will be shut down automatically.

The handle sleeve and the hex wrench for heating wire replacement, please keep it properly.

Quality guarantee and maintenance

Three-month quality guarantee for the heating components; one-year for other parts (willful destruction excluded).
