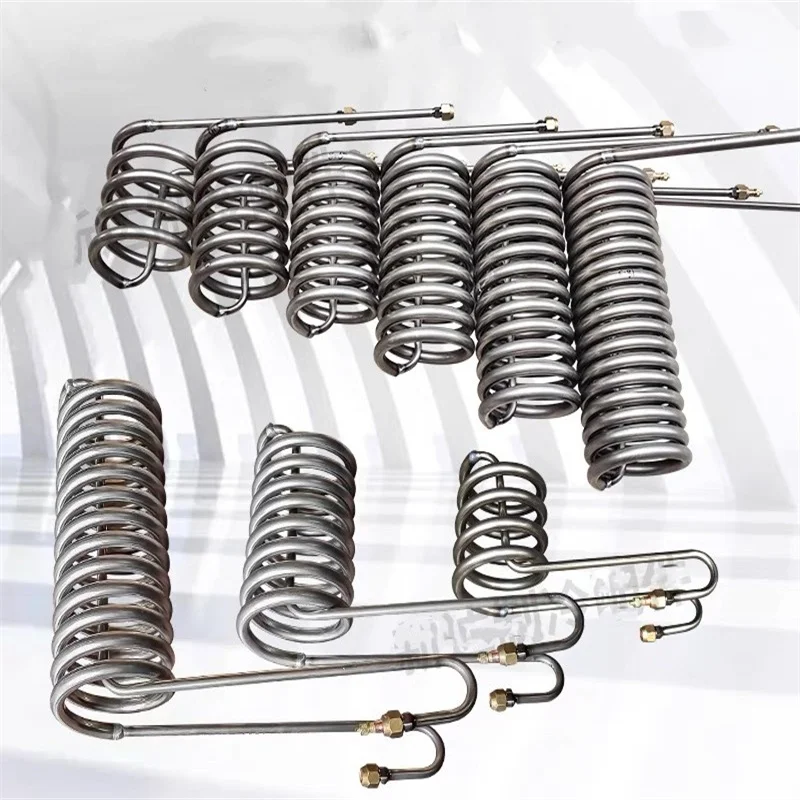

1PCS Titanium Tube Coil Evaporator for 1P 1.5 2 2.5 3 5P Aquarium Chiller Heat Exchanger Fish Tank in Seafood Pond

Product parameters:Power:A- 1.0hp

Titanium tube diameter: 16mm

Titanium tube turns: 6.5 turns

Refrigerant inlet: 12.7mm

Refrigerant outlet: 12.7mm

Coil diameter: 150 mm

Coil height: 240mm

Length: 370 mm

Power:A- 1.5HP

Titanium tube diameter: 16mm

Titanium tube turns: 8.5 turns

Refrigerant inlet: 12.7mm

Refrigerant outlet: 12.7mm

Coil diameter: 150 mm

Coil height: 305mm

Length: 370 mm

Power: A-2.0HP

Titanium tube diameter: 16mm

Titanium tube turns: 10.5 turns

Refrigerant inlet: 12.7mm

Refrigerant outlet: 12.7mm

Coil diameter: 150 mm

Coil height: 375mm

Length: 370 mm

Power:A- 3.0HP

Titanium tube diameter: 16mm

Titanium tube turns: 13.5 turns

Refrigerant inlet: 12.7mm

Refrigerant outlet: 16mm

Coil diameter: 150 mm

Coil height: 475mm

Length: 370 mm

The dimensions of products B and C are indicated in the product diagram. Please refer to the product diagram.

characteristic:

1. High hardness

2. Corrosion resistance

3. Upgrade automatic welding

4. No reducing welding

Product characteristics:1. Titanium tube heat exchanger is manufactured with high-quality industrial titanium precision, with 99.8% purity, strong corrosion resistance, high conductivity, good heat resistance, suitable for processing and cooling of low concentration, acidic liquids; surface is not easy to produce oxide layer, pollution-free medium, environmental protection, non-toxic, non-scaling and non-blocking.2. the product is welded by professional process, and the welding interface is firm and firm, and it is not easy to leak.3. subtract the traditional manufacturing process. A new link method is used to achieve the safe combination of titanium and copper. No leakage, safe and reliable.4. Titanium tube heat exchanger has simple structure and high pressure resistance. It adopts immersion structure and is installed in the vessel to be heat exchanged. It can be made into single or multiple layers according to the vessel.

Scope of application:This product is widely used in all kinds of seafood aquaculture, seawater heat exchange, brine heat exchange, chemical industry, food, medicine, metallurgy, refrigeration, light industry, electroplating industry, aluminum oxidation tank, salt making, paper making, ultrasound, electronic communication, central heating and other industries and fields.

Product difference:1. Model A is formed at one time without welding head; B and C products have welding heads.2. Products A and B are direct; C product elbow joint
