Dual Wireless Moveable PIR Motion Sensors 10M 5M COB Strip Light Set DC24V 320LEDs/M High Bright For Bedroom Corridor Stairs

NOTE:

1. The sensor will also work at daytime

2. When the sensor power is too low it will not work properly, please charge it in time !!

3. One receiving host can be equipped with up to 7 wireless sensor switches at most.

4. One wireless sensor switch can be equipped with up to 100 receiving hosts at most.

Specifications:

Name: COB LED Strip Lights

Output Voltage: DC24V

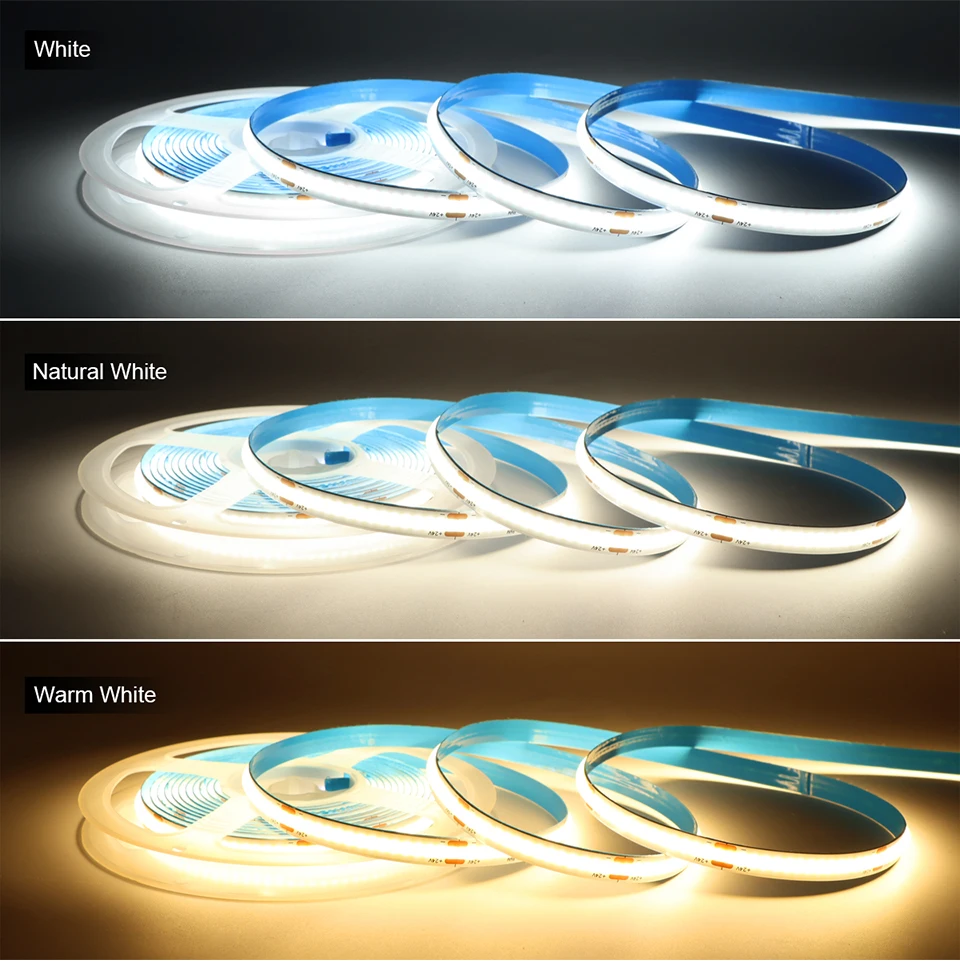

Light Color: Warm White/ White/ Natrual White

Color temperature: Warm White(3000K), Natural White(4000K), Cool White(6500K)

LED type: COB

LED QTY: 320LEDs/M

Length: 1M/ 3M/ 5M/ 10M

Switch Type: Portable Wireless PIR Motion Sensor Switch (Build-in 450mA Battery, Can be installed anywhere).

PIR Motion Sensor Detection Range:1-3M

Wireless RF Distance:<=10M (Distance from Motion Sensor Switch to RF Reciever)

Input Voltage: AC100V-240V

Power Adapter: EU220 Plug / US110 Plug

Packages:

1x COB LED Strip Light

1x Power Supply

1x RF Receiver.

2x Portable PIR Motion Sensor Switches(Build-in Battery)

Using & Features:

1. When the "receiving host" is powered on,within 8 seconds, press and hold the code matching key on the back of the "wireless sensor switch" until the output LED light strip flashes once, and the pairing is completed.

2. When the "receiving host" is powered on,after 8 seconds, first press the code matching key on the "receiving host", then press and hold the code matching key on the back of the "wireless sensor switch" until the output LED light strip flashes once, and the pairing is completed.

3. Repeat the above steps when connecting the second "wireless sensor switch"

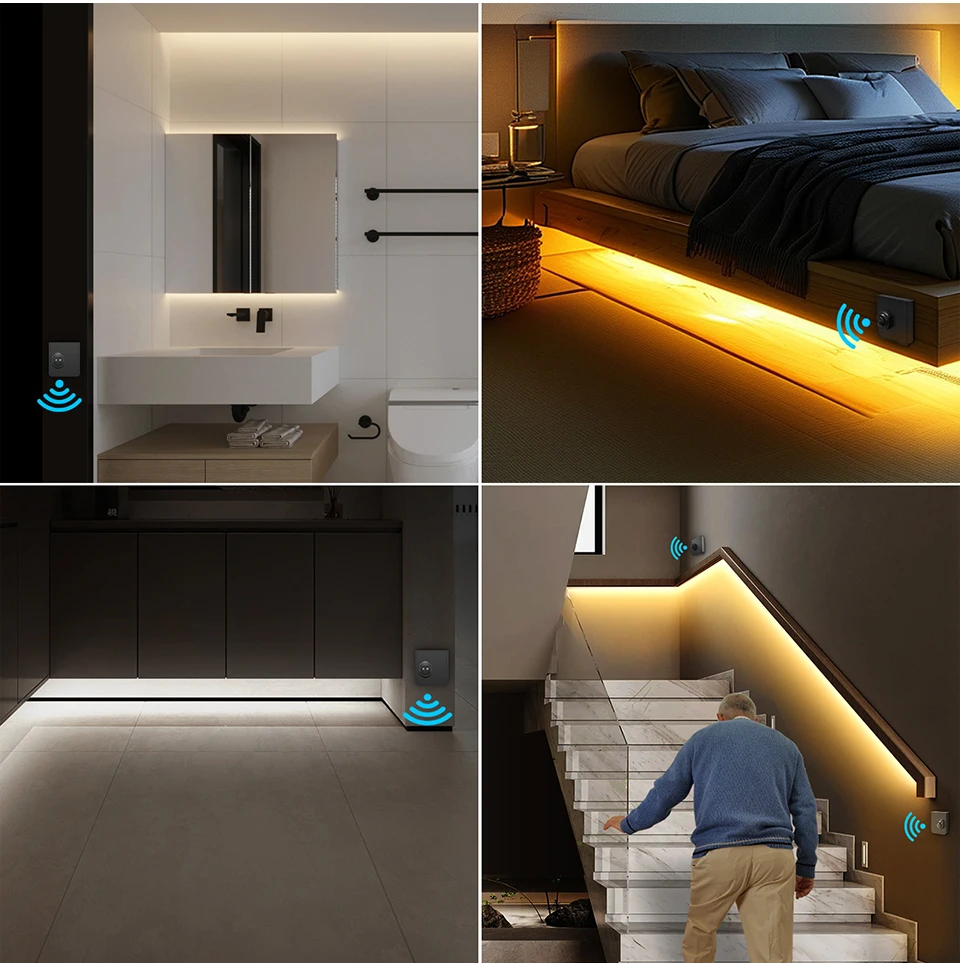

The Under Cabinet LED Strip Lights are an excellent addition to your home or office lighting setup. These versatile lights can be installed easily using the included 3M sticker, making them perfect for use in your kitchen, pantry, bedroom, wardrobe, or closet. With Portable PIR motion sensor, you can control the lights without ever having to touch them, And it more flexible to stick anywhere you like,simple and easy to instation.

Using:

1. Connect the 24V power supply to the receiving host and led strip

2. When the "receiving host" is powered on, within 8 seconds, press and hold the code matching key on the back of the "wireless sensor switch" until the output LED light strip flashes once, and the pairing is completed.

3. If the "receiving host" is powered on, after 8 seconds, first press the code matching key on the "receiving host", then press and hold the pair code key on the back of the "wireless sensor switch" until the LED light strip flashes once, and the pairing is completed.

4. Repeat the above steps when connect the second or more wireless sensor switches
