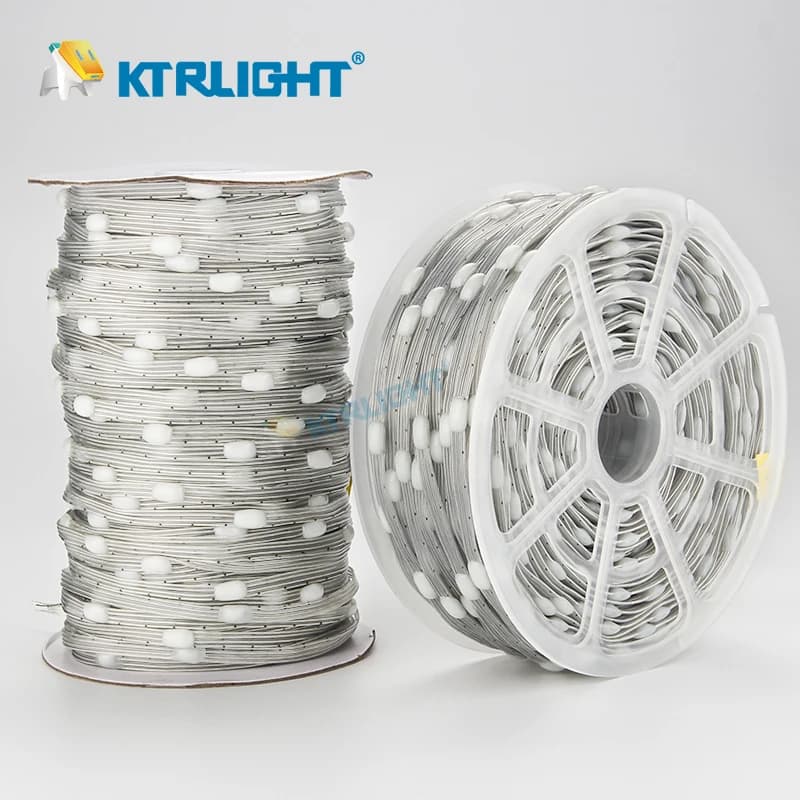

Ktrlight 12V WS2815 High Quality Seed Pixel Light 4pin with Individually Addressable RGB Magic Dream Color String Lights

Description

12V Signal break-point continuous transmission pixel
Note: This is a string of LEDs only; it does not include male/female connectors, controllers, power supplies, or other accessories. These accessories must be purchased separately.

Dual-Signal(with backup data wire)

Signal break-point continuous transmission. If one pixel is damaged, the following LEDs still work

Attention Please :

The WS2815 LED Lights String Must Use DC12V Power Supply. Otherwise, It will burnt out.

This is the strings with LED on it, not include male/female connectors and controller, power supply…. You should buy these components separately。

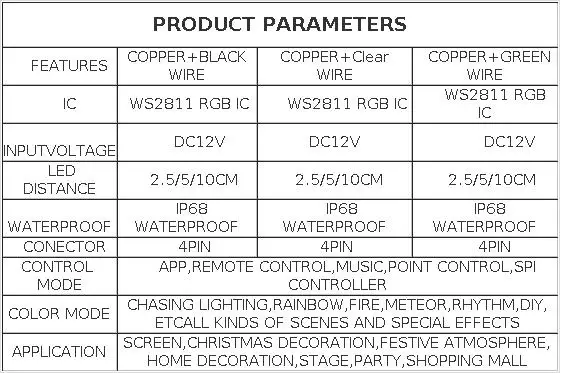

Specifications:

Working Input Voltage: DC12V.

Protocol: WS2811

To control WS2815 LED strip, please choose WS2811 on the setting page.

Color Order: RGB

SMD: SMD3240

Output Power: 0.1W/pcs led.

Emitted Color:WS2811 WS2815 RGBIC.

Out R/G/B output current: 8.5mA

Wire: #26AWG, 4PIN wire (VCC+,DATA,Backup DATA,GND)

LED Space: 2cm, 2.5cm,3cm, 5cm, 10cm

Power Injection suggestion:

Warm Tips: Because of voltage drops, ifLED quantity above 200-300LEDs, you can not light it up without power injection, so need to cut them to use

2cm LED space strings: 50LED/meter, 1LED/pixels, suggest to add voltage at every 300 LED

2.5cm LED space strings: 40LED/meter, 1LED/pixels, suggest to add voltage at every 300LED

5cm LED space strings: 20LED/meter, 1LED/pixels, suggest to add voltage at every 200 LED

10cm LED space strings: 10LED/meter, 1LED/pixels, suggest to add voltage at every 200 LED

View Angle: 360 degree.

Long Life: more than 50000 hours.

Working Tempreture: -20~50°.

Waterproof level: IP68 Waterproof

Warranty: 2 Year.

Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
Control mode: SPI serial protocol, compatible with WS2811/1903/16703/mobile APP controller/SD card controller.
DIY Controllers: Each pixel can have its own color and brightness as your wish. Compatible with Arduino, Raspberry Pi, Teensy, T1000S,K1000C etc programmable controllers. Support SP110E SP105E SP108E SP110E SP601E etc Bluetooth APP IR controllers, CSY07 CSY08 X2 SP106E SP107E
