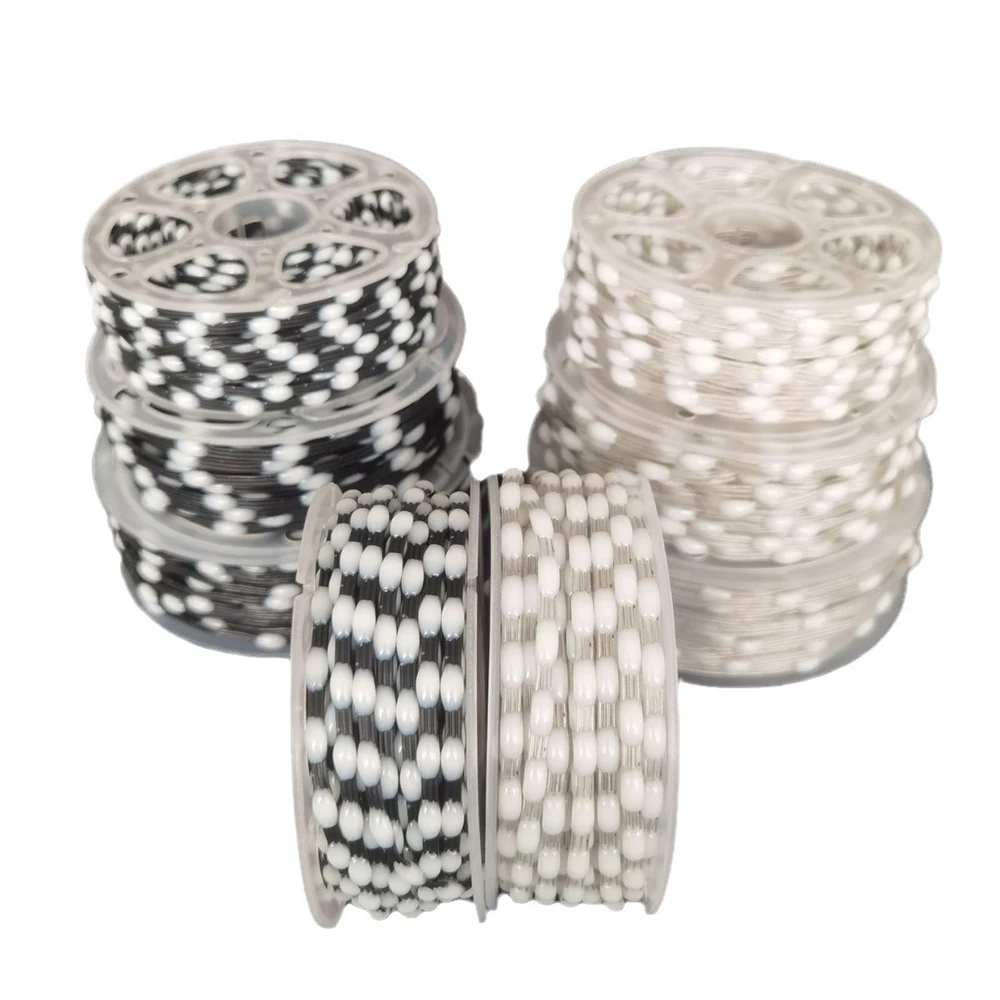

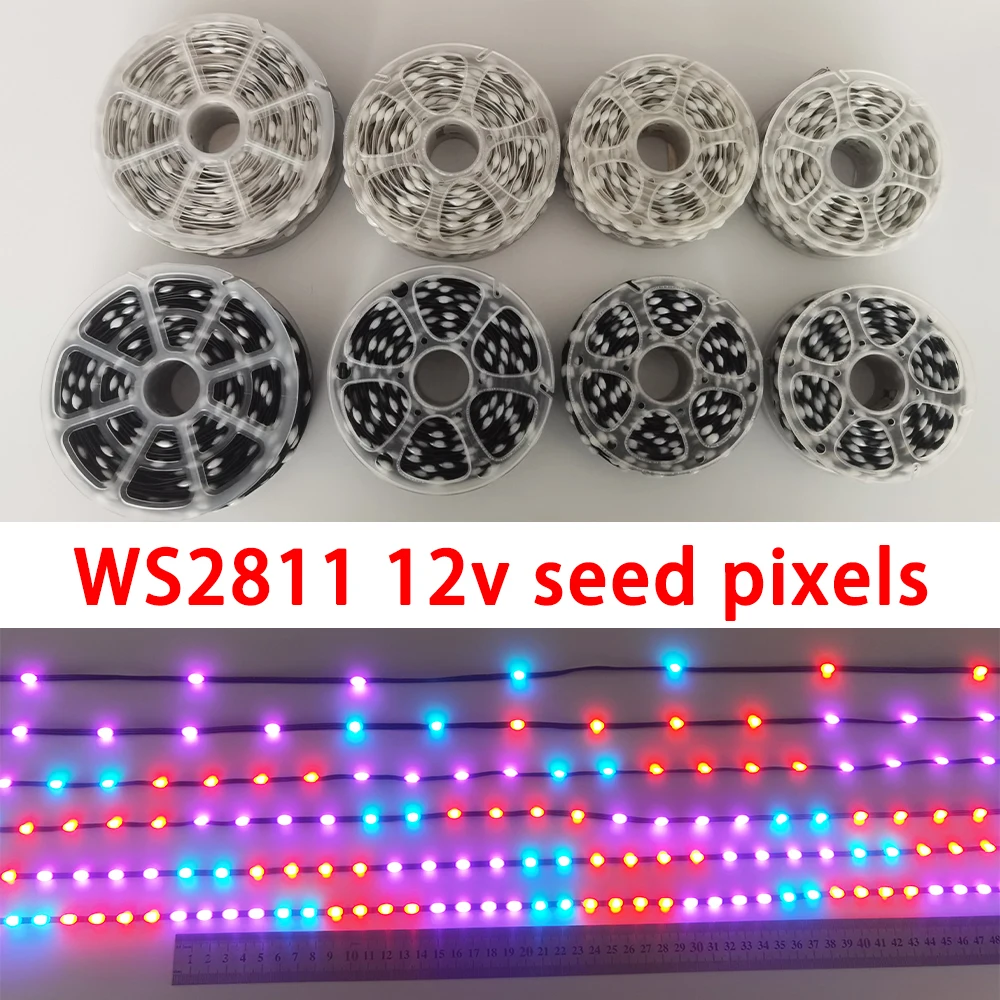

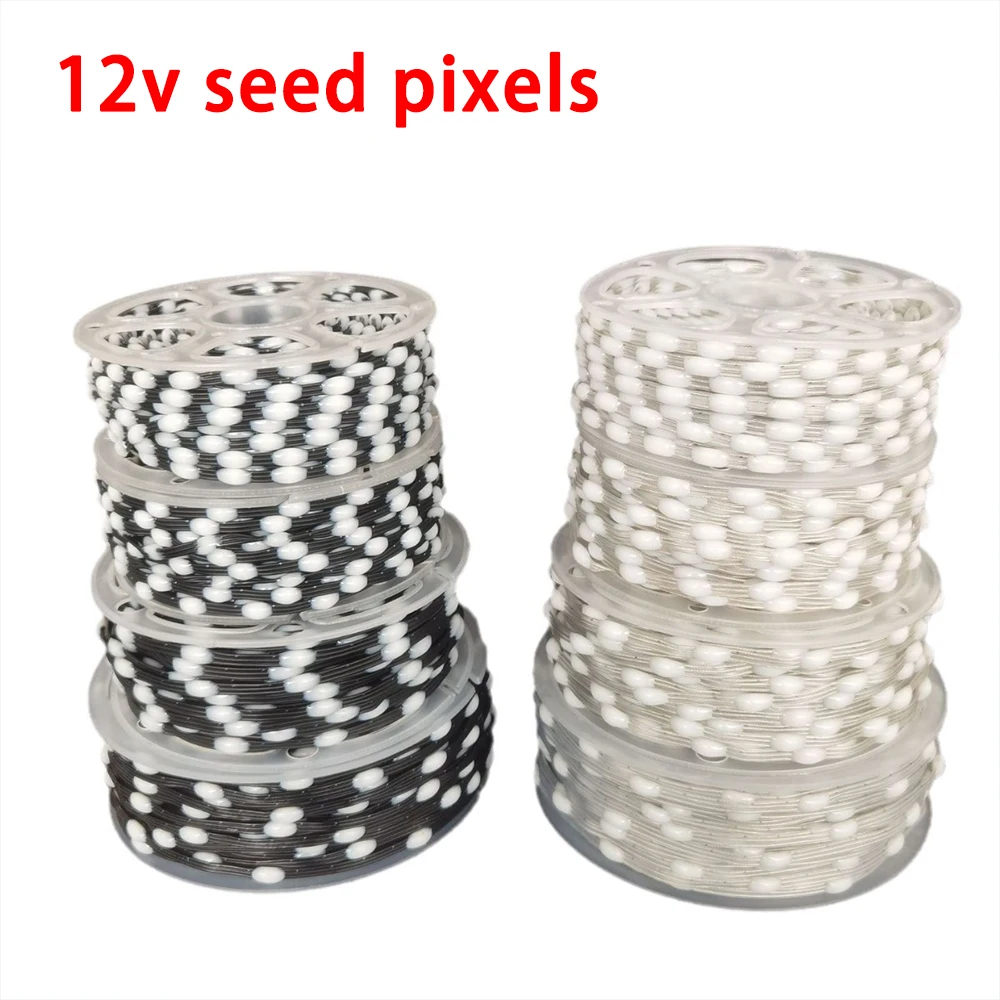

DC12V Seed Pixels Intelligent pixels 3channel RGB lights WS2811 WS2812 LED Pebble Pixel String Light RGB Addressable Full Color

Attention Please :

The WS2811 LED Lights String Must Use DC12V Power Supply. Otherwise, It will burnt out.

This is the strings with LED on it, not include male/female connectors and controller, power supply.... You should buy these components separately

You can choose the clear wire or black wire，For green or other colored lines, please contact work email [email protected]，Please contact work email for more spacing (1.5~60CM spacing can be customized)

Specifications:

Working Input Voltage: DC12V. 12V is brighter than 5V

Protocol: WS2811

Output Power: 0.102W/pcs led.

Emitted Color: WS2811/WS2812 RGBIC.

Color Order: RGB

SMD: SMD3240 RGBIC

Out R/G/B output current: 8.5mA

Wire: #26AWG

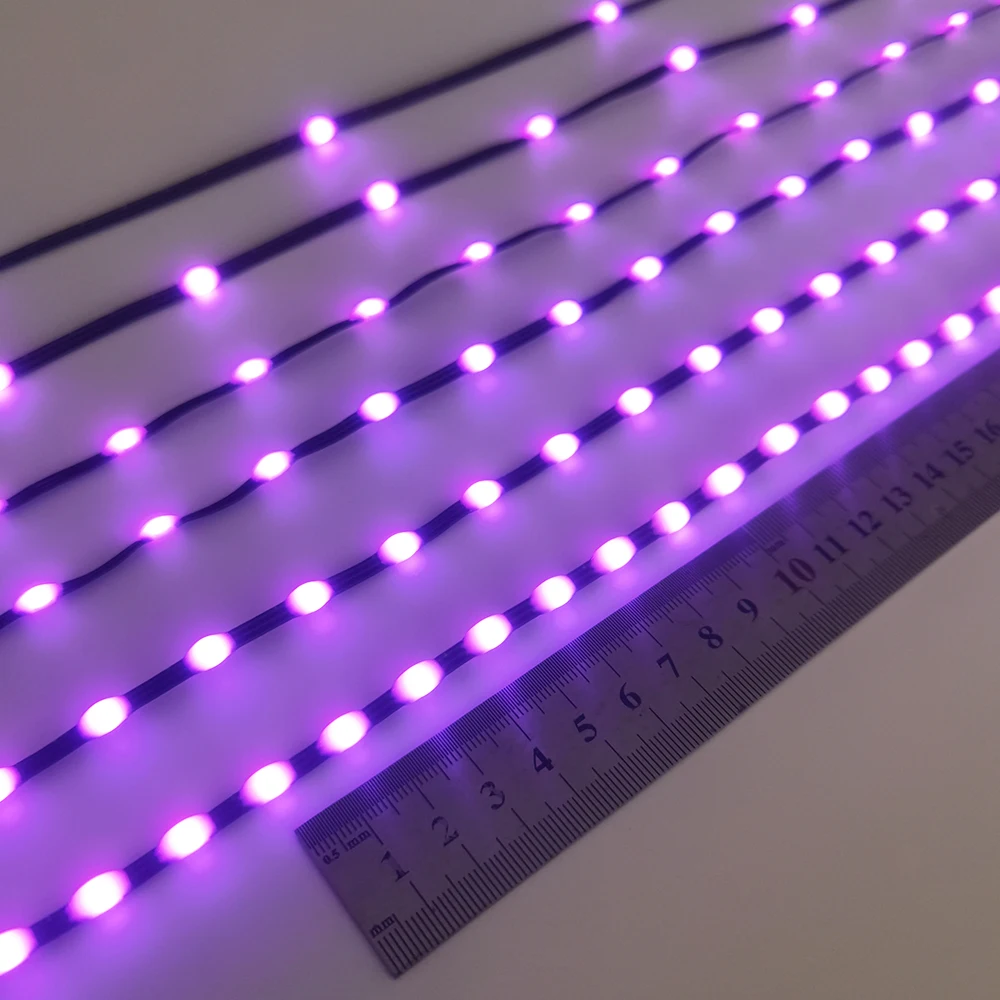

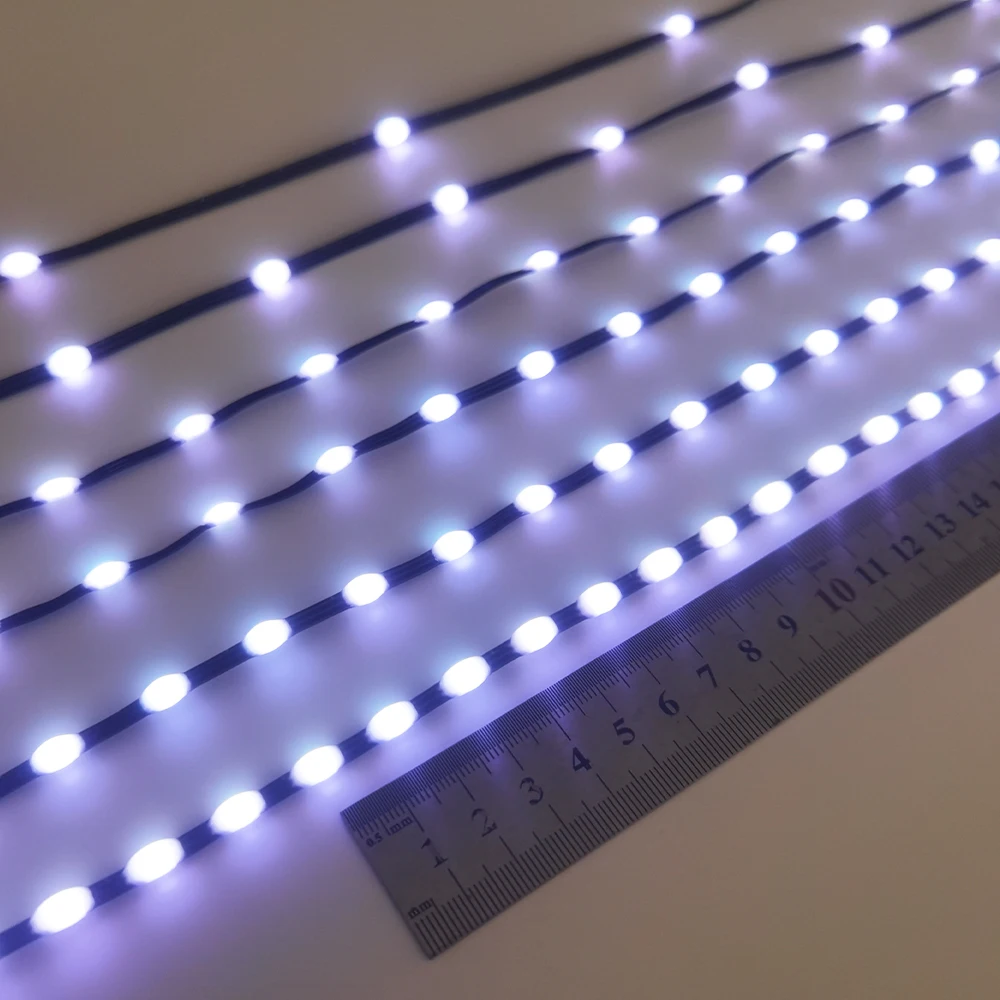

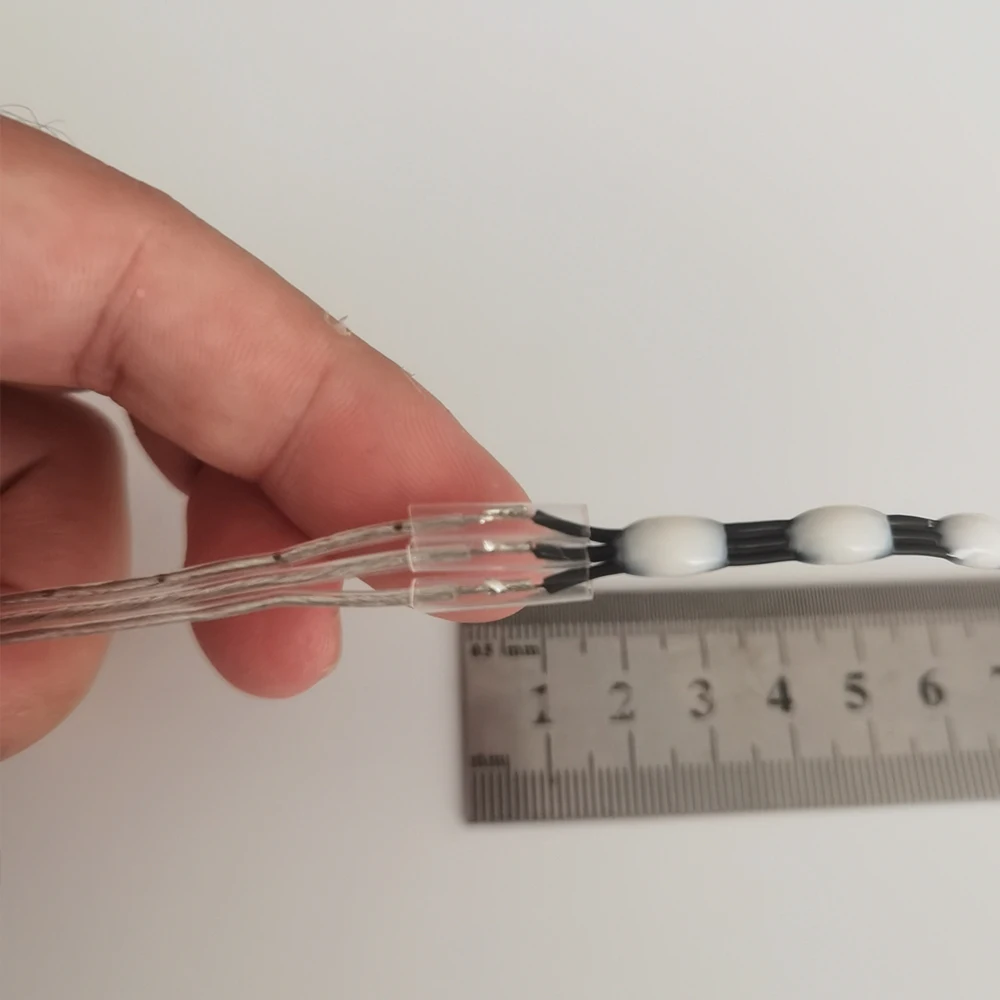

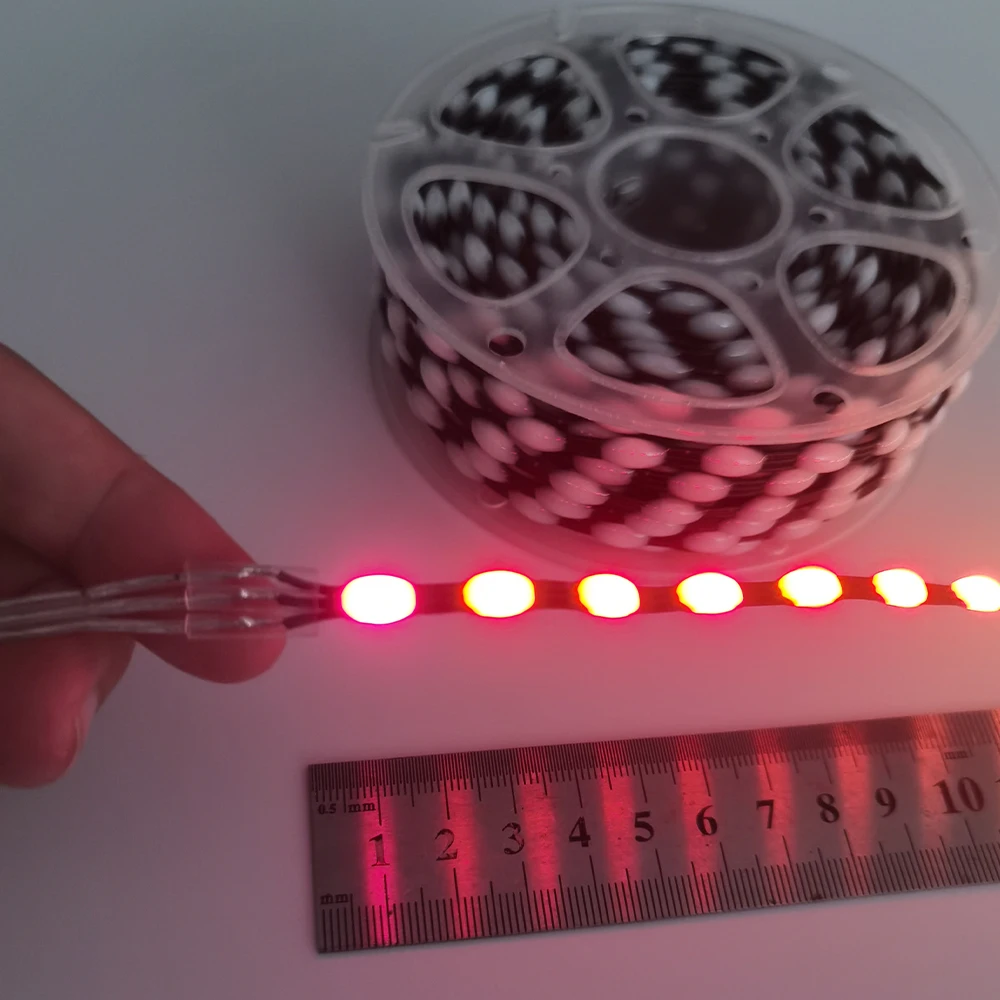

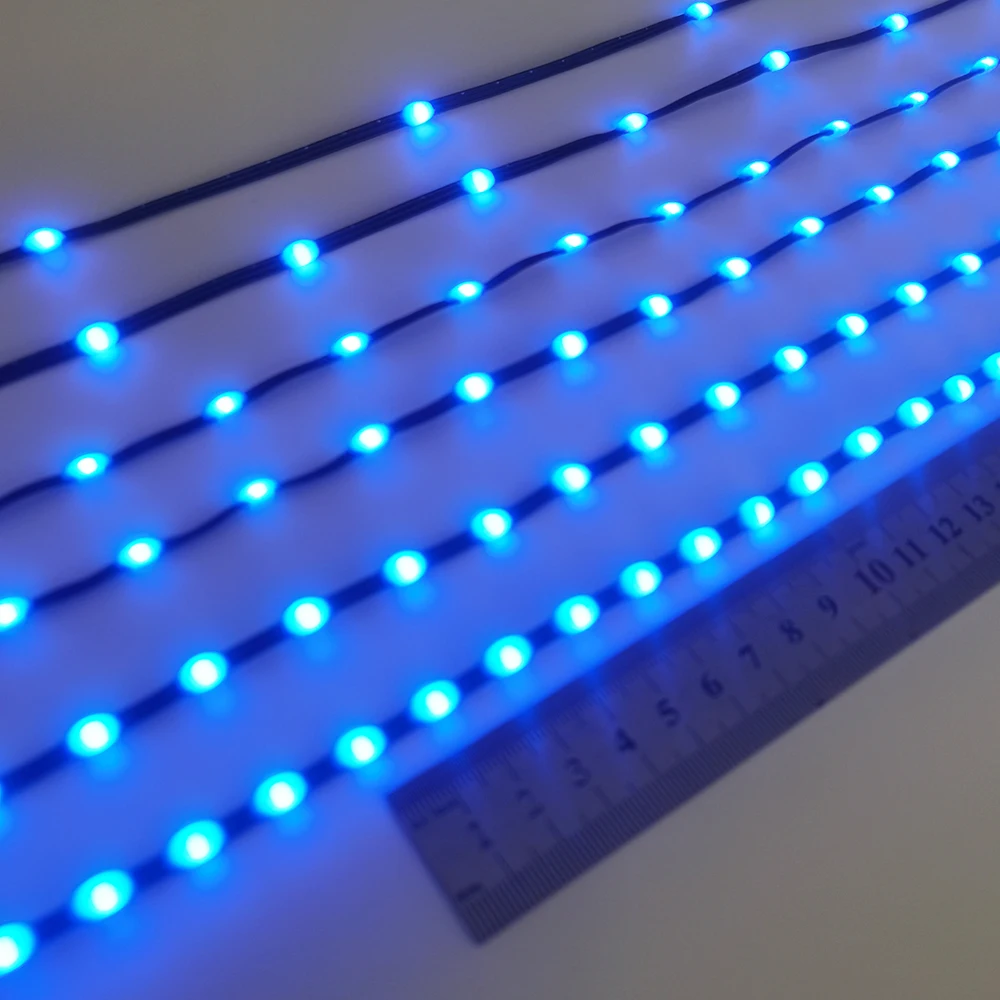

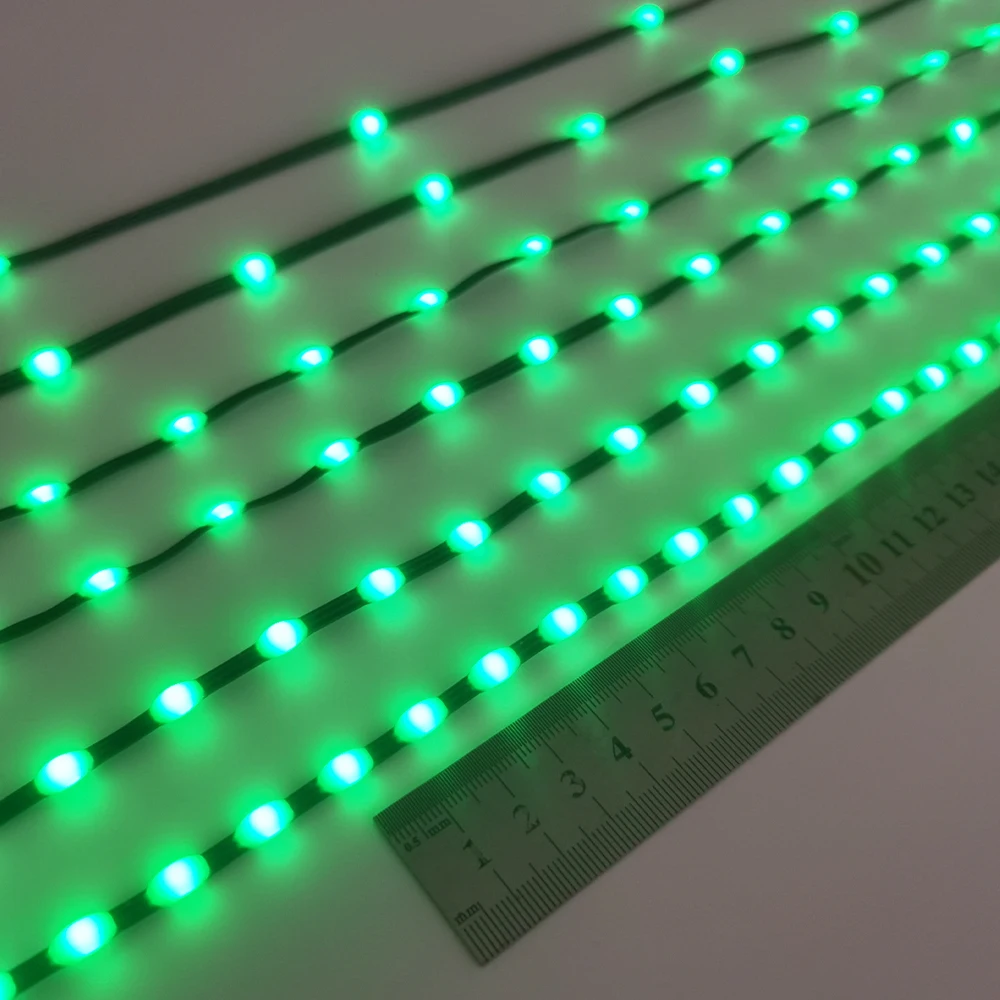

LED Space: 1.5cm, 2cm, 2.5cm,3cm, 5cm, 10cm

Power Injection suggestion:

Tips: Due to the voltage drop, if the number is more than 200-500led, it will be dark or unable to light without power injection, please supplement the power supply or cut off the use

1.5cm LED space strings: 66LED/meter, 1LED/pixels, suggest to add voltage at every 333~666 LED

2cm LED space strings: 50LED/meter, 1LED/pixels, suggest to add voltage at every 300~600 LED

2.5cm LED space strings: 40LED/meter, 1LED/pixels, suggest to add voltage at every 300~600LED

3cm LED space strings: 33LED/meter, 1LED/pixels, suggest to add voltage at every 333~500LED

5cm LED space strings: 20LED/meter, 1LED/pixels, suggest to add voltage at every 200~400LED

10cm LED space strings: 10LED/meter, 1LED/pixels, suggest to add voltage at every 200 LED

View Angle: 360 degree.

Long Life: more than 50000 hours.

Working Tempreture: -20~50°.

Waterproof level:IP67 Waterproof

Warranty: 2 Year.

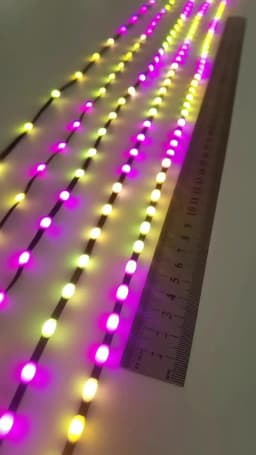

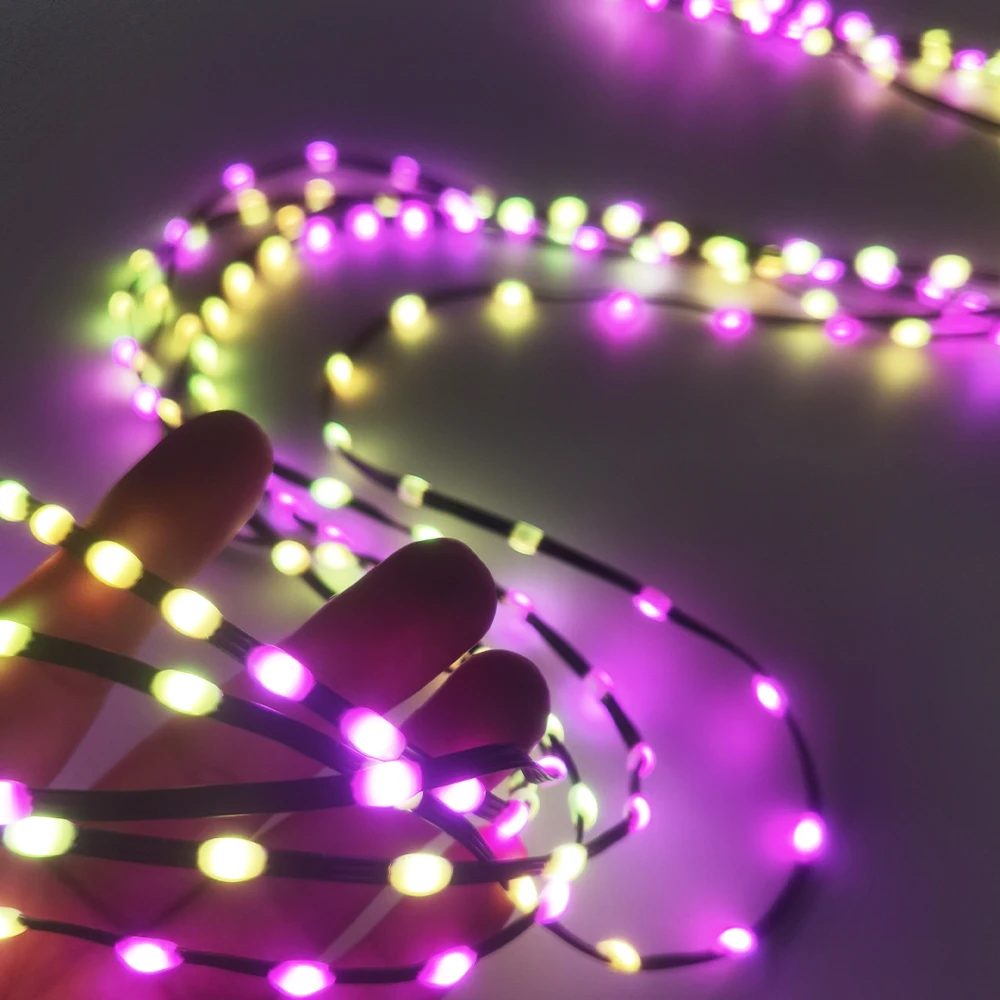

Individually Addressable WS2811 RGBIC Chip:Dream full color Programmable LED String. Chasing Lighting, Rainbow ,Fire ,Meteor, rhythm, etc all kinds of scenes and special effects.

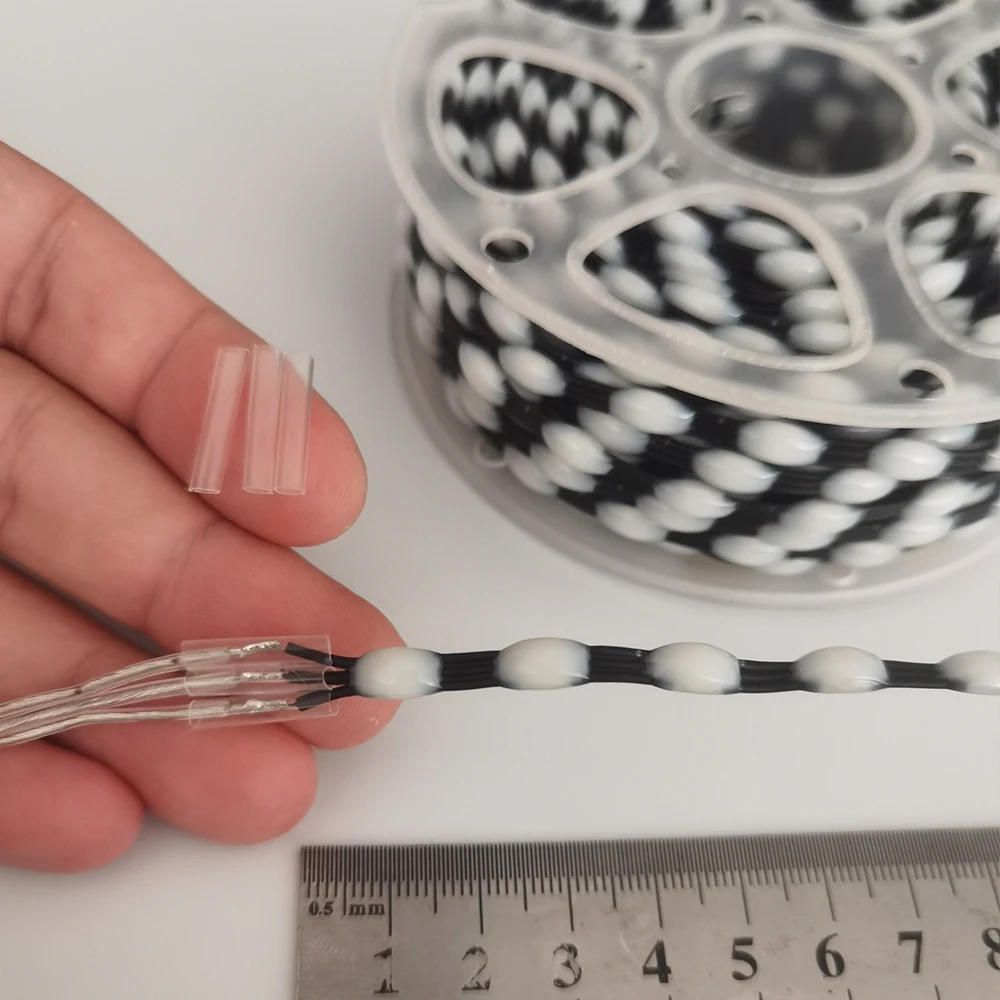

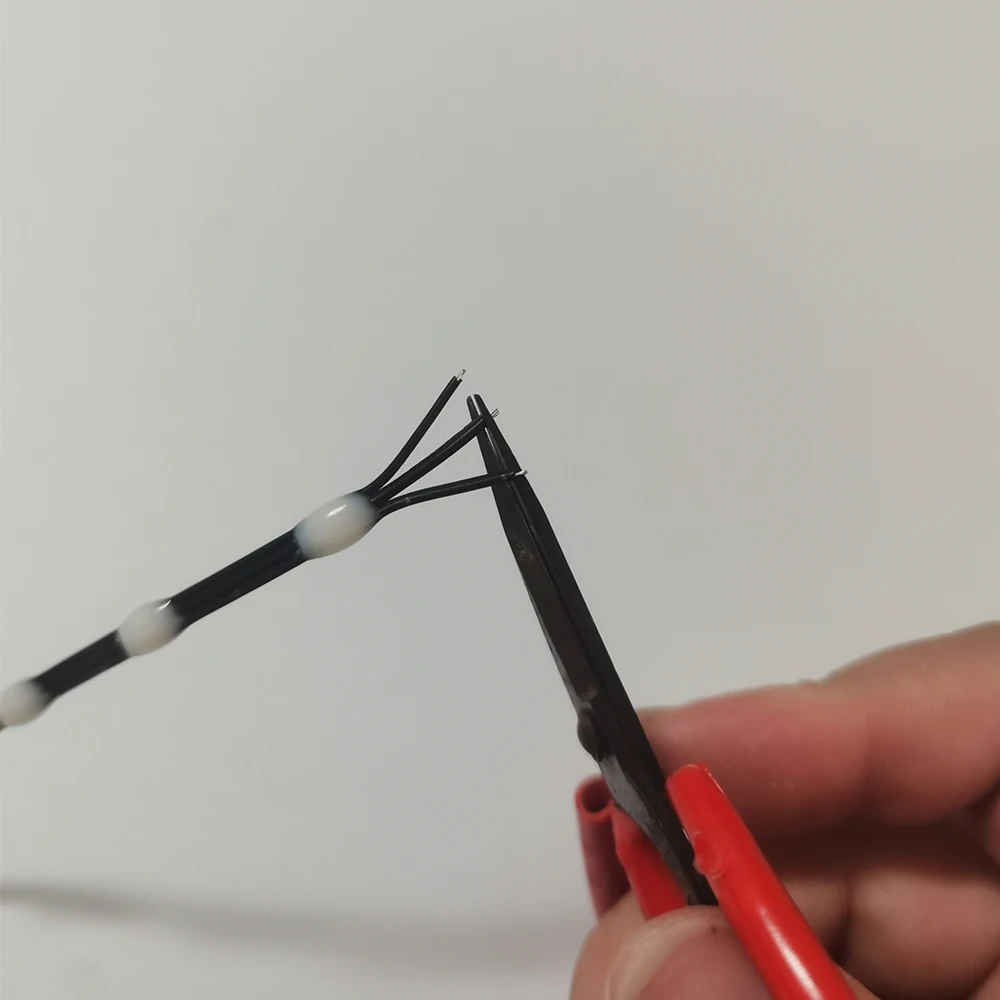

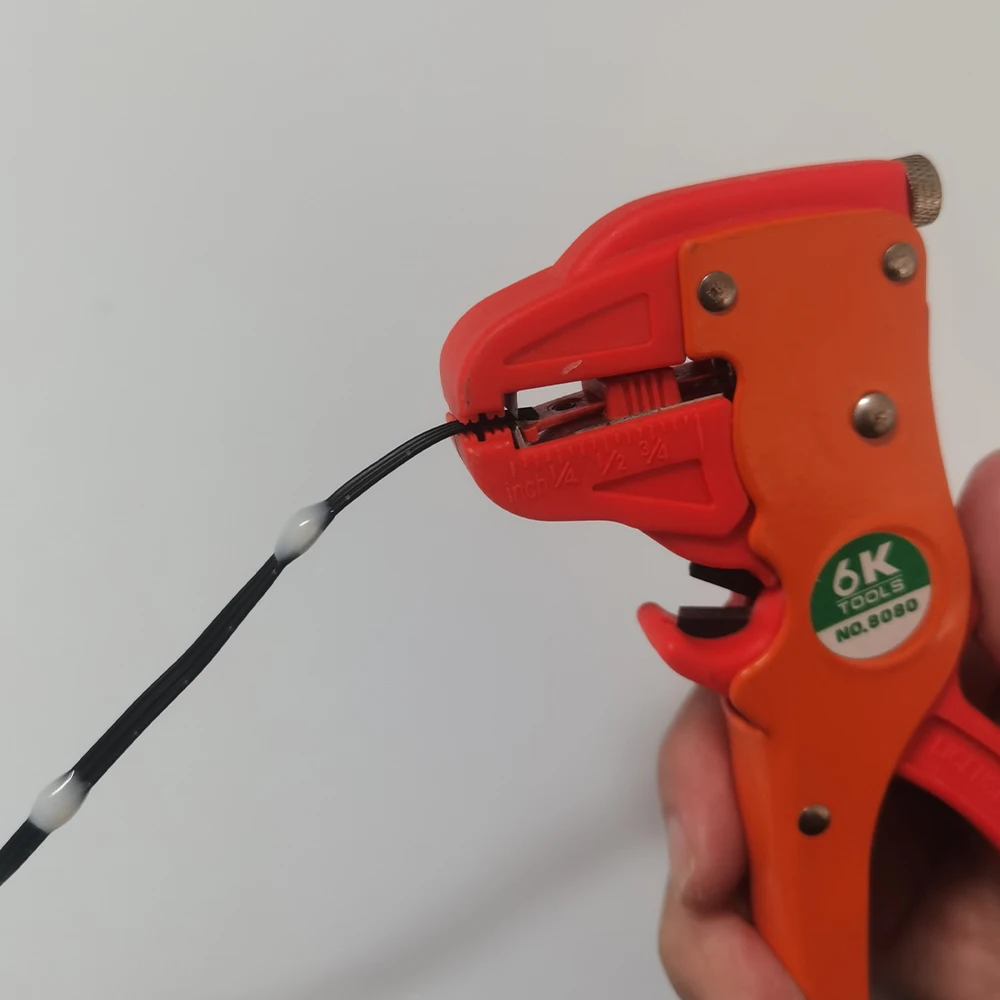

Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

DIY Controllers: Each pixel can have its own color and brightness as your wish. Compatible with Arduino, Raspberry Pi, Teensy, T1000S,K1000C etc programmable controllers. Support SP110E SP105E SP108E SP110E SP601E etc Bluetooth APP IR controllers, CSY07 CSY08 X2 SP106E SP107E SP601E SP608E SP611E etc music bluetooth APP controllers,SP511E SP501E etc smart WiFi Alexa music Controllers.
