WS2811 LED Strip Lights Black Wire DC5V/12V 10M-100M 1.5cm-10cm Pitch RGB IC Addressable Pixel String Full Color IP67 3Pin

Attention Please :

The WS2811 LED Lights String Must Use correct Power Supply. Otherwise, It will burnt out.

This is the strings with LED on it, not include male/female connectors and controller, power supply.... You should buy these components

Wire color: Black wire

Specifications:

Working Input Voltage: You can choose DC 5V or DC12V

Protocol: WS2811

Output Power: 0.1W/pcs led.

Emitted Color: WS2811/WS2812 RGBIC.

Color Order: 5V is GRB, 12V is RGB

SMD: SMD3240

Wire: #26AWG

LED Space: 1.5cm, 2.5cm, 5cm, 10cm

Power Injection suggestion:

Warm Tips: Because of voltage drops, ifLED quantity above 200-300LEDs, you can not light it up without power injection, so need to cut them to use

1.5cm LED space strings: 66LED/meter, 1LED/pixels, suggest to add voltage at every 300 LED

2.5cm LED space strings: 40LED/meter, 1LED/pixels, suggest to add voltage at every 300LED

5cm LED space strings: 20LED/meter, 1LED/pixels, suggest to add voltage at every 200 LED

10cm LED space strings: 10LED/meter, 1LED/pixels, suggest to add voltage at every 200 LED

View Angle: 360 degree.

Long Life: more than 50000 hours.

Working Tempreture: -20~50°.

Waterproof level:IP67 Waterproof

Warranty: 2 Year.

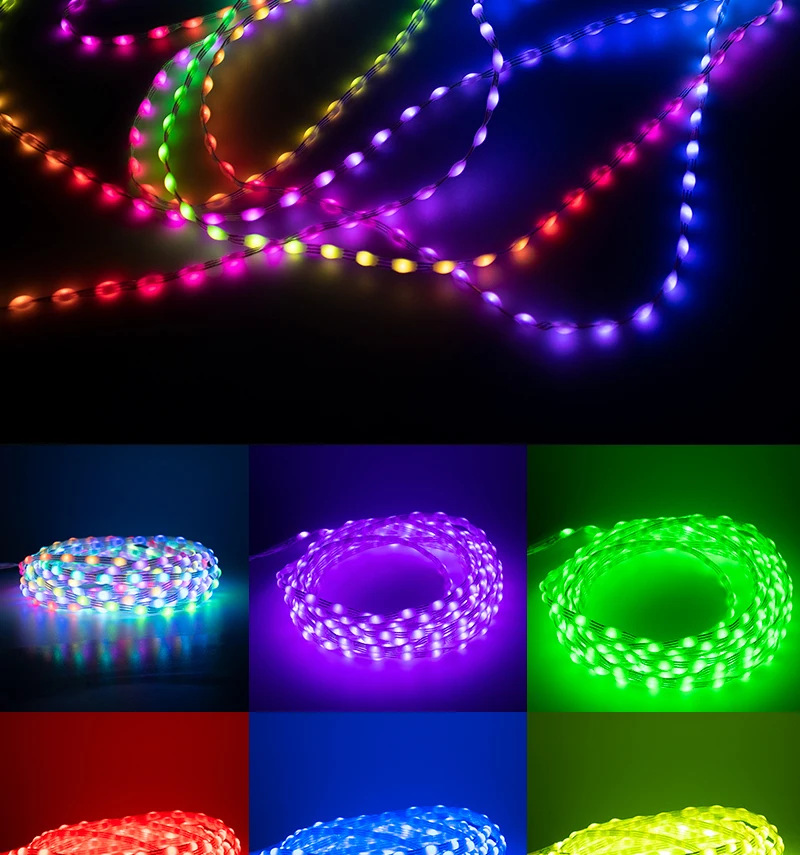

Individually Addressable WS2811 RGBIC Chip:Dream full color Programmable LED String. Chasing Lighting, Rainbow ,Fire ,Meteor, rhythm, etc all kinds of scenes and special effects.

Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

DIY Controllers: Each pixel can have its own color and brightness as your wish. Compatible with Arduino, Raspberry Pi, Teensy, T1000S,K1000C etc programmable controllers. Support SP110E SP105E SP108E SP110E SP601E etc Bluetooth APP IR controllers, CSY07 CSY08 X2 SP106E SP107E SP601E SP608E SP611E etc music bluetooth APP controllers,SP511E SP501E etc smart WiFi Alexa music Controllers.

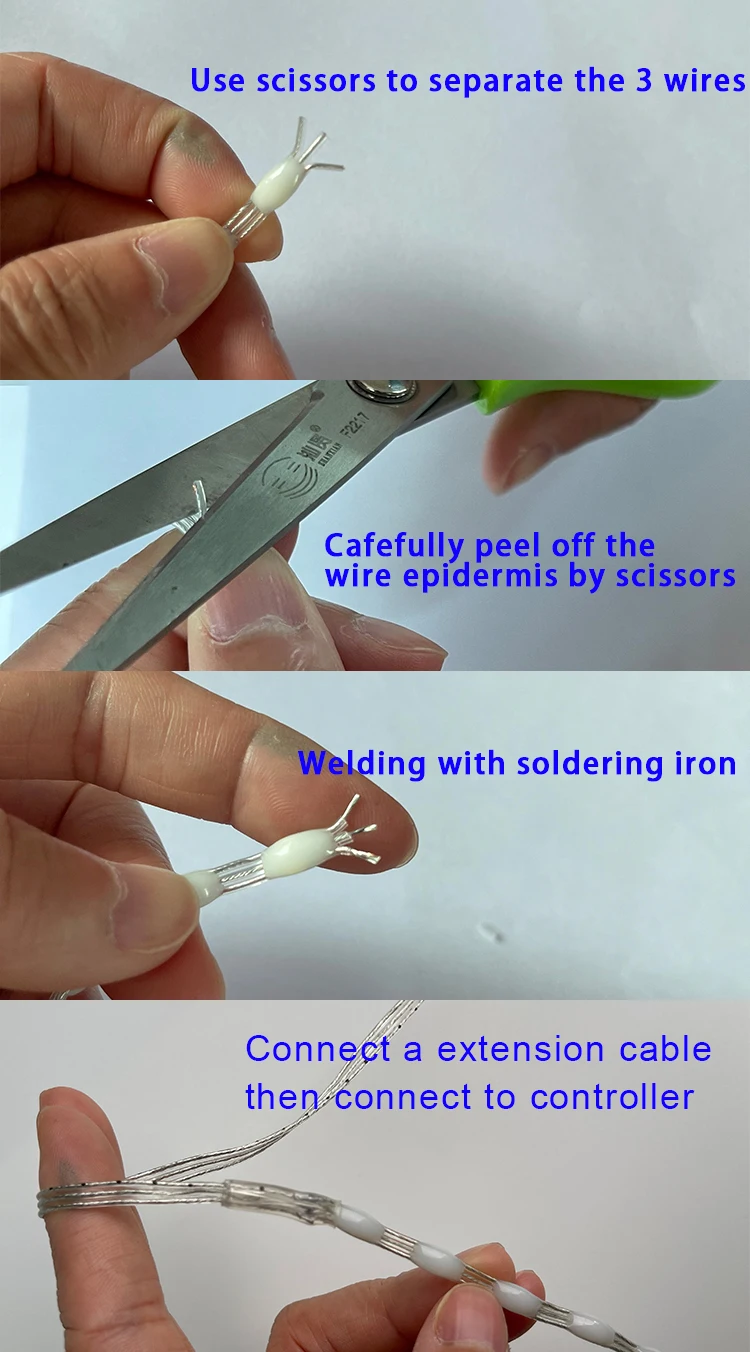

1.5/2.5cm How to Connect to controller

1.5/2.5cm LED space strings don't have enough wire to connect to controller, you should add a extension cable, we will off you the cable
