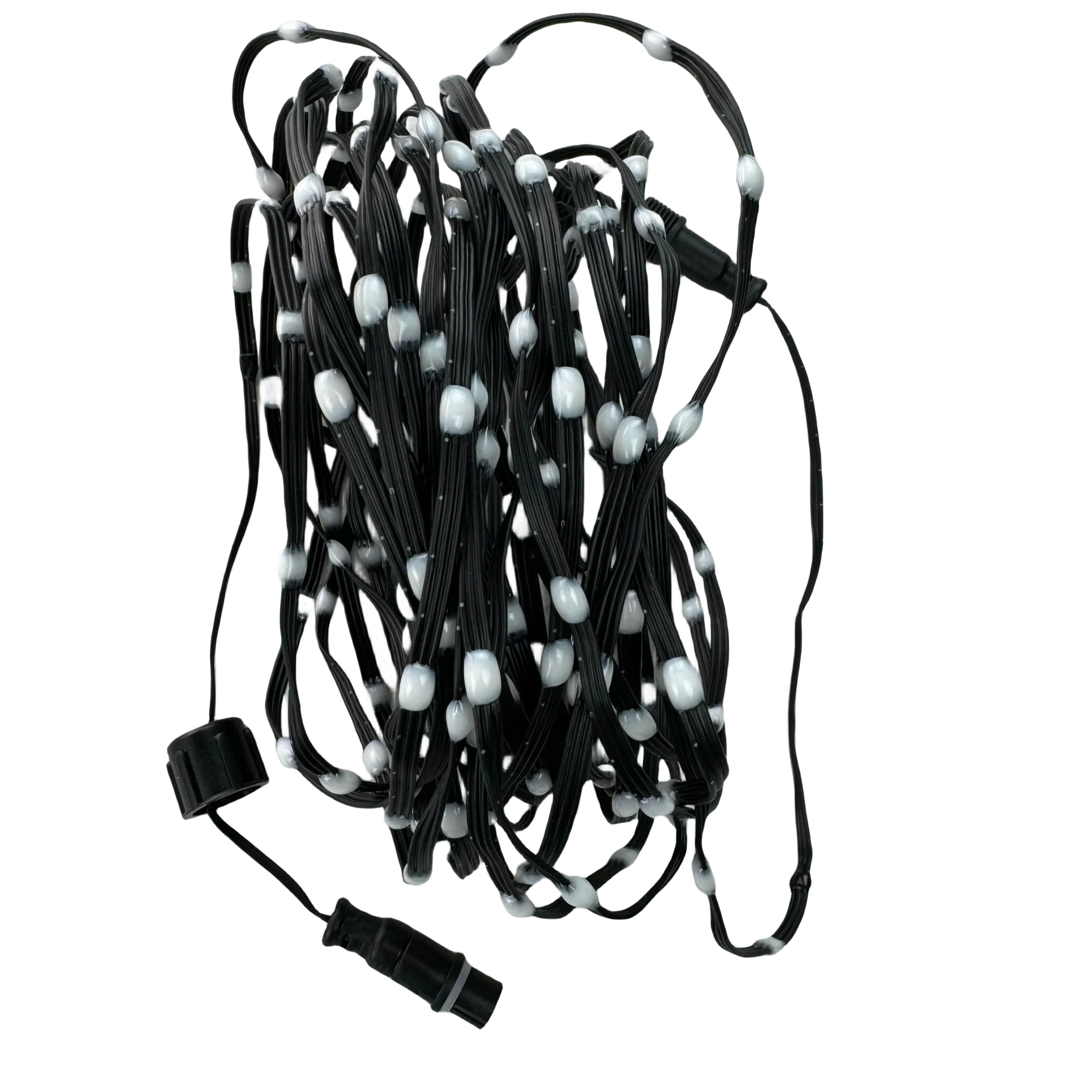

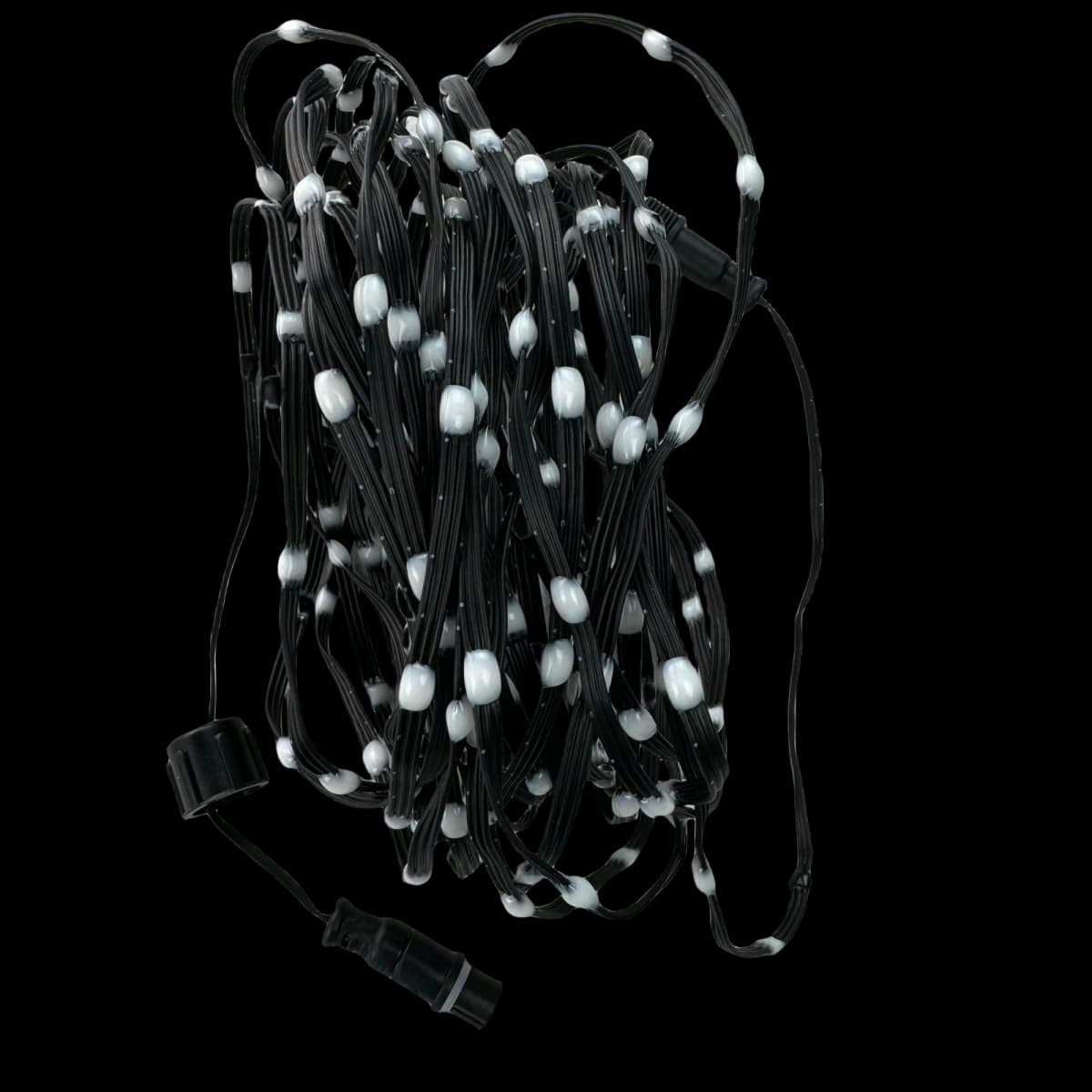

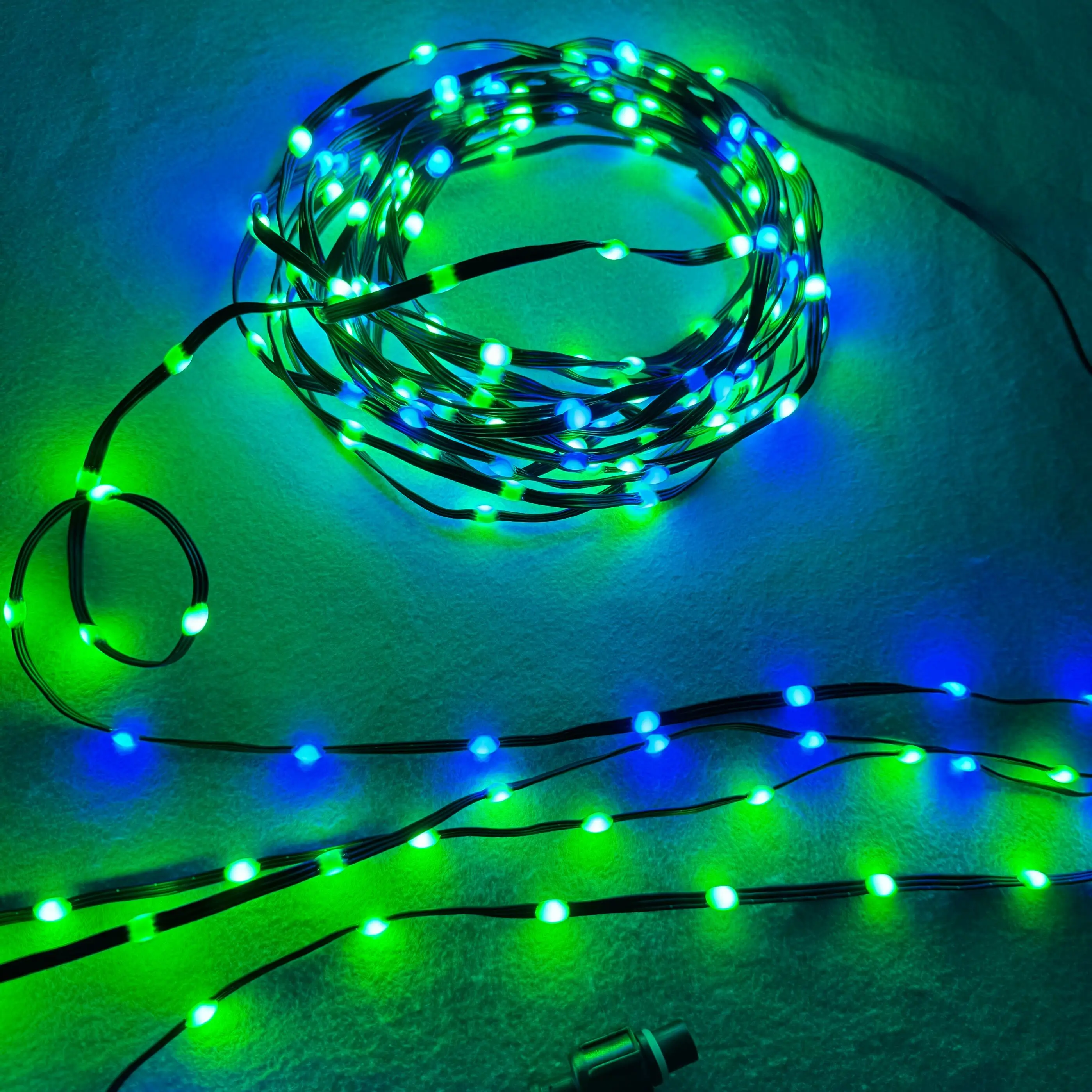

DC5V 12V 20AWG Black Wire Milky Lenses 5cm/10cm Pitch 50ct/100ct/200ct Seed LED Pixel String Light WS2811 RGB Addressable IP67

DC5V 12V 20AWG Black Wire Milky Lenses 5cm/10cm Pitch 50ct/100ct/200ct Seed LED Pixel String Light WS2811 RGB Addressable IP67

50ct with 5cm pitch=2.5m long;   50ct with 10cm pitch  =5m long

100ct with 5cm pitch=5m long;    100ct with 10cm pitch=10m long

200ct with 5cm pitch =10m long;  200ct with 10cm pitch =20m long

Working Input Voltage:                        DC5V or DC12V

Current/Pixel:                                      5mA(5V); 8mA(12V)

Output Power:                                     0.1W/pcs led.

Emitted Color:                                     WS2811 RGB IC,addressable RGB full color

Color Order:                                        G R B (not RGB)

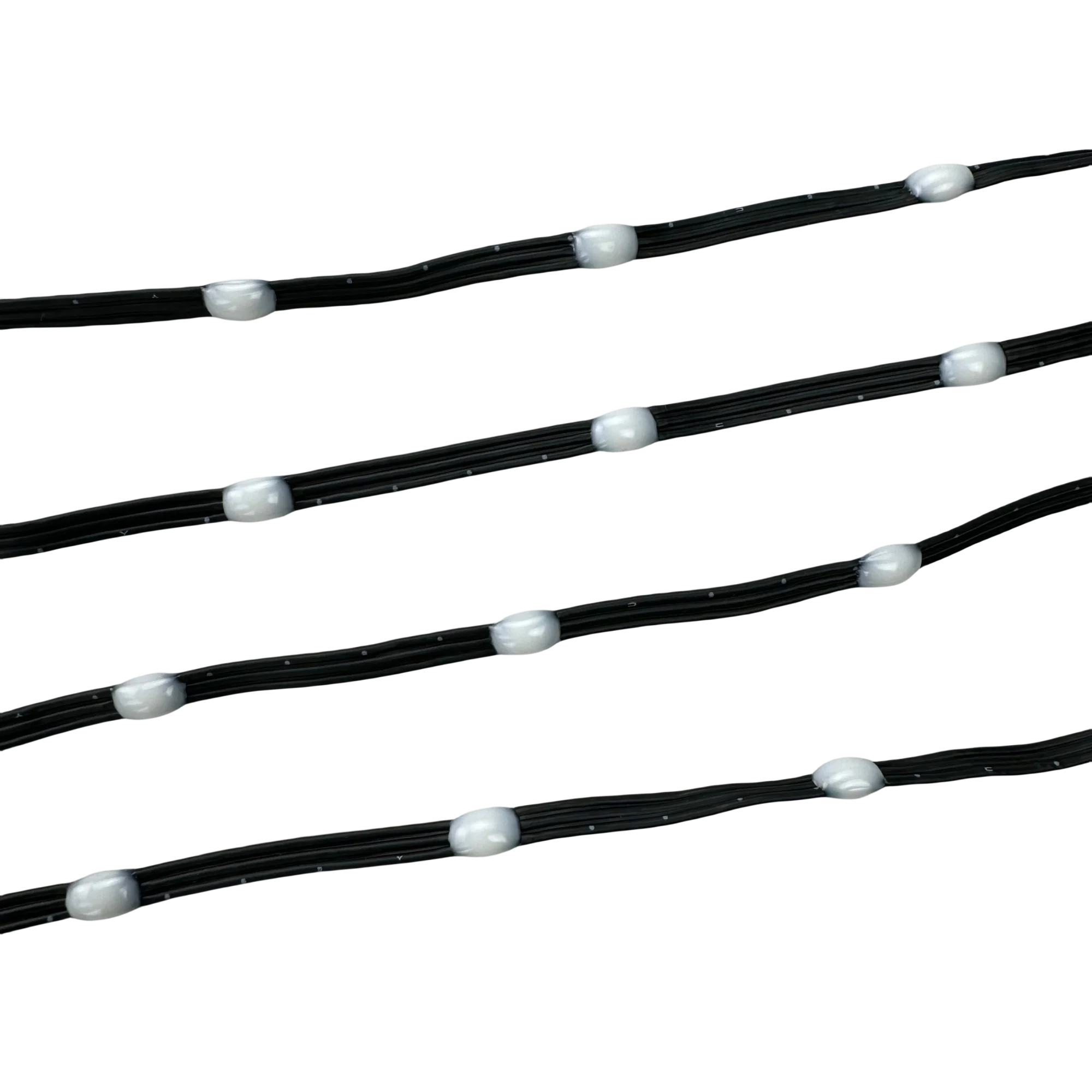

LED Space:                                        5cm spacing/10cm spacing

LED quantity:                                       one LED as one pixel(addressable);total 50ct/100ct/200ct/string

Power injection:                                   suggest to add power every 300 pixels

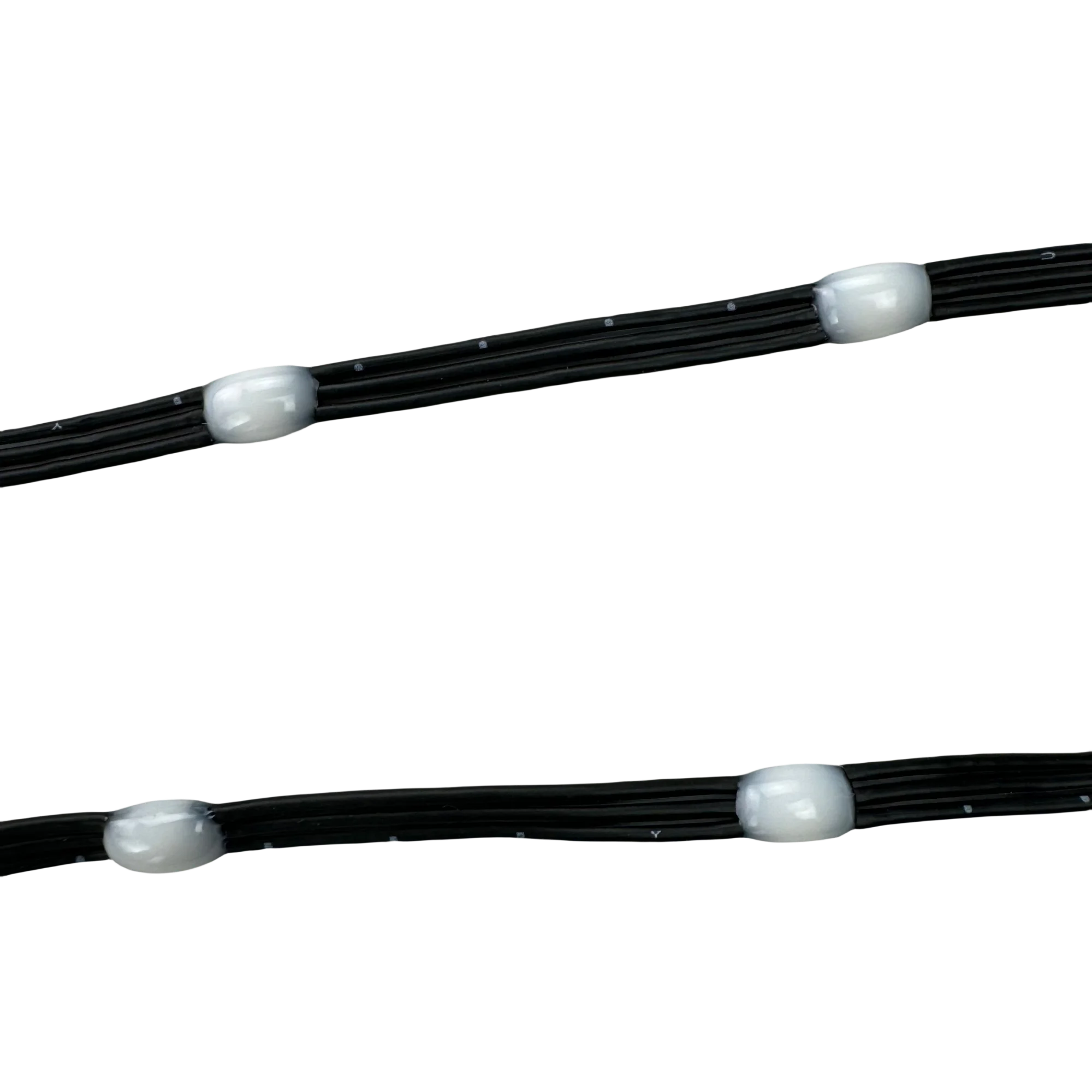

Lens:                                                    Milky Lenses

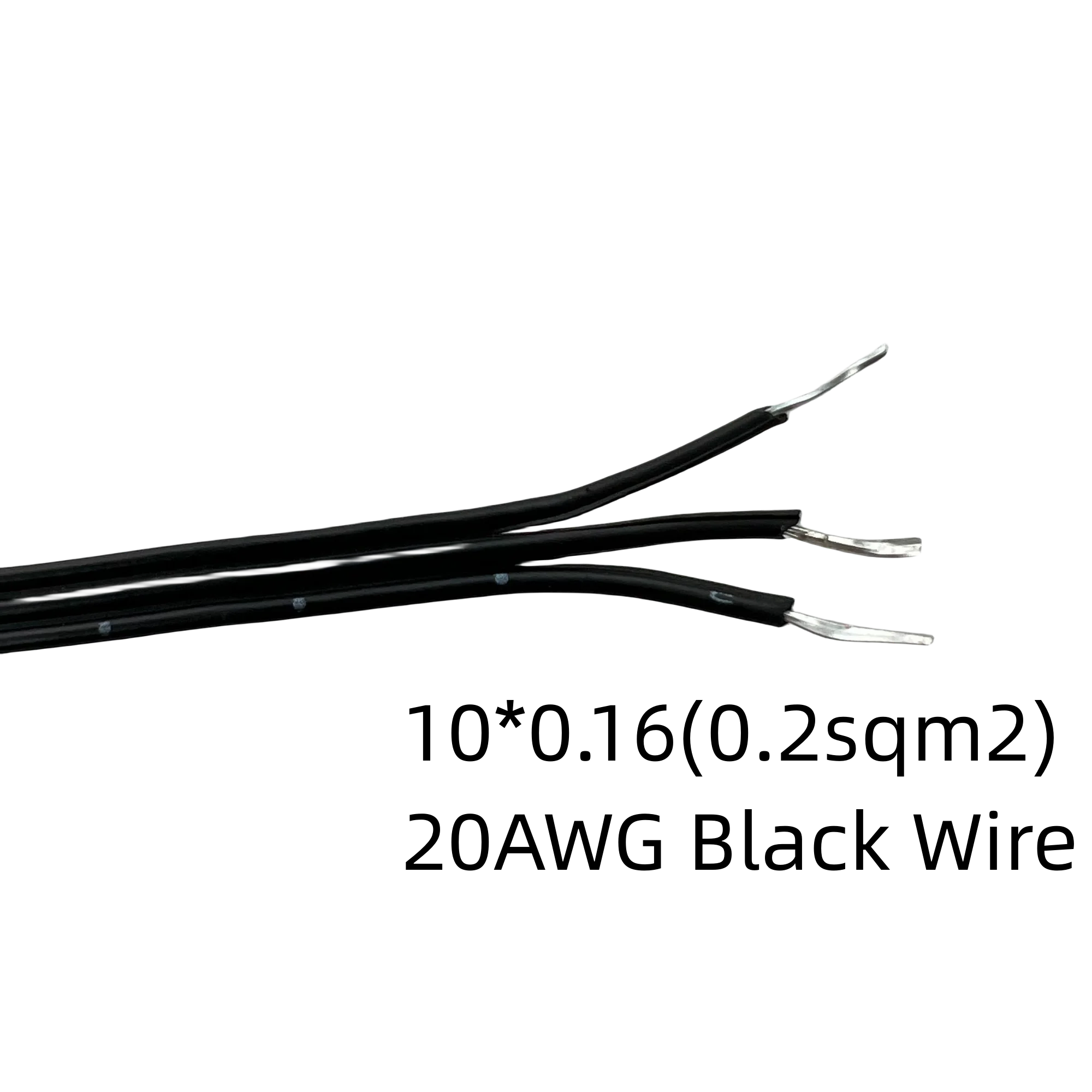

Wire color:                                            20AWG(0.2sqm2) all Black 3PIN wire (VCC+,DATA,GND)

waterproof pigtails type:

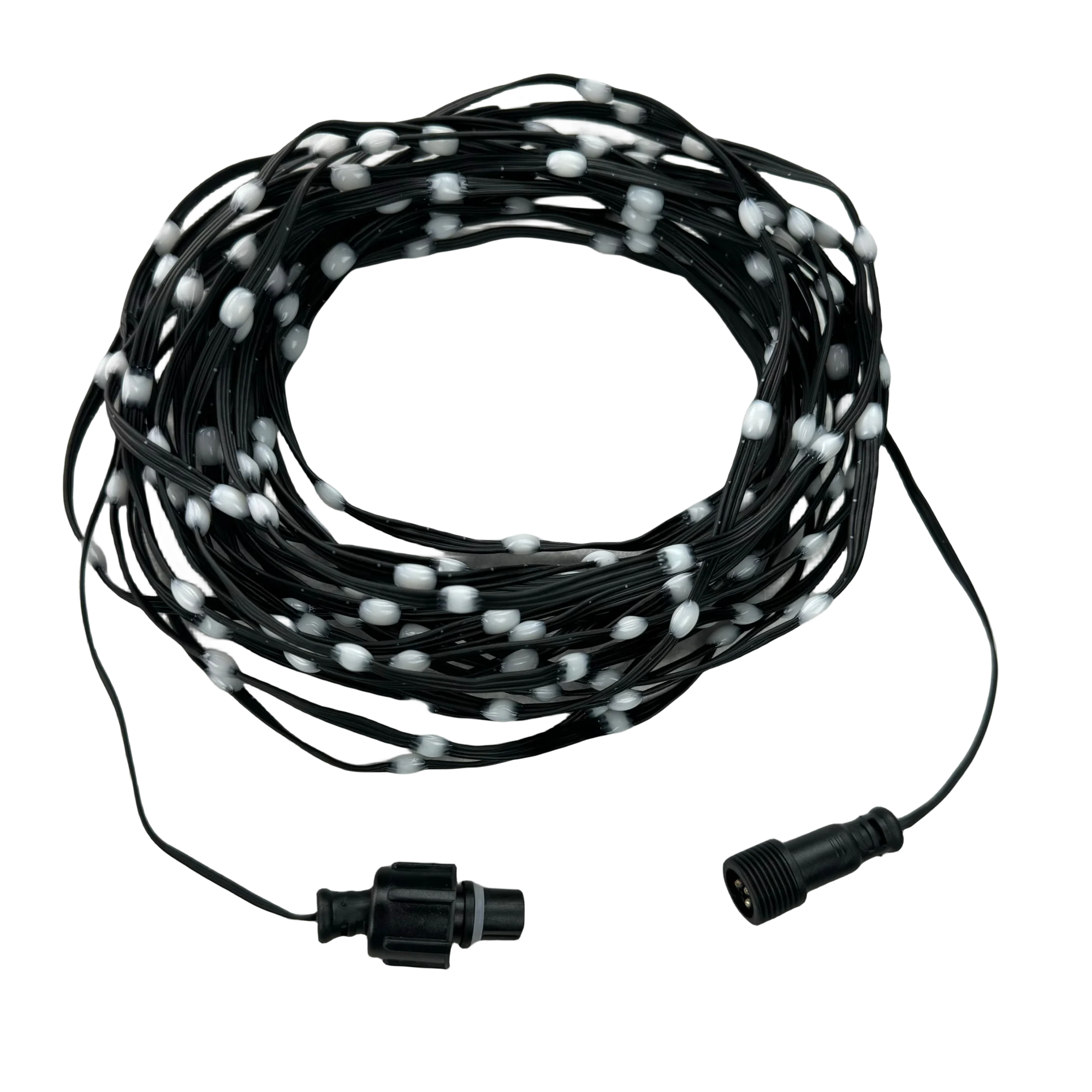

xConnect/13.5mm(ray wu) series green color waterproof male and female connectors at ends

3 core xConnect pigtails

3 core 13.5mm Raywu pigtails

3Pin JST SM connectors:

3PIN JST plug and socket,with 15cm long wire each,20AWG wire;all black wire

input end:                 0.2m long male connector with clear flat wire

output end:               0.2m long female connector with clear flat wire

standard pinout diagram for our pixel lights:

for pigtails:

Brown:- 5/12v +

Yellow: data

Blue: GND

Input end: male connector(screw end with bare pin)

Output end: female connector(with hole)

Recommended Controllers:

APP bluetooth & WIFI/SD card/Artent SPI etc
