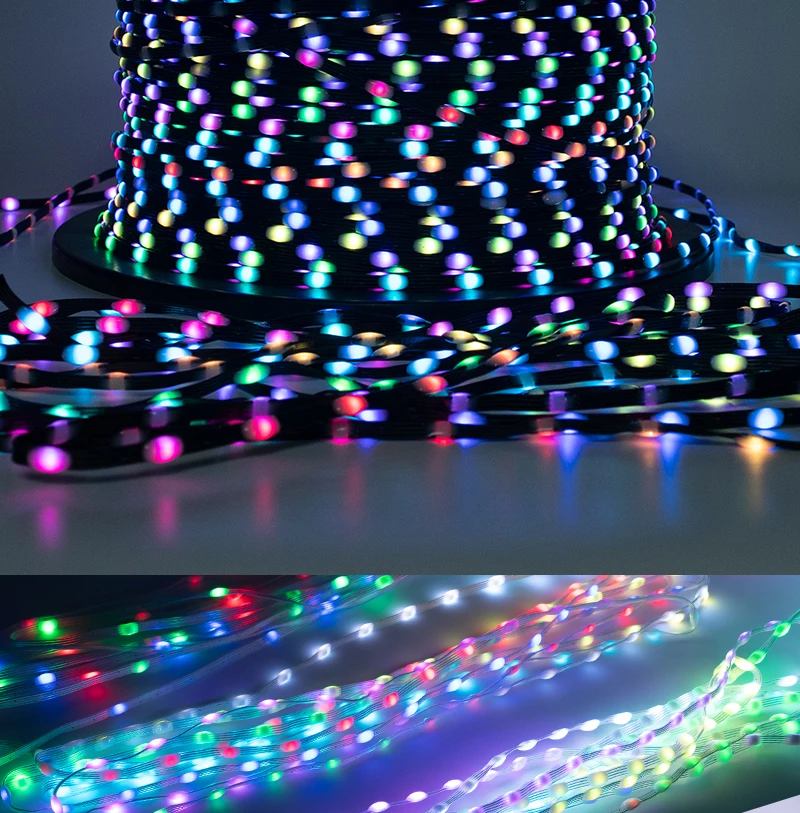

12V 4pin WS2815 Seed Pixel Light 4 Wires with Backup Data Wire Individually Addressable RGB Dreamcolor Christmas Fairy Lights

12V Signal break-point continuous transmission pixel

Dual-Signal(with backup data wire)

Signal break-point continuous transmission. If one pixel is damaged, the following LEDs still work

Attention Please :

The WS2815 LED Lights String Must Use DC12V Power Supply. Otherwise, It will burnt out.

This is the strings with LED on it, not include male/female connectors and controller, power supply…. You should buy these components separately。

Specifications:

Working Input Voltage: DC12V.

Protocol: WS2811

To control WS2815 LED strip, please choose WS2811 on the setting page.

Color Order: RGB

SMD: SMD5232

Output Power: 0.1W/pcs led.

Emitted Color:WS2811 WS2815 RGBIC.

Out R/G/B output current: 8.5mA

Wire: #26AWG, 4PIN wire (VCC+,DATA,Backup DATA,GND)

LED Space: 2cm, 2.5cm,3cm, 5cm, 10cm

Power Injection suggestion:

Warm Tips: Because of voltage drops, ifLED quantity above 200-300LEDs, you can not light it up without power injection, so need to cut them to use

2cm LED space strings: 50LED/meter, 1LED/pixels, suggest to add voltage at every 300 LED

2.5cm LED space strings: 40LED/meter, 1LED/pixels, suggest to add voltage at every 300LED

5cm LED space strings: 20LED/meter, 1LED/pixels, suggest to add voltage at every 200 LED

10cm LED space strings: 10LED/meter, 1LED/pixels, suggest to add voltage at every 200 LED

View Angle: 360 degree.

Long Life: more than 50000 hours.

Working Tempreture: -20~50°.

Waterproof level:IP67 Waterproof

Warranty: 2 Year.

Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

Control mode: SPI serial protocol, compatible with WS2811/1903/16703/mobile APP controller/SD card controller.

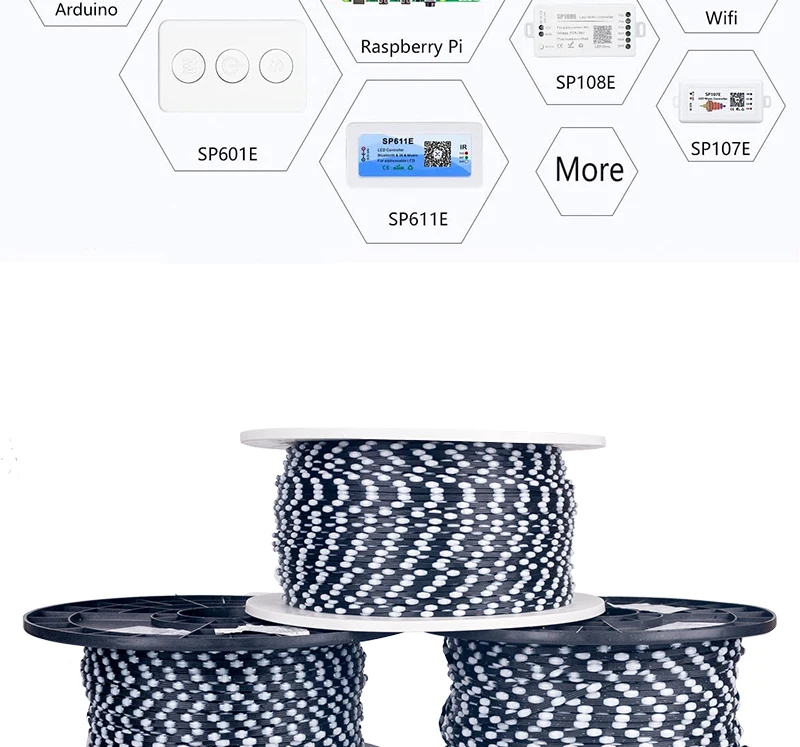

DIY Controllers: Each pixel can have its own color and brightness as your wish. Compatible with Arduino, Raspberry Pi, Teensy, T1000S,K1000C etc programmable controllers. Support SP110E SP105E SP108E SP110E SP601E etc Bluetooth APP IR controllers, CSY07 CSY08 X2 SP106E SP107E SP601E SP608E SP611E etc music bluetooth APP controllers,SP511E SP501E etc smart WiFi Alexa music Controllers.

1.5/2.5cm How to Connect to controller

1.5/2.5cm LED space strings don't have enough wire to connect to controller, you should add a extension cable, we will off you the cable
